LEXUS CT200H (2017 year). Instruction - part 36

571

8-2. Steps to take in an emergency

When trouble

ari

ses

WARNING

■

12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related

parts contain lead and lead compounds. Observe the following precautions when han-

dling the 12-volt battery:

●

When working with the 12-volt battery, always wear safety glasses and take care not

to allow any battery fluids (acid) to come into contact with skin, clothing or the vehicle

body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes into contact with the skin or eyes, immediately

wash the affected area with water and seek medical attention.

Place a wet sponge or cloth over the affected area until medical attention can be

received.

●

Always wash your hands after handling the 12-volt battery support, terminals, and

other battery-related parts.

●

Do not allow children near the 12-volt battery.

■

After recharging the 12-volt battery
Have the 12-volt battery inspected at your Lexus dealer as soon as possible.

If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to

emit a malodorous gas, which may be detrimental to the health of passengers.

■

When replacing the 12-volt battery
P. 494

NOTICE

■

When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in the

cooling fans or belt.

■

To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-volt battery

from another vehicle in an emergency. It cannot be used to jump start another vehicle.

572

8-2. Steps to take in an emergency

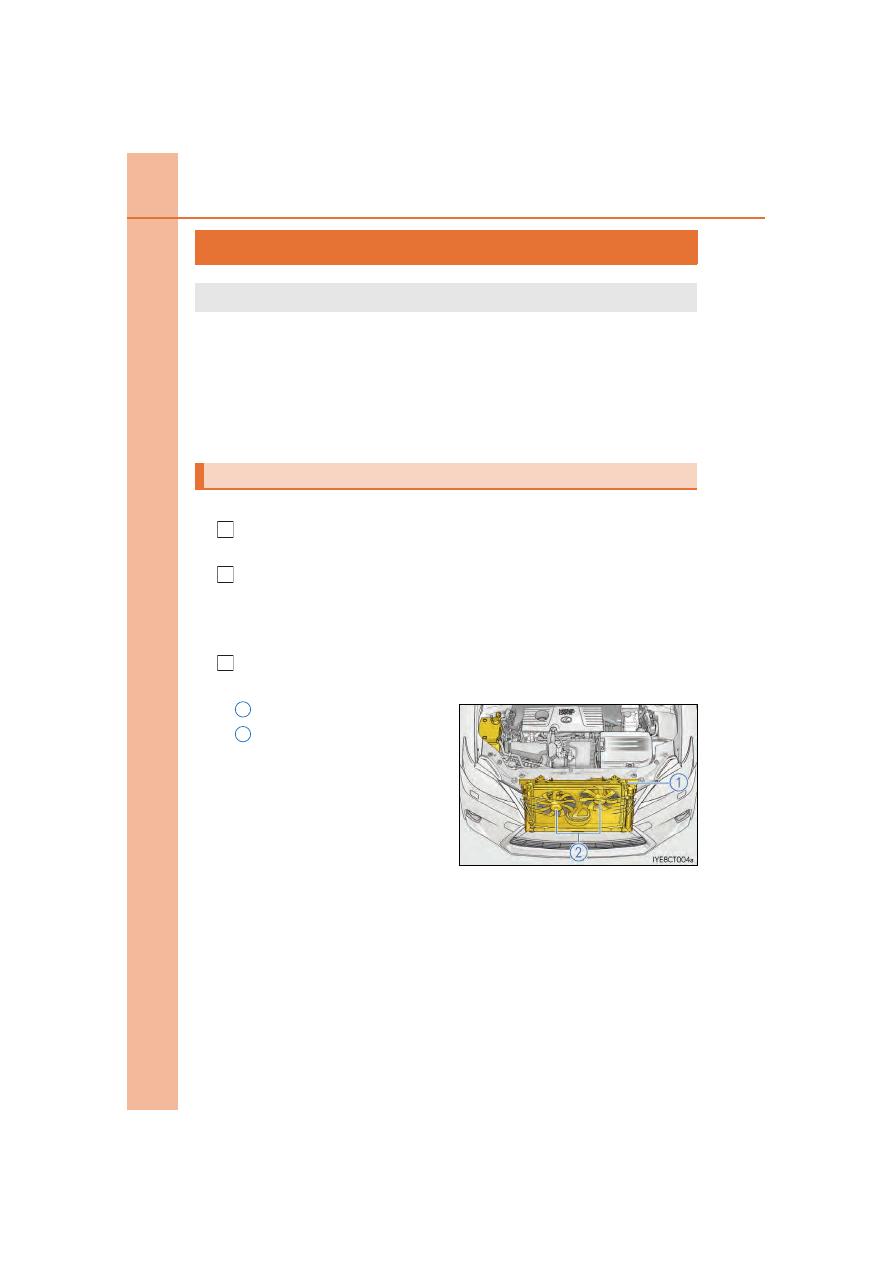

If your vehicle overheats

●

The high coolant temperature warning light (

P. 536) comes on or flashes,

or a loss of hybrid system power is experienced. (For example, the vehicle
speed does not increase.)

●

The warning message indicating overheats is shown on the multi-information
display. (

P. 548)

●

Steam comes out from under the hood.

■

If the high coolant temperature warning light comes on or flashes

Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the hybrid system.
If you see steam:

Carefully lift the hood after the steam subsides.

If you do not see steam:

Carefully lift the hood.

After the hybrid system has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.

Radiator
Cooling fans

If a large amount of coolant leaks,

immediately contact your Lexus

dealer.

The following may indicate that your vehicle is overheating.

Correction procedures

573

8-2. Steps to take in an emergency

When trouble

ari

ses

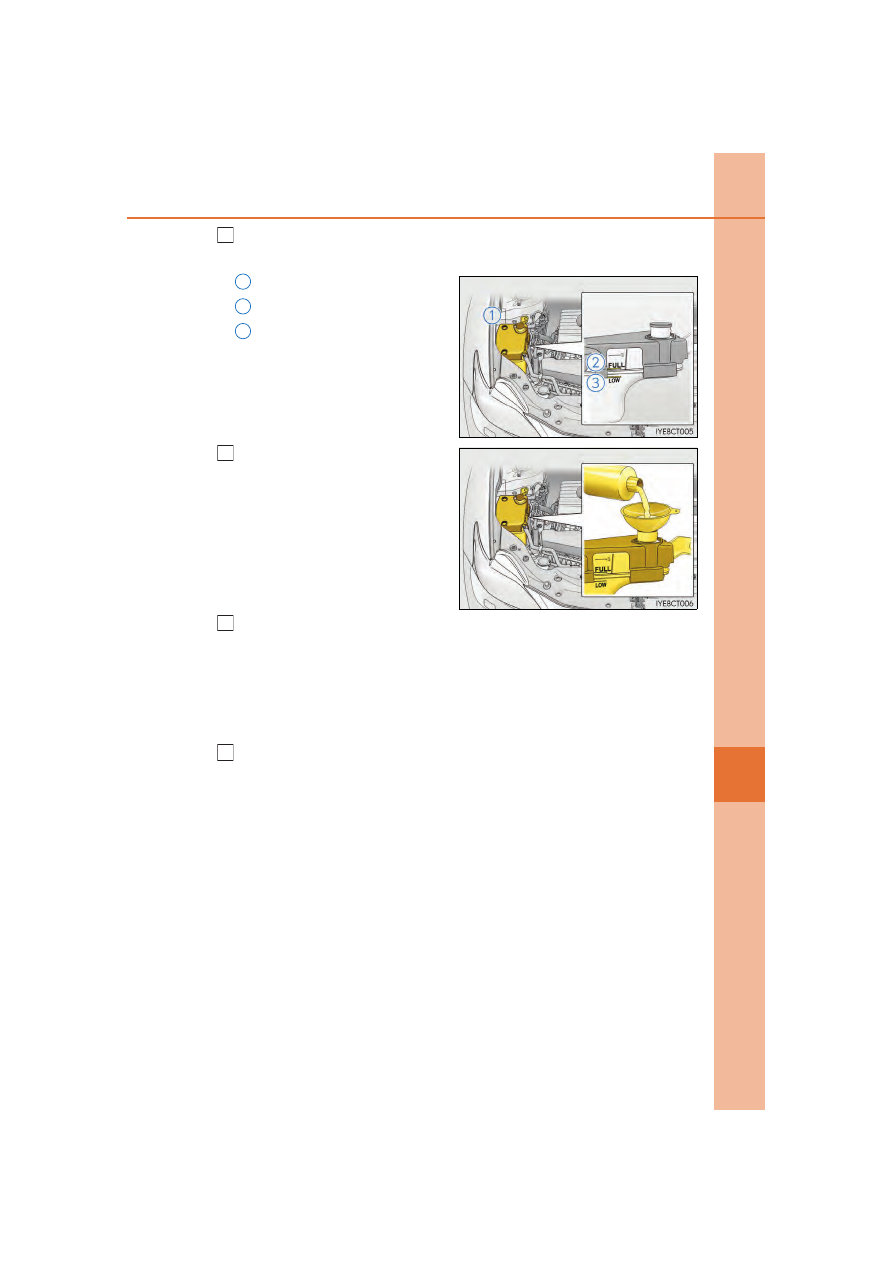

The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.

Reservoir
“FULL” line
“LOW” line

Add coolant if necessary.

Water can be used in an emergency

if coolant is unavailable.

Start the hybrid system and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses.

The fans operate when the air conditioning system is turned on immediately after a

cold start. Confirm that the fans are operating by checking the fan sound and air

flow. If it is difficult to check these, turn the air conditioning system on and off

repeatedly. (The fans may not operate in freezing temperatures.)

If the fans are not operating:

Stop the hybrid system immediately and contact your Lexus dealer.

If the fans are operating:

Have the vehicle inspected at the nearest Lexus dealer.

2
3

574

8-2. Steps to take in an emergency

■

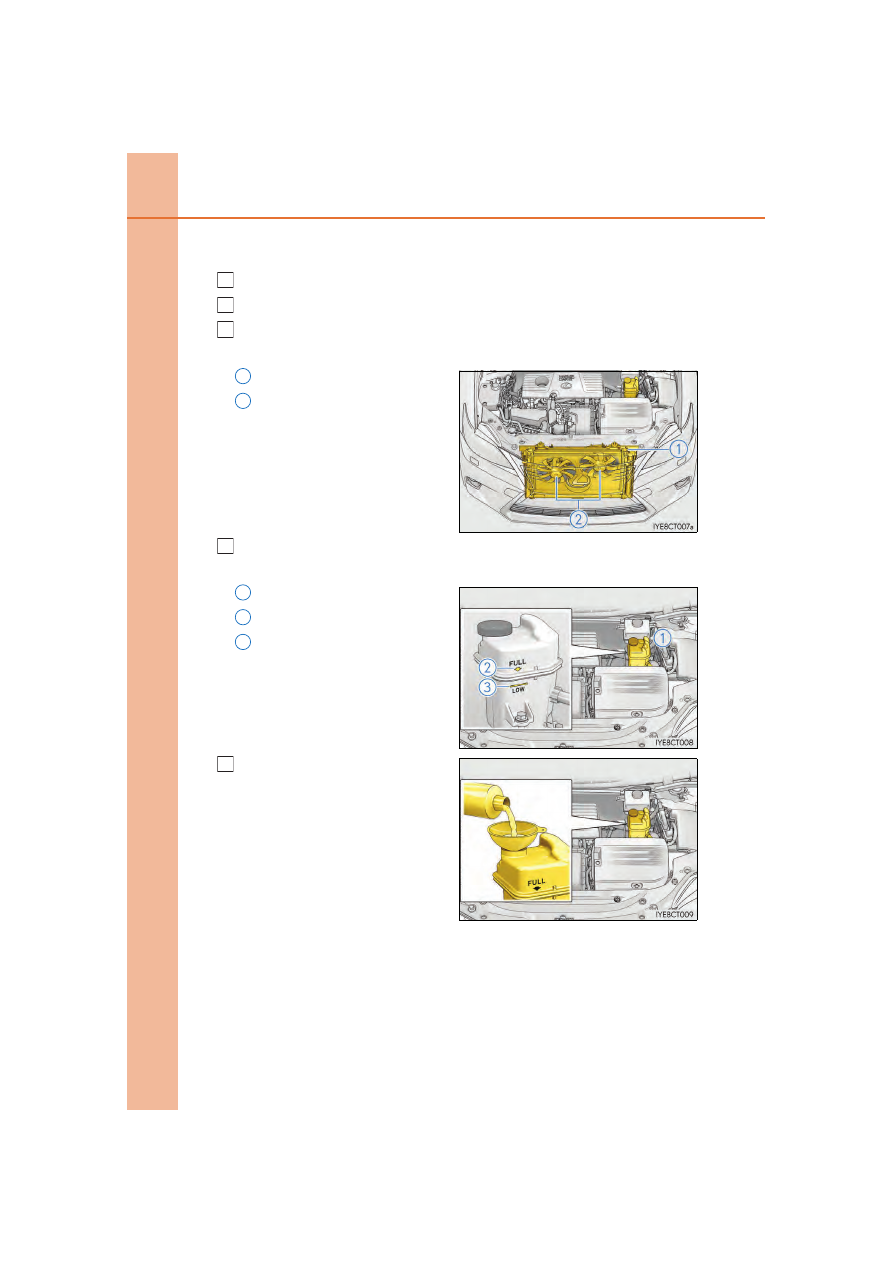

If the warning message indicating overheats is shown on the multi-informa-
tion display

Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radiator
core (radiator) for any leaks.

Radiator
Cooling fans

If a large amount of coolant leaks,

immediately contact your Lexus

dealer.

The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.

Reservoir
“FULL” line
“LOW” line

Add coolant if necessary.

Water can be used in an emergency

if coolant is unavailable.

2
3

575

8-2. Steps to take in an emergency

When trouble

ari

ses

Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.

WARNING

■

When inspecting under the hood of your vehicle
Observe the following precautions.

Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until the steam

has subsided. The engine compartment may be very hot.

●

After the hybrid system has been turned off, check that the indicator on the power

switch and the “READY” indicator are off.

When the hybrid system is operating, the gasoline engine may automatically start, or

the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch

or approach rotating parts such as the fan, which may lead to fingers or clothing

(especially a tie, a scarf or a muffler) getting caught, resulting in serious injury.

●

Do not loosen the coolant reservoir cap while the hybrid system and radiator are hot.

High temperature steam or coolant could spray out.

NOTICE

■

When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool

coolant to a hot hybrid system too quickly can cause damage to the hybrid system.

■

To prevent damage to the cooling system
Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).

●

Do not use any coolant additive.

576

8-2. Steps to take in an emergency

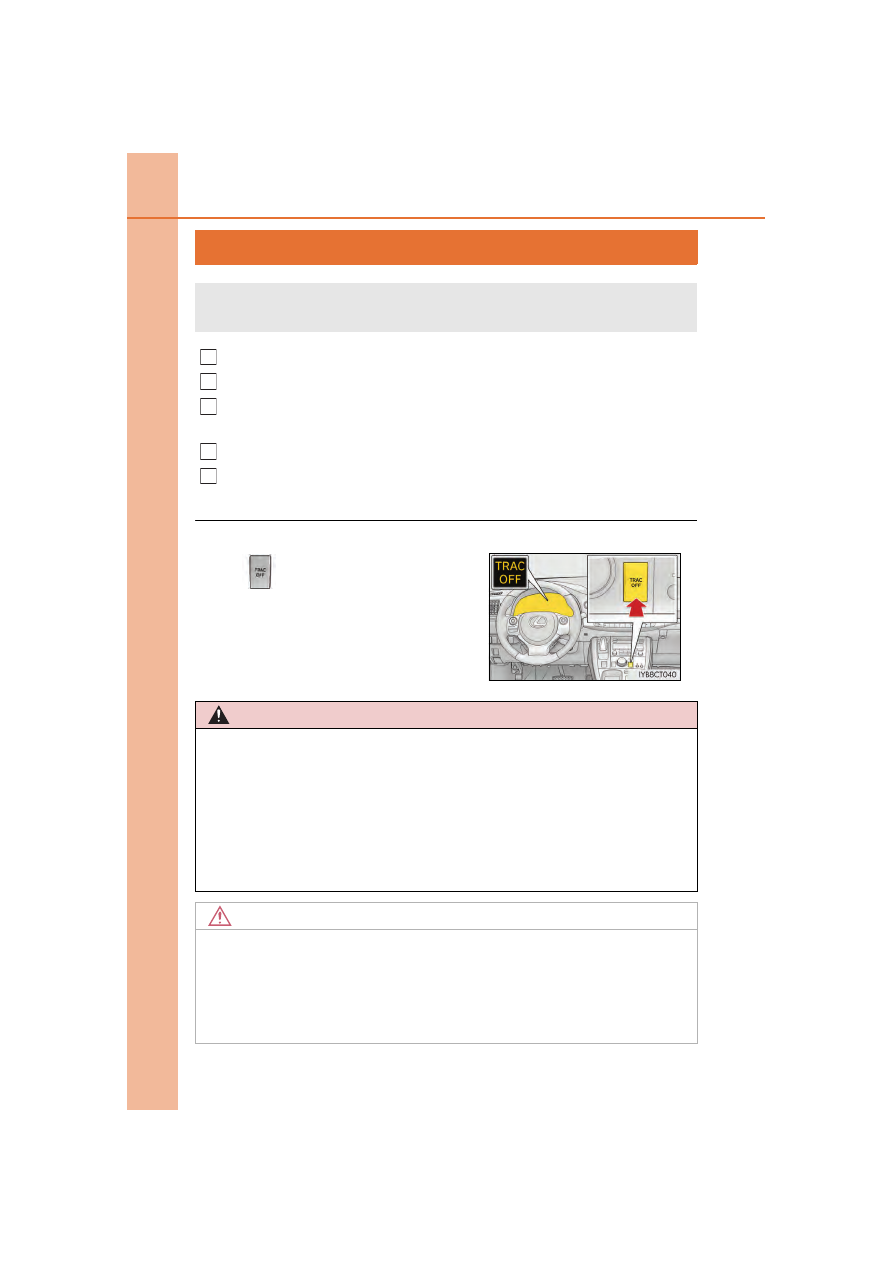

If the vehicle becomes stuck

Set the parking brake and shift the shift position to P. Stop the hybrid system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help provide
traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parking brake and carefully apply
the accelerator to free the vehicle.

■

When it is difficult to free the vehicle

Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:

Press

to turn off TRAC. (

P. 239)

WARNING

■

When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding

area is clear to avoid striking other vehicles, objects or people. The vehicle may also

lunge forward or lunge back suddenly as it becomes free. Use extreme caution.

■

When changing the shift position
Be careful not to change the shift position with the accelerator pedal depressed.

Changing the shift position to any positions other than P or N may cause the vehicle to

accelerate abruptly, causing an accident and resulting in death or serious injury.

NOTICE

■

To avoid damage to the hybrid transmission and other components

●

Avoid spinning the wheels and depressing the accelerator pedal more than neces-

sary.

●

If the vehicle remains stuck even after these procedures are performed, the vehicle

may require towing to be freed.

2
3

4
5

577

Vehicle specifications

9-1. Specifications

Maintenance data

(fuel, oil level, etc.)................... 578

Fuel information..........................586
Tire information.......................... 588

9-2. Customization

Customizable features ............598

9-3. Initialization

Items to initialize.........................606

578

9-1. Specifications

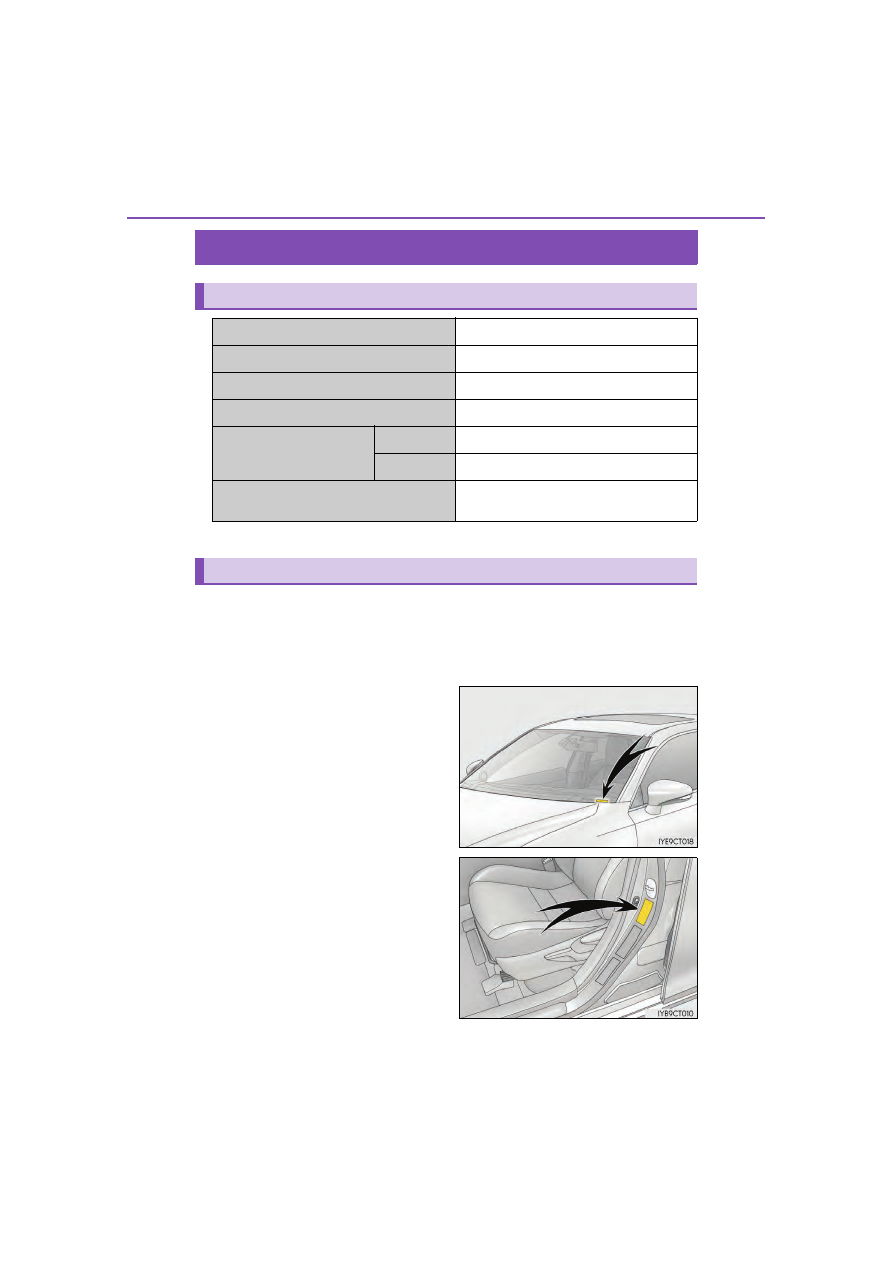

Maintenance data (fuel, oil level, etc.)

: Unladen vehicle

■

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.

This number is also on the Certifica-
tion label.

Dimensions and weight

Overall length

171.3 in. (4350 mm)

Overall width

69.5 in. (1765 mm)

Overall height

57.3 in. (1455 mm)

Wheelbase

102.4 in. (2600 mm)

Tread

Front

60.0 in. (1525 mm)

Rear

59.8 in. (1520 mm)

Vehicle capacity weight

(Occupants + luggage)

825 lb. (370 kg)

Vehicle identification

579

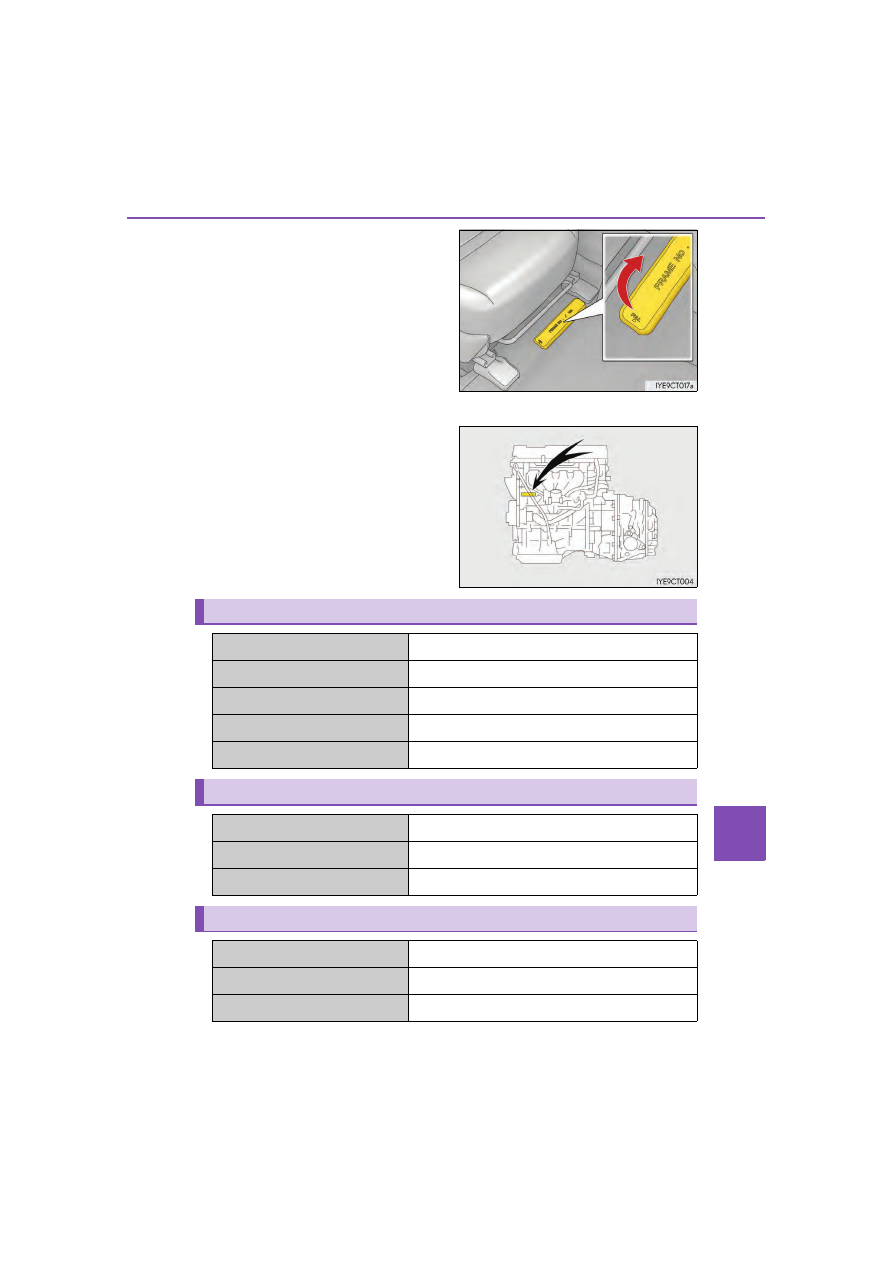

This number is also stamped under
the right-hand front seat.

■

Engine number
The engine number is stamped on
the engine block as shown.

Engine

Model

1.8 L 4-cylinder (2ZR-FXE)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17

 3.48 in. (80.5  88.3 mm)

Displacement

109.7 cu.in. (1798 cm

)

Valve clearance (engine cold)

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or higher

Fuel tank capacity (Reference)

11.9 gal. (45 L, 9.9 Imp.gal.)

Electric motor (traction motor)

Type

Permanent magnet motor

Maximum output

60 kW

Maximum torque

153 ft•lbf (207 N•m, 21.1 kgf•m)

580

9-1. Specifications

: The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.

■

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.

Hybrid battery (traction battery)

Type

Nickel-Metal hydride battery

Voltage

7.2 V/module

Capacity

6.5 Ah (3HR)

Quantity

28 modules

Overall voltage

201.6 V

Lubrication system

Oil capacity

(Drain and refill — reference

)

With filter

Without filter

4.4 qt. (4.2 L, 3.7 Imp.qt.)

4.1 qt. (3.9 L, 3.4 Imp.qt.)

Outside temperature

581

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

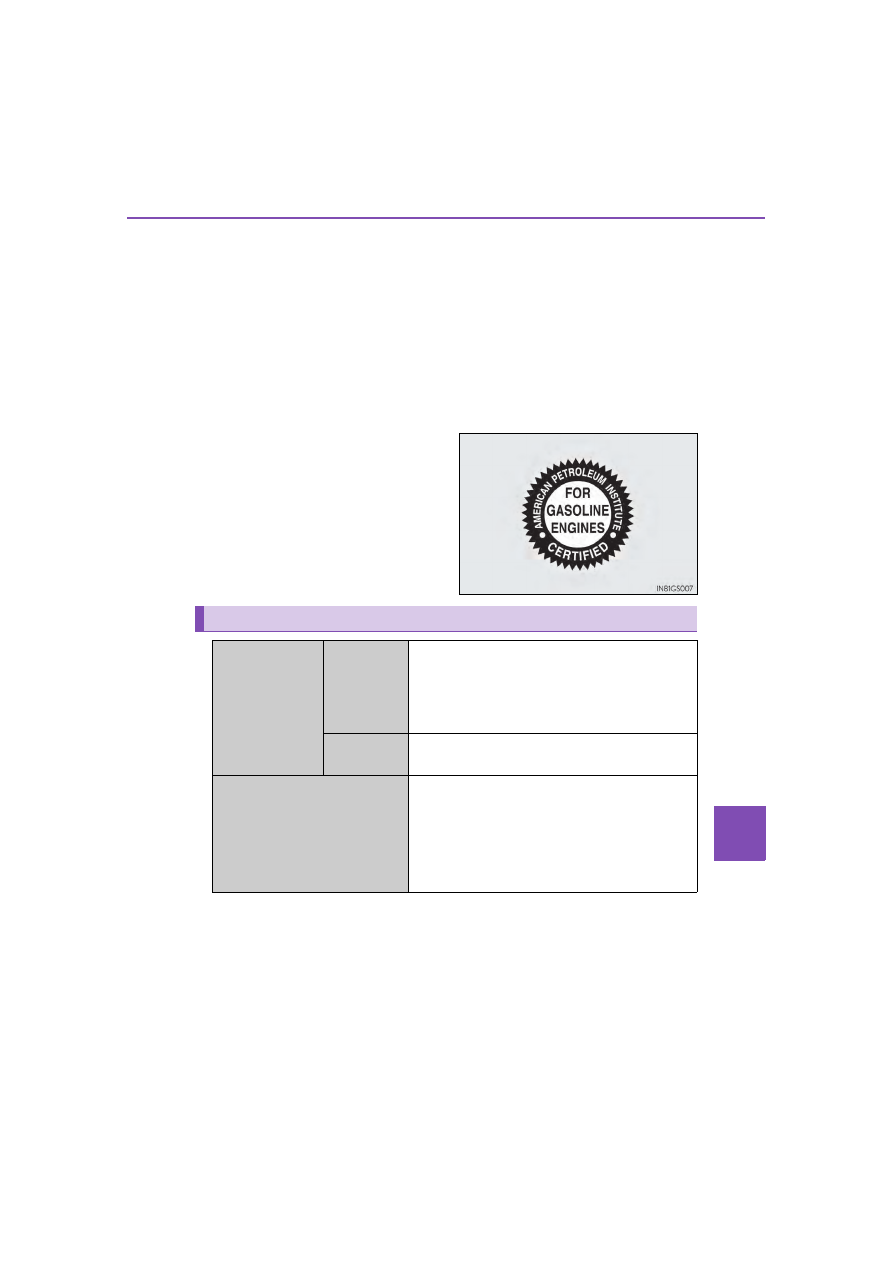

How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.

Cooling system

Capacity

Gasoline

engine



Without exhaust heat recirculator system

6.9 qt. (6.5 L, 5.7 Imp.qt.)



With an exhaust heat recirculator system

7.3 qt. (6.9 L, 6.1 Imp.qt.)

Power

control unit

2.2 qt. (2.1 L, 1.8 Imp.qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”

• Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and non-

borate coolant with long-life hybrid organic

acid technology

Do not use plain water alone.

582

9-1. Specifications

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your Lexus dealer.

Ignition system (spark plug)

Make

DENSO SC20HR11, SC16HR11

Gap

0.043 in. (1.1 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

12-volt battery

Open voltage at 68

F (20C):

12.0 V or higher

If the voltage is lower than the standard value,

charge the battery.

(Voltage is checked 20 minutes after the hybrid

system and all lights are turned off.)

Charging rates

4.2 A max.

Hybrid transmission

Fluid capacity

3.6 qt. (3.4 L, 3.0 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration

in shift quality, locking up of your transmission accompanied by vibration, and ulti-

mately damage the transmission of your vehicle.

583

: Minimum pedal clearance when depressed with a force of 44.1 lbf (196 N, 20.0 kgf)

while the hybrid system is operating.

: Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N, 30.6 kgf).



Type A

Brakes

Pedal clearance



Without an aluminum pedal

3.03 in. (77mm) Min.



With an aluminum pedal

3.11 in. (79 mm) Min.

Pedal free play

0.04 — 0.24 in. (1.0 — 6.0 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit

0.04 in. (1.0 mm)

Parking brake pedal travel

8 —

11 clicks

Fluid type

FMVSS No. 116 DOT 3 or SAE J1703

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

205/55R16 91V, T125/70D17 98M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front: 32 psi (220 kPa, 2.2 kgf/cm

or bar)

Rear: 32 psi (220 kPa, 2.2 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

 6 J, 17  4 T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

584

9-1. Specifications



Type B



Type C

Tire size

P205/55R16 89H, T125/70D17 98M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front: 32 psi (220 kPa, 2.2 kgf/cm

or bar)

Rear: 32 psi (220 kPa, 2.2 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

 6 J, 17  4 T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

P215/45R17 87V, T125/70D17 98M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear: 32 psi (220 kPa, 2.2 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

 7 J, 17  4 T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

585

Light bulbs

Bulb No.

Type

Exterior

Headlights

Low beam (halogen bulbs)

High beam



Fog lights (halogen bulbs)



Front turn signal lights

7444NA

28/8

Rear turn signal lights

WY21W

Back-up lights

W16W

Outer foot lights

W5W

Interior

Personal/interior lights



Rear interior lights



Vanity lights



Luggage compartment light



A: H11 halogen bulbs

B: H9 halogen bulbs

C: H16 halogen bulbs

D: Wedge base bulbs (amber)

E: Wedge base bulbs (clear)

F: Double end bulbs

: If equipped

586

9-1. Specifications

Fuel information

■

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are

using. If driveability problems persist, try changing the brand of gasoline. If this does not

correct the problem, consult your Lexus dealer.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knocking for a short time while accelerating or driv-

ing uphill. This is normal and there is no need for concern.

■

Gasoline quality standards

●

Automotive manufacturers in the U.S.A., Europe and Japan have developed a specifi-

cation for fuel quality called the World-Wide Fuel Charter (WWFC), which is expected

to be applied worldwide.

●

The WWFC consists of four categories that are based on required emission levels. In

the U.S., category 4 has been adopted.

●

The WWFC improves air quality by lowering emissions in vehicle fleets, and improves

customer satisfaction through better performance.

■

Recommendation of the use of gasoline containing detergent additives

●

Lexus recommends the use of gasoline that contains detergent additives to avoid the

build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or

keep clean intake systems, per EPA’s lowest additives concentration program.

●

Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-

tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official

website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated

gasolines, are available in some cities. These fuels are typically acceptable for use, pro-

viding they meet other fuel requirements.
Lexus recommends these fuels, since the formulations allow for reduced vehicle emis-

sions.

You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use of
unleaded gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.

At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..

Content .. 34 35 36 37 ..
