LEXUS CT200H (2017 year). Instruction - part 25

Audio system

■

Bluetooth

antenna

The antenna is built into the display.

If the portable audio player or cellular phone is behind the seat or in the glove box or

console box, or is touching or covered by metal objects, the connection status may dete-

riorate.

■

Battery charge/signal status

●

This display may not correspond exactly with the portable audio player or cellular

phone itself.

●

This system does not have a charging function.

●

The portable audio player or cellular phone battery will be depleted quickly when the

device is connected to Bluetooth

■

When using the Bluetooth

audio and hands-free system at the same time

The following problems may occur.

●

The Bluetooth

audio connection may be interrupted.

●

Noise may be heard during Bluetooth

audio playback.

■

About the contact in this system
The following data is stored for every registered cellular phone. When another phone is

connecting, you cannot read the registered data.

●

Contact data

●

Call history

●

Favorite

●

Message

When removing a Bluetooth

phone from the system, the above-mentioned data is also

deleted.

■

About Bluetooth

The Bluetooth

word mark and logos are regis-

tered trademarks owned by Bluetooth SIG, Inc.

and any use of such marks by PIONEER

CORPORATION is under license. Other

trademarks and trade names are those of their

respective owners.

396

■

Compatible models
The Bluetooth

audio system supports portable audio players with the following specifi-

cations

●

Bluetooth

specifications:

Ver. 2.0 or higher (Recommended: Ver. 3.0 +EDR or higher)

●

Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher

(Recommended: Ver. 1.2 or higher)

This is a profile to transmit stereo audio or high quality sound to the audio system.

• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher

(Recommended: Ver. 1.4 or higher)

This is a profile to allow remote control the A/V equipment.

However, please note that some functions may be limited depending on the type of por-

table audio player connected.
The hands-free system supports cellular phones with the following specifications.

●

Bluetooth

specification:

Ver. 2.0 or higher (Recommended: Ver. 3.0 +EDR or higher)

●

Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.6 or higher)

This is a profile to allow hands-free phone calls using a cellular phone or head set. It

has outgoing and incoming call functions.

• OPP (Object Push Profile) Ver. 1.1 or higher (Recommended: Ver. 1.2)

This is a profile to transfer phonebook data. When a Bluetooth

compatible cellular

phone has both PBAP and OPP, OPP cannot be used.

• PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Recommended: Ver. 1.1)

This is a profile to transfer phonebook data.

• MAP (Message Access Profile) Ver.1.0 or higher

This is a profile to using phone message.

If the cellular phone does not support HFP, you cannot register it with the hands-free sys-

tem. OPP, PBAP or MAP services must be selected individually.

■

Reconnecting the portable audio player
If the portable audio player is disconnected due to poor reception when the power

switch is in ACCESSORY or ON mode, the system automatically reconnects the porta-

ble audio player.
If you have switched off the portable audio player yourself, follow the instructions below

to reconnect:

●

Select the portable audio player again

●

Enter the portable audio player

■

When you sell your car
Be sure to delete your personal data. (

P. 335)

397

Audio system

■

Certification
FCC ID:AJDK074
IC:775E-K074
NOTE:
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt

RSS standard(s). Operation is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any interference, including inter-

ference that may cause undesired operation of this device.
Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR

d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est

autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage,

et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si

le brouillage est susceptible d’en compromettre le fonctionnement.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.
CAUTION:
This equipment complies with FCC/IC radiation exposure limits set forth for an uncon-

trolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and

RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be

installed and operated keeping the radiator at least 20cm or more away from person’s

body.
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées

pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de

la FCC lignes directrices d’exposition et d’exposition aux fréquences radioélectriques

(RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une

distance de 20 cm ou plus entre le dispositif rayonnant et le corps.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.
Under Industry Canada regulations, this radio transmitter may only operate using an

antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry

Canada. To reduce potential radio interference to other users, the antenna type and its

gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not

more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut

fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé

pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage

radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son

gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas

l’intensité nécessaire à l’établissement d’une communication satisfaisante.

398

WARNING

■

While driving
Do not operate the portable audio player, cellular phone or connect a device to the

Bluetooth

system.

■

Caution regarding interference with electronic devices

●

Your audio unit is fitted with Bluetooth

antennas. People with implantable cardiac

pacemakers, cardiac resynchronization therapy-pacemakers or implantable cardio-

verter defibrillators should maintain a reasonable distance between themselves and

the Bluetooth

antennas. The radio waves may affect the operation of such devices.

●

Before using Bluetooth

devices, users of any electrical medical device other than

implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or

implantable cardioverter defibrillators should consult the manufacturer of the device

for information about its operation under the influence of radio waves. Radio waves

could have unexpected effects on the operation of such medical devices.

NOTICE

■

When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The inside of

the vehicle may become hot, causing damage to the portable audio player or cellular

phone.

399

Audio system

“Information” screen

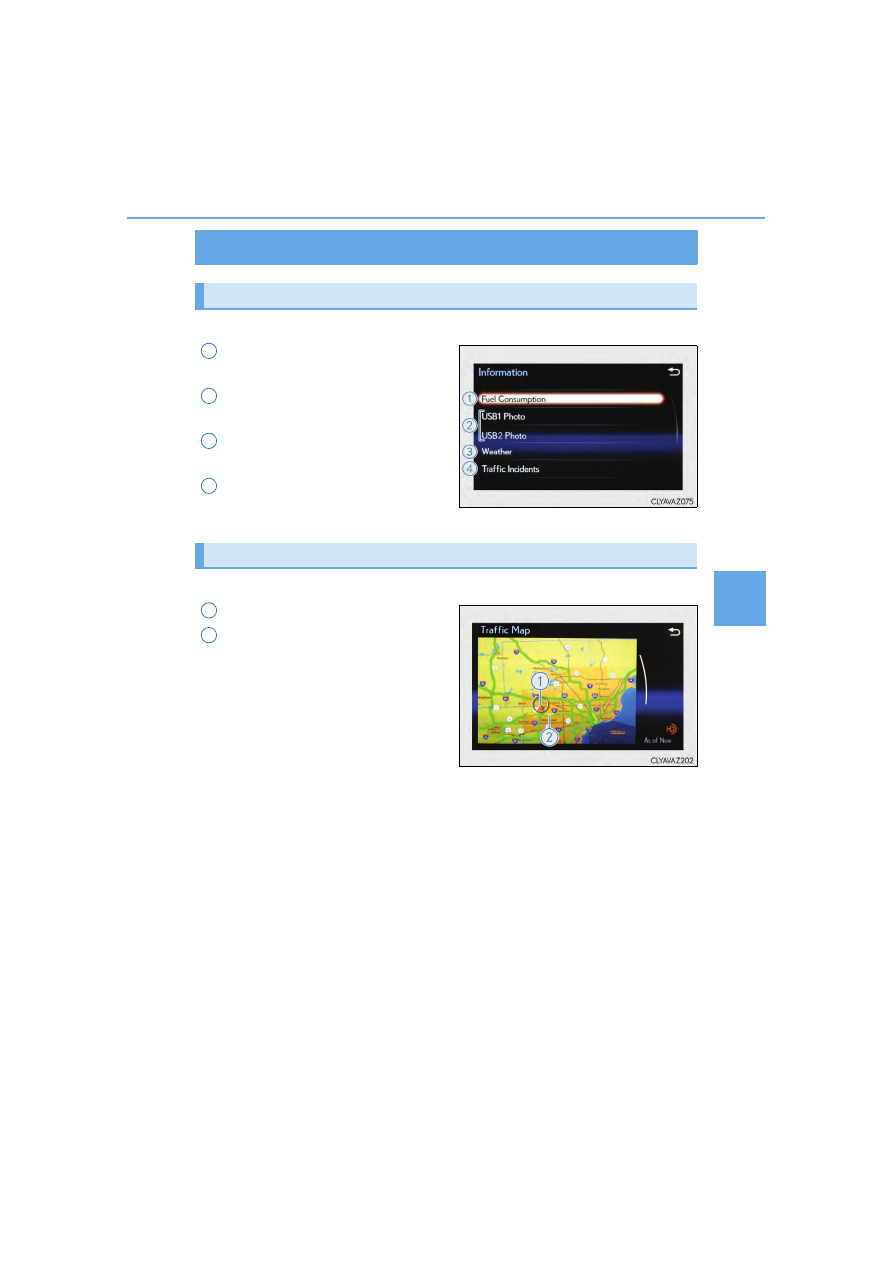

Go to “Information”: “MENU” button

 “Info”

Display the fuel consumption.
(

P. 97)

Display the “USB Photo” screen.
(

P. 401)

Display the weather information.
(

P. 403)

Display the Traffic Map picture.

Available when in a traffic supported

HD Radio coverage area

Go to “Traffic Map”: “MENU” button

 “Info”“Traffic Incidents”

Current position of your car
Traffic information line

The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Free flowing traffic

Display “Information” screen

Traffic information map

400

■

Certification for U.S. owners

401

Audio system

USB photo

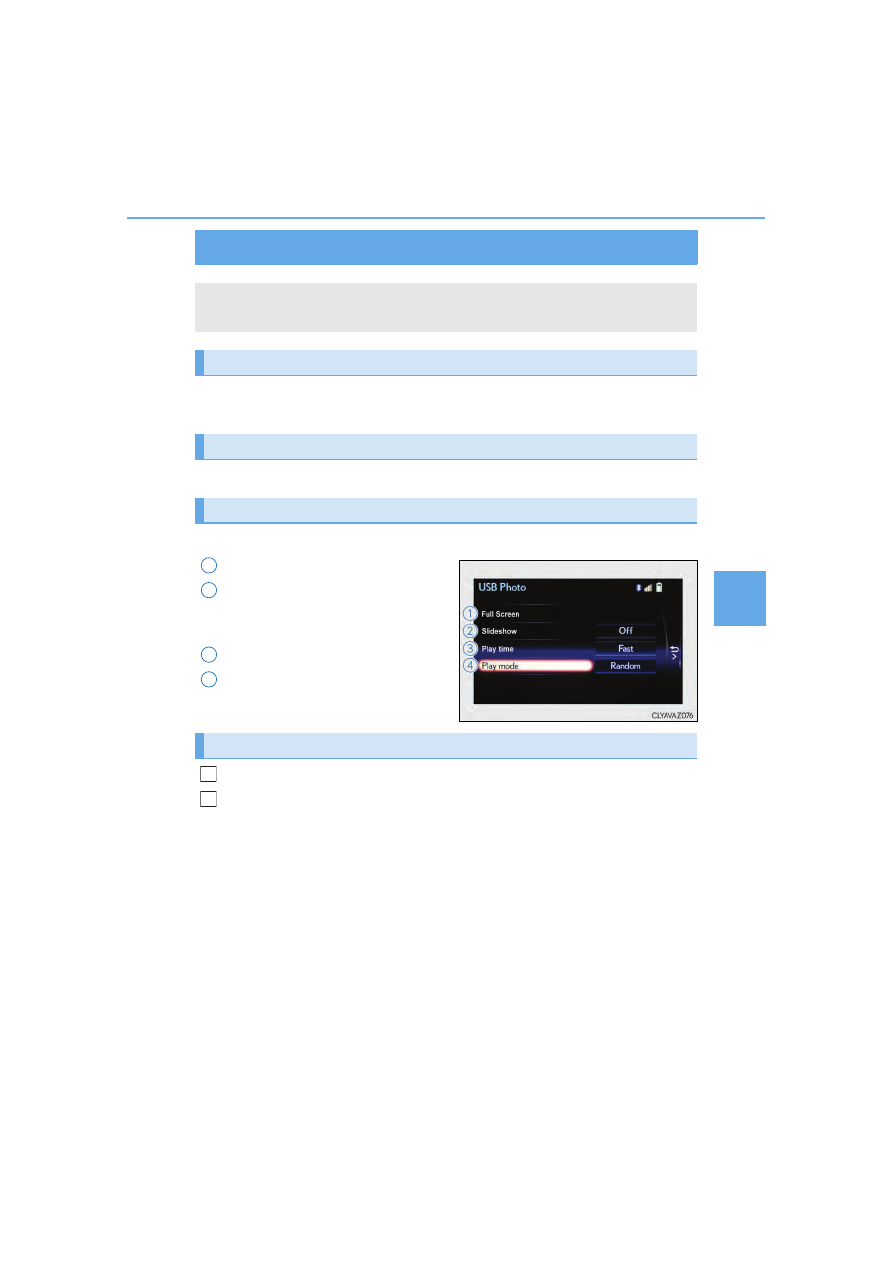

Go to “USB Photo”: “MENU” button

 “Info”  “USB1 Photo” or “USB2

Photo”

P. 330

Move the controller to the left to display the menu screen.

Change the full screen mode.
Select to set the slide show display
on/off.

Start the slide show at a selected folder.

Change the play speed.
Change the play mode.

Move the controller to the right and select “Browse”.
Select the desired folder, and then select a desired file to begin using the
selected folder.

Connecting a USB memory device enables you to enjoy photos on the Lexus
Display Audio display.

USB photo screen

Connecting a USB memory device

Menu screen

3
4

Selecting a folder and a file

402

■

USB memory functions
P. 361

■

USB memory

●

Compatible devices
USB memory device that can be used for JPEG display.

●

Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)

• File system format: FAT16/32 (Windows)

• Correspondence class: Mass storage class

●

JPEG file compatibility
• Compatible image size: Maximum 10MB

• Compatible pixel size: Maximum 10,000,000 pixels

NOTICE

■

To prevent damage to the USB memory device or its terminals
P. 363

403

Audio system

Weather information

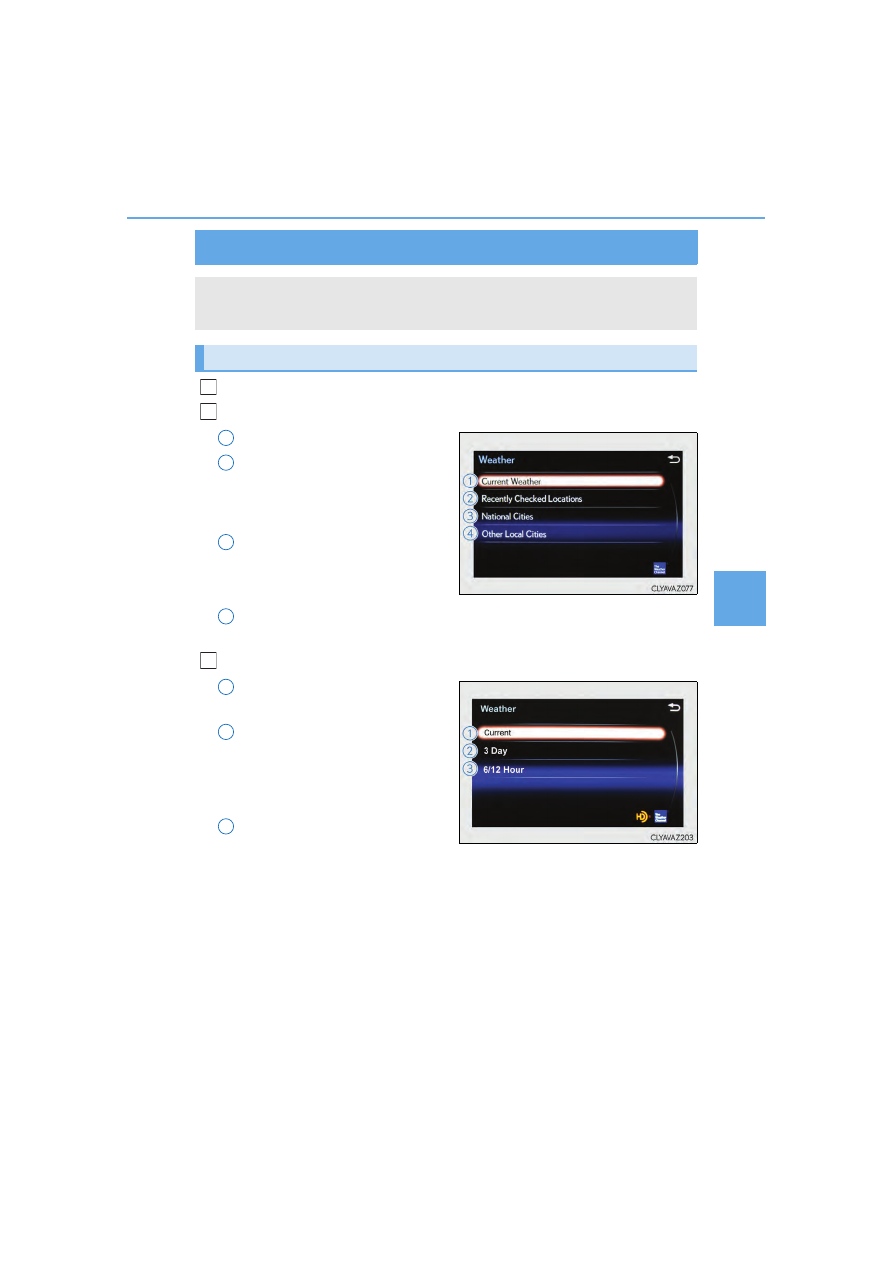

Go to “Weather”: “MENU” button

 “Info”  “Weather”

Select the desired city/location.

Current location of your car
Select of the recently checked
location list

Select the desired location on the

recently checked location list.

Select of the National City list.

Select the region on the region list

and then select the city on the

National City list.

Select of the local location list

Select the location on the local location list.

Select the time

Display the current weather infor-
mation.
Display the 3 days weather infor-
mation.

You can display detail of a week,

move the controller right and then

select the desired week.

Display the 6/12 hour weather
information.

Weather information for the selected city is displayed.
Available when in weather supported HD Radio coverage area

How to check the weather information

404

Voice command system

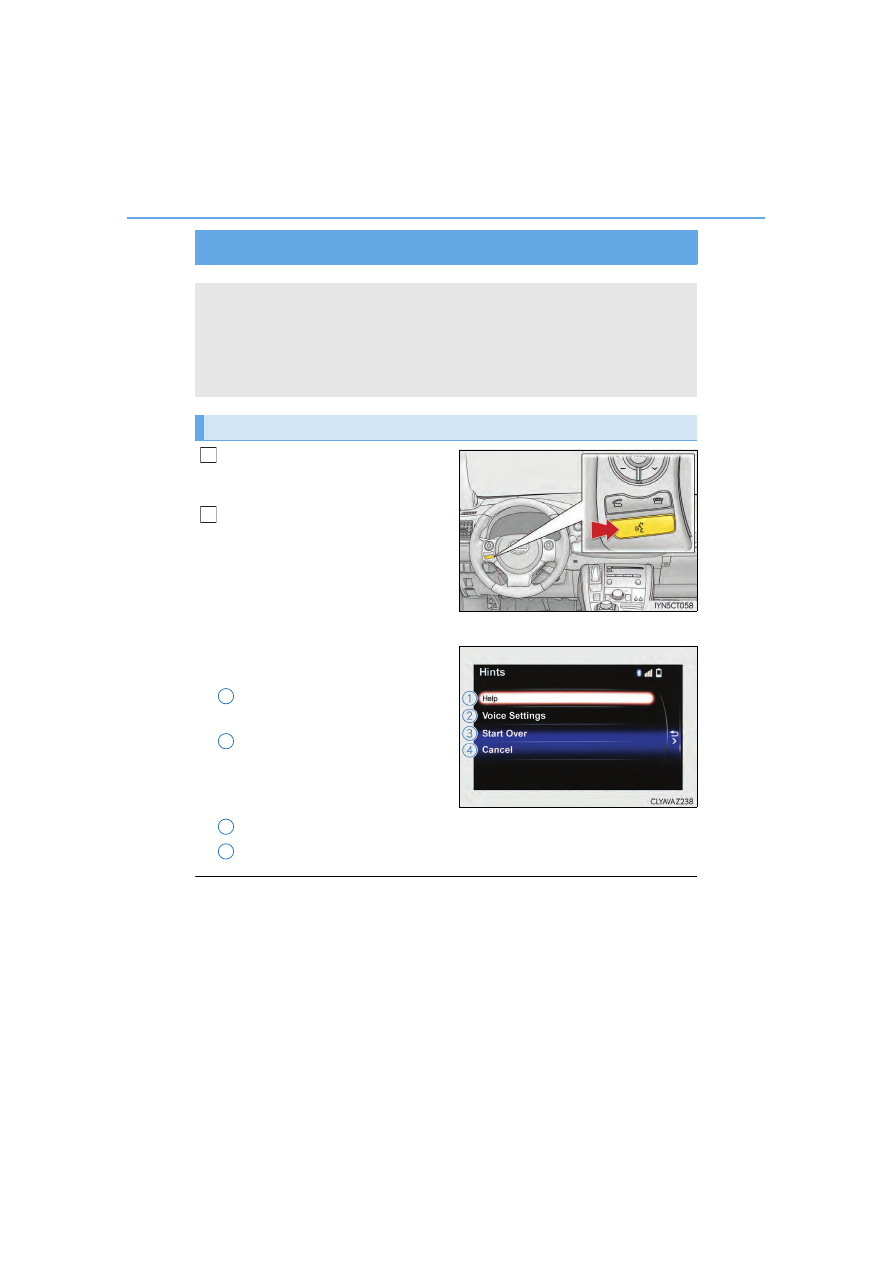

Press the talk switch.

To cancel the voice command system,

press and hold the talk switch.

After a beep sounds, say the desired
command.

On the list screen, you can select the

desired command.

■

Menu screen
To display the menu screen, move
the controller to the left.

Offer examples of commands
and operation methods
Adjust the settings for voice guid-
ance volume and voice recogni-
tion prompts. (“Hints” screen)
(

P. 336)

Start over voice recognition (except “Hints” screen)
Cancel voice recognition

■

Microphone
P. 376

■

When using the microphone

●

It is unnecessary to speak directly into the microphone when giving a command.

●

Wait for the confirmation beep before speaking a command.

The voice command system enables the audio and hands-free systems to be
operated using voice commands.
Operations of the voice command system can be performed by selecting the
menu corresponding to each function on the right part of the screen. Even if
any menu is selected, commands displayed on all menus can be operated.

Using the voice command system

3
4

405

Audio system

●

Voice commands may not be recognized if:
• Spoken too quickly.

• Spoken at a low or high volume.

• The roof or windows are open.

• Passengers are talking while voice commands are spoken.

• The air conditioning speed is set high.

• The air conditioning vents are turned towards the microphone.

●

In the following conditions, the system may not recognize the command properly and

using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or speech

patterns may be difficult for the system to recognize.

• There is excessive background noise, such as wind noise.

■

When searching for a track

●

A USB memory or iPod must be connected to enable track searching and playback.

(

P. 330)

●

When a USB memory or iPod is connected, recognition data is created so tracks can

be searched using voice commands.

●

Recognition data is updated under the following conditions:
• When the USB memory or iPod data has changed.

• When the voice recognition language is changed. (

P. 333)

●

While the recognition data is being created or being updated, a track search cannot be

performed using a voice command.

■

The Gracenote

media database

P. 355

Due to natural language speech recognition technology, this system enables rec-
ognition of a command when spoken naturally. However, the system cannot rec-
ognize every variation of each command.
In some situations, it is possible to omit the command for the procedure and
directly state the desired operation.
This function is available in English, Spanish and French.

Casual speech recognition

406

■

Expression examples for each function

: Say the desired artist name or album name in the place of the “<>”.

Some recognizable voice commands and their actions are shown below as
examples.



Basic



Phone

Command

Expression examples

“Call <name> <type>”

Get me <Robert Brown>.

I need to call <Robert Brown> at <Work> right away.

“Dial <number>”

Please dial the number <3334445555>.

Ring <3334445555>.

“Play Artist <name>”

Play the artist <XXXXX>.

I’d like to hear the band <XXXXX>.

“Play Album <name>”

Play album <XXXXX>.

Music from album <XXXXX>.

Command list

Command

Action

“Help”

Prompts voice guidance to offer examples of com-

mands or operation methods

“Go Back”

Returns to the previous screen

“Go to <tab>”

Displays the command list of the selected tab

Command

Action

“Redial”

Places a call to the phone number of the latest outgo-

ing call

“Call Back”

Places a call to the phone number of latest incoming

call

“Show Recent Calls”

Displays the call history screen

“Dial <phone number>”

Places a call to the said phone number

“Call <contacts>

<phone types>”

Place a call to the said phone type of the contact from

the phone book

407

Audio system



Audio



Info

Command

Action

“Play Playlist <playlists>”

Plays tracks from the selected playlist

“Play Artist <artist>”

Plays tracks from the selected artist

“Play Song <songs>”

Plays the selected track

“Play Album <albums>”

Plays tracks from the selected album

“Turn Music On/Off”

Turns the audio system on/off

“Play the <audio sources>”

Selects audio source

Command

Action

“Show Forecast”

Displays weather information

“Show Traffic”

Displays traffic information

408

Mobile Assistant

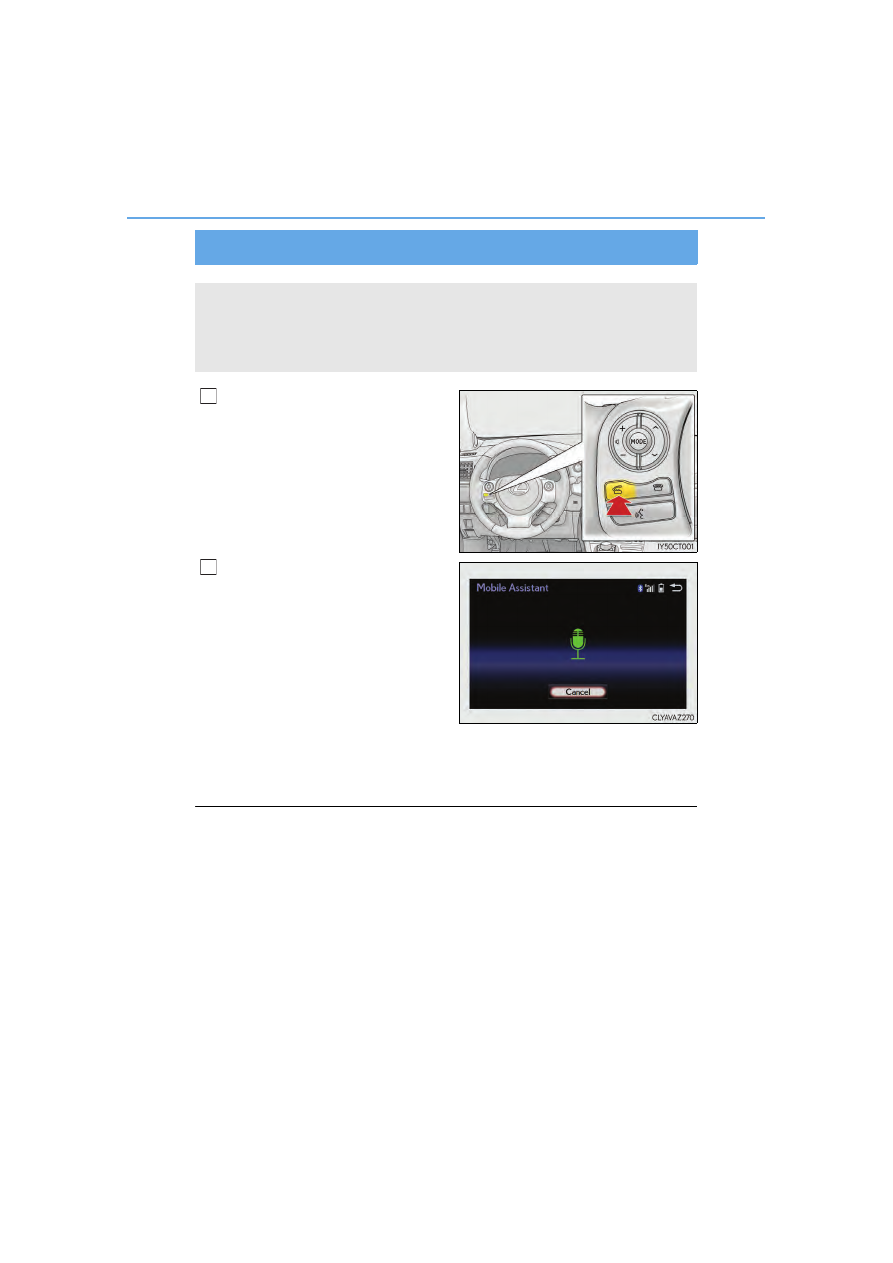

Press and hold the off hook switch
until you hear the beeps that indicate
the system is listening.

The Mobile Assistant can be used
only when the neighboring screen is
displayed.

To cancel the Mobile Assistant, select

“Cancel”, or press and hold the off hook

switch.
To restart the Mobile Assistant for addi-

tional commands, press the off hook

switch. Mobile Assistant can only be

restarted after the system responds to a

voice command. After some phone and

music commands, the Mobile Assistant

feature will automatically end to com-

plete the requested action.

■

Adjusting the volume
The volume of the Mobile Assistant can be adjusted using the “PWR•VOL” knob or

steering wheel volume switches. The Mobile Assistant and phone call volumes are syn-

chronized.

The Mobile Assistant feature on this system allows the activation of Apple’s
Siri

Eyes Free mode via the steering wheel switches. To operate the Mobile

Assistant, a compatible cellular phone must be registered and connected to
this system via Bluetooth

. (

P. 365)

409

Audio system

■

Microphone

●

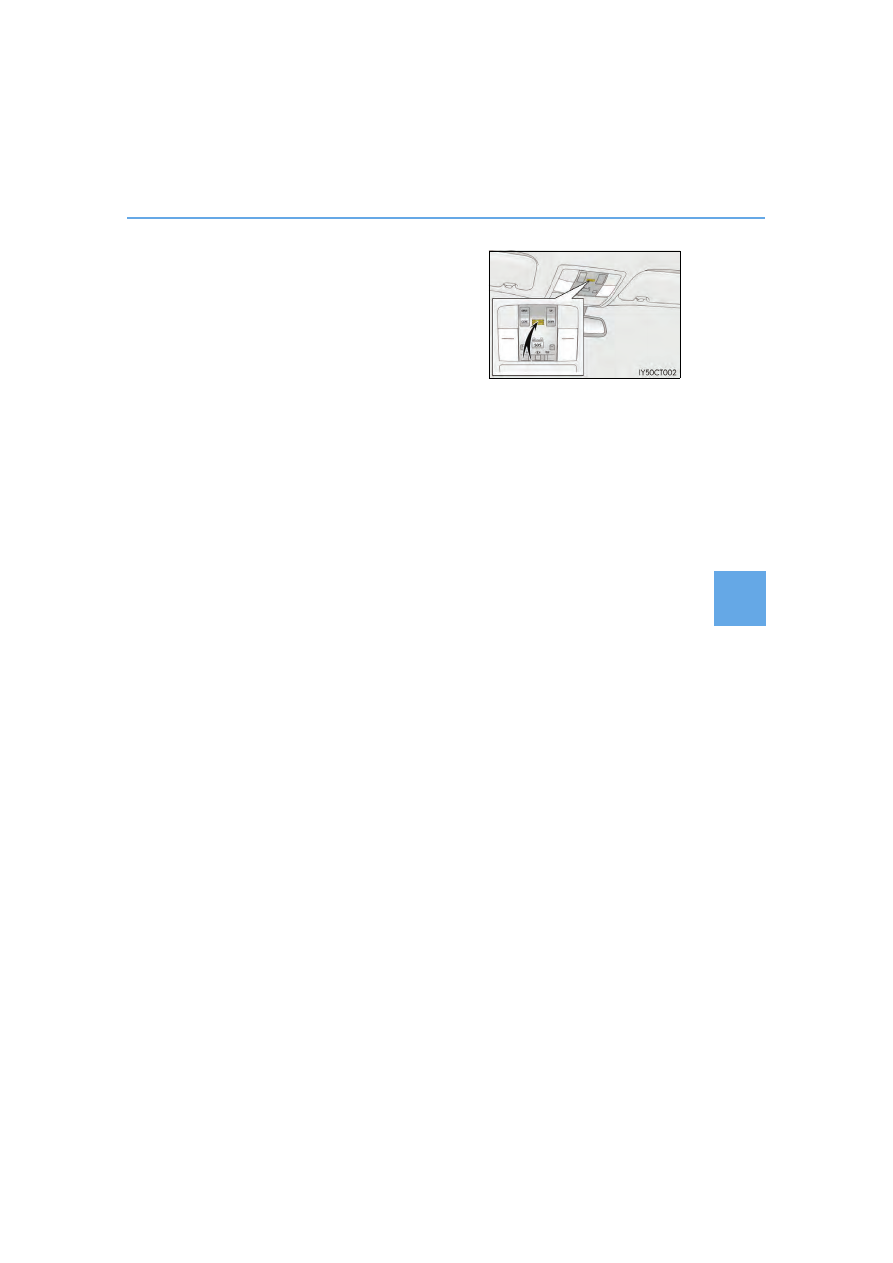

Wait for the listening beeps before using the Mobile Assistant.

●

The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.

• When spoken at a low or high volume.

• When the roof or windows are open.

• When passengers are talking while the Mobile Assistant is being used.

• When the air conditioning system’s fan speed is set high.

• When the air conditioning vents are turned toward the microphone.

■

Mobile Assistant precautions

●

The available features and functions may vary based on the iOS version installed on the

connected device.

●

Some Siri features are limited in Eyes Free mode. If you attempt to use an unavailable

function, Siri will inform you that the function is not available.

●

If Siri is not enabled on the cellular phone connected via Bluetooth

, an error message

will be displayed on the screen.

●

While a phone call is active, the Mobile Assistant cannot be used.

●

If using the navigation feature of the cellular phone, ensure the active audio source is

Bluetooth

audio or iPod in order to hear turn by turn direction prompts.

It is not necessary to speak directly into the

microphone when using the Mobile Assistant.

410
