Setup menu

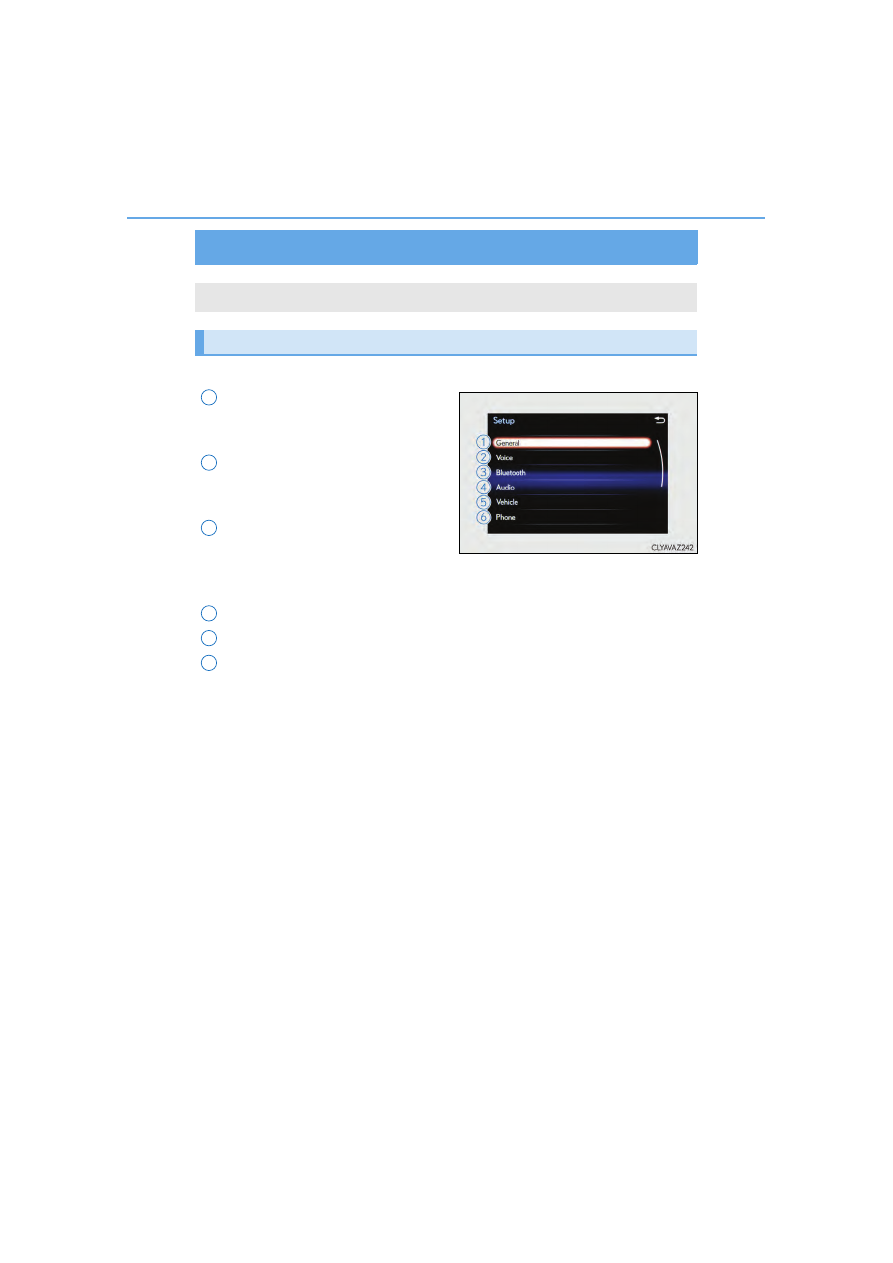

“Setup” screen: “MENU” button

“Setup”

Change the settings for operation
sounds, screen animation, etc.
(

P. 333)

Adjust the settings for voice guid-
ance volume and voice recognition
prompts. (

P. 336)

Change the settings for registering,
removing, connecting and discon-
necting Bluetooth

devices.

(

P. 366)

Change the settings for FM radio, iPod, etc. (

Change the settings for vehicle customization. (

P. 598)

Change the settings for phone sound, phonebook, etc. (

P. 385)

The Lexus Display Audio system can be adjusted to the desired settings.

Display “Setup” screen

4
5
6

333

Audio system

General settings

“General Settings” screen: “MENU” button

“Setup” “General”

Change language.

The selectable languages may differ

depending on the model or region.

Set the beep sound on/off.
Change the button color.
Change the startup image and
screen off image. (

P. 334)

Set the animation effect on/off.
Delete personal data (

P. 335)

Update program versions.

For details, contact your Lexus dealer.

Update gracenote database versions.

For details, contact your Lexus dealer.

Display the open source license.

Settings are available for adjusting the operation sounds, screen animation,
etc.

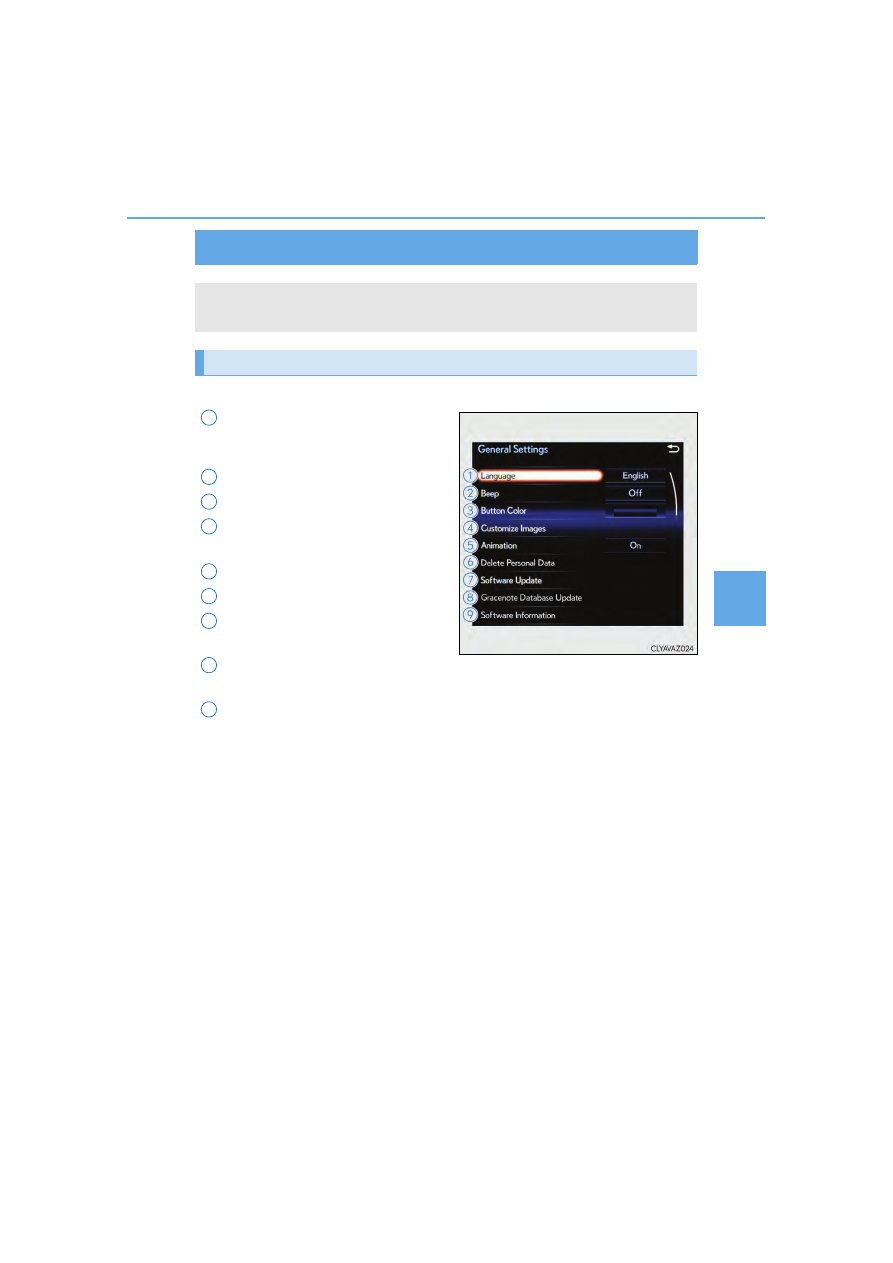

Screen for general settings

2
3
4

5
6
7

334

Go to “Customize Images”: “MENU” button

 “Setup”  “General” 

“Customize Images”

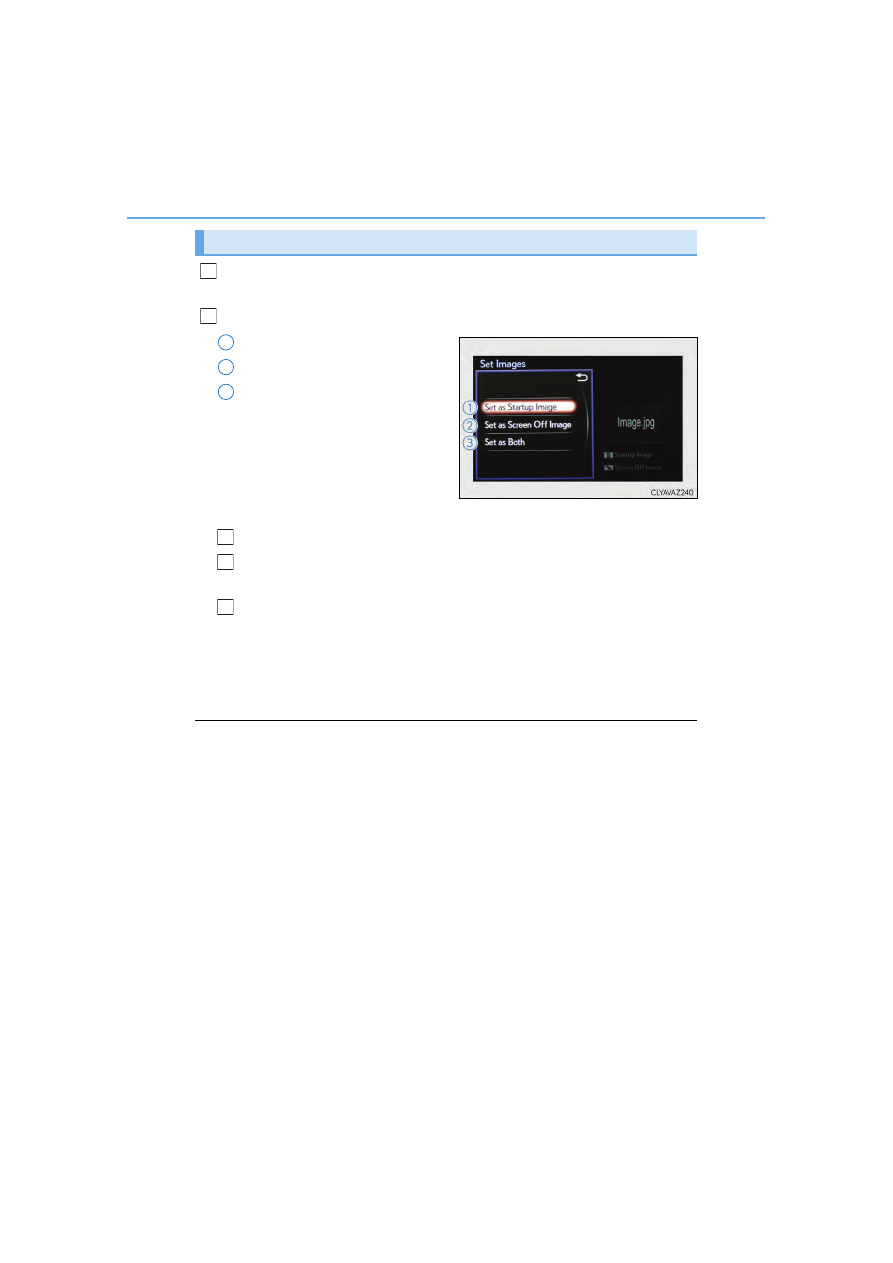

Select “Set Images” and then select the desired image.

Set as startup image.
Set as screen off image.
Set as startup image and screen
off image.

■

Adding an image

Connect a USB memory device. (

P. 330)

Select “Copy from USB” on the “Customize Images” screen and then
select the desired image.
Move the controller to the left and then select “Copy”.

Up to 10 images can be downloaded.

■

Deleting images
Select “Delete Images” on the “Customize Images” screen and then select the
desired images.

■

USB memory
When saving the images to a USB memory device, name the folder that the images are

saved to “Image”.

●

Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)

• File system format: FAT16/32 (Windows)

• Correspondence class: Mass storage class

The following types of files can be used:
• The image’s file format must be JPEG.

• The file name may only contain ASCII characters.

●

JPEG file compatibility
Compatible image size: Maximum 5MB

Customizing images

2
3

335

Audio system

“MENU” button

 “Setup”  “General”  “Delete Personal Data”

Select “Delete”.

Check carefully beforehand, as data cannot be retrieved once deleted.

The following personal data will be deleted or changed to its default settings.

• Phonebook data

• Call history data

• Favorite data
• Bluetooth

devices data

• Phone sound settings
• Detailed Bluetooth

settings

• Audio/video setting

• Preset switch data

• Last used radio station

• Customized image data

• FM info setting

• iPod tagging information

• Software update history

• Software update detail information

• Phone display setting

• Contact/call history setting

• Messaging setting

• Traffic information map

• Weather information

• Phonebook data for voice recognition

• Music data for voice recognition

NOTICE

■

To prevent damage to the USB memory device or its terminals
P. 363

Deleting personal data

336

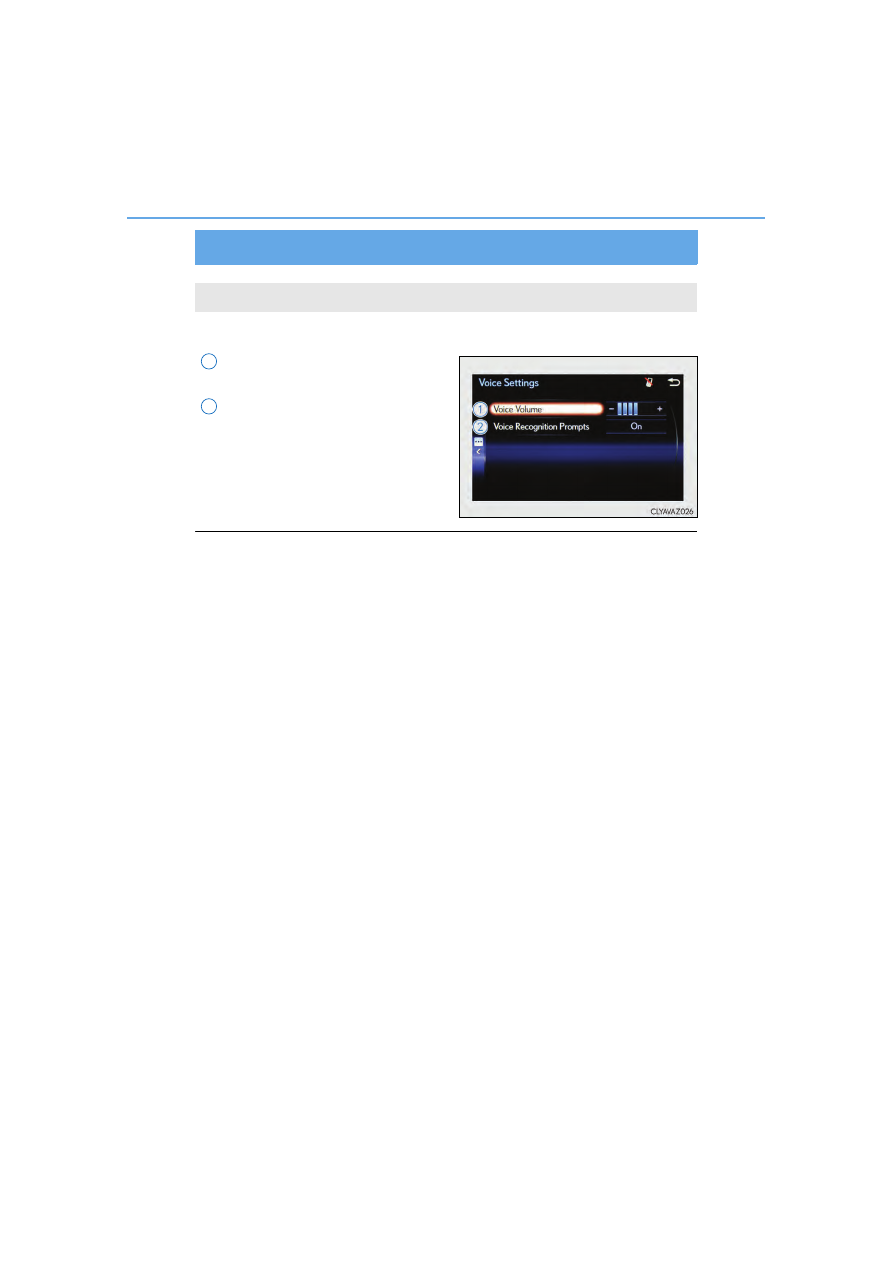

Voice settings

Go to “Voice Settings”: “MENU” button

 “Setup”  “Voice”

Adjust the voice guidance volume
setting.
Set the voice recognition prompts
on/off.

■

Return to the default settings
Move the controller to the left and select “Default”.

You can adjust the guidance volume setting.

337

5-13. Using the audio system (Lexus Display Audio System)

Audio system

Display settings

Go to “Display”: “MENU” button

 “Display”

Turn off screen.
Adjust screen quality.
Adjust screen quality of the rear
view monitor camera.
Change to day mode.

This setting turns the screen off. To turn it on, press any button such as the
“AUDIO” button or “MENU” button.

If a screen off image has been set, the set image will be displayed.

When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day Mode”.

The screen will stay in day mode when the headlights are turned on until “Day Mode”

is selected again.

Select “General” or “Camera” on the “Display” screen or select “Display” on
each audio menu screen. (

P. 342)

Adjust the display as desired by turning the controller clockwise (+) or coun-
terclockwise (-).

To select “Contrast”, “Brightness”, “Color” or “Tone”, move the controller to the left.

(“Colour” and “Tone” are available when “Display” on the audio settings screen for

each audio source is selected.)

■

Changing the sample image (when “General” is selected)
Move the controller to the right and select the desired sample image.

Settings are available for adjusting the contrast and brightness of the screen.
The display can also be turned off.

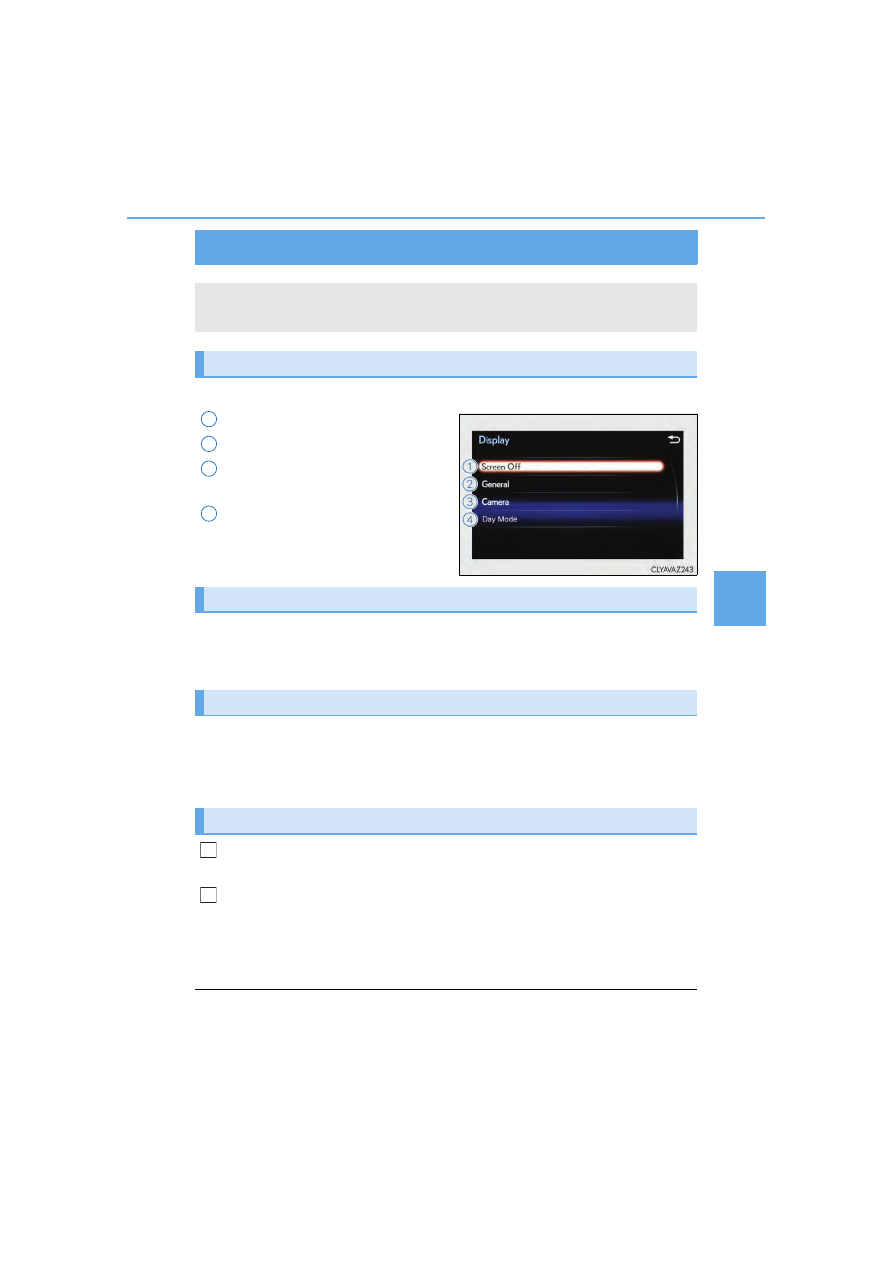

Screen for display settings

2
3

Screen off

Day mode

Adjusting the screen quality

338

Selecting the audio source

Press the “AUDIO” button to display the “Source” screen.

If the “Source” screen is not displayed, press the button again.

Select the desired audio source.

The audio source can be selected by pressing the “RADIO” or “MEDIA” button.

Press the “MODE” switch when the audio system is turned on. The audio source
changes each time the “MODE” switch is pressed.

■

Rearranging the list
The listing order of the source list can be rearranged.

Move the controller to the left while on the “Source” screen.
Select “Audio Source Select”.
Select an item you wish to move and then select where to move the item to.

Switching between audio sources such as radio and CD are explained in this
section.

Changing audio source

Using the steering wheel switches to change audio sources

2
3

339

5-13. Using the audio system (Lexus Display Audio System)

Audio system

Optimal use of the audio system

Audio menu screen. (

P. 342)

Select “Sound Settings”.

To change between the sound setting screen and DSP setting screen, move the
controller to the right then select the desired screen.



“Sound Settings”

Adjust the treble, mid or bass.

Adjust the front/rear audio balance.
Adjust the left/right audio balance.



“DSP”
Set the automatic sound levelizer
(ASL) on/off
Set the surround function on/off

■

The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for each audio mode separately.

■

About Automatic Sound Levelizer (ASL)
ASL automatically adjusts the volume and tone quality according to the vehicle speed.

On the “Sound Settings” screen, sound quality (Treble/Mid/Bass), volume
balance and DSP settings can be adjusted.

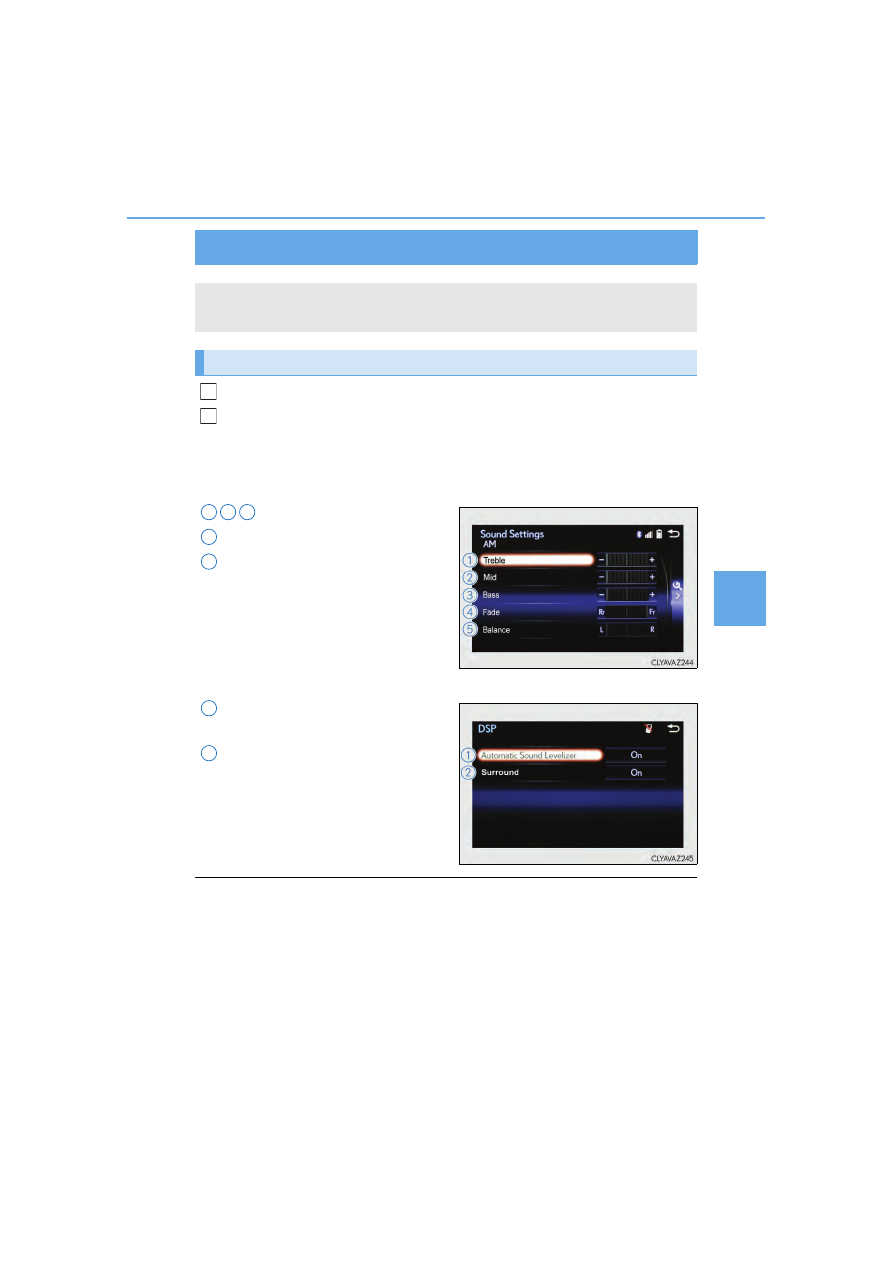

How to adjust the sound settings and sound quality

1 2 3

4
5

340

5-13. Using the audio system (Lexus Display Audio System)

Audio settings

Go to “Audio Settings”: “MENU” button

 “Setup”  “Audio”

Change radio settings (

Change iPod settings (

Change A/V settings (

P. 341)

Change the cover art settings
(

Change USB settings (

To change radio settings, select “Radio Settings” on the “Audio Settings” screen
or radio menu screen. (

Set the displaying RBDS text mes-
sage on/off
Change the number of radio presets

To change iPod settings, select “iPod Settings” on the “Audio Settings” screen or
iPod menu screen. (

P. 342)

Change the screen size (video
mode)
Change the cover art settings
(

5-13. Using the audio system (Lexus Display Audio System)

Adjust the screen quality (video
mode) (

P. 337)

Change video sound input port

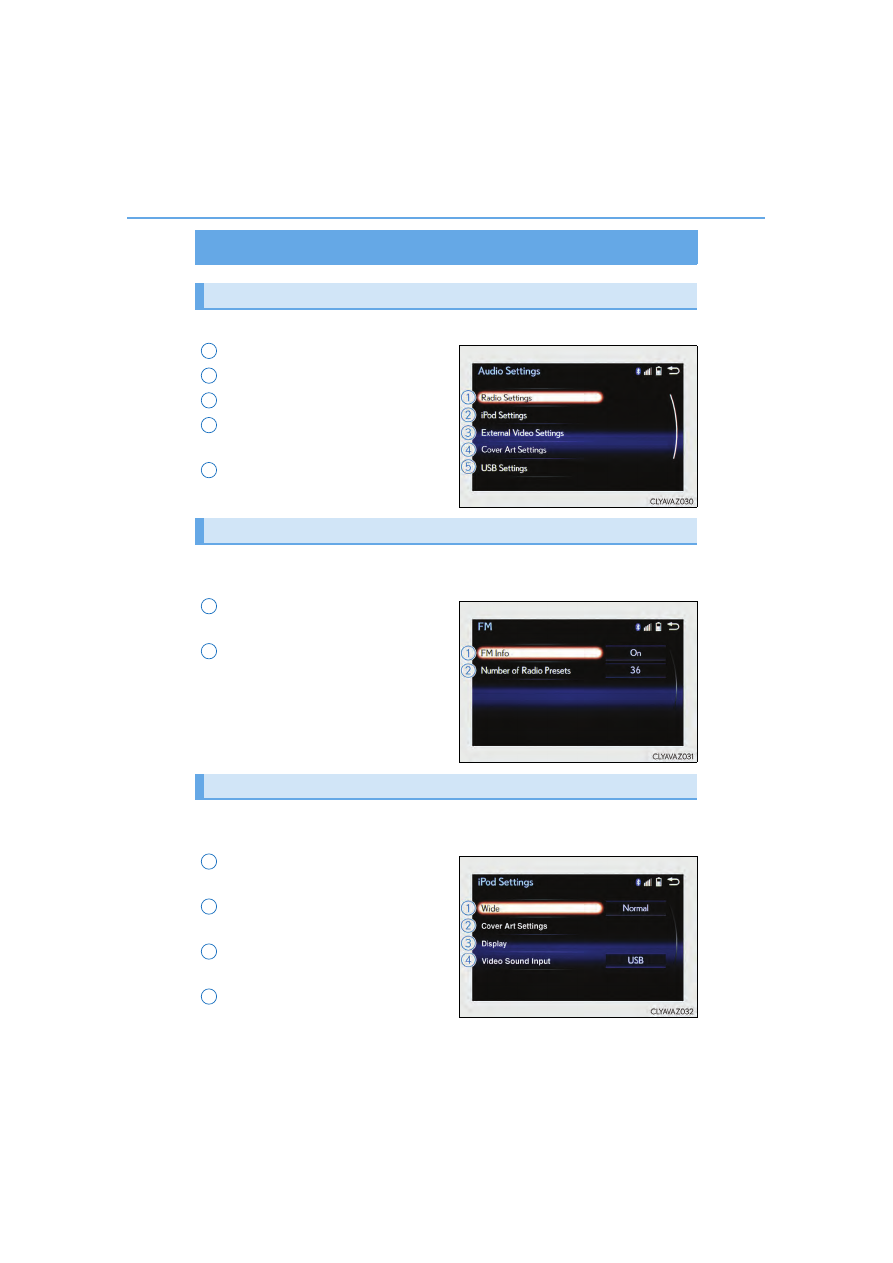

Screen for audio settings

2
3
4

Changing radio settings

Changing iPod settings

341

Audio system

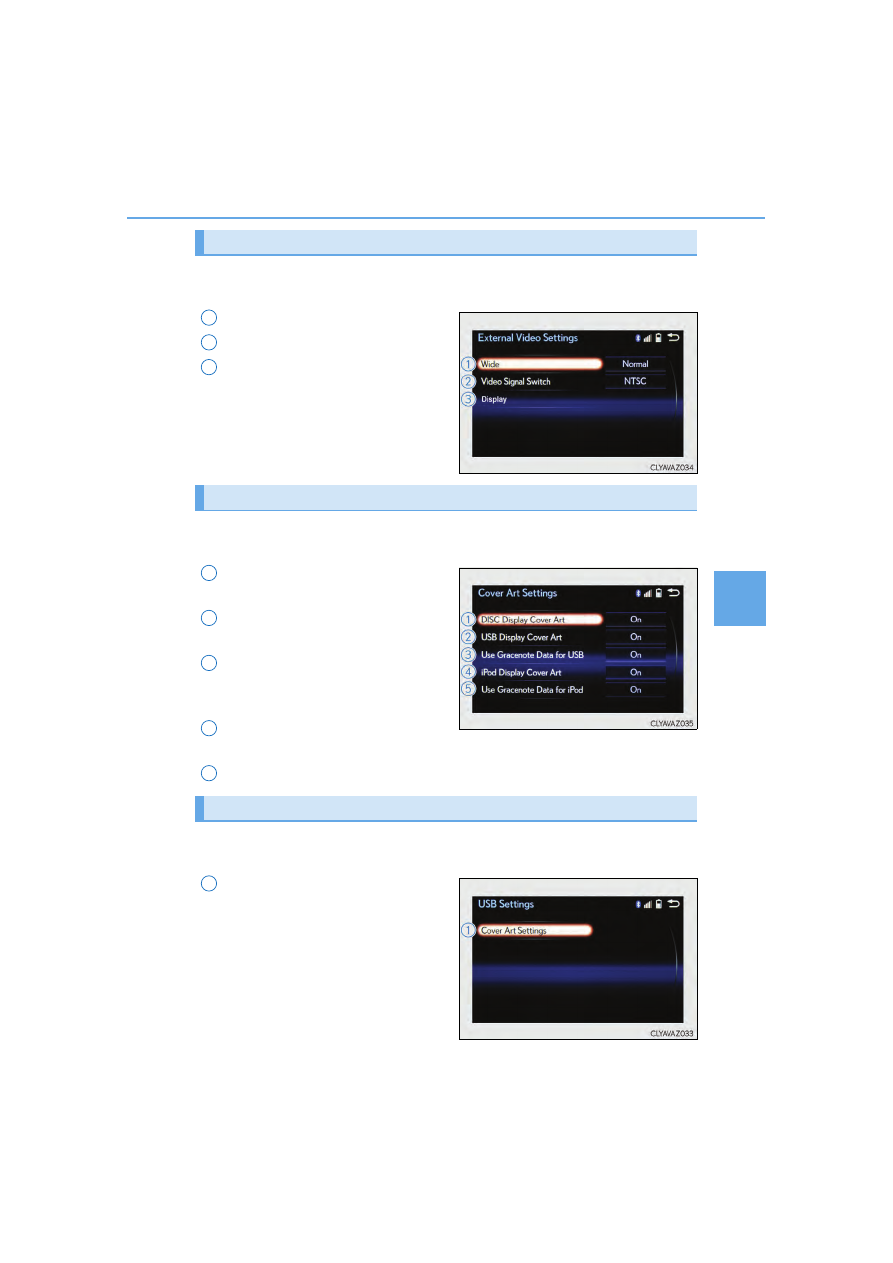

To change A/V settings, select “External Video Settings” on the “Audio Settings”
screen or A/V menu screen. (

Change the screen size
Change the video signal
Adjust the screen quality (video
mode) (

P. 337)

To change the cover art settings, select “Cover Art Settings” on the “Audio Set-
tings” screen, CD or MP3/WMA/AAC disc menu screen. (

Select to set the cover art display of
the DISC mode on/off.
Select to set the cover art display of
the USB mode on/off.
Change the priority of the
Gracenote database of the USB
mode.
Select to set the cover art display of
the iPod mode on/off.
Change the priority of the Gracenote database of the iPod mode.

To change USB settings, select “USB Settings” on the “Audio Settings” screen or
USB menu screen. (

P. 342)

Change the cover art settings
(

5-13. Using the audio system (Lexus Display Audio System)

Changing A/V settings

2
3

Changing the cover art settings

Changing USB settings

342

Audio menu screen operation

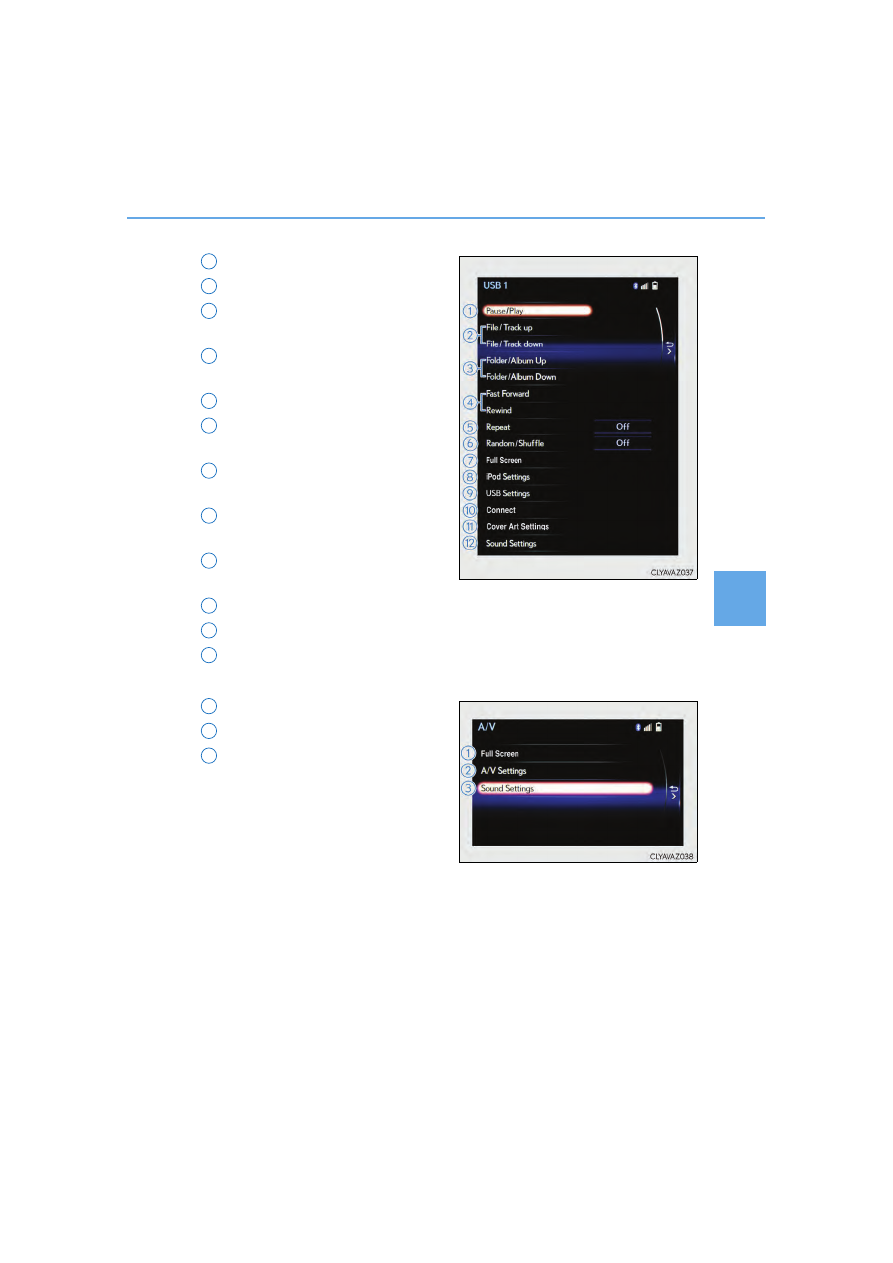

To display the audio menu screen, move the controller to the left while on an
audio top screen.



AM, FM radio or XM Satellite Radio
Scan for receivable stations (AM,
FM radio)
Seek a station of the nearest fre-
quency (stops when a station is
found) (AM, FM radio)
Captures the song title and artist
name information for potential pur-
chase (when the “HD)” indicator on
the selected station is appears) (FM
radio)
Changes the channel of HD Radio
(HD2, HD3, HD4 where applica-
ble) (FM radio)
Seek a station of the traffic announcement (FM radio)
Select to set the station list shows of HD radio on/off (AM, FM radio)
Change radio settings (

5-13. Using the audio system (Lexus Display Audio System)

Change sound settings (

P. 339)

You can change the settings and control functions for each audio source.

Audio menu screen

5
6
7
8

343

Audio system



CD, MP3/WMA/AAC disc, iPod, USB or Bluetooth

Play or pause a track/file
Select a track/file
Select a folder/album (MP3/WMA/
AAC disc or USB)
Select and hold: Fast-forward or
rewind a track/file
Select a repeat mode. (

P. 344)

Select a random/shuffle play mode.
(

P. 344)

Select a full screen mode (iPod
video mode)
Change iPod settings (iPod)
(

Change USB settings (USB)
(

5-13. Using the audio system (Lexus Display Audio System)

Connect a Bluetooth device (Bluetooth

) (

P. 368)

Change the cover art settings (CD or MP3/WMA/AAC disc) (

P. 341)

Change sound settings (

P. 339)



A/V
Select full screen mode
Change A/V settings (

P. 341)

Change sound settings (

P. 339)

2
3

5
6

2
3

344

Repeat play

Mode

Action

Target audio source

File/track repeat

All media

Folder repeat

MP3/WMA/AAC disc, USB

Album repeat

USB, Bluetooth

Random/shuffle playback

Mode

Action

Target audio source

Random/shuffle play of the disc/

folder/album

All media

Random play of all folders

MP3/WMA/AAC disc, USB

Random/shuffle play of all albums

iPod, USB, Bluetooth

345

5-14. Using the radio (Lexus Display Audio System)

Audio system

Radio operation

Pressing the “RADIO” button displays the radio top screen from any screen of
the selected source.

■

Menu screen
P. 342

Tune in to the desired station using one of the following methods.

■

Seek tuning
Press and hold then release “

” or “”.

Seek turning can also be operated on the menu screen. (

P. 342)

The radio will begin seeking up or down for a station of the nearest frequency
and will stop when a station is found.

■

Manual tuning
Turn the “TUNE•SCROLL” knob.

■

Preset stations
Select the desired preset station by pressing “

” or “” or controller.

■

Station list

Move the controller to the right and selecting “Station List”.
AM radio: Selecting a desired station.
FM radio: Selecting a desired type of station and selecting a desired sta-
tion.

To refreshing the station list, select “Refresh”. Select “Source” on the refresh

screen, can be change to the other audio source while refreshing.

Select “AM”, “FM” or “SAT” on the audio source selection screen to begin lis-
tening to the radio.

Radio top screen

Selecting a station (AM or FM radio)

346

5-14. Using the radio (Lexus Display Audio System)

When “HD Radio” is set to “On”, available stations with HD Radio channels are
marked with “HD)”.

In AM or FM mode, select a station marked with “HD)”.
Turn the “TUNE•SCROLL” knob to select an HD Radio channel.

HD Radio channels can also be selected by selecting “Multicast” on the menu screen.

(
