Lexus RX300 (MCU15). Manual - part 603

PP–6

–

PREPARATION

AUTOMATIC TRANSAXLE

U140F AX   (RM848E)

(09951–07150)

Handle 150

(09951–07200)

Handle 200

PP1T8–01

–

PREPARATION

AUTOMATIC TRANSAXLE

PP–7

U140F AX   (RM848E)

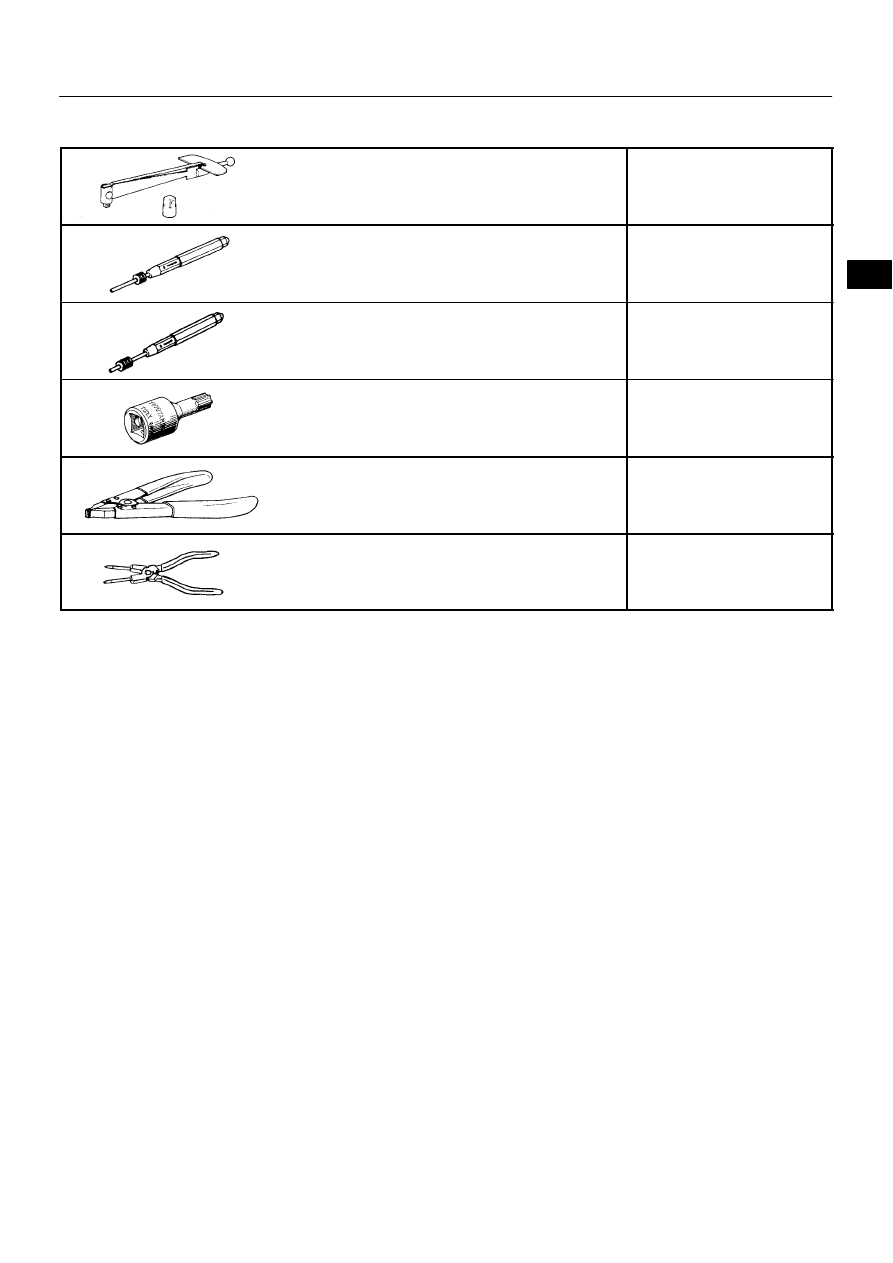

RECOMMENDED TOOLS

09025–00010

Torque Wrench (30 kgf–cm)

09031–00030

Pin Punch .

09031–00040

Pin Punch .

09042–00010

Torx Socket T30 .

09905–00012

Snap Ring No.1 Expander .

09905–00013

Snap Ring Pliers .

PP1T9–01

PP–8

–

PREPARATION

AUTOMATIC TRANSAXLE

U140F AX   (RM848E)

EQUIPMENT

Dial indicator with magnetic base

Feeler gauge

Vernier calipers

Torque wrench

Plastic hammer

Straight edge

Seal packing 2403, THREE BOND 2403 or equivalent

Seal packing 2430, THREE BOND 2430 or equivalent

PP1TA–03

–

PREPARATION

AUTOMATIC TRANSAXLE

PP–9

U140F AX   (RM848E)

LUBRICANT

Item

Capacity

Classification

(U140F)

Automatic transaxle fluid

 Dry fill

 Drain and refill

8.9 liters (9.41 US qts, 7.83 Imp. qts)

3.9 liters (4.1 US qts, 3.4 Imp. qts)

ATF TYPE T–IV or equivalent

Transfer oil

0.9 liters (0.95 US qts, 0.71 Imp. qts)

APL GL–5

SAE 90
