AX0B7–03

D03780

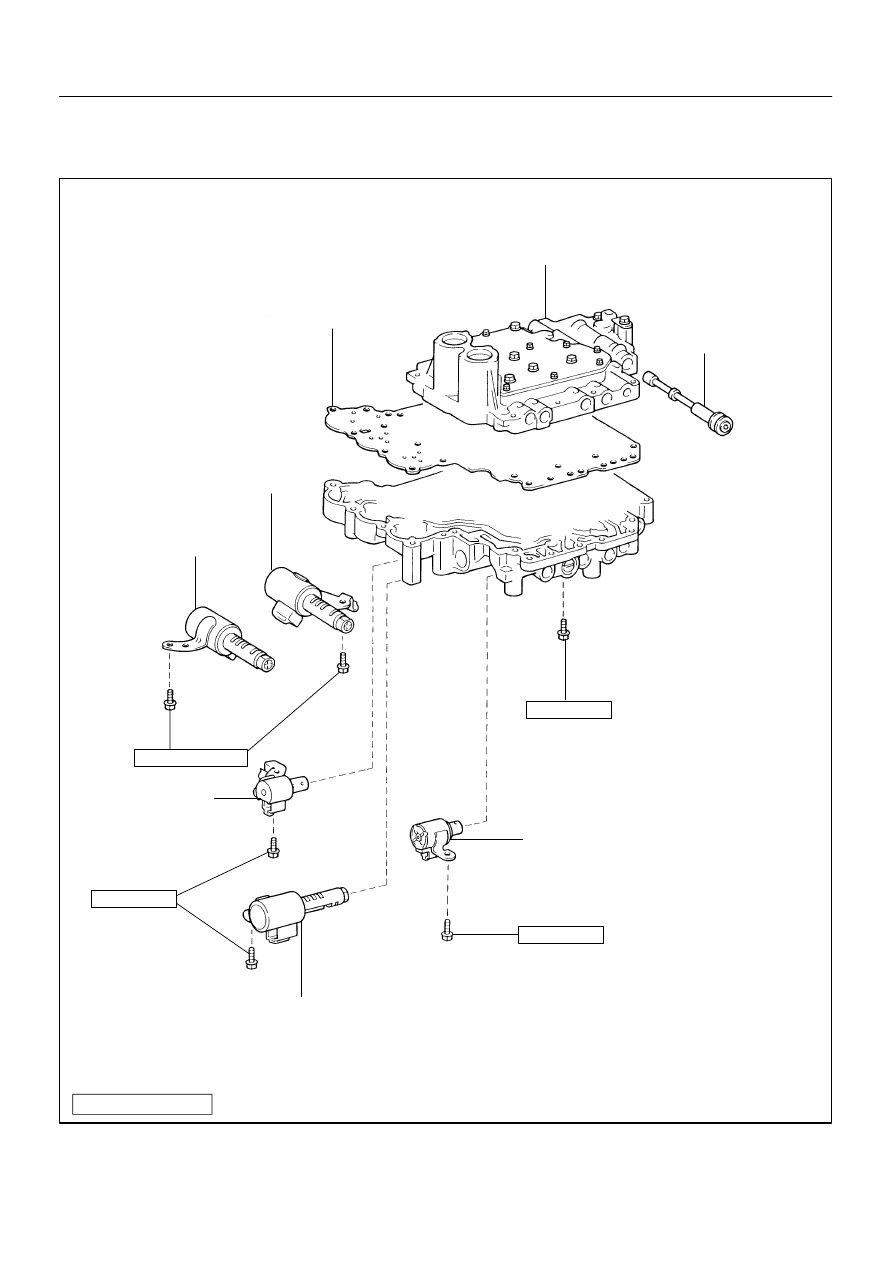

Upper Valve Body

Manual Valve

Plate

SL1 Shift Solenoid Valve

SLT Shift Solenoid Valve

6.6 (67, 58 in.·lbf)

DSL Shift
Solenoid Valve

S4 Shift Solenoid Valve

SL2 Shift Solenoid Valve

N·m (kgf·cm, ft·lbf) : Specified torque

10.8 (110, 8)

x7

10.8 (110, 8)

10.8 (110, 8)

–

AUTOMATIC TRANSAXLE

VALVE BODY

AX–87

U140F AX   (RM848E)

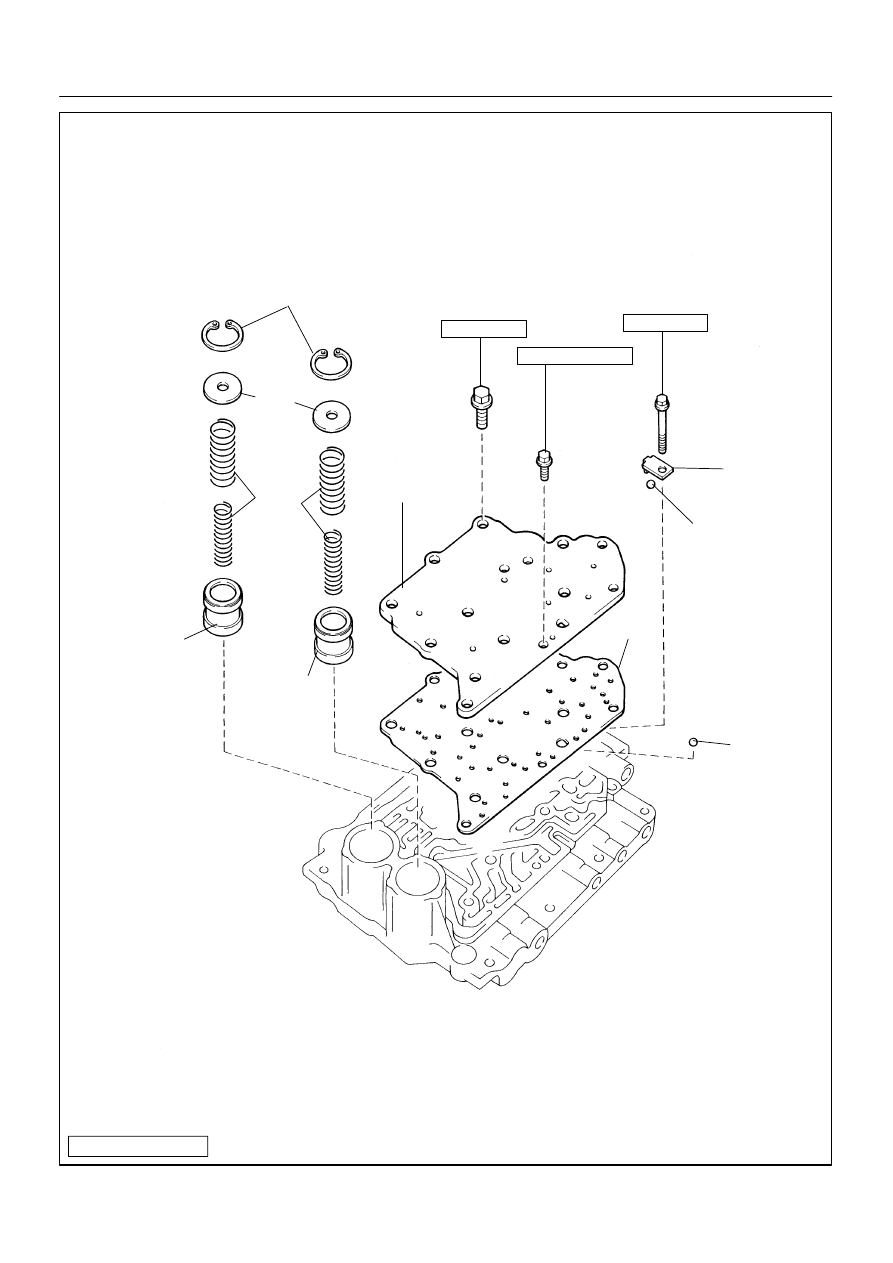

VALVE BODY

COMPONENTS

D03781

Spring

Snap Ring

Plate

C

2

 Accumulator

Valve Piston

B

1

 Accumulator

Valve Piston

Check
Ball

Gasket

Retainer

Check
Ball

Cover

N·m (kgf·cm, ft·lbf) : Specified torque

6.6 (67, 58 in.·lbf)

x7

x8

10.8 (110, 8)

10.8 (110, 8)

AX–88

–

AUTOMATIC TRANSAXLE

VALVE BODY

U140F AX   (RM848E)

AX0B8–03

D03782

D03783

D03784

–

AUTOMATIC TRANSAXLE

VALVE BODY

AX–89

U140F AX   (RM848E)

DISASSEMBLY

NOTICE:

S

Disassembling and reassembling should be con-
ducted on a clean vinyl sheet or mat, or aluminum
tray.

S

Make the valve slide through the valve hole by its own
weight. Do not forcibly pull out the valve using needle
nose pliers. When having difficulty in removing it,
slant and shake the valve body or use a magnet hand.

S

Do not place the disassembled parts directly on metal
work bench or waste cloth.

S

Do not use dropped parts.

S

Make sure that no burr is identified before assem-
bling.

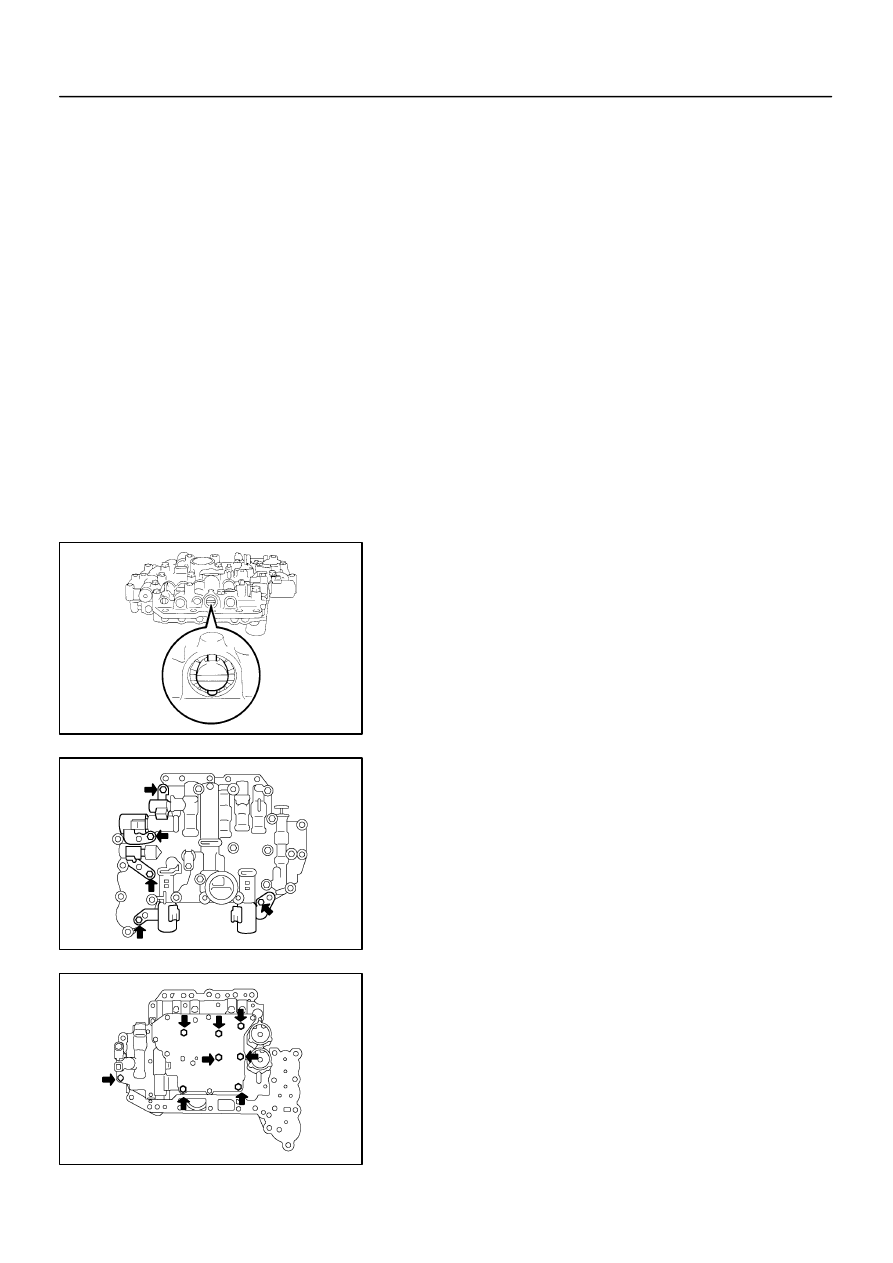

1.

CHECK PRIMARY REGULATOR VALVE POSITION

Write down the relative position of the primary regulator valve
sleeve, the plug and the pin.
NOTICE:
Because the line pressure is changed by the position of the
pin and the groove in the sleeve end, make sure to check
the position.

2.

REMOVE SOLENOID VALVE

(a)

Remove the 5 bolts and 5 solenoid valves.

3.

REMOVE LOWER VALVE BODY

(a)

Remove the 8 bolts.

D03879

D03878

D04081

D10385

D03785

AX–90

–

AUTOMATIC TRANSAXLE

VALVE BODY

U140F AX   (RM848E)

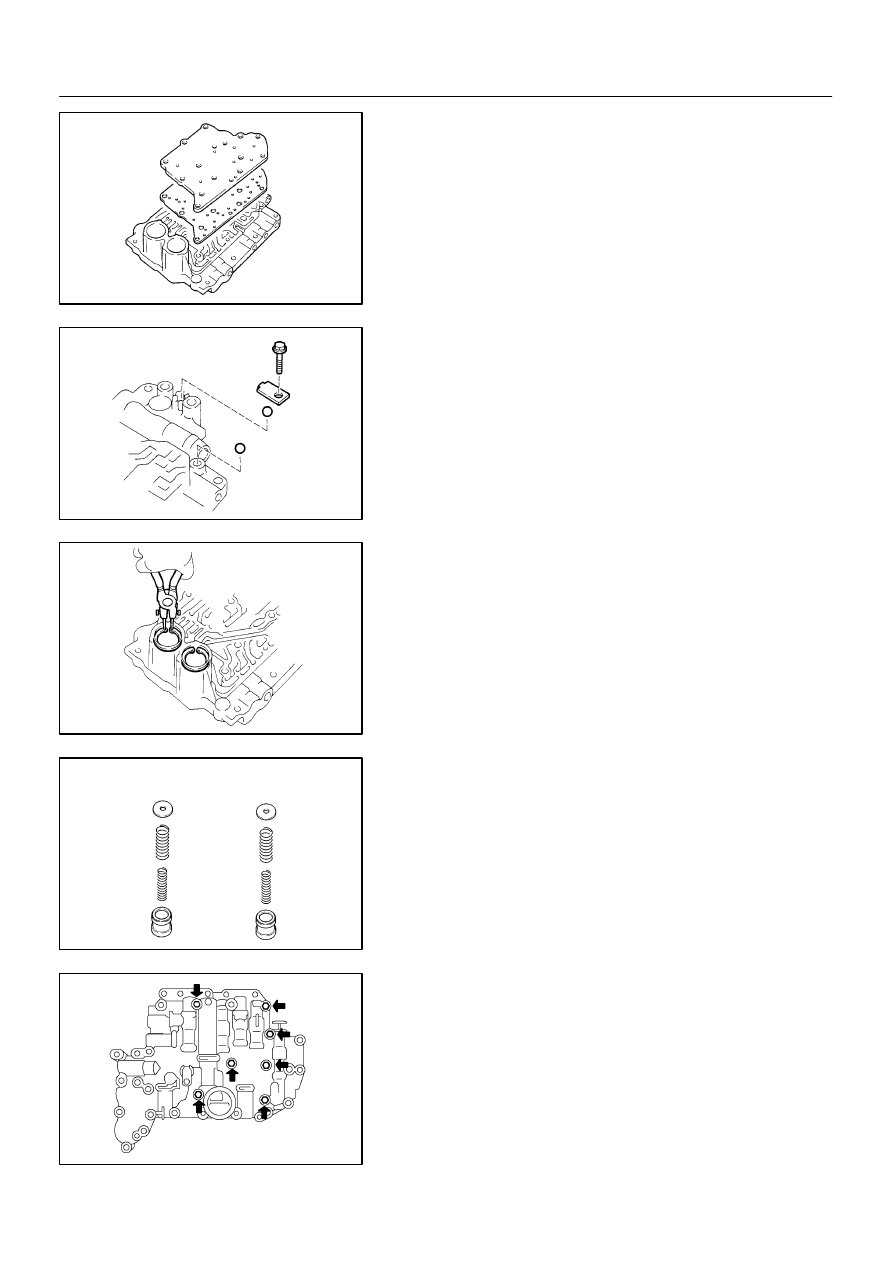

(b)

Remove the 7 bolts, cover and gasket.

(c)

Remove the bolt, cover and 2 pressure relief balls.

(d)

Using snap ring pliers, remove the 2 snap rings.

(e)

Remove the 2 plates from the valve body.

(f)

Remove the 4 springs from the valve body.

(g)

Remove the 2 pistons from the valve body.

(h)

Remove the 7 bolts from the lower valve body.
