AX0AH–04

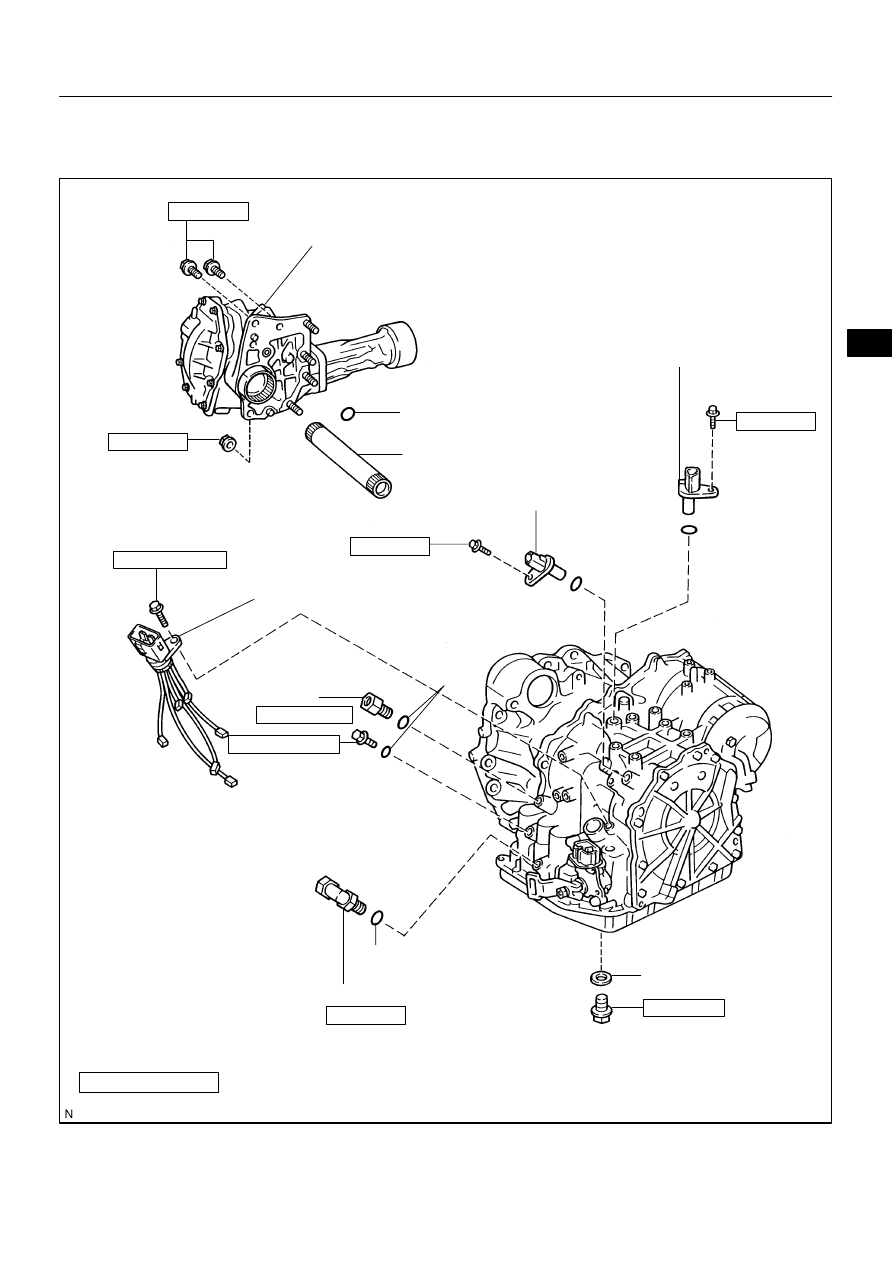

D10703

Transfer Assembly

z Gasket

Intermediate Shaft

Counter Gear Speed Sensor

Input Turbine Speed Sensor

Solenoid Wire

Union

z O–ring

Elbow

24.5 (250, 18)

x6

5.4 (55, 48 in.·lbf)

11.3 (115, 8)

11.3 (115, 8)

69 (700, 51)

7.4 (75, 65 in.·lbf)

27 (276, 20)

z O–ring

47 (480, 35)

z Gasket

N·m (kgf·cm, ft·lbf) : Specified torque

z Non–reusable part

69 (700, 51)

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

AX–3

U140F AX   (RM848E)

COMPONENT PARTS

COMPONENTS

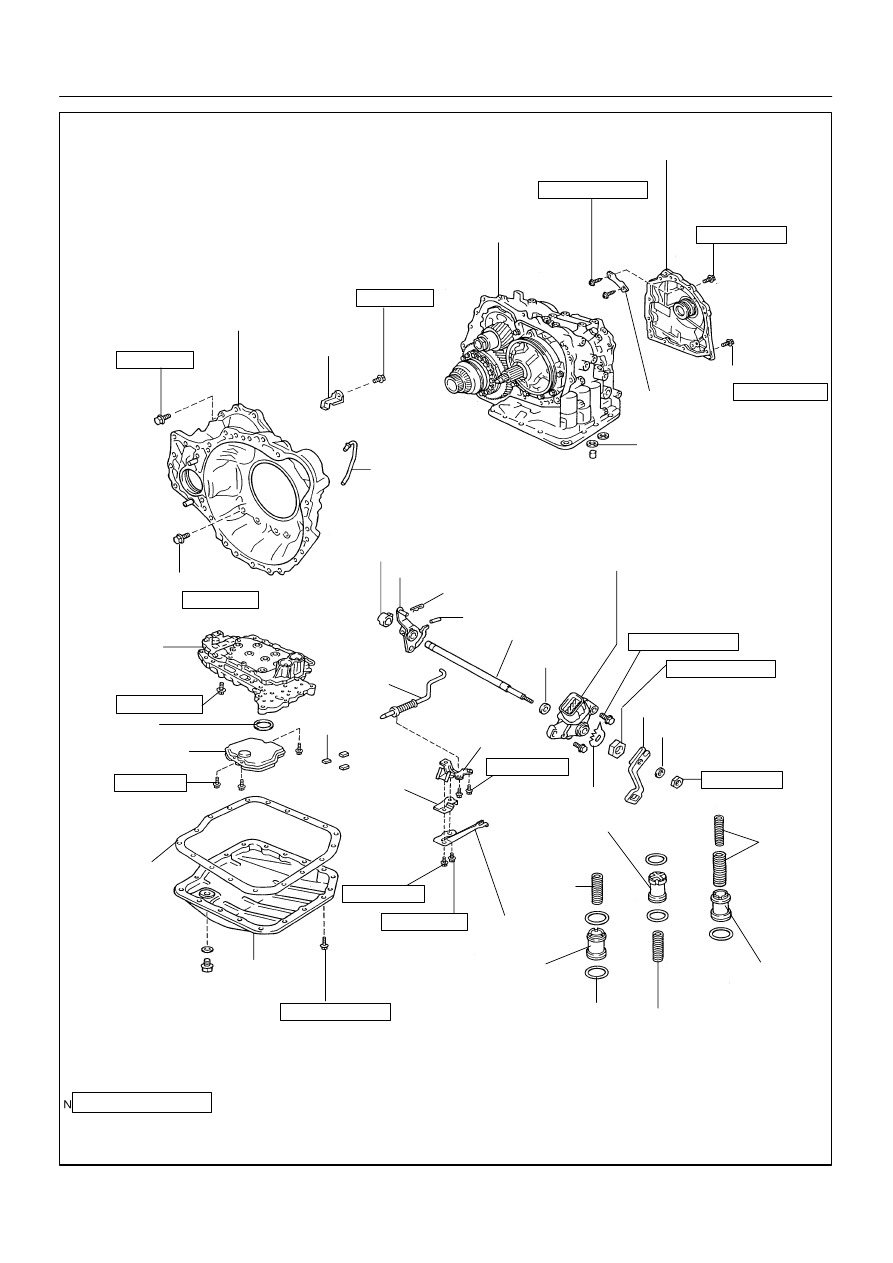

D09654

Transaxle Housing

Clamp

Transaxle Case

Apply Pipe

Manual Valve Lever

Retainer Spring

Transaxle Rear Cover

Apply Gasket

Pin

Valve Body

Manual Valve
Lever Shaft

z Spacer

z Gasket

z Oil Seal

x8

24.5 (250, 18)

10.8 (110, 8)

x17

Oil Strainer

Magnet

Oil Pan

C

3

 Accumulator

Piston

Neutral
Start Switch

7.6 (77, 67 in.·lbf)

Spring

Spring

Spring

C

1

 Accumulator

Piston

N·m (kgf·cm, ft·lbf) : Specified torque

z Non–reusable part

x18

9.8 (100, 7)

Parking Lock
Rod

Parking Lock
Pawl Bracket

Manual Detent
Spring

L

29 (300, 22)

L

11 (110, 8)

5.4 (55, 48 in.·lbf)

L Precoated part

22 (225, 16)

x11

x5

6.9 (70, 61 in.·lbf)

Control Shift Lever

Washer

Nut Stopper

12.7 (130, 9)

20 (205, 15)

10.3 (102, 7)

B

3

 Accumulator

Piston

z O–ring

7.5 (76, 66 in.·lbf)

L

x3

Bolt A

18.6 (190, 14)

L

L

Transaxle Rear
Cover Plate

Bolt A

z O–Ring

Cover

20 (205, 15)

AX–4

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

U140F AX   (RM848E)

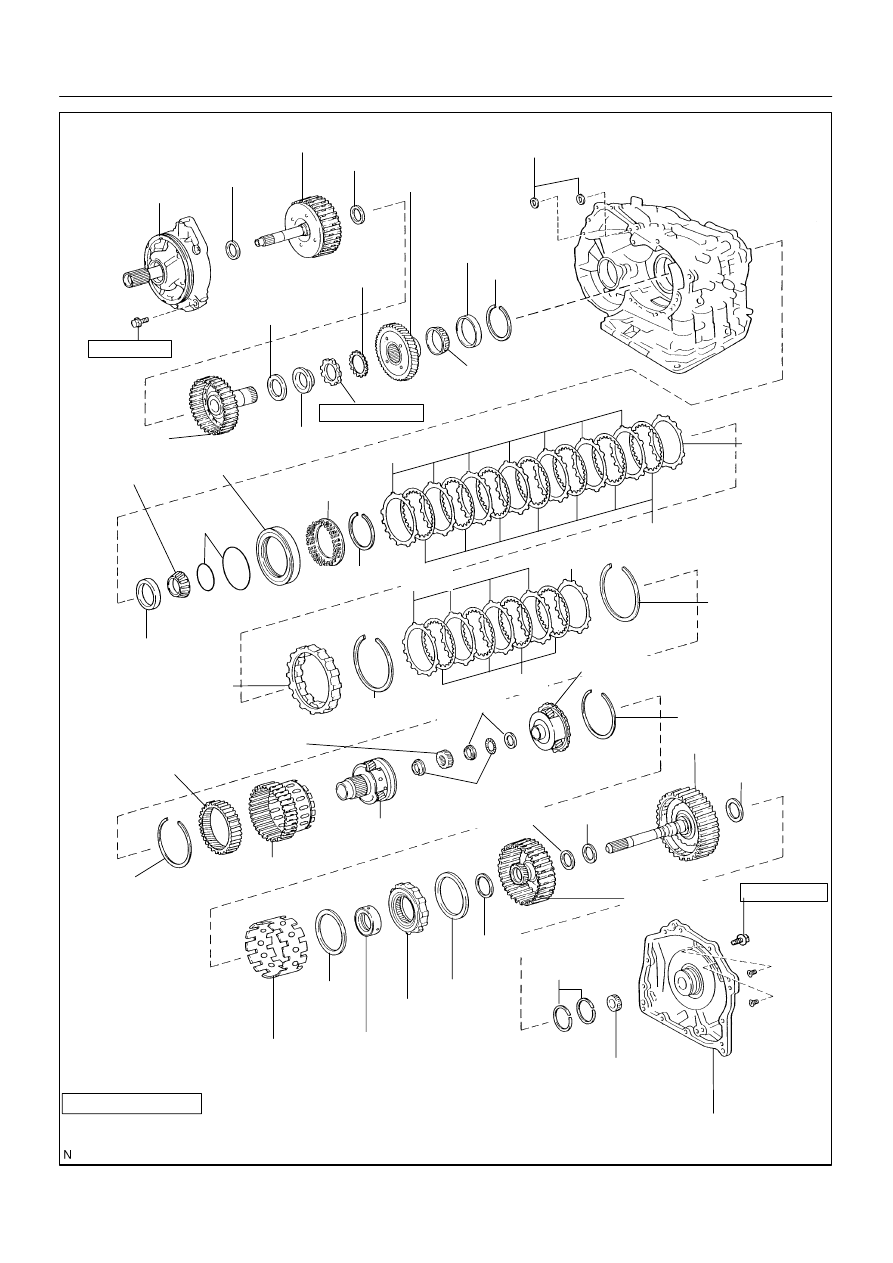

D10709

Oil Pump

Thrust Bearing

z Washer

Forward Clutch

Thrust Bearing

Multiple Clutch
Hub

Needle Roller
Bearing

Bearing Race

Bearing Outer Race

Snap Ring

Counter Drive Gear

Tapered Roller
Bearing

Apply Gasket

Plate

Disc

Snap Ring

Flange

Plate

Disc

Snap Ring

1st & Reverse
Brake Piston

Piston Return
Spring

z O–ring

Bearing Outer Race

2nd Brake Assembly

Front Planetary
Gear

Needle Roller
Bearing

Thrust Bearing

Snap Ring

Rear Planetary Gear

Bearing
Race

One–way Clutch
Outer Race

One–way
Clutch No.1

Thrust Bearing

Direct Clutch

Thrust Bearing

Oil Seal Ring

Transaxle Rear Cover

x7

24.5 (250, 18)

x11

Tapered Roller
Bearing

Washer No.2

Bearing Race

280 (2,855, 207)

Washer
No.1

Flange

Rear Planetary
Sun Gear

Front Planetary
Sun Gear

Snap Ring

Brake Hub

Front Planetary
Ring Gear

One–way
Clutch Inner
Race

22 (226, 16)

Snap Ring

N·m (kgf·cm, ft·lbf) : Specified torque

z Non–reusable part

Thrust Bearing

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

AX–5

U140F AX   (RM848E)

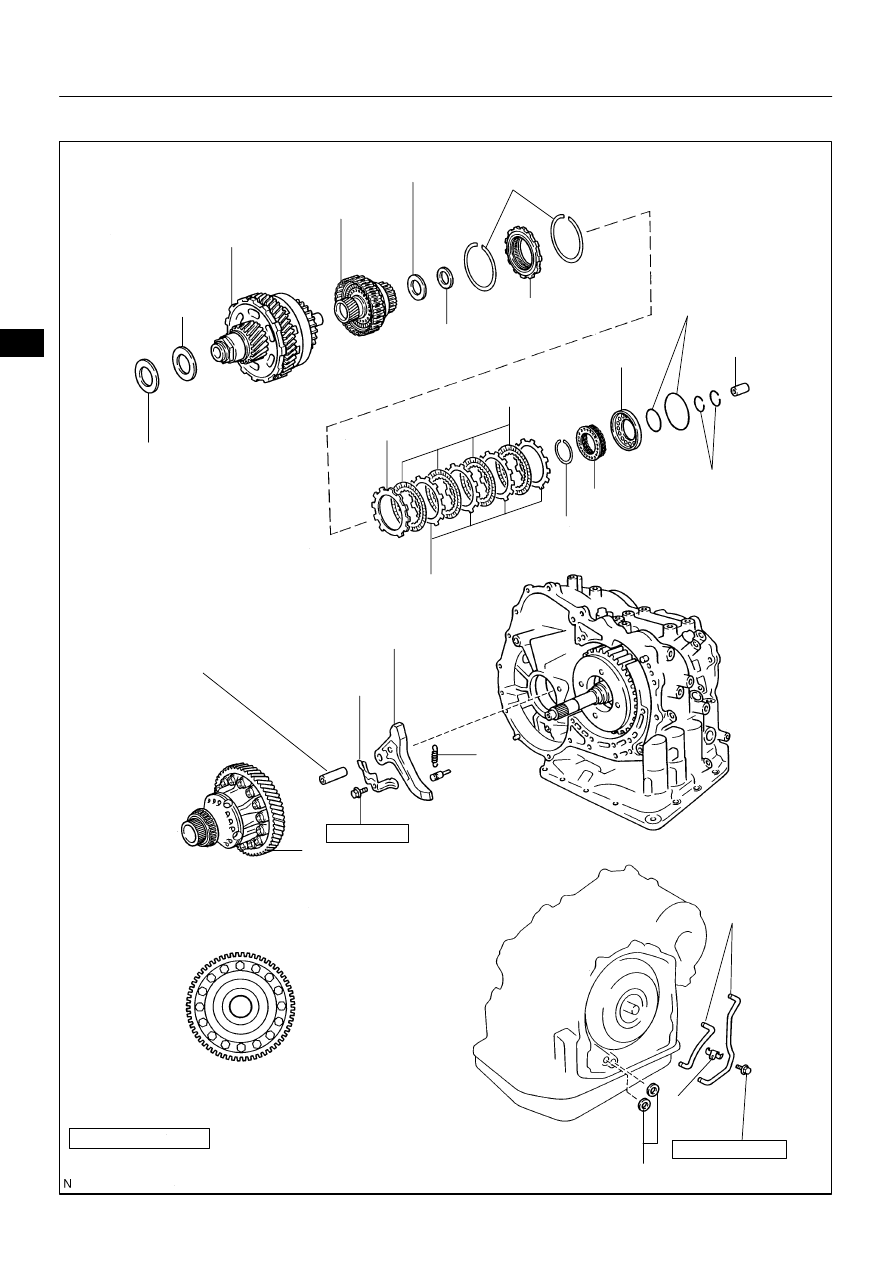

D10704

Thrust
Bearing

U/D Planetary
Gear Assembly

U/D Clutch
Assembly

Thrust Bearing

Snap Ring

Bearing
Race

One–way
Clutch No.2

Plate

Flange

Disc

Snap Ring

Piston Return Spring

Oil Seal Ring

U/D Brake Piston

z O–ring

Needle Roller
Bearing

Parking Lock
Pawl Shaft

Parking Lock Pawl

Spring

Parking Lock
Pawl Clamp

Pawl Pin

Apply Pipe

Differential Assembly

5.4 (55, 48 in.·lbf)

N·m (kgf·cm, ft·lbf) : Specified torque

z Non–reusable part

Bearing
Race

Apply Gasket

Clamp

9.8 (100, 7)

AX–6

–

AUTOMATIC TRANSAXLE

COMPONENT PARTS

U140F AX   (RM848E)
