SUSPENSION AND AXLE

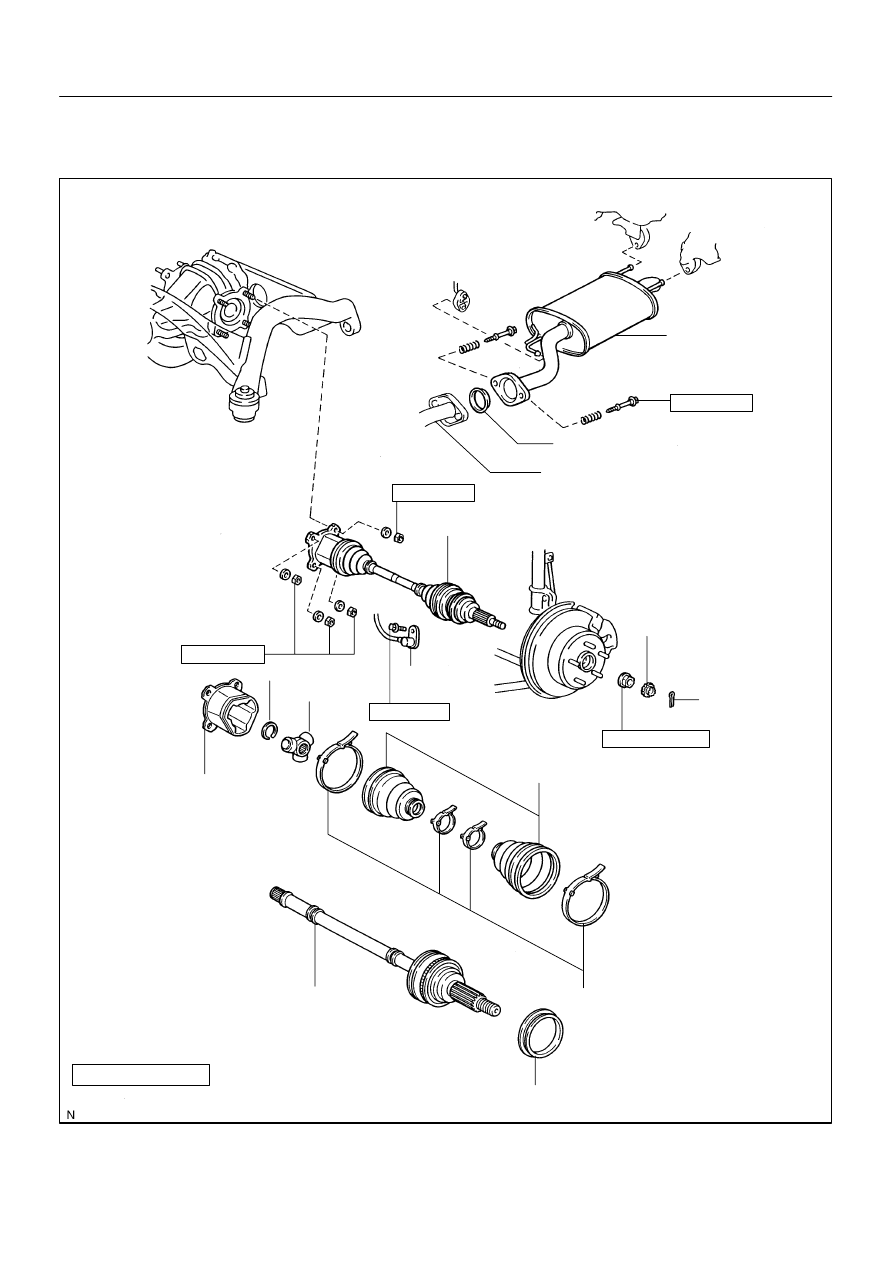

REAR AXLE HUB
LEXUS RX300 (RM785E)
REASSEMBLY
1.

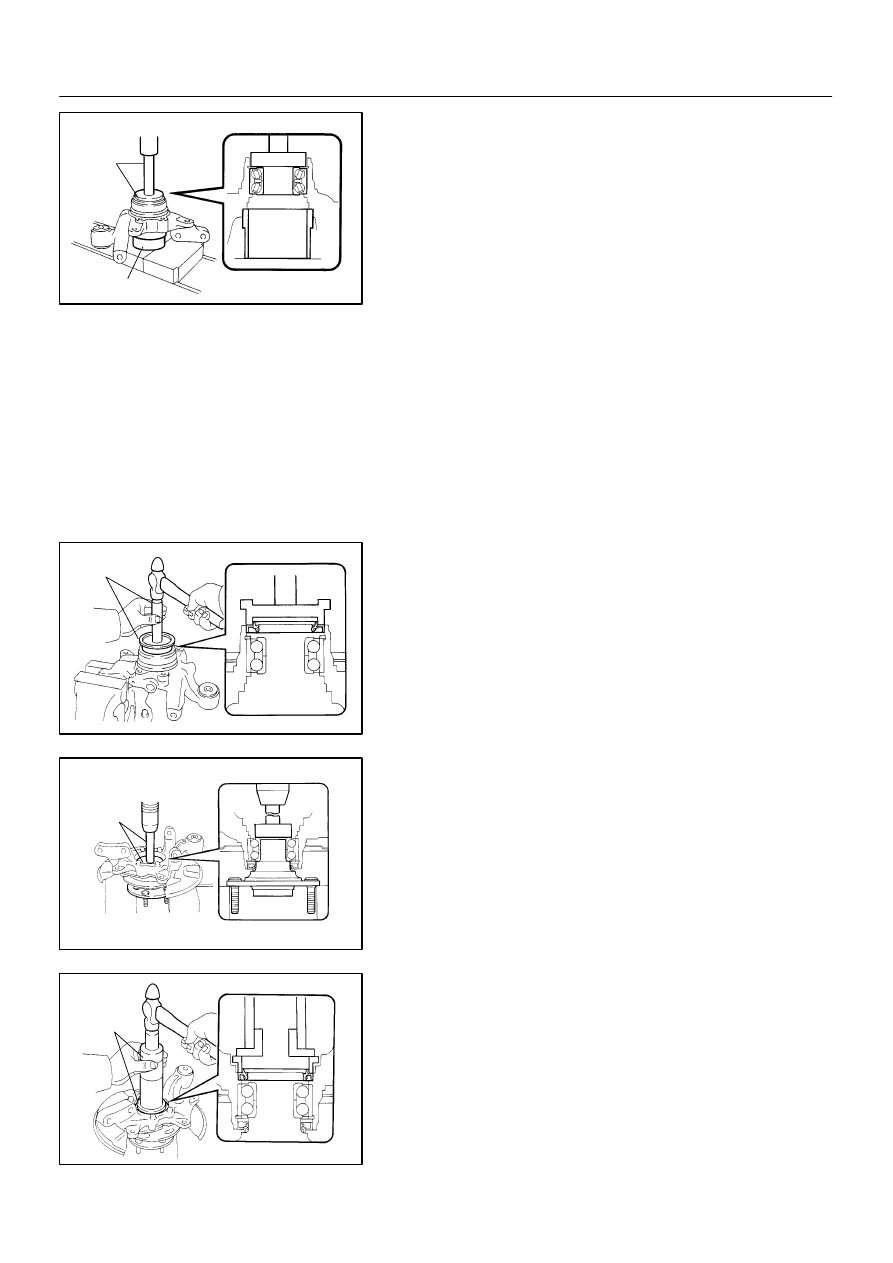

INSTALL BEARING
Using SST and a press, install the bearing to the axle carrier.
SST
09527–17011, 09950–60020 (09951–00710),
09950–70010 (09951–07100)
NOTICE:
If the inner race and balls become loose and come out from
the bearing outer race, make sure to install them on the
same side as before.
2.
INSTALL SNAP RING
Using snap ring pliers, install a new snap ring.
3.
INSTALL OUTER OIL SEAL
(a)
Using SST and a hammer, install a new outer oil seal.
SST
09608–32010, 09950–70010 (09951–07100)
(b)
Coat MP grease to the oil seal lip.
4.
INSTALL BACKING PLATE
Install the backing plate with the 4 nuts.
Torque: 72 N·m (730 kgf·cm, 53 ft·lbf)
5.

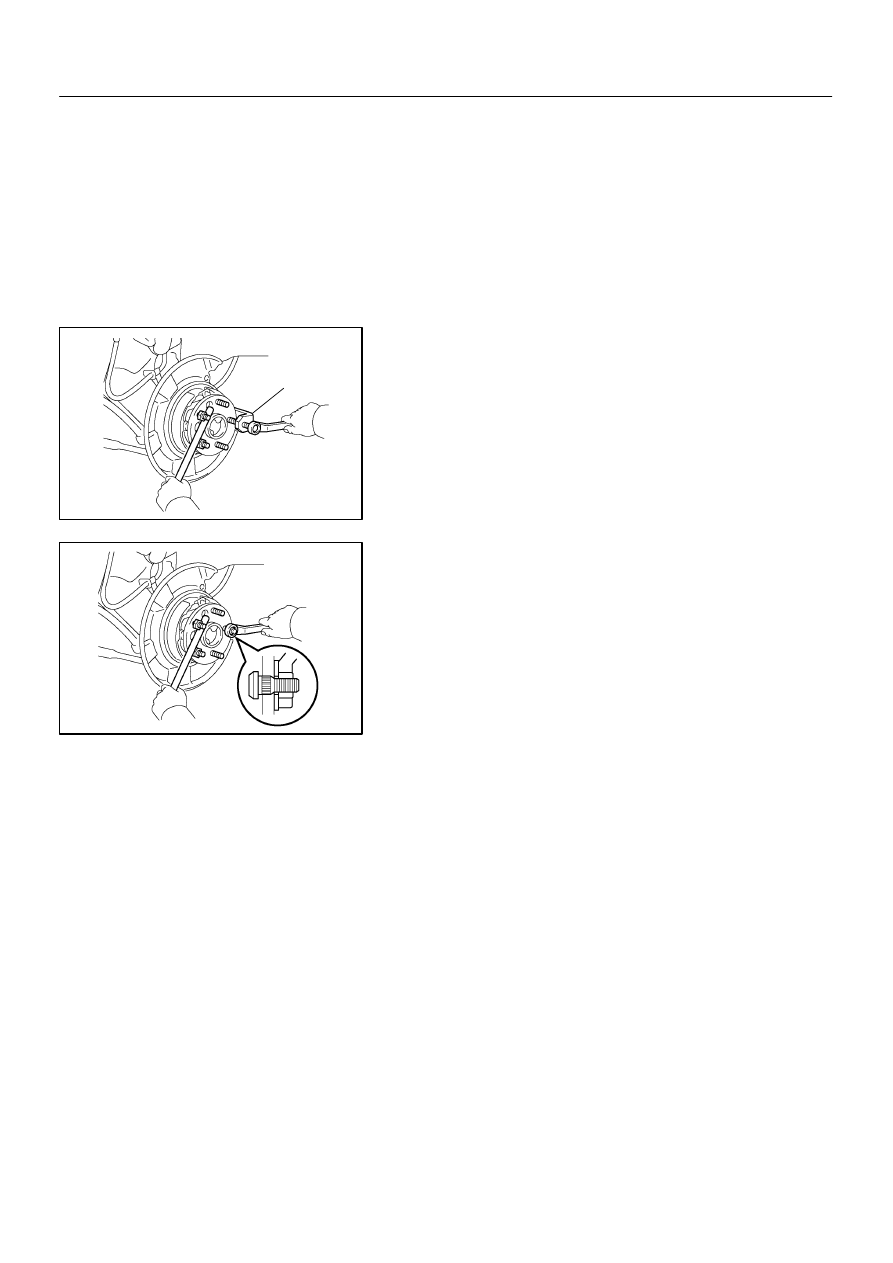

INSTALL AXLE HUB
Using SST and a press, install the axle hub.
SST
09950–60020 (09951–00730),
09950–70010 (09951–07100)
NOTICE:
Be careful not to damage the bearing.
6.
INSTALL INNER OIL SEAL
(a)
Using SST and a hammer, install a new inner oil seal.
SST
09316–60011 (09316–00011, 09316–00031),
09502–12010
(b)
Coat MP grease to the oil seal lip.
