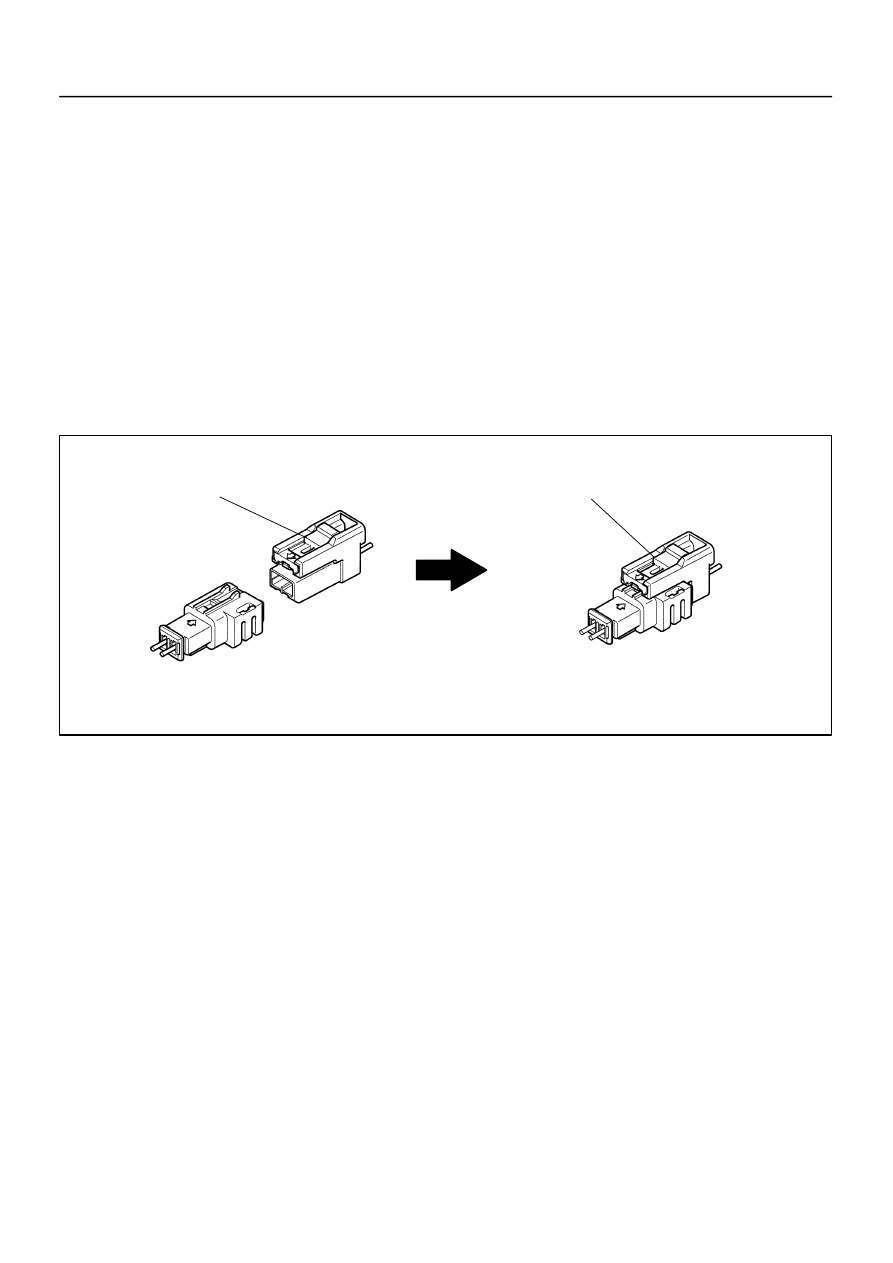

(a)
Align a lock part of male connector and a slider of female
connector in the same direction as shown in the illustra-
tion, fit in them without rubbing.
(b)
Be sure to insert until they are locked. After fitting in pull
them slightly to check that they are locked. (When locked,
make sure that the outer returns to its original position and
sound at the time of fitting in can be heard.)
HINT:
S
As the slider slides, do not touch it.
S
Be careful not to deform the release board. If the release
board is deformed, replace it with a new one.
15.

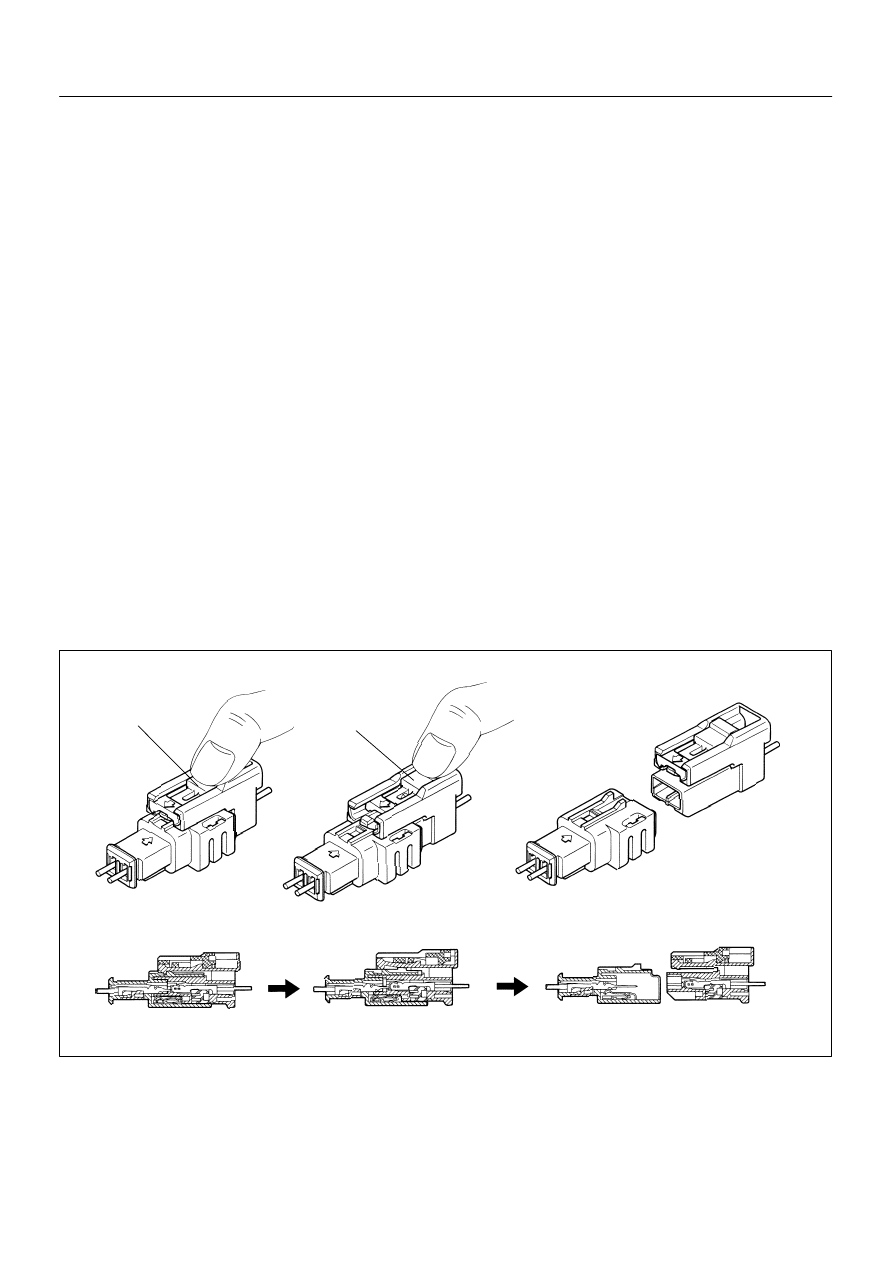

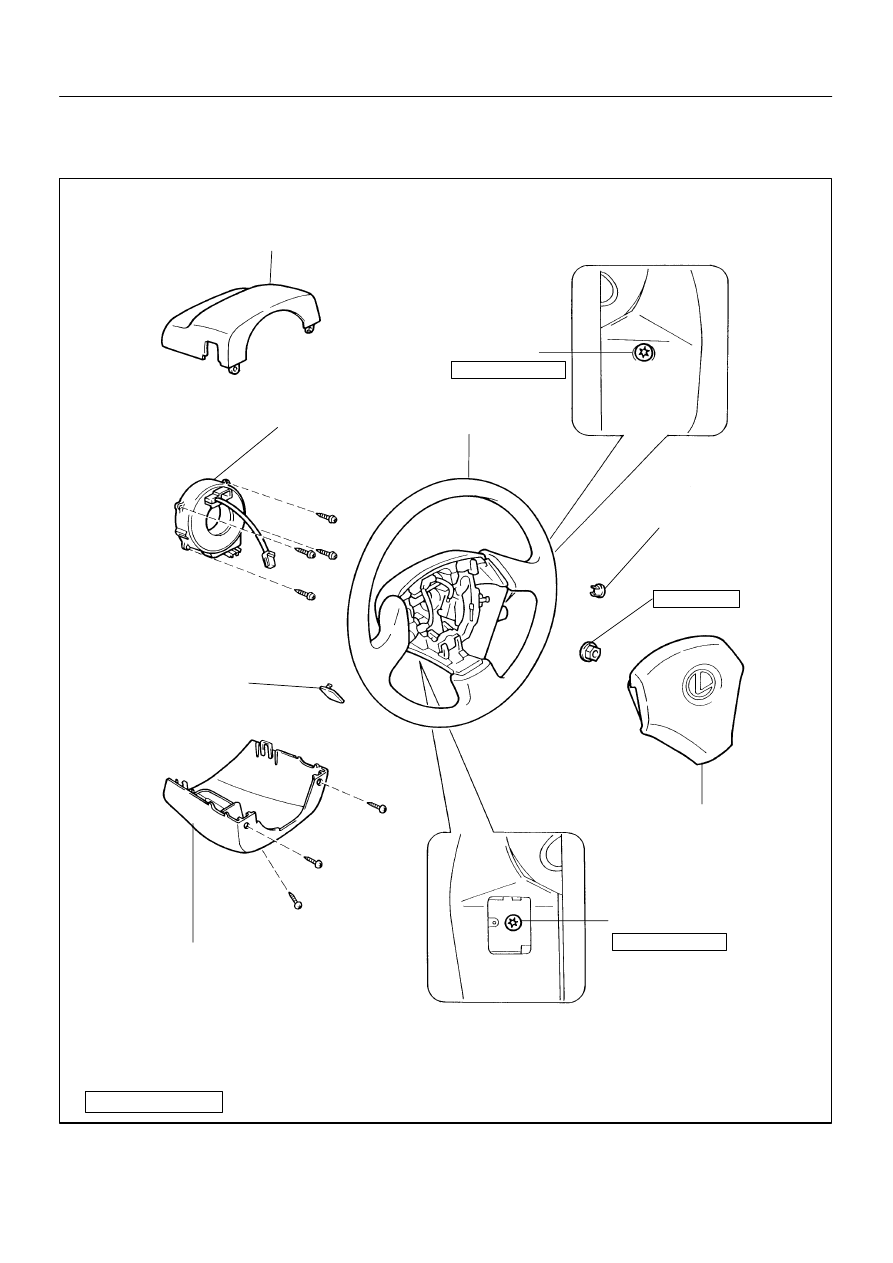

DISCONNECTION OF CONNECTORS FOR STEERING
WHEEL PAD (with AIRBAG) AND FRONT PAS-
SENGER AIRBAG ASSEMBLY
(a)
Place a finger on the slider.
(b)
Slide the slider to release lock.
(c)
Disconnect the connector.
