Lexus RX300 (MCU15). Manual - part 422

FI0VV–01

S04522

Ohmmeter

Continuity

S04521

Ohmmeter

No Continuity

P18857

Air

F

E

S04520

Air

E

F

Battery

–

ELECTRONIC FUEL INJECTION

VSV FOR EVAPORATIVE EMISSION (EVAP)

FI–59

LEXUS RX300   (RM785E)

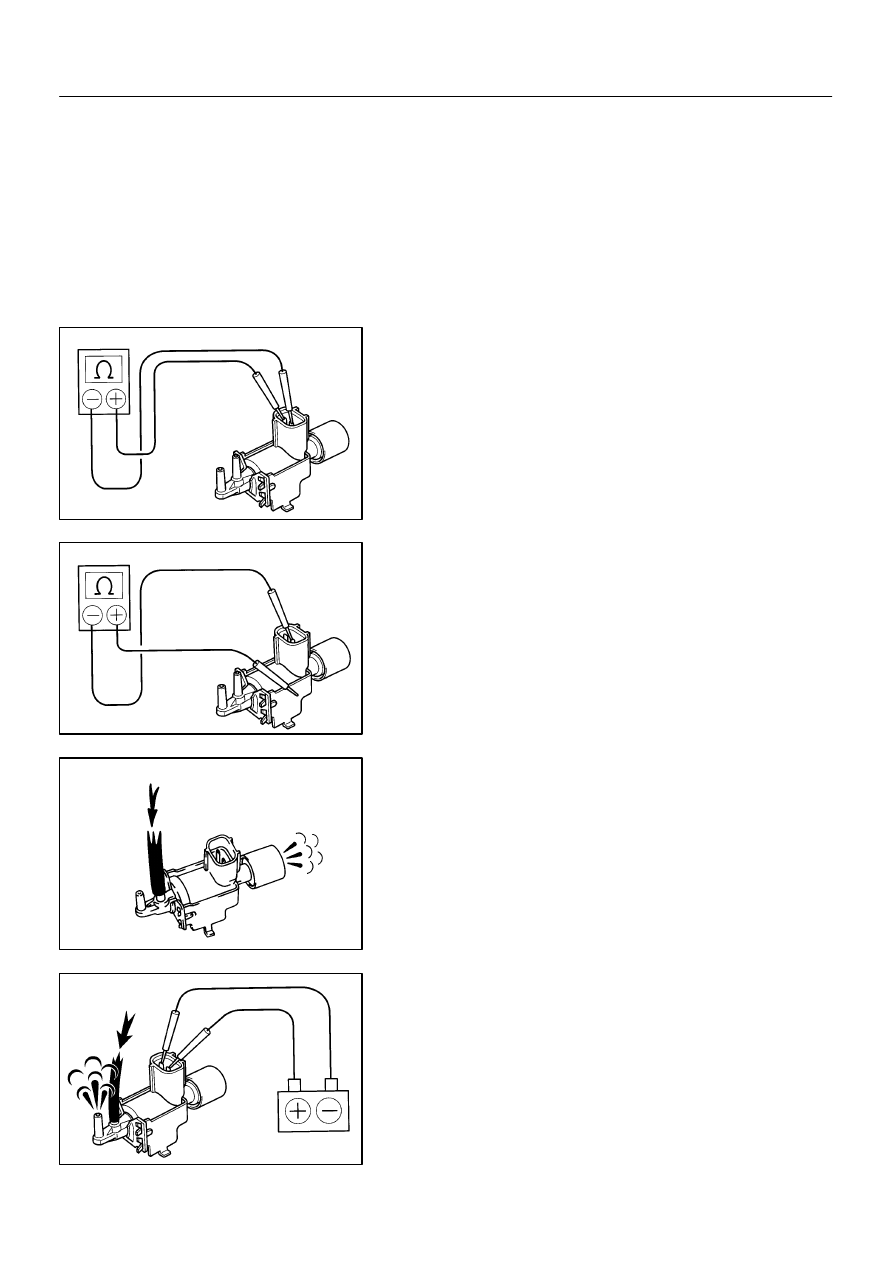

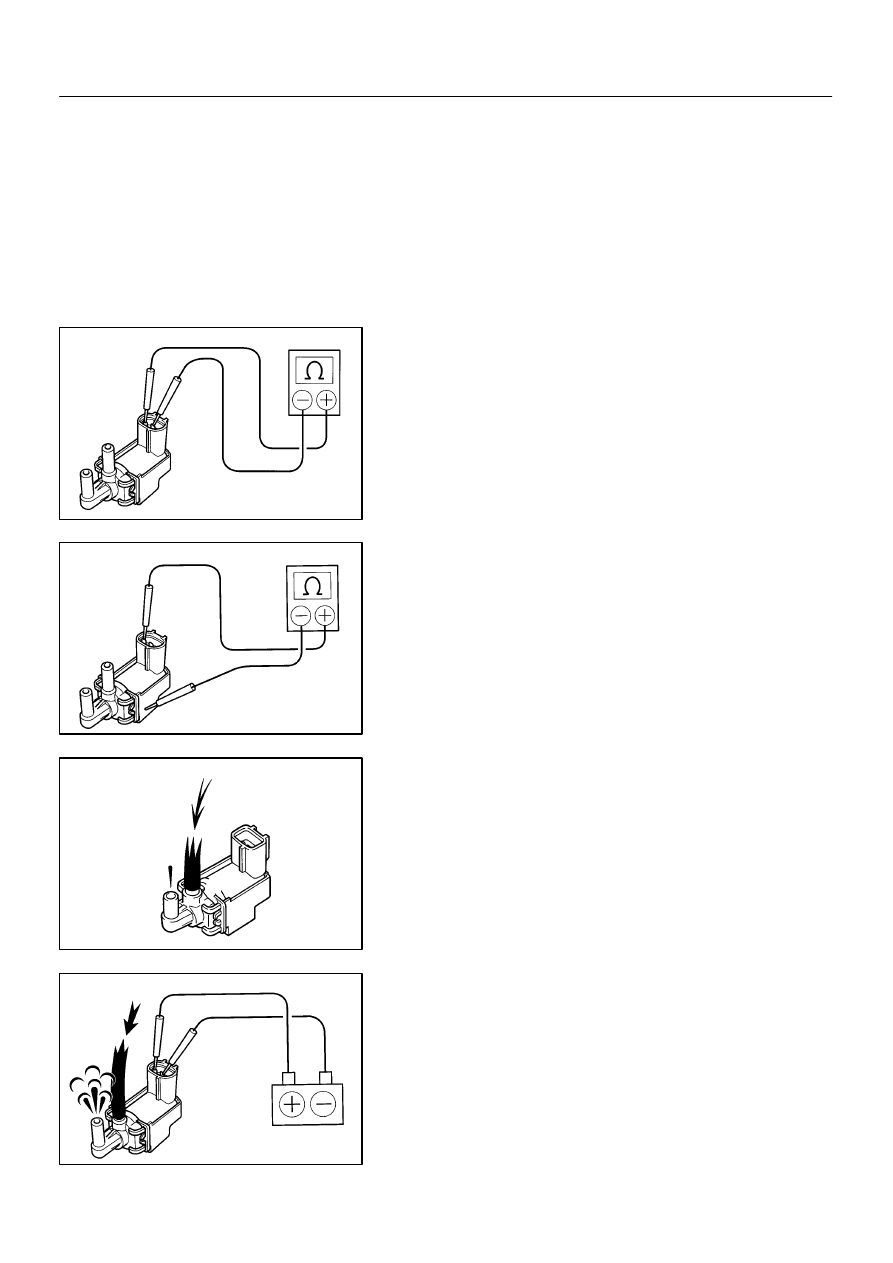

INSPECTION

1.

REMOVE V–BANK COVER,  COVER AND EMISSION
CONTROL VALVE SET

2.

REMOVE VSV

(a)

Disconnect the 2 EVAP hoses from the VSV.

(b)

Remove the screw and VSV.

3.

INSPECT VSV FOR OPEN CIRCUIT

Using an ohmmeter, check that there is continuity between the
terminals.

Resistance: 27 – 33 Ω at 20°C (68°F)

If there is no continuity, replace the VSV.

4.

INSPECT VSV FOR GROUND

Using an ohmmeter, check that there is no continuity between
each terminal and the body.
If there is continuity, replace the VSV.

5.

INSPECT VSV OPERATION

(a)

Check that air flows with difficulty from port E to port F.

(b)

Apply battery voltage across the terminals.

(c)

Check that air flows from port E to port F.

If operation is not as specified, replace the VSV.
6.

REINSTALL VSV

(a)

Install the VSV with the screw.

(b)

Connect the 2 EVAP hoses to the VSV.

7.

REINSTALL EMISSION CONTROL VALVE SET

8.

REINSTALL V–BANK COVER

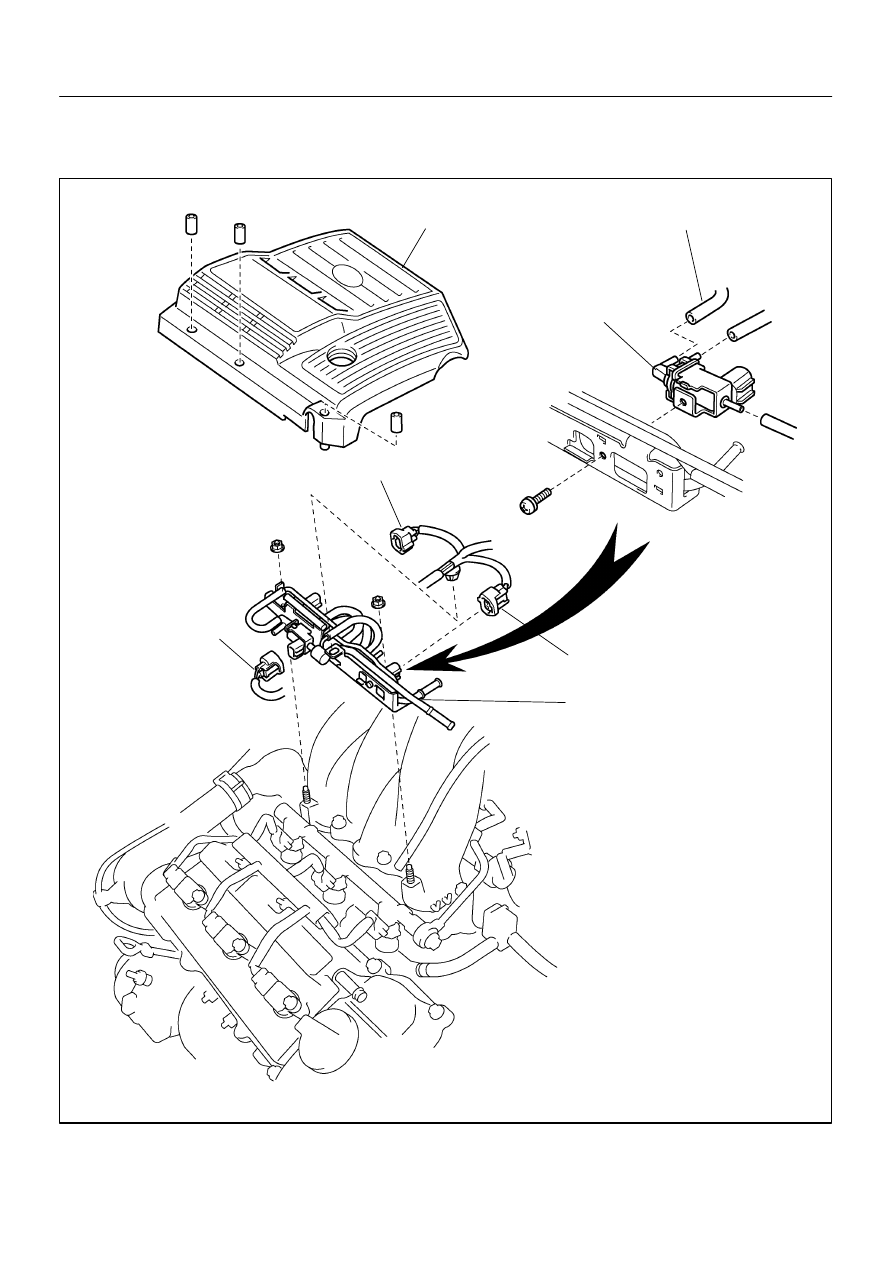

FI0VW–01

B04804

V–Bank Cover

Vacuum Hose

VSV for ACIS NO. 1

VSV for EVAP Connector

VSV for ACIS NO. 2
Connector

Emission Control Valve Set

VSV for ACIS NO. 1
Connector

NO. 1

FI–60

–

ELECTRONIC FUEL INJECTION

VSV FOR ACOUSTIC CONTROL INDUCTION
SYSTEM (ACIS)

LEXUS RX300   (RM785E)

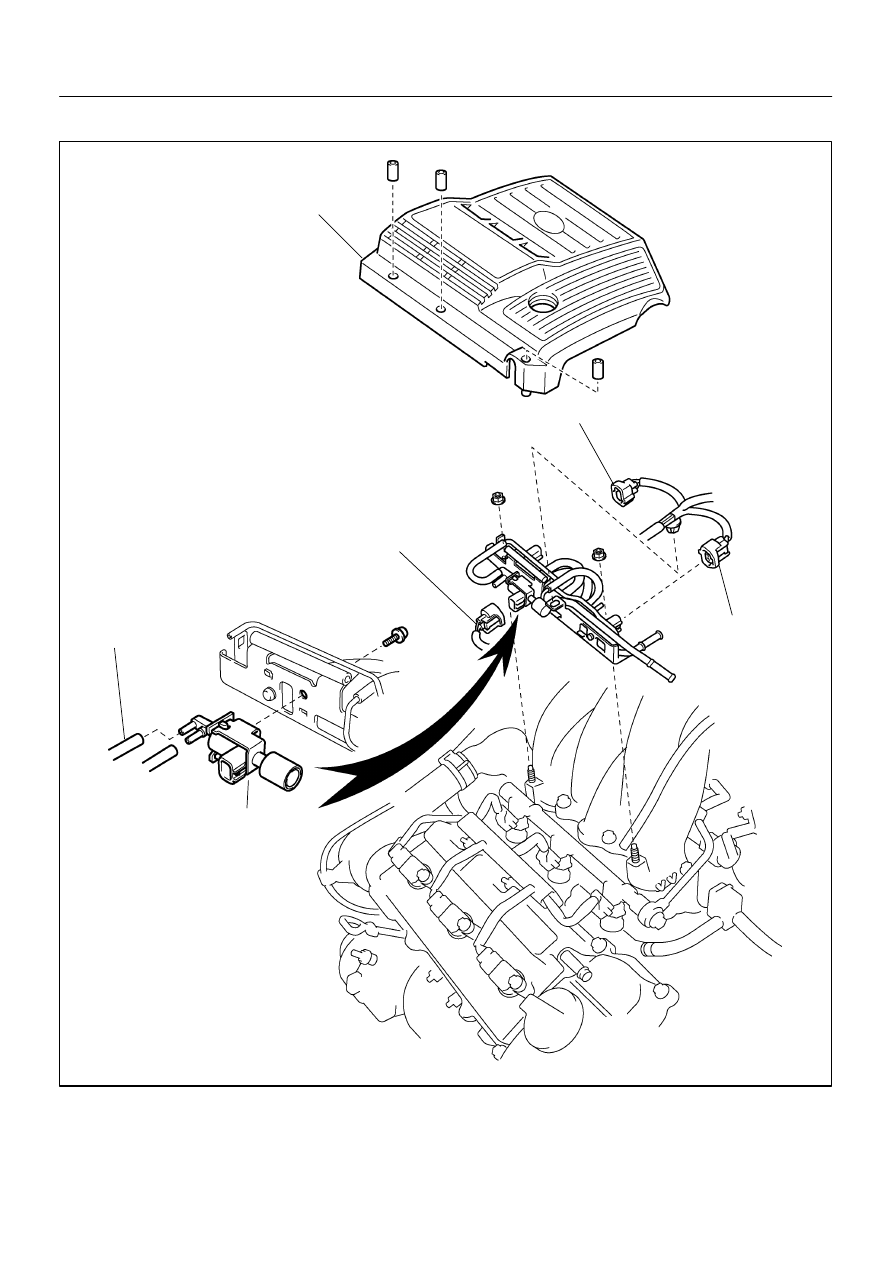

VSV FOR ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

COMPONENTS

B04806

S05515

V–Bank Cover

VSV for EVAP Connector

VSV for ACIS NO. 2
Connector

Vacuum Hose

VSV for ACIS NO. 2

VSV for ACIS NO. 1
Connector

 NO. 2

–

ELECTRONIC FUEL INJECTION

VSV FOR ACOUSTIC CONTROL INDUCTION
SYSTEM (ACIS)

FI–61

LEXUS RX300   (RM785E)

FI0VX–01

S04525

Ohmmeter

Continuity

S04524

Ohmmeter

No Continuity

FI6393

Air

E

Filter

S04523

Air

E

F

Battery

FI–62

–

ELECTRONIC FUEL INJECTION

VSV FOR ACOUSTIC CONTROL INDUCTION
SYSTEM (ACIS)

LEXUS RX300   (RM785E)

INSPECTION

1.

REMOVE V–BANK COVER, AND EMISSION CON-
TROL VALVE SET

2.

REMOVE VSV

(a)

Disconnect the 2 vacuum hoses from the VSV.

(b)

Remove the screw and VSV.

3.

INSPECT VSV FOR OPEN CIRCUIT

Using an ohmmeter, check that there is continuity between
each terminals.

Resistance: 33 – 39 Ω at 20°C (68°F)

If there is no continuity, replace the VSV.

4.

INSPECT VSV FOR GROUND

Using an ohmmeter, check that there is no continuity between
each terminal and the body.
If there is continuity, replace the VSV.

5.

INSPECT VSV OPERATION

(a)

Check that air flows from port E to the filter.

(b)

Apply battery voltage across the terminals.

(c)

Check that air flows from port E to port F.

If operation is not as specified, replace the VSV.
6.

REINSTALL VSV

(a)

Install the VSV with the screw.

(b)

Connect the 2 vacuum to the VSV.

7.

REINSTALL EMISSION CONTROL VALVE SET

8.

REINSTALL V–BANK COVER
