Lexus RX300 (MCU15). Manual - part 182

B12260

CH–14

–

CHARGING

ALTERNATOR

LEXUS RX300 (RM785E)

INSTALL REAR END COVER

(a)

Install the terminal insulator.

(b)

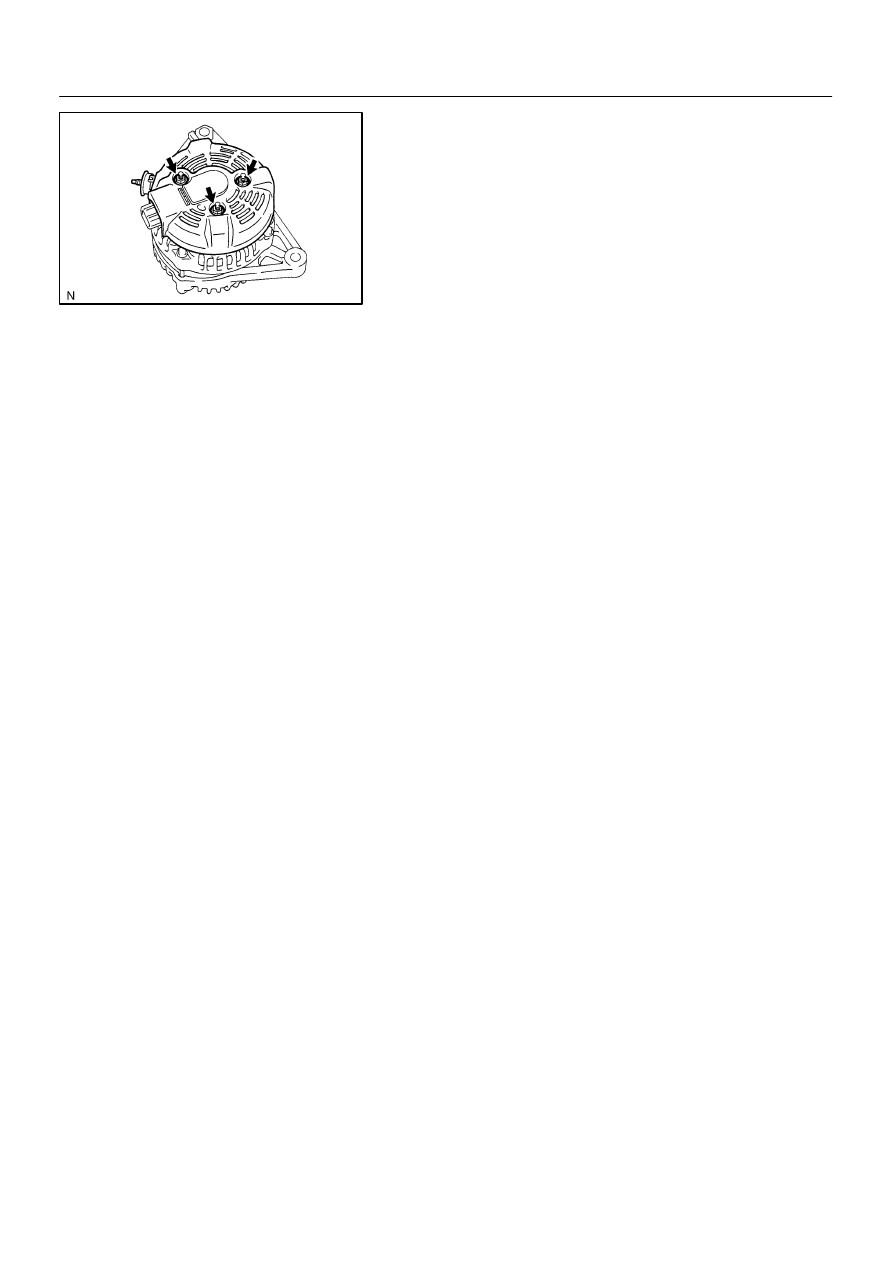

Install the end cover with the 3 nuts.
Torque: 4.6 N·m (47 kgf·cm, 41 in.·lbf)

CHECK THAT ROTOR ROTATES SMOOTHLY

CH07J–02

–

CHARGING

ALTERNATOR

CH–15

LEXUS RX300 (RM785E)

INSTALLATION

Installation is in the reverse order of removal (See page CH–6).
