Lexus RX300 (MCU15). Manual - part 177

BR07E–07

BR–60

–

BRAKE

FRONT SPEED SENSOR

LEXUS RX300   (RM785E)

INSTALLATION

Installation is in the reverse order of removal (See page BR–59).
HINT:
After installation, check speed sensor signal (See page DI–205).

BR07F–06

F13147

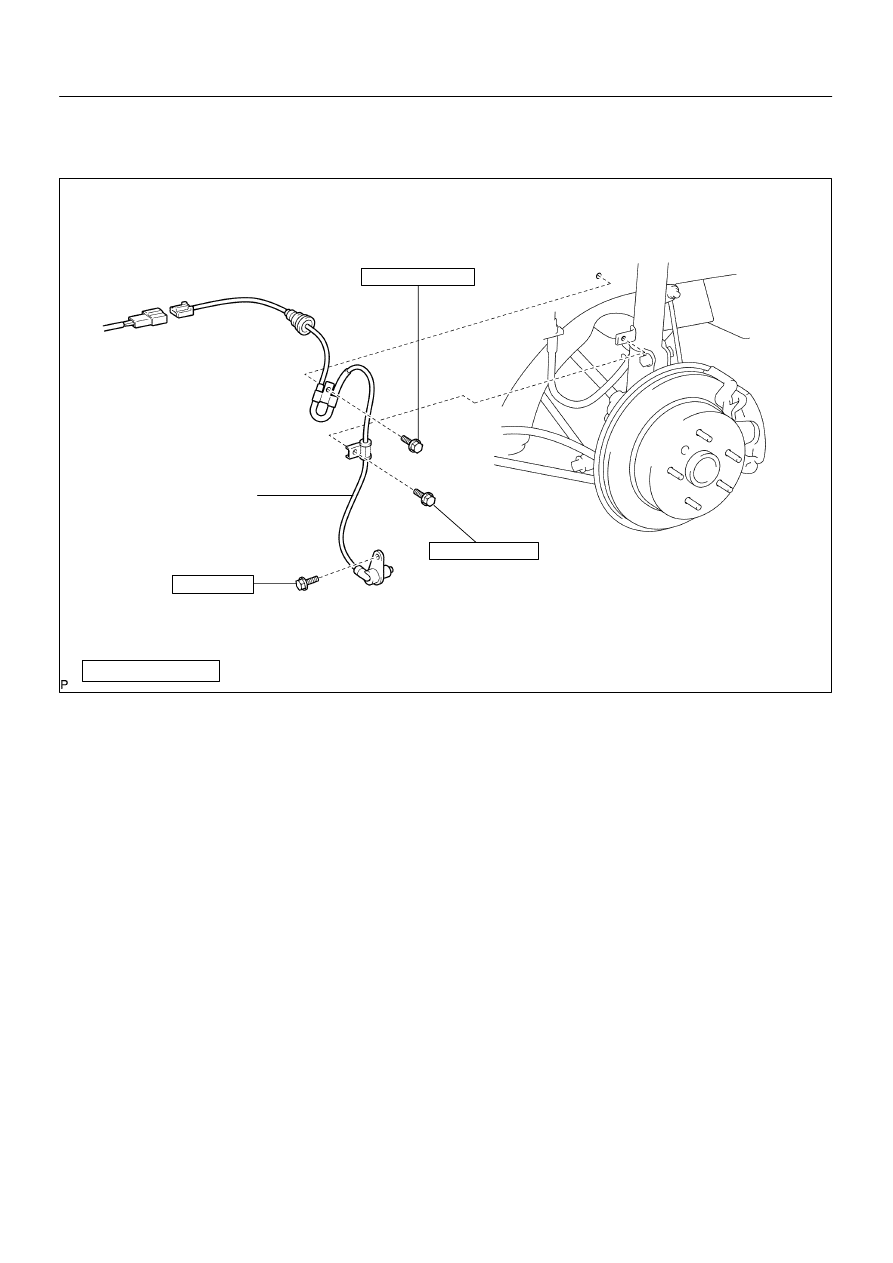

Rear Speed Sensor

N·m (kgf·cm, ft·lbf) : Specified torque

20 (200, 14)

5.0 (55, 48 in.·lbf)

5.0 (55, 48 in.·lbf)

–

BRAKE

REAR SPEED SENSOR

BR–61

LEXUS RX300   (RM785E)

REAR SPEED SENSOR

COMPONENTS

BR07G–05

F04965

F13148

BR–62

–

BRAKE

REAR SPEED SENSOR

LEXUS RX300   (RM785E)

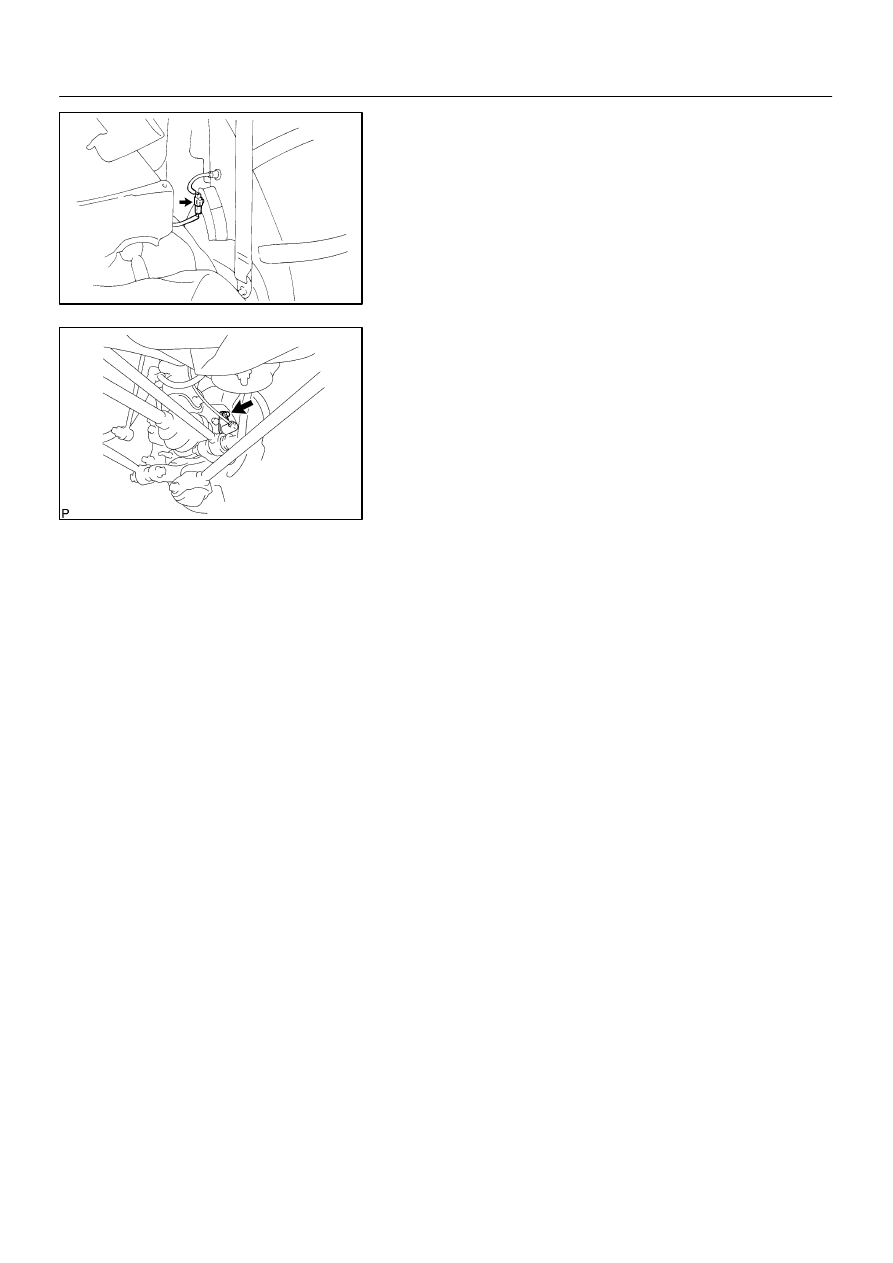

REMOVAL

1.

DISCONNECT SPEED SENSOR CONNECTOR

(a)

Remove the rear seat, scuff plate and rear seat side gar-
nish.

(b)

Disconnect the speed sensor connector, and pull out the
sensor wire harness with the grommet.

2.

REMOVE SPEED SENSOR

(a)

Remove the 2 clamp bolts holding the sensor wire har-
ness from the body and shock absorber.
Torque: 5.0 N·m (55 kgf·cm, 48 in.·lbf)

(b)

Remove the bolt and speed sensor from the axle carrier.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)

BR07H–07

–

BRAKE

REAR SPEED SENSOR

BR–63

LEXUS RX300   (RM785E)

INSTALLATION

Installation is in the reverse order of removal (See page BR–62).
HINT:
After installation, check speed sensor signal (See page DI–205)
