BODY ELECTRICAL

DOUBLE LOCKING SYSTEM

BE–107

LEXUS RX300   (RM785E)

Tester connection

Condition

Specified condition

12 – Ground

Constant

Continuity

1 – Ground

Constant

Battery voltage

6 – Ground

Constant

Battery voltage

2 – Ground

5 – Ground

Double lock is set (Double lock switch ON)

Approx. 5 V

5   Ground

7 – Ground

11 – Ground

Double lock is set (Double lock switch ON)

Below 1.0 V

If circuit is as specified, replace the double lock door control
relay.
If circuit is not as specified, wiring diagram and inspect the cir-
cuits connected to other parts.

BE0GQ–04

I19166

Door Lock Assembly
D Door Unlock Detection Switch

Rear RH Door ECU

Back Door Unlock
Detection Switch

Theft Deterrent ECU

Ignition Switch

Engine Hood Courtesy Switch

Theft Deterrent Indicator

Theft Deterrent Indicator

Ignition Switch

Door Lock Assembly
D Door Unlock Detection Switch

Instrument Panel J/B
D ECU–IG Fuse

Theft Deterrent
Indicator

Passenger Door ECU

Drive Door ECU

Instrument Panel J/B
D EFI–IG Fuse

Except Europe:

RHD:

Europe:

LHD:

Rear LH Door ECU

Theft Deterrent ECU

BE–108

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

LEXUS RX300   (RM785E)

THEFT DETERRENT SYSTEM

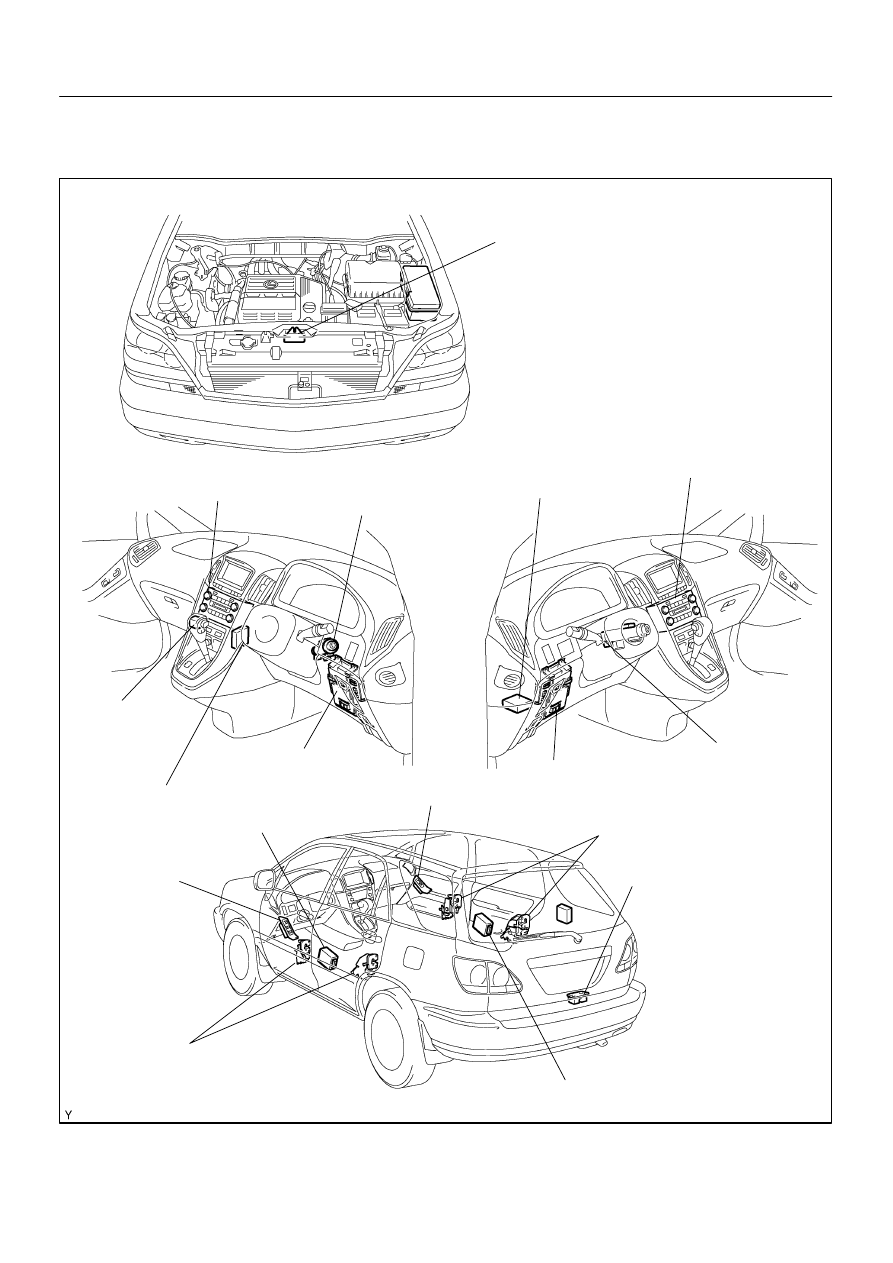

LOCATION

BE0GR–05

I19130

2

1

I19131

7

13

I07296

UNLOCK

LOCK

I04148

ON

OFF

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

BE–109

LEXUS RX300   (RM785E)

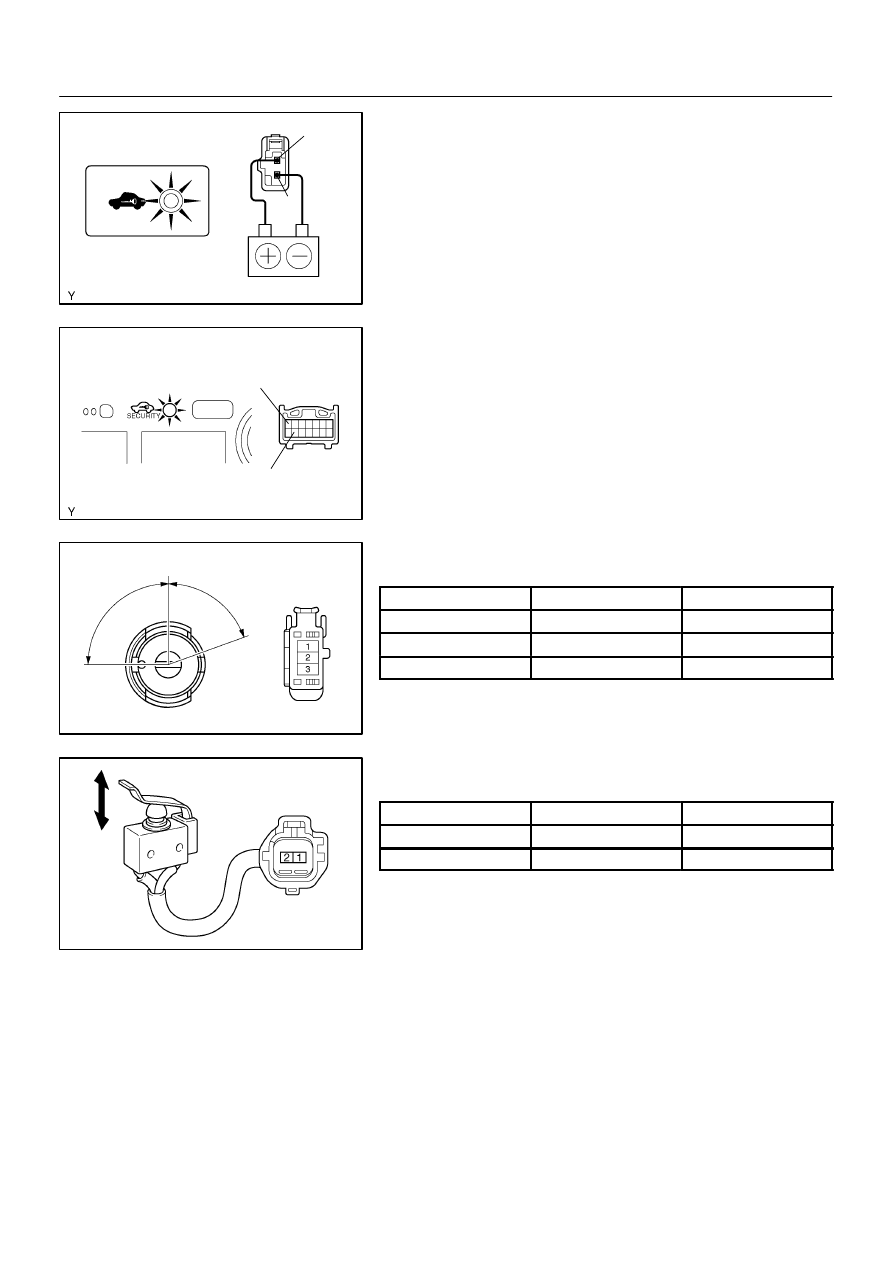

INSPECTION

1.

INSPECT THEFT DETERRENT INDICATOR LIGHT OP-
ERATION

(a)

Except Europe:
Connect the positive (+) lead from the battery terminal 2
and negative (–) lead to terminal 1, and check that the
warning light lights up.

(b)

Europe:
Connect the positive (+) lead from the battery terminal 13
and negative (–) lead to terminal 7, and check that the
warning light lights up.

If operation is not as specified, replace the warning light.
2.

INSPECT THEFT DETERRENT INDICATOR LIGHT
CIRCUIT (See page DI–453)

3.

INSPECT BACK DOOR KEY LOCK AND UNLOCK
SWITCH CONTINUITY

Switch position

Tester connection

Specified condition

LOCK

1 – 2

Continuity

Not turned

–

No continuity

UNLOCK

1 – 3

Continuity

If continuity is not as specified, replace the switch.
4.

INSPECT BACK DOOR KEY LOCK AND UNLOCK
SWITCH CIRCUIT (See page DI–592)

5.

INSPECT ENGINE HOOD COURTESY SWITCH CON-
TINUITY

Switch position

Tester connection

Specified condition

LOCK

–

No continuity

UNLOCK

1 – 2

Continuity

If continuity is not as specified, replace the switch.
6.

INSPECT ENGINE HOOD COURTESY SWITCH CIR-
CUIT (See page DI–470)

BE0GM–10

I19165

Transmitter

Wireless Door
Lock Control Receiver

Door Lock Assembly
D Door Lock Motor
D Door Unlock Detection Switch
D Door Key Lock and Unlock Switch

Key Unlock Warning Switch

Back Door Lock
Motor

Back Door Unlock Detection Switch

Door Lock Assembly
D Door Lock Motor
D Door Unlock Detection Switch

BE–110

–

BODY ELECTRICAL

WIRELESS DOOR LOCK CONTROL SYSTEM

LEXUS RX300   (RM785E)

WIRELESS DOOR LOCK CONTROL SYSTEM

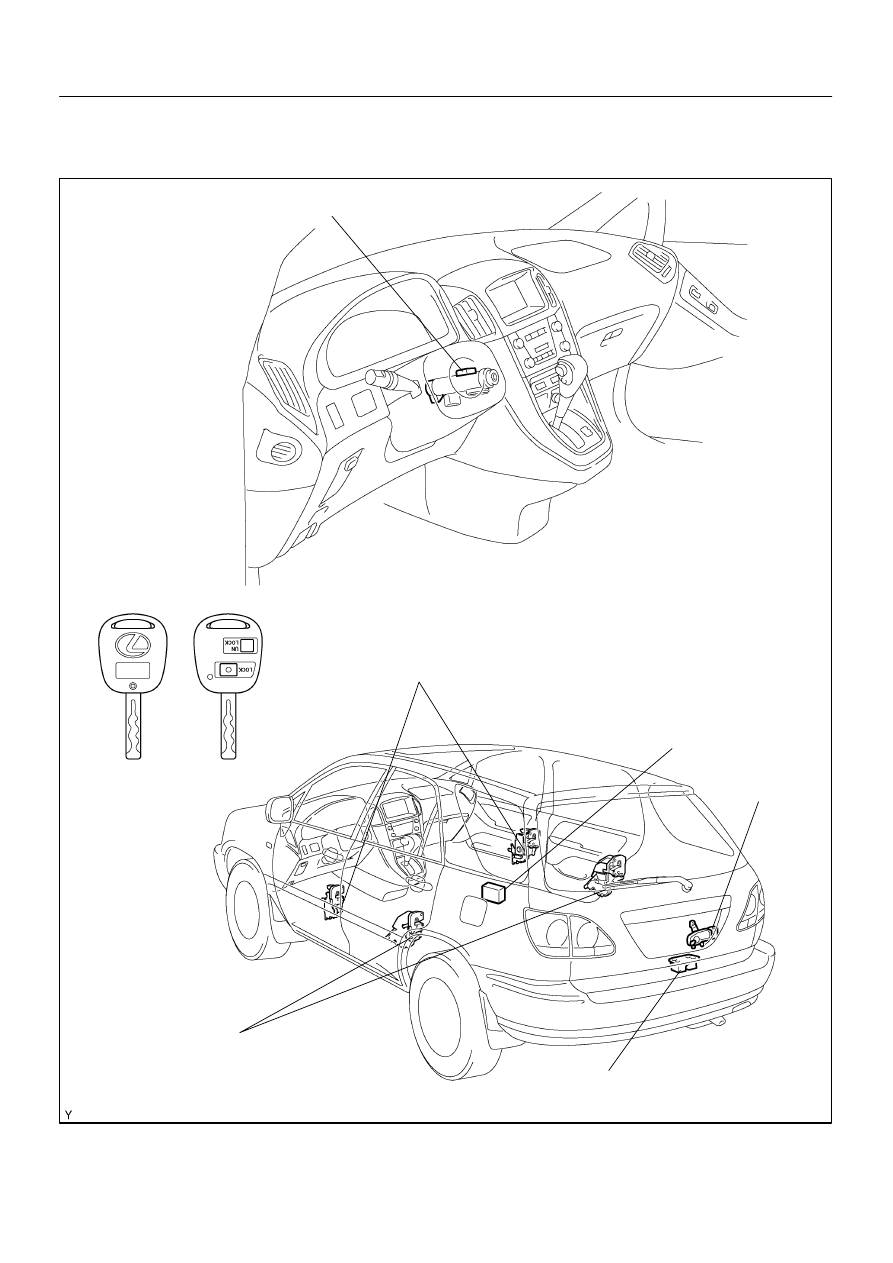

LOCATION
