AX–24

–

AUTOMATIC TRANSAXLE

FLOOR SHIFT ASSEMBLY

LEXUS RX300   (RM785E)

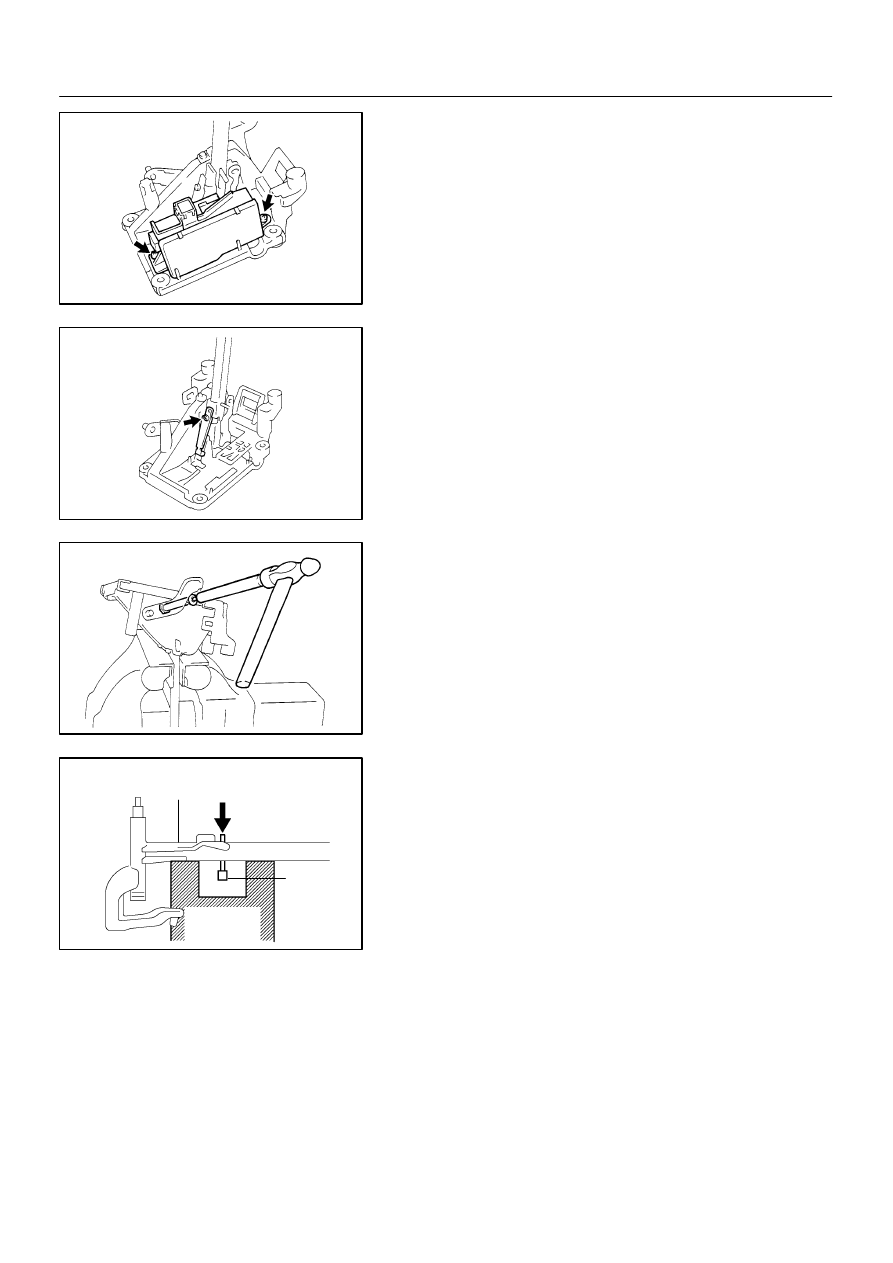

10.

REMOVE SHIFT LOCK CONTROL UNIT ASSEMBLY

Remove the 2 screws and shift lock control unit assembly.

11.

REMOVE MANUAL DETENT SPRING

Remove the screw and manual detent spring.

12.

REMOVE CONTROL SHAFT

Using a brass bar and hammer, remove the spring nut and con-
trol shaft.
13.

REMOVE SHIFT LEVER SUB–ASSEMBLY

14.

REMOVE GROOVED PIN

Secure the room for the pin to be released by using the vice and
etc. as shown in the illustration, and hit the grooved pin with a
hammer and pull the grooved pin out.
NOTICE:

S

Hit and pull the pin out gradually.

S

Do not damage the shift lever sub–assembly.

15.

REMOVE DETENT ROD, COMPRESSION SPRING
AND WIRE GUIDE

16.

REMOVE SHIFT LEVER KNOB SLEEVE AND SHIFT
LEVER SPRING SEAT FROM DETENT ROD

D03166

–

AUTOMATIC TRANSAXLE

FLOOR SHIFT ASSEMBLY

AX–25

LEXUS RX300   (RM785E)

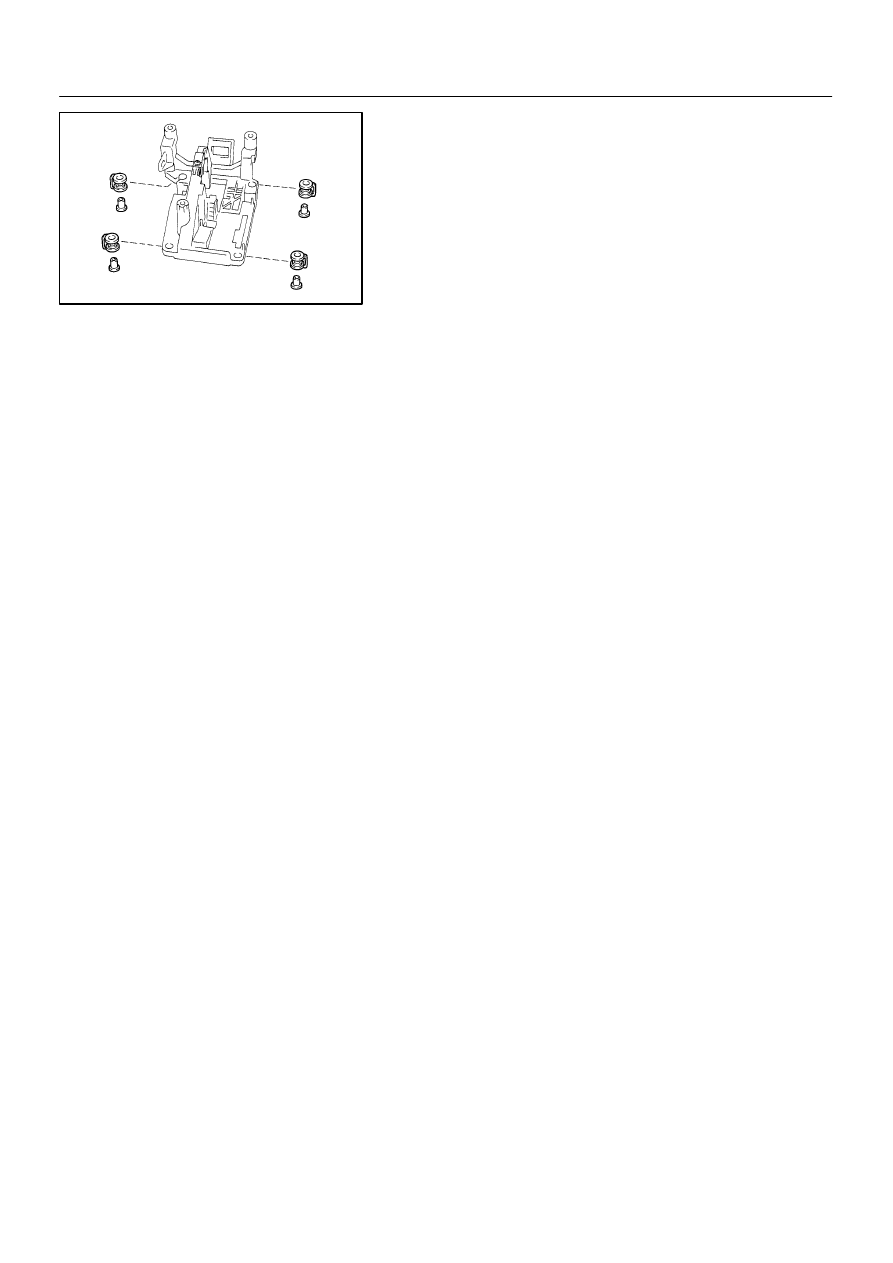

17.

REMOVE NO. 1 SHIFT LEVER INSERT, BUSHING AND
SHIFT LEVER ANTI–RATTLE CUSHION

(a)

Remove the 4 No. 1 shift lever inserts and bushings from
the No. 2 shift lever plate.

(b)

Remove the screw and shift lever anti–rattle cushion from
the No. 2 shift lever plate.

AX11D–01

D03166

D03165

Grooved Pin

Shift Lever Sub–Assembly

D03163

Socket Wrench

AX–26

–

AUTOMATIC TRANSAXLE

FLOOR SHIFT ASSEMBLY

LEXUS RX300   (RM785E)

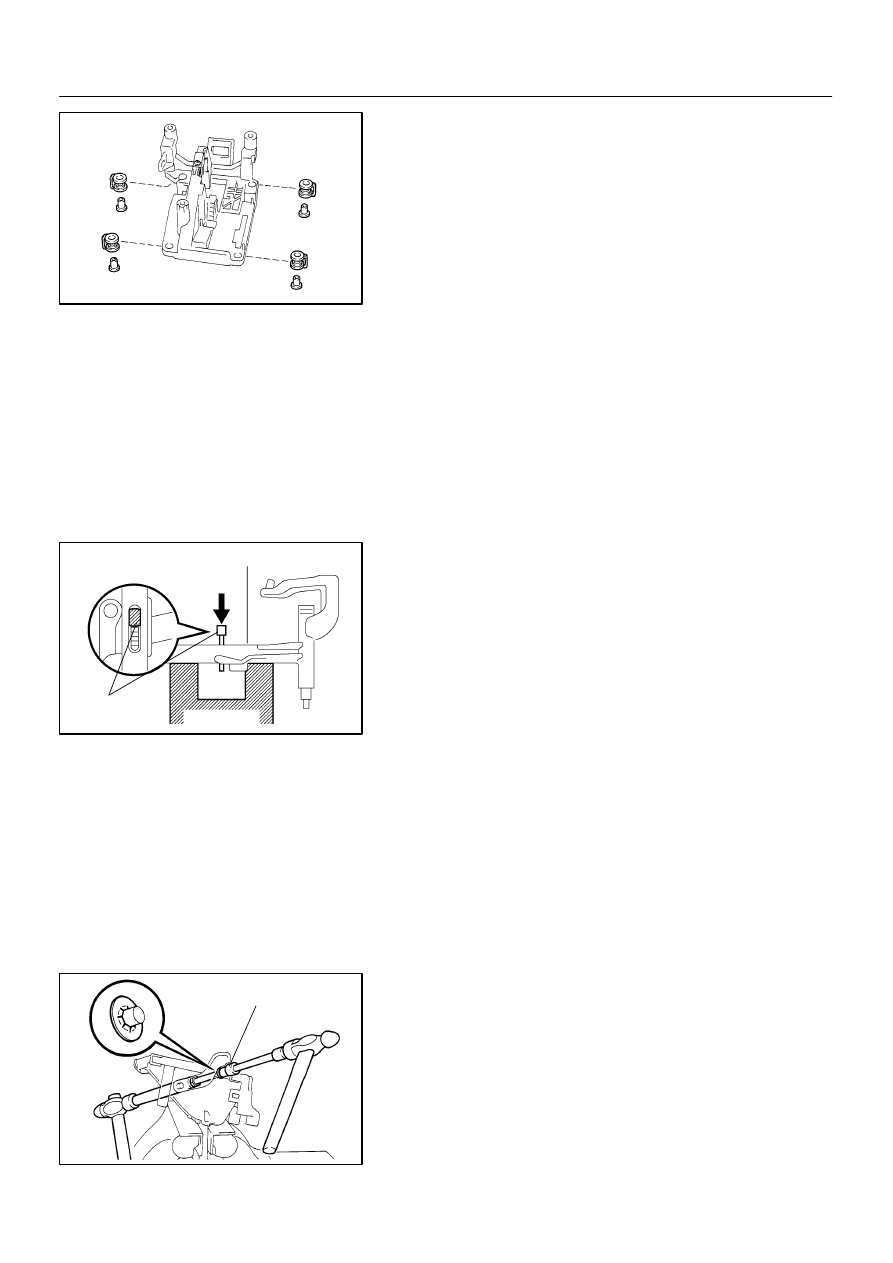

REASSEMBLY

HINT:
Before reassembly, apply MP grease to the parts indicated by
arrows (See page AX–19).
1.

INSTALL NO. 1 SHIFT LEVER INSERT, BUSHING AND
SHIFT LEVER ANTI–RATTLE CUSHION

(a)

Install the screw and shift lever anti–rattle cushion to the
shift lever plate.
Torque: 1.8 N·m (18 kgf·cm, 16 in.·lbf)

(b)

Install the 4 No. 1 shift lever inserts and bushings to the
shift lever plate.

2.

INSTALL SHIFT LEVER KNOB SLEEVE AND SHIFT
LEVER SPRING SEAT TO DETENT ROD

3.

INSTALL WIRE GUIDE, COMPRESSION SPRING AND
DETENT ROD

4.

INSTALL GROOVED PIN

(a)

Place the shift lever sub–assembly on the table, as shown
in the illustration.

(b)

Using a hammer, drive in the grooved pin to the detent rod
pin hole.

NOTICE:

S

Assemble the grooved pin to ensure that it fits into the
guide hole of the shift lever sub–assembly in parallel.

S

Take care not to insert the pin in the wrong direction.

5.

INSTALL SHIFT LEVER SUB–ASSEMBLY

NOTICE:
Pay attention to the direction of the shift lever sub–assem-
bly.

6.

INSTALL CONTROL SHAFT

(a)

Install the control shaft to the shift lever sub–assembly.

(b)

Support the control shaft with a hammer and brass bar, as
shown in the illustration.

(c)

Using a socket wrench and hammer, drive in a new spring
nut.

D03161

D03160

D03168

D07896

D03157

–

AUTOMATIC TRANSAXLE

FLOOR SHIFT ASSEMBLY

AX–27

LEXUS RX300   (RM785E)

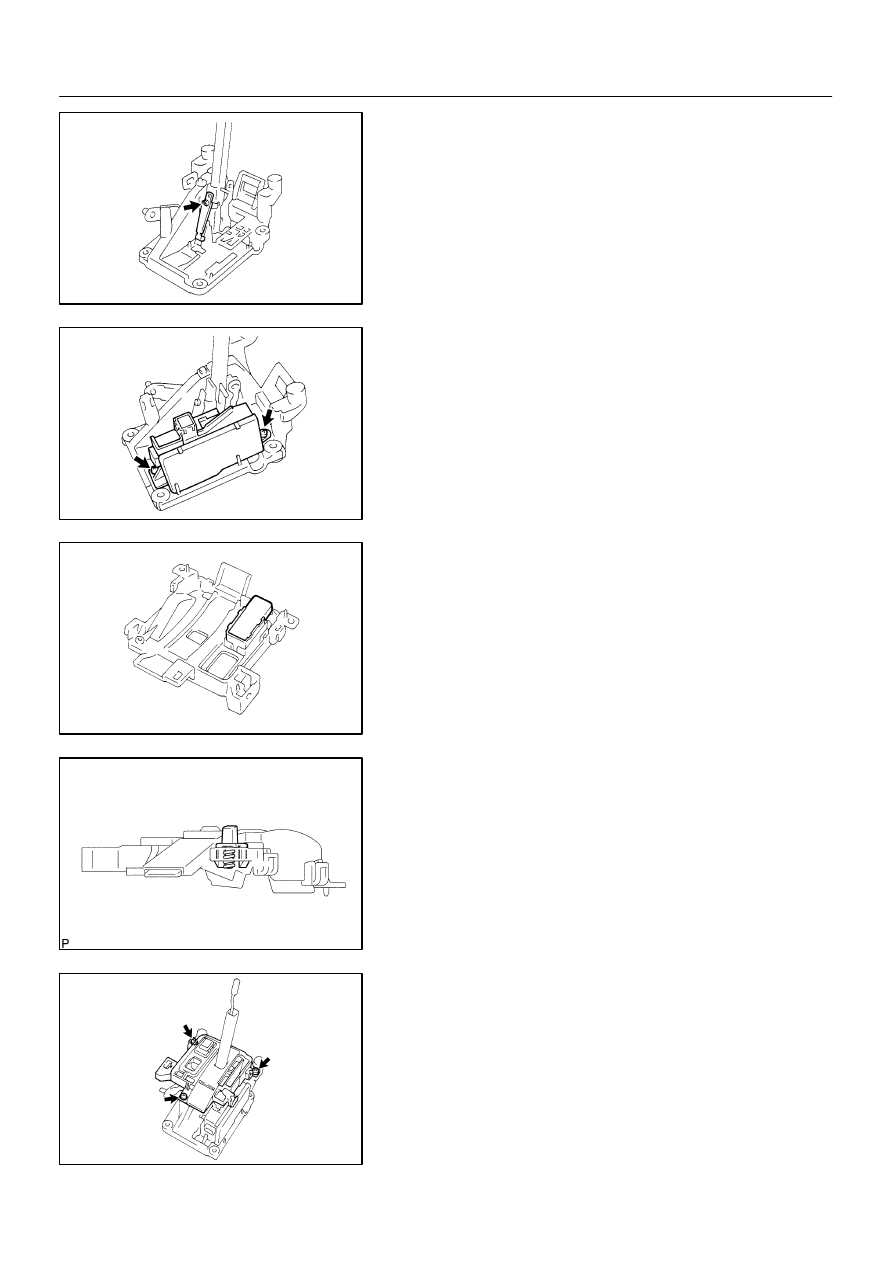

7.

INSTALL MANUAL DETENT SPRING

Install the screw and manual detent spring.

Torque: 1.7 N·m (17 kgf·cm, 15 in.·lbf)

8.

INSTALL SHIFT LOCK CONTROL UNIT ASSEMBLY

Install the 2 screws and shift lock control unit assembly.

Torque: 1.8 N·m (18 kgf·cm, 16 in.·lbf)

9.

INSTALL LOWER POSITION INDICATOR HOUSING

(a)

Install the slide cover to the lower position indicator hous-
ing.

(b)

Install the pattern select switch to the lower position indi-
cator housing.

(c)

Install the compression spring to the shift lock release but-
ton.

(d)

Install the shift lock release button with the compression
spring to the lower position indicator housing.

(e)

Install the 3 screws and lower position indicator housing.
Torque: 2.2 N·m (23 kgf·cm, 19 in.·lbf)

10.

INSTALL INDICATOR LIGHT WIRE SUB–ASSEMBLY

(a)

Install the bulb to the indicator light wire sub–assembly.

(b)

Install the indicator light wire sub–assembly to the lower
position indicator housing.

11.

INSTALL CONTROL POSITION INDICATOR PLATE
