AUTOMATIC TRANSAXLE

VALVE BODY ASSEMBLY

LEXUS RX300   (RM785E)

(c)

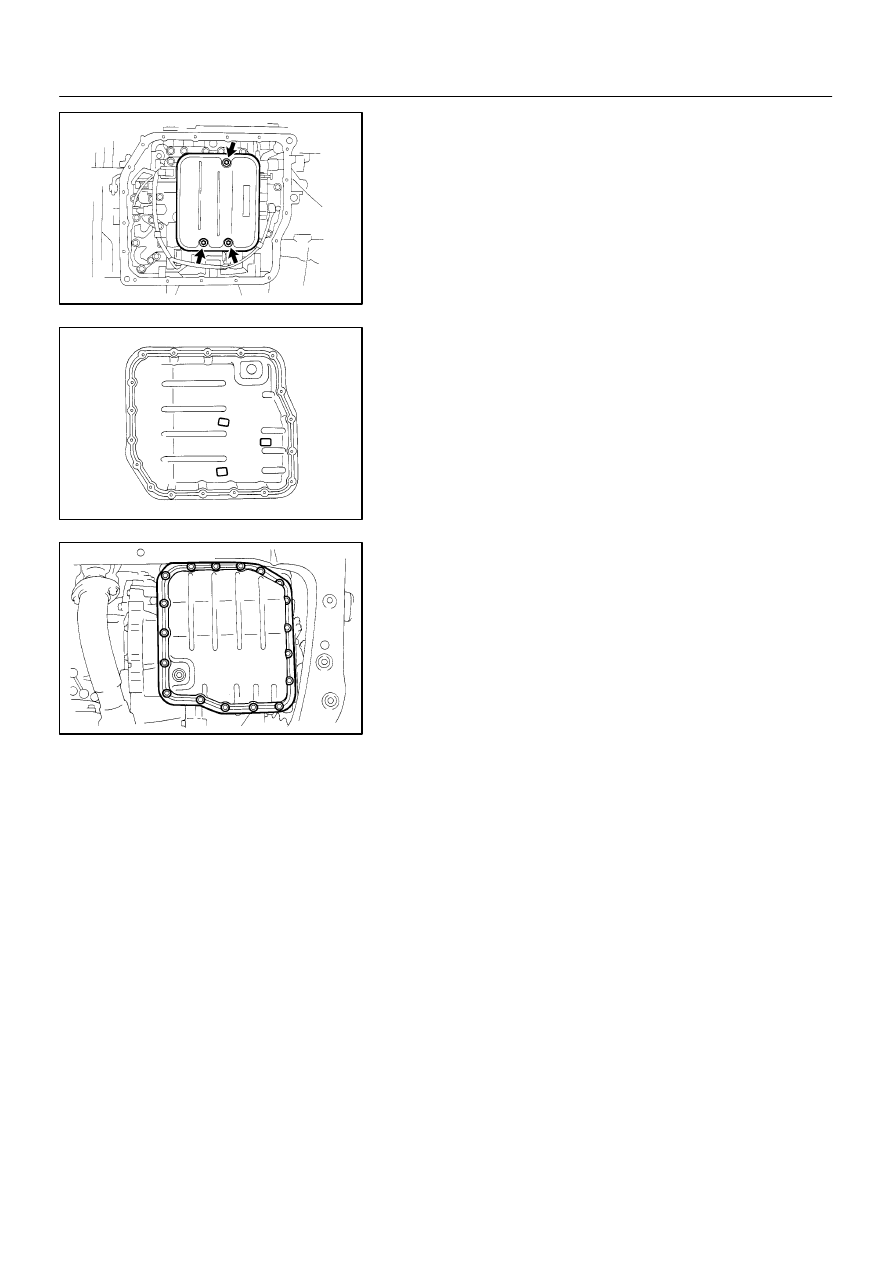

Install the oil strainer with the 3 bolts.
Torque: 11 N·m (110 kgf·cm, 8 ft·lbf)

21.

INSTALL MAGNET IN OIL PAN

Install the 3 magnets in the oil pan, as shown in the illustration.

22.

INSTALL OIL PAN

Install the oil pan and a new gasket with the 18 bolts.

Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)

23.

INSTALL DRAIN PLUG

Install a new gasket and drain plug.

Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

24.

FILL ATF AND CHECK ATF LEVEL
(See page DI–144)

25.

INSTALL ENGINE UNDER COVER

AX118–01

D08195

Air Cooled Oil Cooler

Front Right Fender Liner

N·m (kgf·cm, ft·lbf) : Specified torque

Clip

7.0 (71, 62 in.·lbf)

Clip

7.0 (71, 62 in.·lbf)

7.0 (71, 62 in.·lbf)

–

AUTOMATIC TRANSAXLE

AIR COOLED OIL COOLER

AX–13

LEXUS RX300   (RM785E)

AIR COOLED OIL COOLER

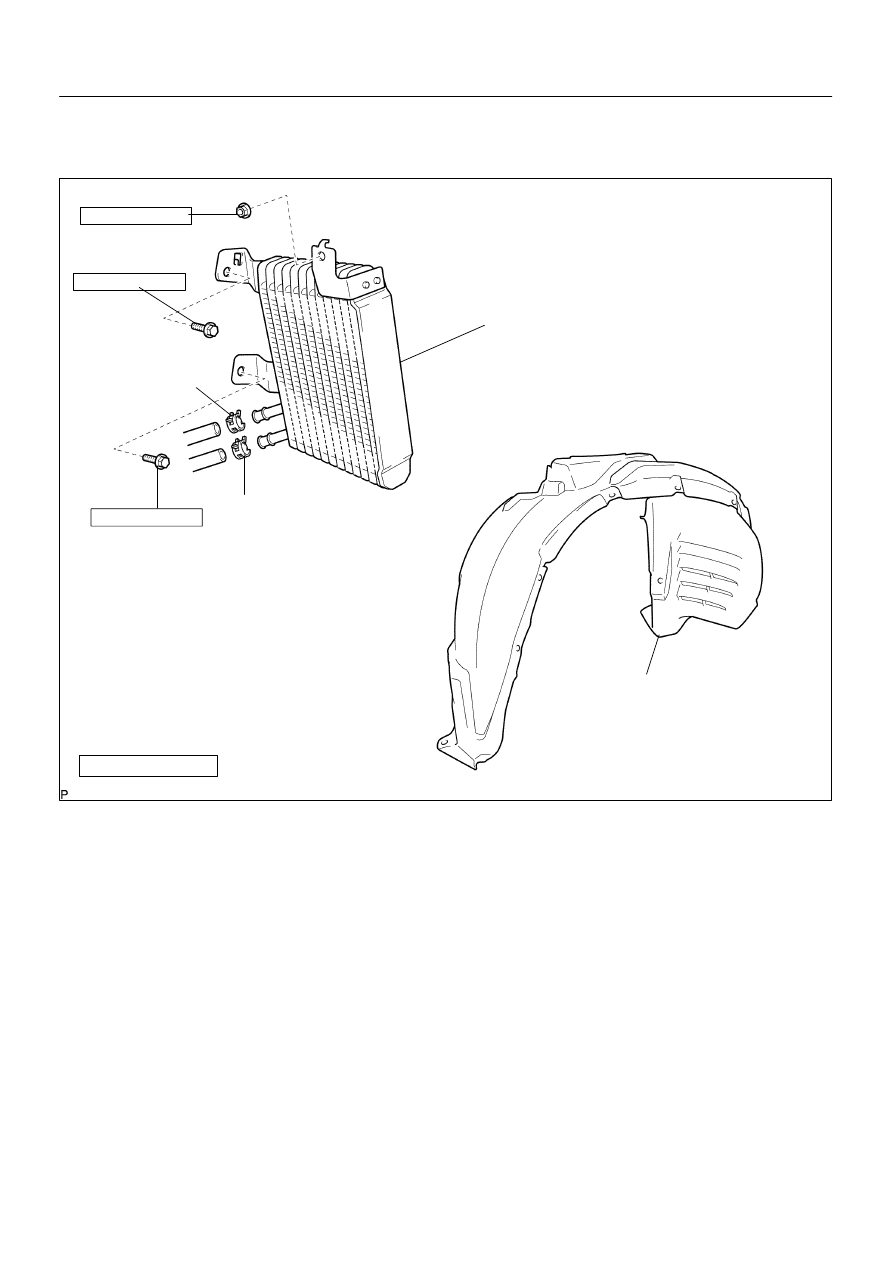

COMPONENTS

AX119–01

D08196

AX–14

–

AUTOMATIC TRANSAXLE

AIR COOLED OIL COOLER

LEXUS RX300   (RM785E)

REMOVAL

1.

REMOVE FRONT RIGHT FENDER LINER

2.

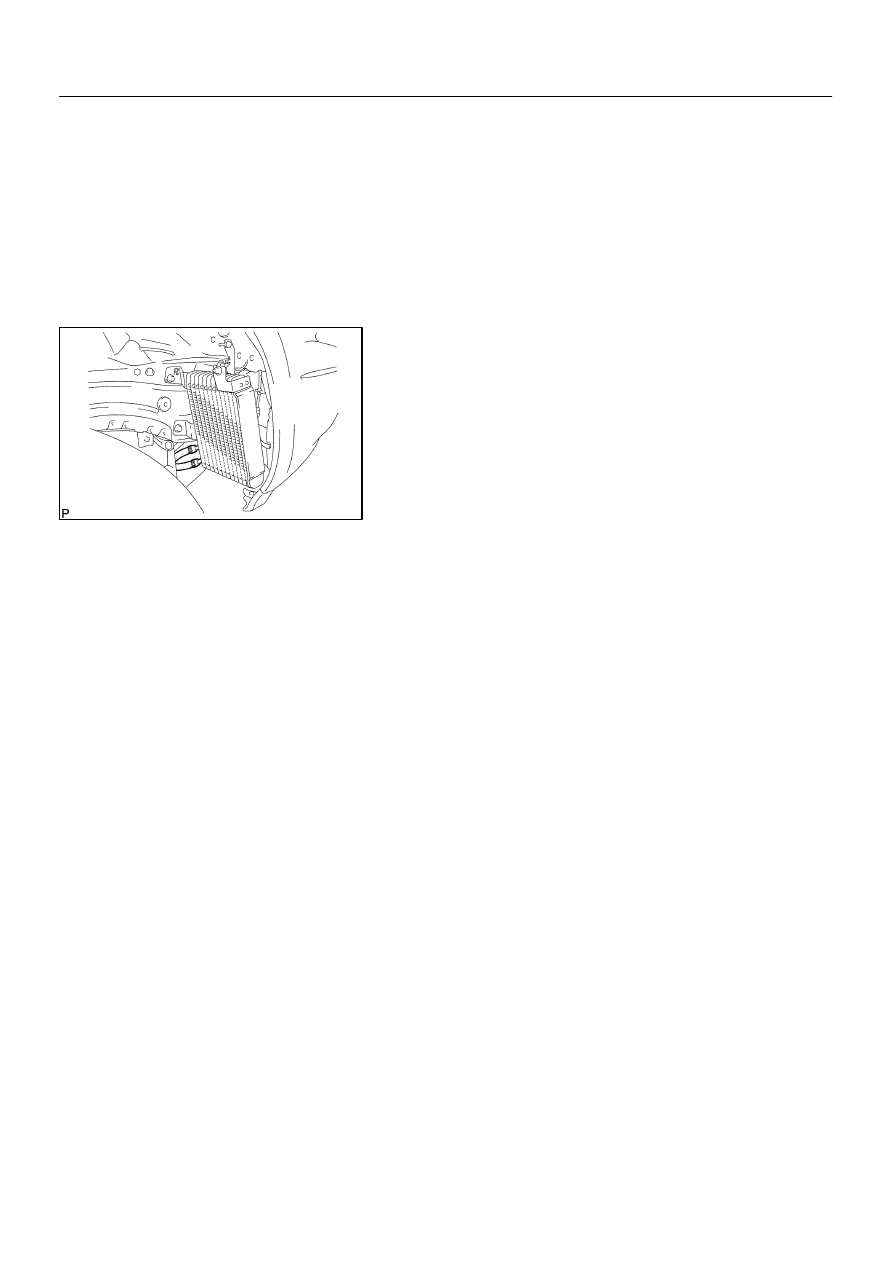

DISCONNECT OIL COOLER HOSE

Loosen the 2 clips and disconnect the 2 oil cooler hoses.
3.

REMOVE OIL COOLER

(a)

Remove the nut.
Torque: 7.0 N·m (71 kgf·cm, 62 in.·lbf)

(b)

Remove the 2 bolts and oil cooler assembly.
Torque: 7.0 N·m (71 kgf·cm, 62 in.·lbf)

AX11A–01

–

AUTOMATIC TRANSAXLE

AIR COOLED OIL COOLER

AX–15

LEXUS RX300   (RM785E)

INSTALLATION

Installation is in the reverse order of removal (See page AX–14).
HINT:
Fill ATF and check the fluid level (See page DI–144).
