AC1MT–01

I06829

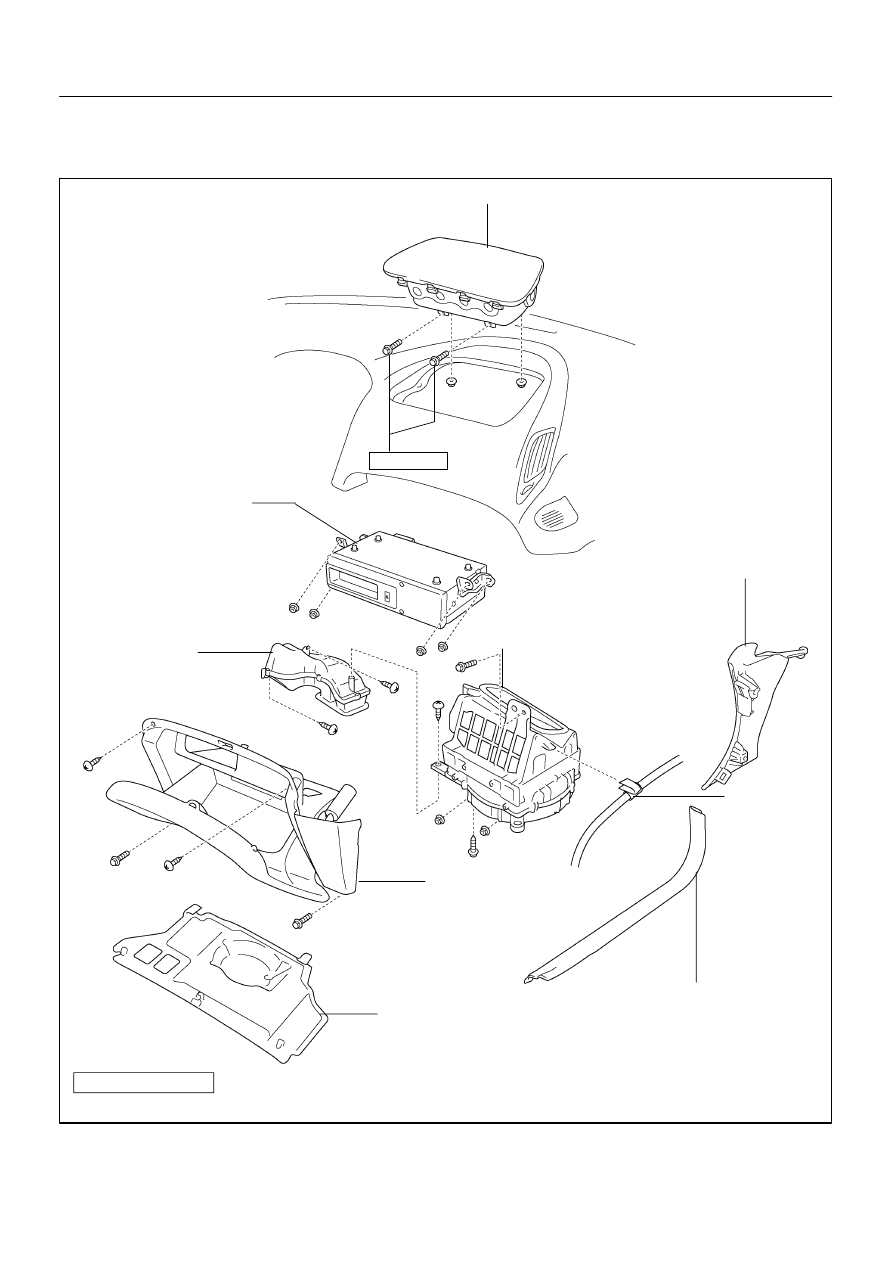

Front Passenger Airbag Assembly

CD Changer Assembly

Air Duct
(Passenger Side)

Lower No. 2 Panel

Front Door Scuff Plate RH

Cowl Side Trim RH

No. 2 Under Cover

Blower Unit

20 (205, 15)

Wire Harness

N·m (kgf·cm, ft·lbf)

z Non–reusable part

: Specified torque

AC–36

–

AIR CONDITIONING

BLOWER UNIT

LEXUS RX300   (RM785E)

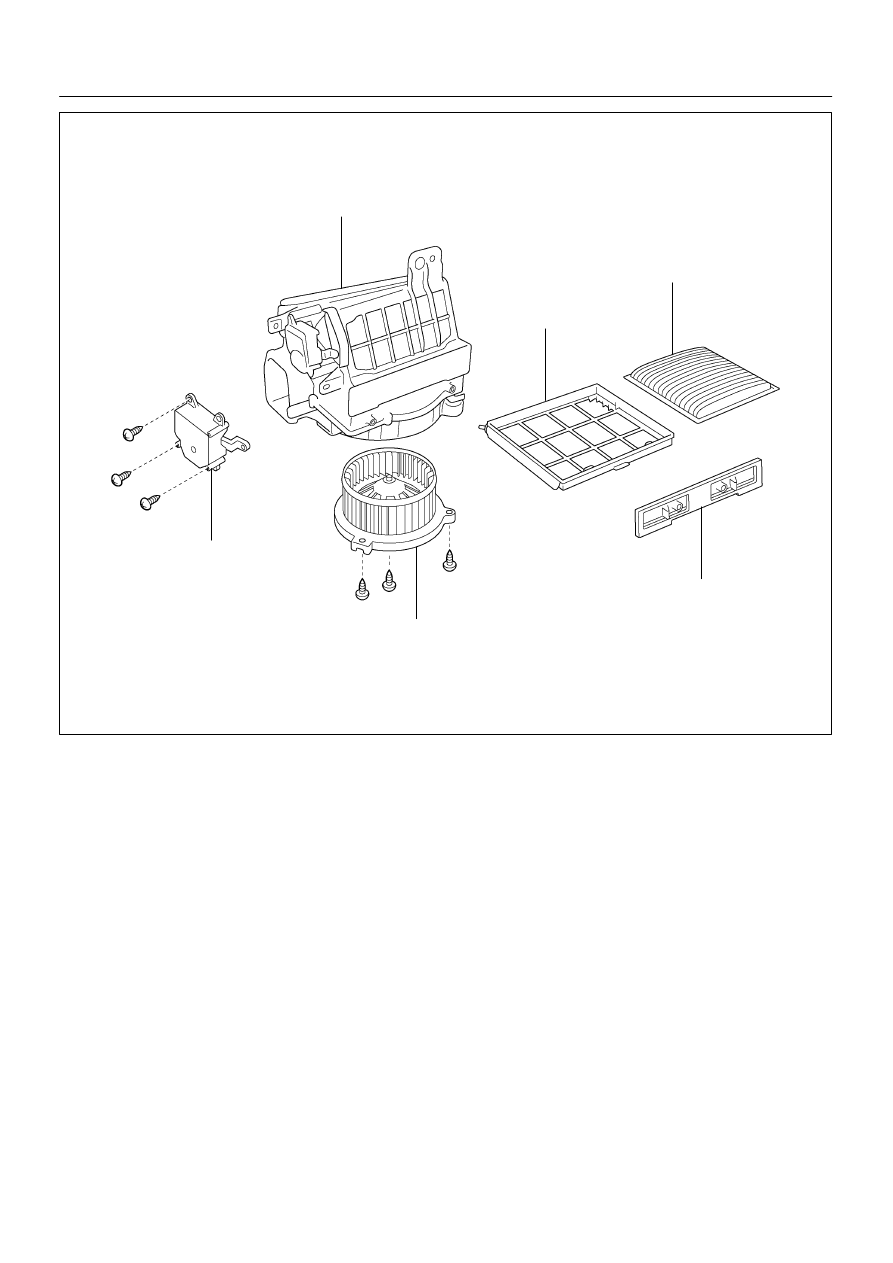

BLOWER UNIT

COMPONENTS

I06827

Air Inlet Servomotor

Blower Motor

Filter Cover

Air Refiner Filter

Filter Case

Blower Unit Case

–

AIR CONDITIONING

BLOWER UNIT

AC–37

LEXUS RX300   (RM785E)

AC1MU–02

I06859

I06831

AC–38

–

AIR CONDITIONING

BLOWER UNIT

LEXUS RX300   (RM785E)

REMOVAL

1.

REMOVE COWL SIDE TRIM RH

2.

REMOVE FRONT DOOR SCUFF PLATE RH

3.

REMOVE NO. 2 UNDER COVER

4.

REMOVE LOWER NO. 2 PANEL

5.

w/ CD AUTO CHANGER:
REMOVE CD CHANGER ASSEMBLY

6.

REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
(See page RS–27)

7.

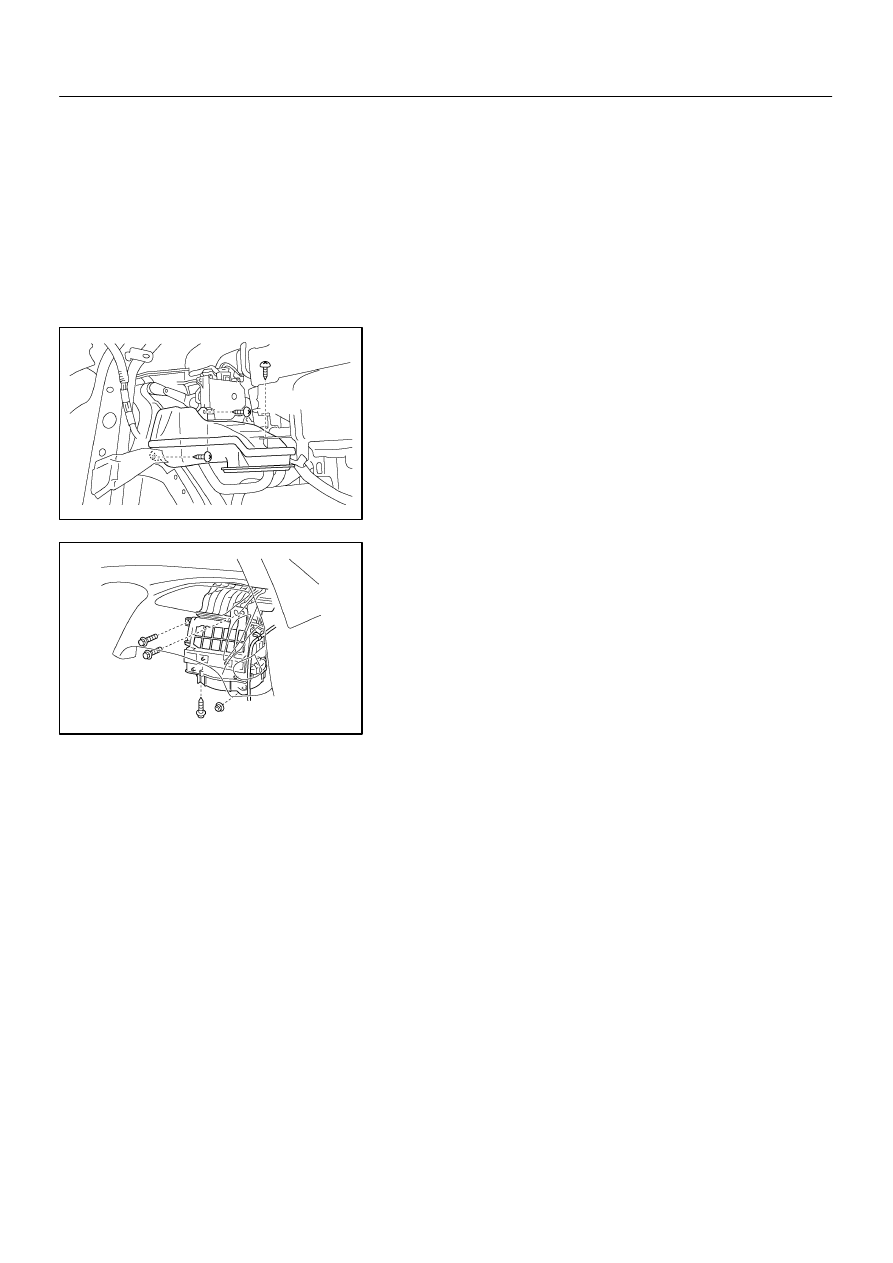

REMOVE BLOWER UNIT

(a)

Remove the 3 screws and air duct.

(b)

Disconnect the connectors.

(c)

Disconnect wire harness clamp.

(d)

Remove the 2 nuts, 2 bolts, screw and blower unit.

AC1MV–01

I06843

I06845

–

AIR CONDITIONING

BLOWER UNIT

AC–39

LEXUS RX300   (RM785E)

DISASSEMBLY

1.

REMOVE AIR REFINER FILTER

(a)

Release the 2 claws and remove the cover.

(b)

Pull out the air refiner filter.

(c)

Remove the filter from filter case.

2.

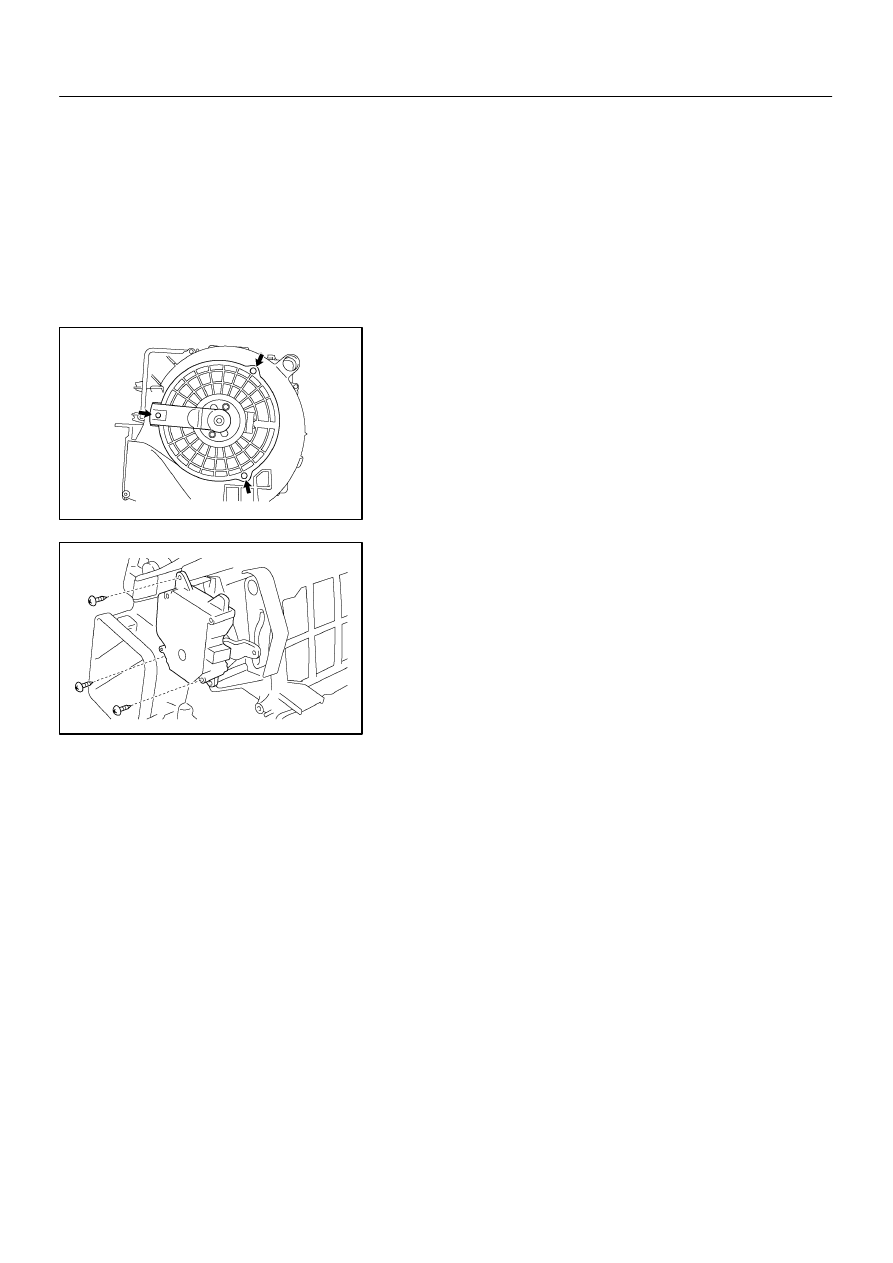

REMOVE BLOWER MOTOR

Remove the 3 screws and motor.

3.

REMOVE AIR INLET SERVOMOTOR

Remove the 3 screws and servomotor.
