Lexus RX300 (MCU15). Manual - part 65

BODY ELECTRICAL — ACCESSORIES

133

ACCESSORIES

JMULTI DISPLAY

1. General

D A multi display has been provided on the center cluster panel as standard equipment. A 5.8–inch wide

LCD (Liquid Crystal Display) with a pressure–sensitive touch panel has been adopted to ensure the
ease of use.

D A GPS (Global Positioning System) voice navigation is offered as an option. Through the use of the

GPS and the map data in a DVD (Digital Versatile Disc), this navigation system analyzes the position
of the vehicle and indicates that position on the map that is displayed on the screen. Additionally, it
provides voice instructions to guide the driver through the route to reach the destination that has been
selected.

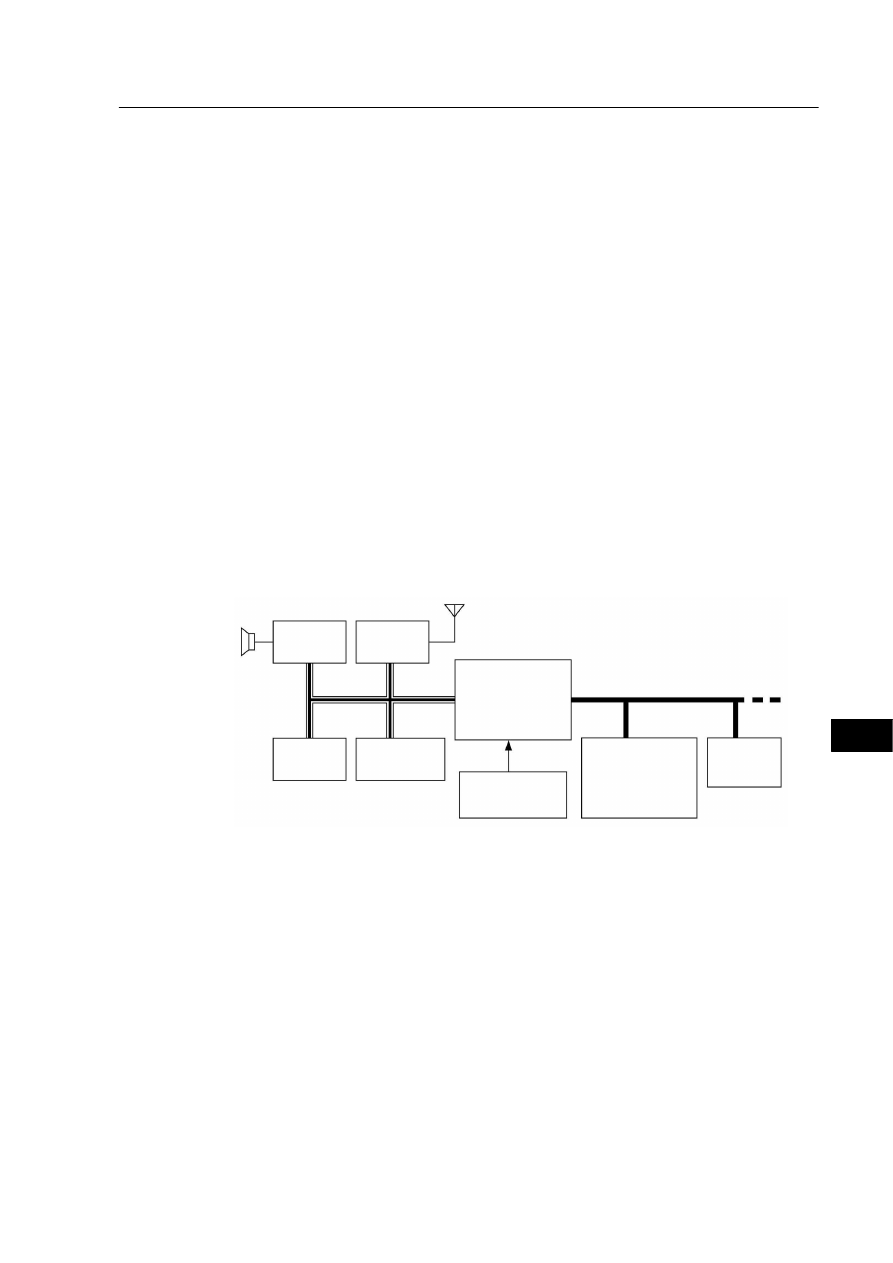

2. System Diagram

187BE34

Driver’s Side Speaker
(for Voice Guidance)

Audio
Unit

CD
Automatic
Changer*

GPS Antenna*

Navigation
ECU*

AVC-LAN

Multi
Display

Center Cluster
Integration
Panel ECU

Center Cluster
Panel Switches

BEAN

A/C and
Combination
Meter Integrated
ECU

Body
ECU

: with GPS Voice Navigation System

: with CD Automatic Changer

BODY ELECTRICAL — ACCESSORIES

134

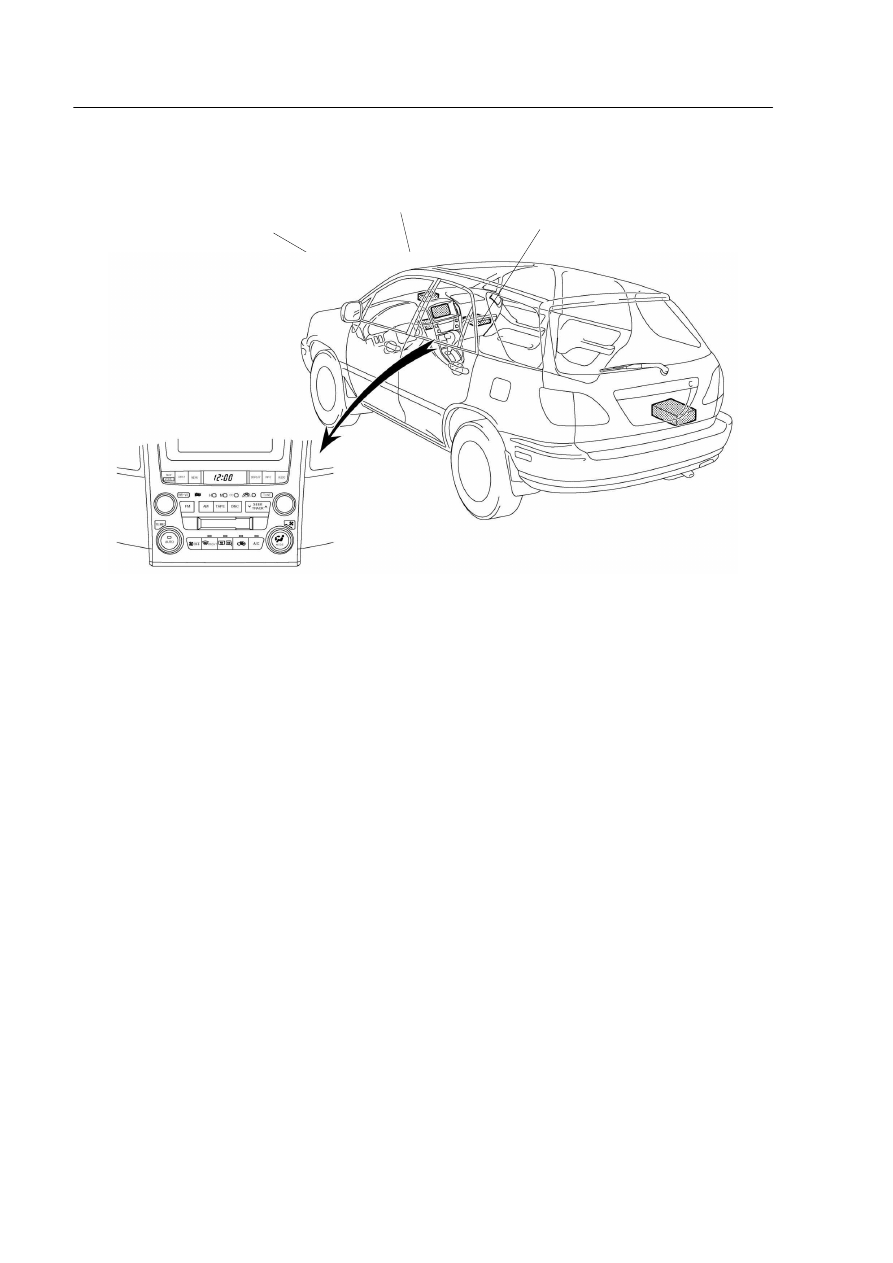

3. Layout of Main Components

187BE35

: with GPS Voice Navigation System

: with CD Automatic Changer

Audio Unit

GPS Antenna*

CD Automatic Changer*

Navigation ECU*

Multi Display

Center Cluster Panel Switches

4. Construction and Operation

Center Cluster Integrated Panel ECU

The center cluster integrated panel ECU transmits the vehicle information to the multi display in order
for it to be displayed on display. In addition, the center cluster integrated panel ECU transmits the cluster
panel switch signals to the air conditioner and combination meter integrated ECU. Because vehicle in-
formation is transmitted by the ECUs that maintain communication on the BEAN (Body Electronics Area
Network), the center cluster integrated ECU converts this information into signals for AVC–LAN use
and sends it to the multi display.

BODY ELECTRICAL — ACCESSORIES

135

Multi Display

1) General

Upon receiving the vehicle information that is transmitted by the center cluster integrated panel ECU,
the navigation information that is transmitted by the navigation ECU, and the operation information
from the audio unit, multi display displays these data on the display. Listed below are the main function
of the multi display.

Function

Outline

Audio Screen Display

• Status of audio equipment and audio operation screen indication.

• Sound quality adjustment screen indication.

On-screen Display

• Display the operating condition of the air conditioner.

• Display the outside temperature.

Adjustment Screen Display

Image quality adjustment screen indication.

Trip Information Display

• Distance After Refueling

• Average Speed

• Fuel Consumption (Current, After Refueling, Average)

Navigation Screen Display*

• Language Selector

• Enlargement/reduction, rotation and movement of map.

• Indication of current position and direction of travel.

• Correction of current position.

• Setting, change and indication of route.

• Voice guidance.
There are many additional functions. For details, see the followings.

Diagnosis Screen Display

• Service Check Menu

• Display Check

• Navigation Check
For details, see page 136.

*: with GPS Voice Navigation System

2) Navigation

The navigation screen is a function that is provided in the GPS voice navigation system.
Based on the map data on the DVD, signals from the GPS satellites, signals from the built-in gyro sensor,
and signals from the vehicle’s speed sensor, the vehicle’s present position, direction of travel, and driven
distance are calculated and displayed on this screen. This screen has the display functions listed below.

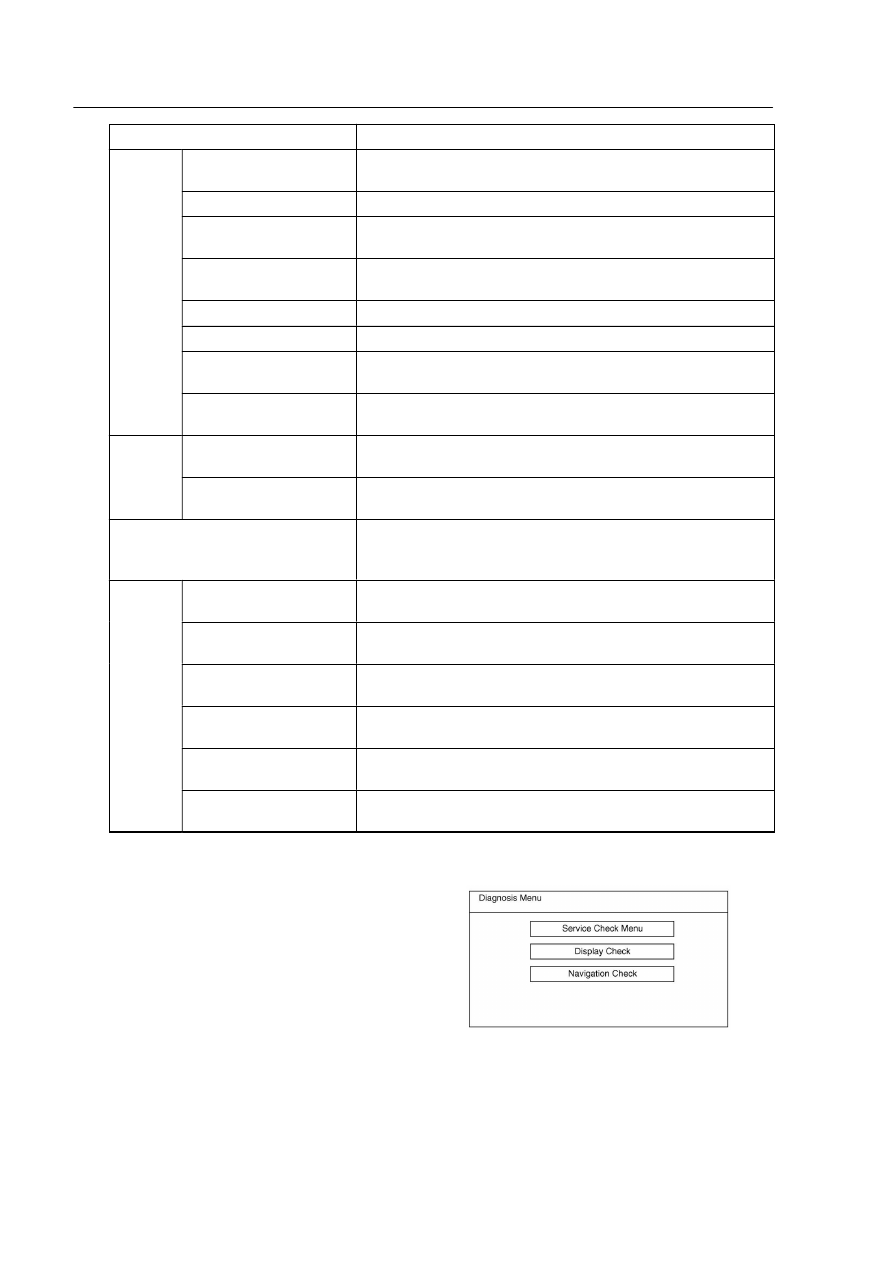

Item

Outline

Heading Up/North Up

Changes the orientation of the map.

Front Wide

Displays a map in the direction of travel of the vehicle in an en-
larged form.

Stepless Scale Display

Changes the scale of the map from the basic 11 steps to an even
finer display.

Direct Scale Change

Directly select and display the map scale.

Map

Multi-step Scale Display

Change and display the map scale in 11 stages.

Map
Display

Scroll Display

Scrolls the screen to display the desired point on the map.

Split-view Display

Displays different modes on a screen that is split into two views.

Points-of-Interest Display

Displays selected types of marks on the map.

Taillight-interlocked Map
Color Change

Changes the displayed color on the map screen when the taillights
are turned ON.

Road Number Sign Board
Display

Displays the road numbers on the map.

(Continued)

BODY ELECTRICAL — ACCESSORIES

187BE37

136

Item

Outline

Hybrid Points-of-inter-
est Search

Narrows the search by names of the points-of-interest, category,
and areas.

Hybrid Street Search

Narrows the search by street name and area.

Points-of-Interest Pin-
point Display

Pinpoints and displays the position of the point-of-interest.

Des-
tination

Telephone number
search

Performs search by telephone number.

tination
Search

Address Search

Searches for a house number.

Special Memory Point

Sets a pre-registered point as a destination point while driving.

Nearest Points-of-Inter-
est Search List Display

Searches nearest points-of-interest and displays a list.

Intersection Search

By specifying two streets, the point at which they intersect is
set as the destination point.

Search Condition Des-
ignation

Searches for the recommended, shortest, and other routes.

Regulated Road Con-
sideration

Performs search while considering regulated roads.

Language Selector

The language of the text displayed on the navigation screen and
of the voice guidance can be selected from five languages (En-
glish, French, German, Italian, and Dutch).

Right or Left Turn
Guidance

Voice guidance to instruct the direction of travel to be taken.

Motorway Direction of
Travel Guidance

Voice guidance to instruct the direction of travel to take on the
motorway.

Guid-

Distance Display to
Destination

Displays the distance from the present location to the destina-
tion.

ance

Motorway Branching
Lane Guidance

Guides the lane in which to drive when the motorway branches
(only on the model for Germany).

Intersection Zoom-in
Display

Zoom-in display when approaching an intersection.

Motorway SA/PA
Information

Displays information on the SA (service area) and PA (parking
area) of the motorway.

3) Diagnosis Screen

This system’s diagnosis screen can be displayed
and operated on the multi display. The diagnosis
menu contains the following three items: Service
Check Menu, Display Check, and Navigation
Check. For details, refer to the LEXUS RX300
Repair Manual (Pub. No. RM785E).
