Lexus RX300 (MCU15). Manual - part 26

BACK DOOR OPENING TROUGH, REAR BODY
REAR SIDE CORNER PANEL (ASSY)

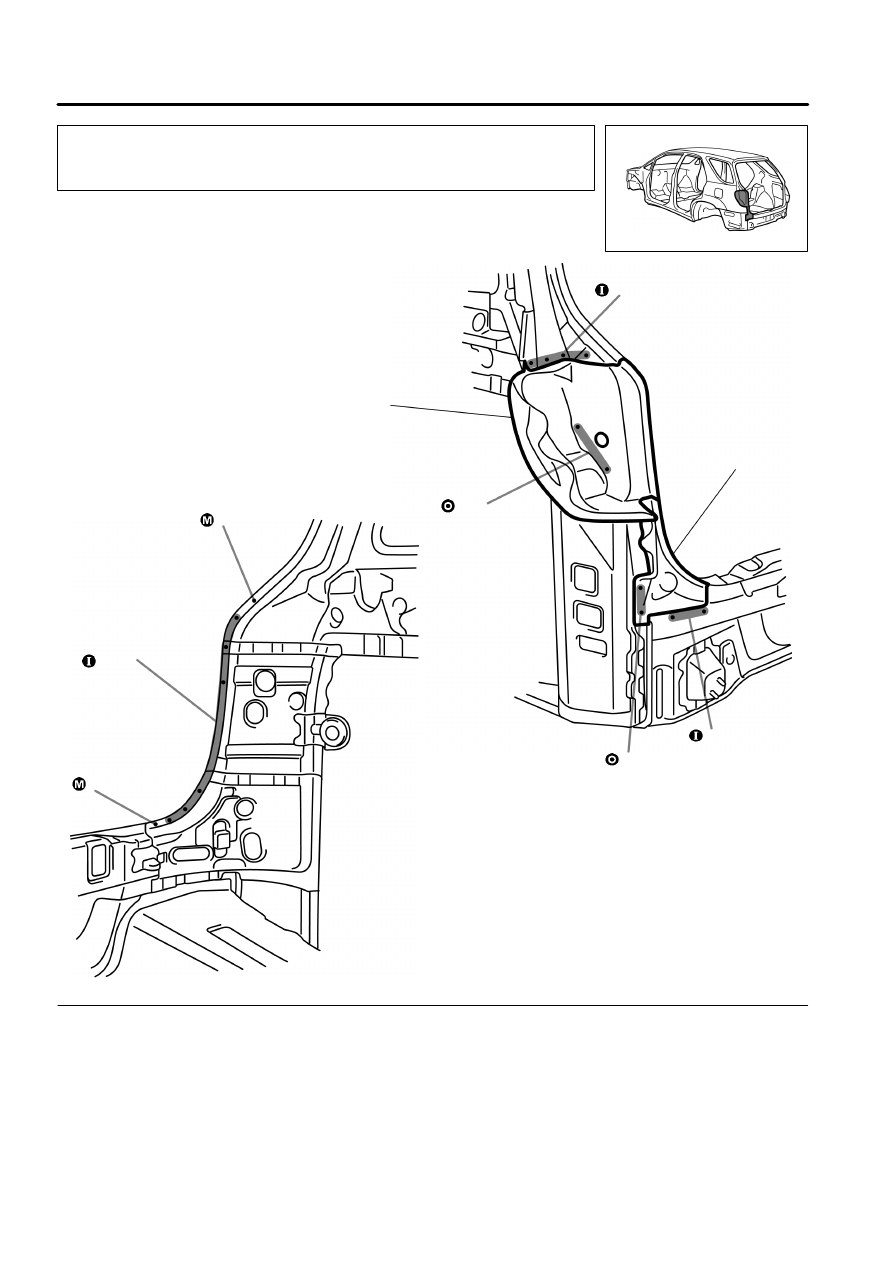

REMOVAL (With the quarter panel removed.)

1.

Replace the back door opening trough and
rear body rear side corner panel at the same
time.

Back Door
Opening Trough

Rear Body Rear
Side Corner Panel

— 4

— 2

— 10

— 1

— 1

— 2

— 2

BODY PANEL REPLACEMENT

RE-50

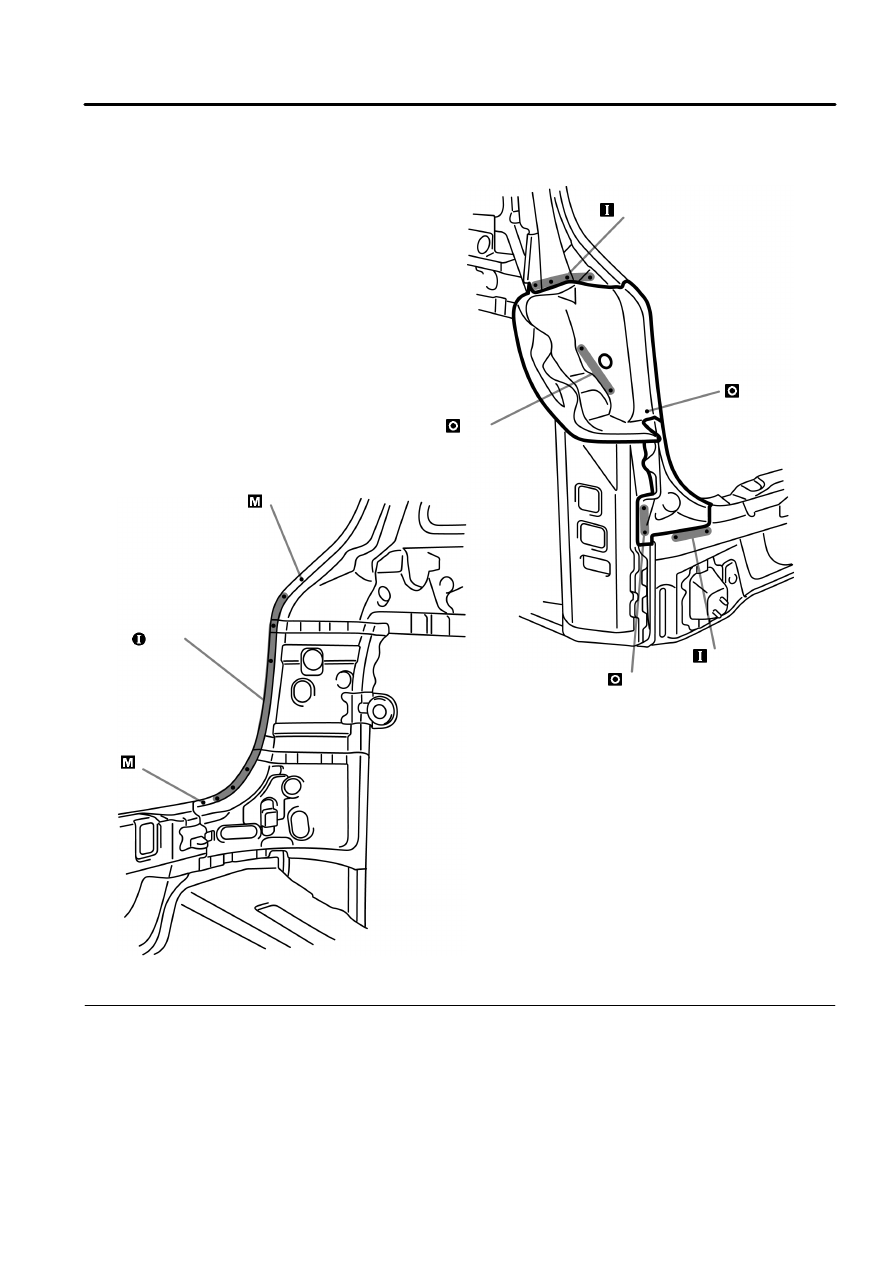

1.

Before welding the new parts, temporarily
install the quarter panel and check the fit.

— 4

— 2

— 2

— 1

— 2

— 1

— 13

— 1

BODY PANEL REPLACEMENT

RE-51

INSTALLATION

ROOF SIDE INNER REAR PANEL (ASSY)

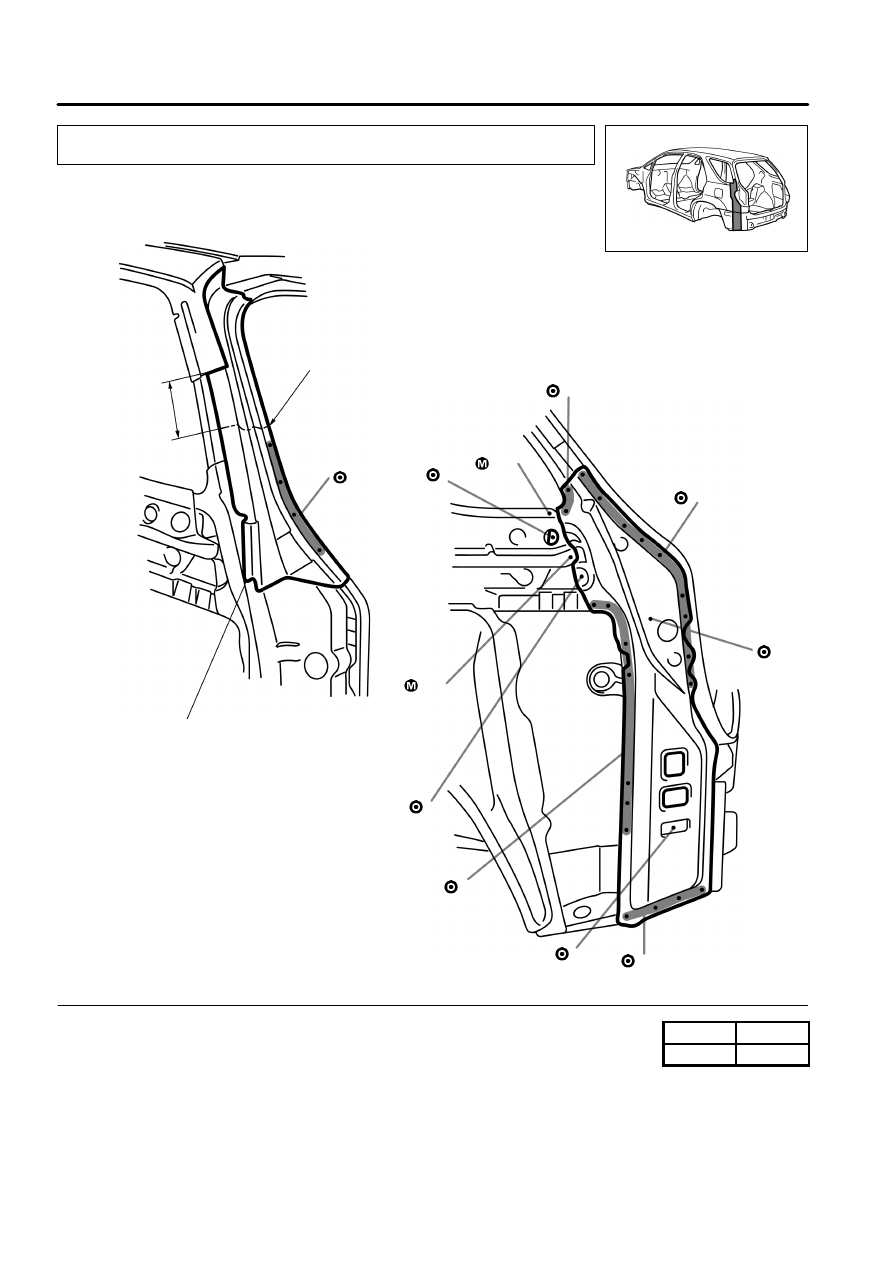

REMOVAL (With the back door opening trough, rear body

rear side corner panel removed.)

1.

Cut the quarter panel upper rear extension at
the location shown in the above figure and re-
move the roof side inner rear panel.

100 mm

Cut and Join Location

Quarter Panel Upper
Rear Extension

— 4

— 2

— 10

— 1

— 1

— 1

— 1

— 10

— 1

— 4

— 1

BODY PANEL REPLACEMENT

RE-52

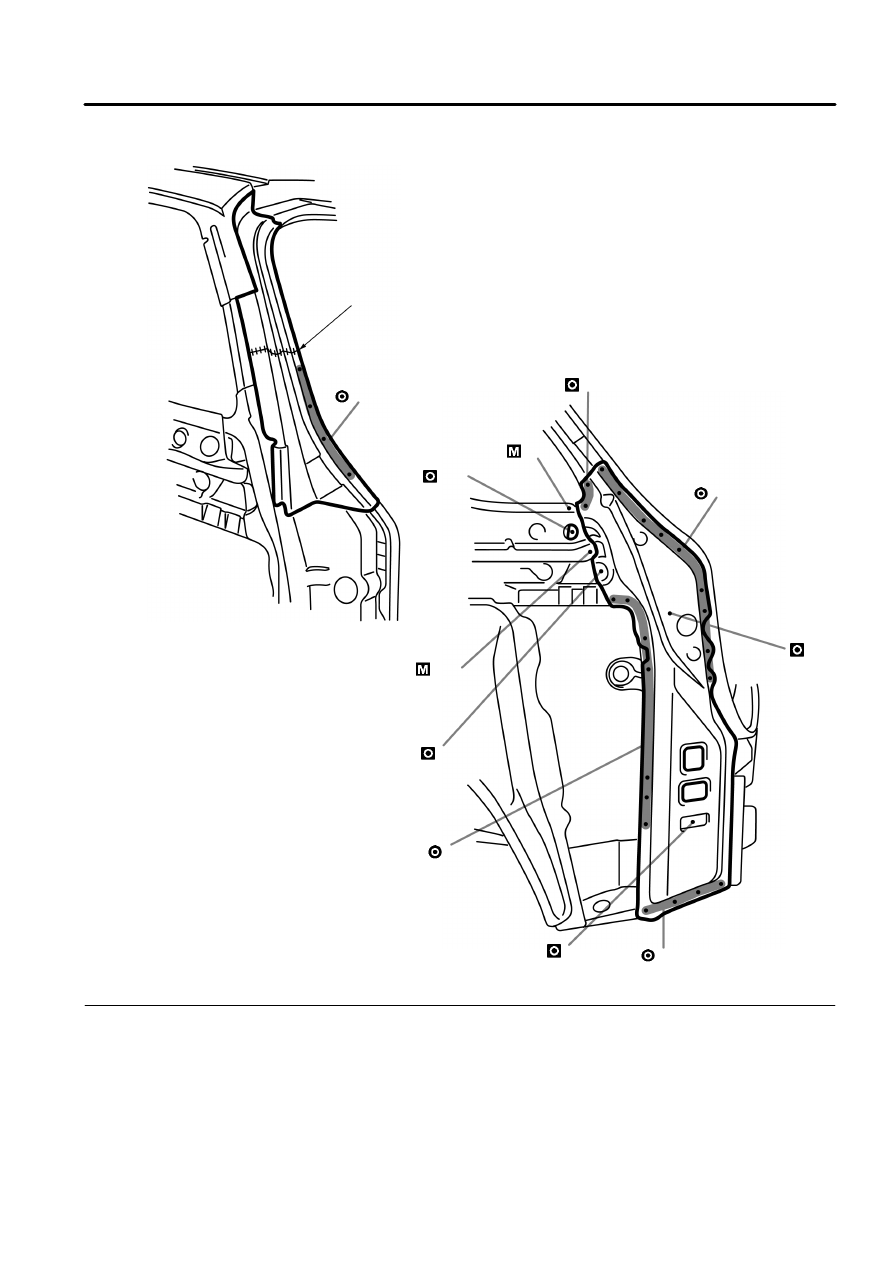

mm

in.

100

3.94

Butt Weld

— 6

— 2

— 1

— 1

— 1

— 1

— 13

— 1

— 6

— 1

— 13

BODY PANEL REPLACEMENT

RE-53

INSTALLATION
