Lexus RX300 (MCU15). Manual - part 14

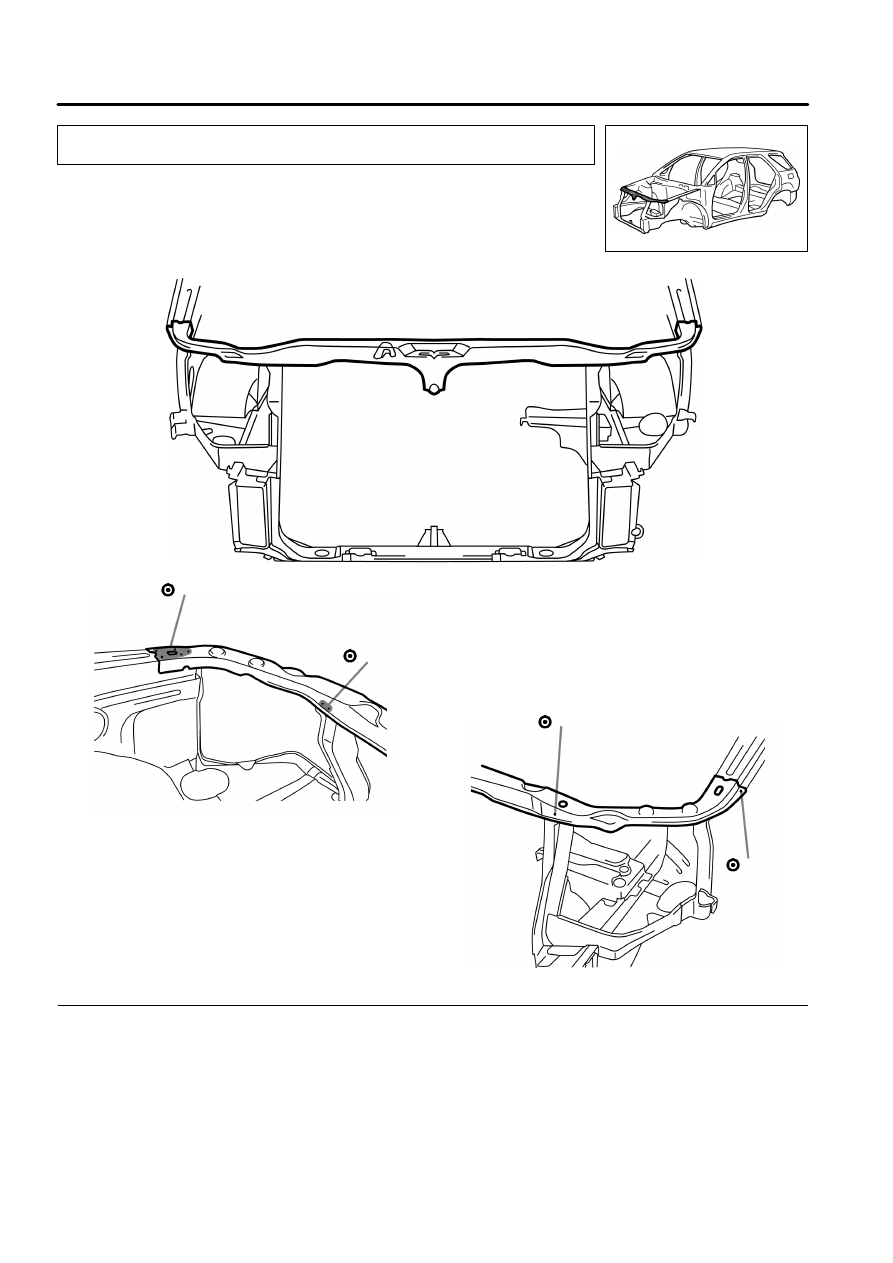

RADIATOR UPPER SUPPORT (ASSY)

REMOVAL

— 5

— 2

— 1

— 1

BODY PANEL REPLACEMENT

RE-2

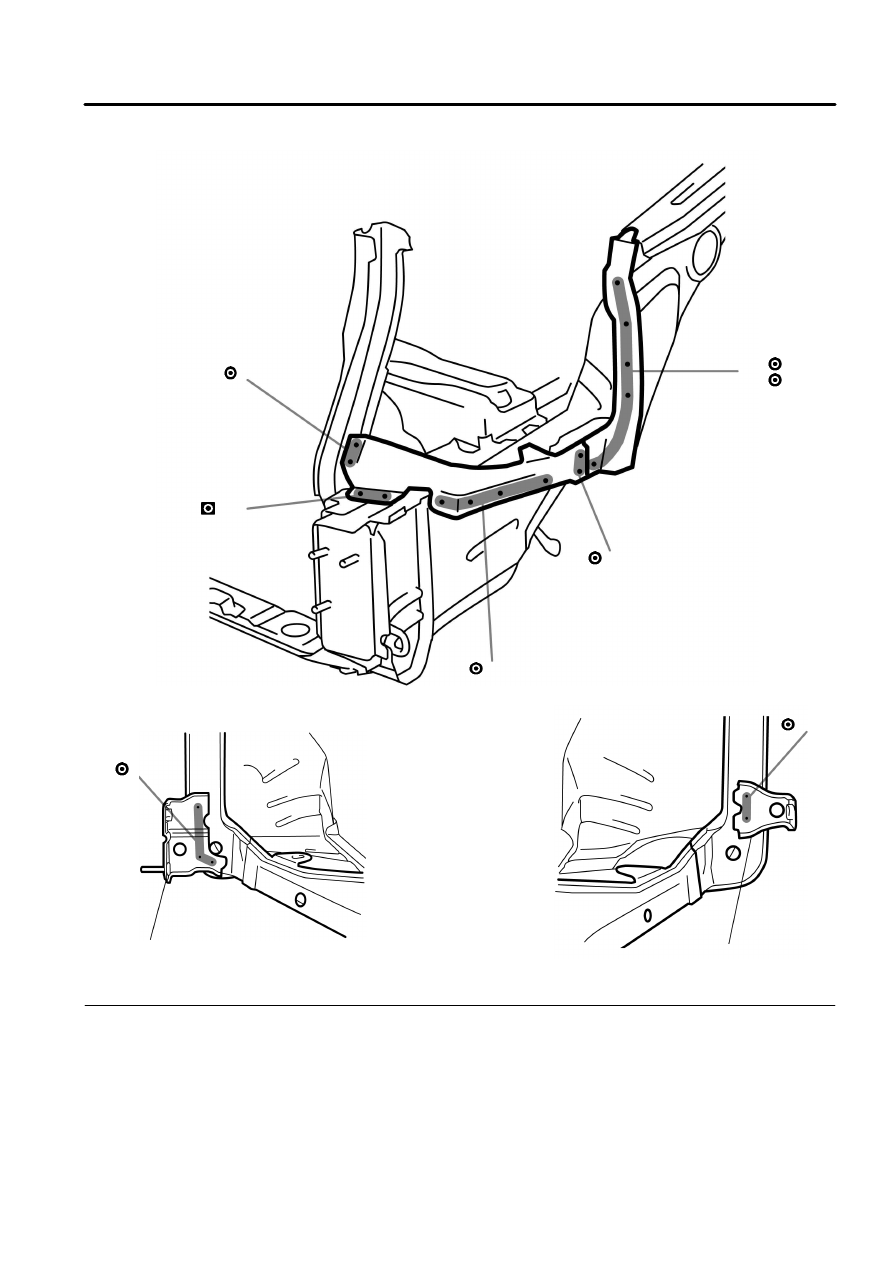

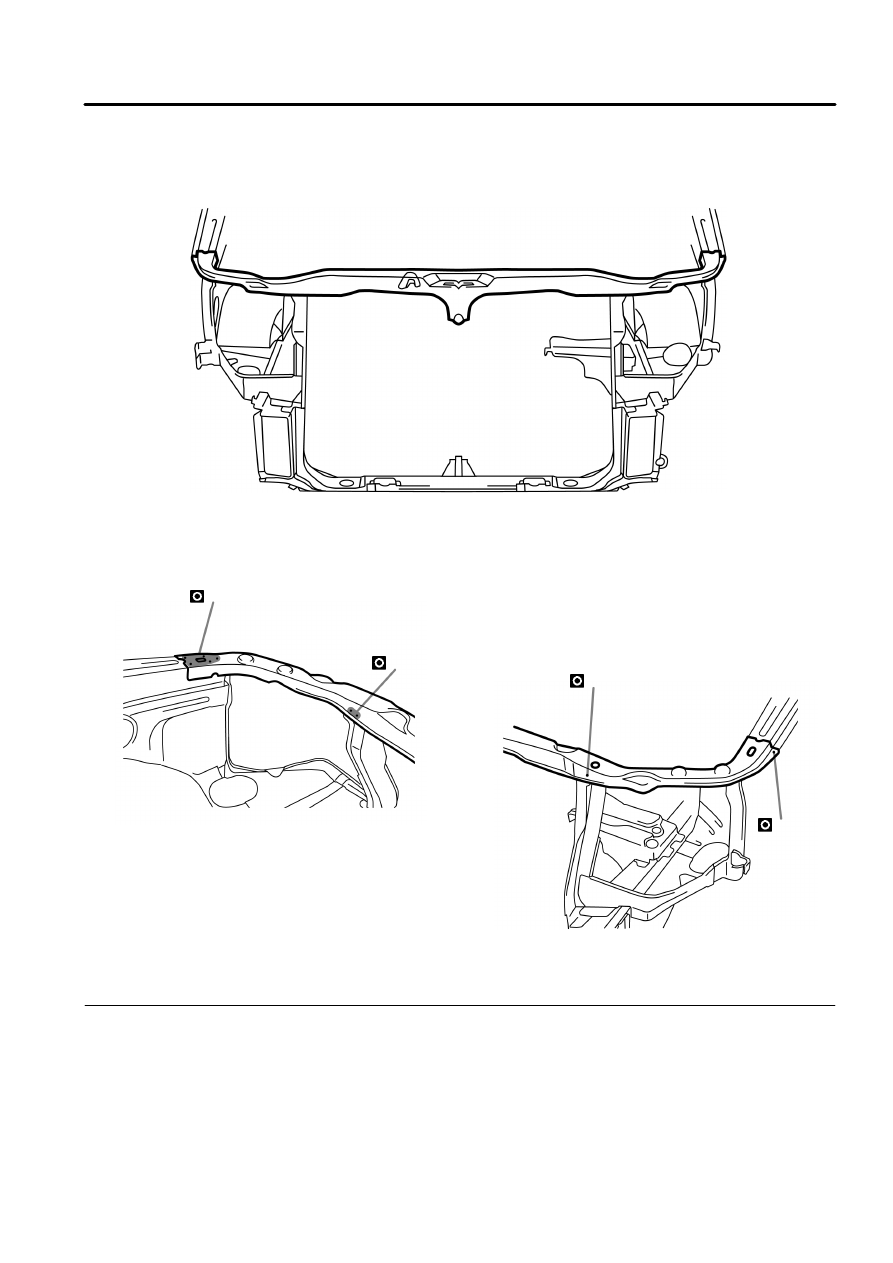

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body di-
mension diagram.

HINT:

First install the hood lock support.

— 5

— 2

— 1

— 1

BODY PANEL REPLACEMENT

RE-3

INSTALLATION

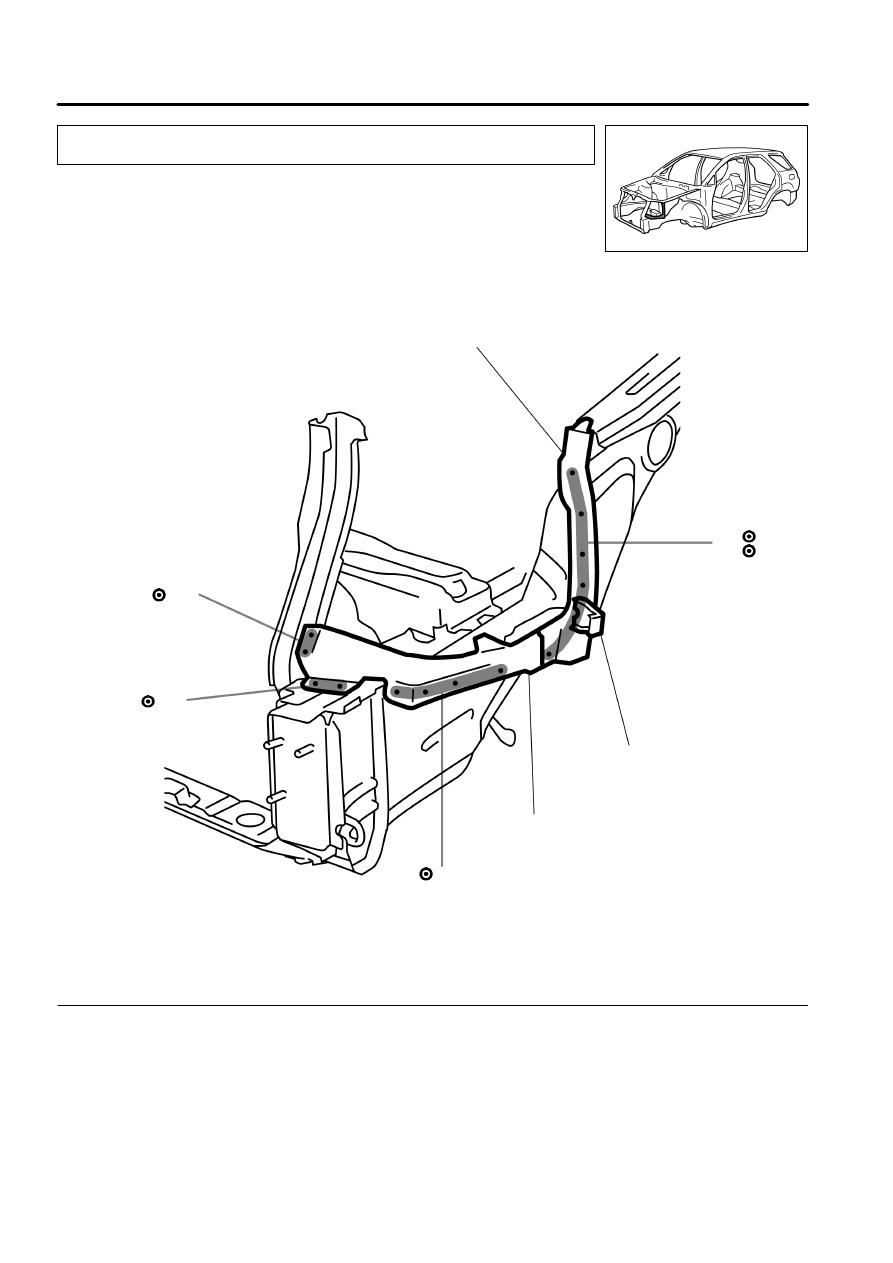

RADIATOR SIDE SUPPORT (ASSY)

REMOVAL (With the radiator upper support removed.)

1.

Replace the radiator side support, radiator
side lower support and radiator support to
front fender bracket at the same time.

Radiator Side Support

RH:
LH:

— 6
— 5

Radiator Support to
Front Fender Bracket

Radiator Side
Lower Support

— 2

— 2

— 4

BODY PANEL REPLACEMENT

RE-4

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body di-
mension diagram.

HINT:

First install the radiator upper support.

RH:
LH:

— 8
— 7

— 3

— 2

— 3

— 6

— 4

— 3

[RH Side]

Radiator Support to
Front Fender Bracket

[LH Side]

Radiator Support
to Front Fender
Bracket

BODY PANEL REPLACEMENT

RE-5

INSTALLATION
