ANTI-RUST TREATMENT

 – Body Panel Anti-Chipping Paint Application Areas

AR-11

Soft – Chipping Primer

. . . .

PVC – Chipping Primer

. . . .

Anti – Chipping Primer

. . . .

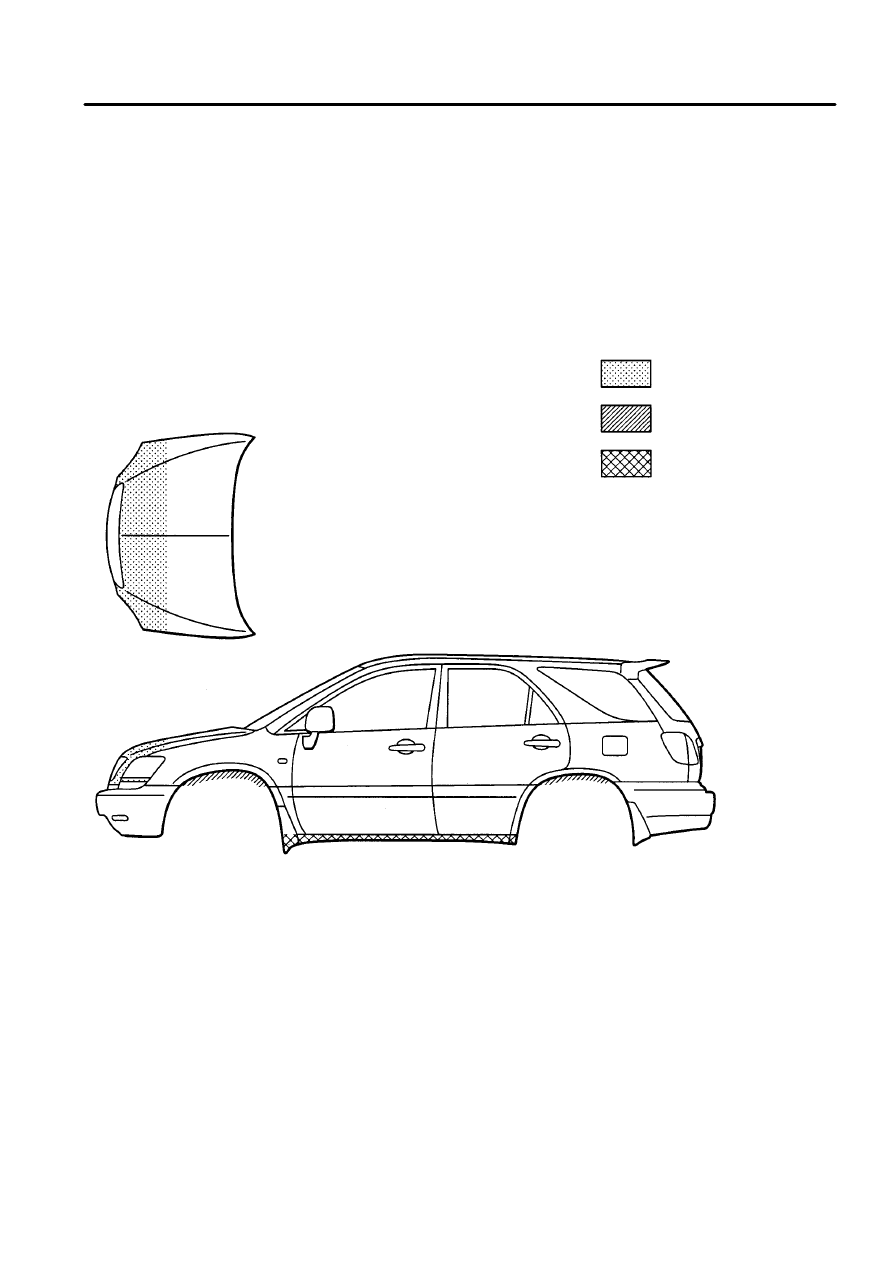

BODY PANEL ANTI-CHIPPING PAINT APPLICATION AREAS

HINT:
1.

Anti-chipping paint should be applied to some areas before the second coat and to others after the top
coat.

2.

If other areas are accidentally coated, wipe of the paint immediately with a rag soaked in grease, wax
and silicone remover.

DI

DI-1

BODY DIMENSIONS

Page

GENERAL INFORMATION

DI-2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

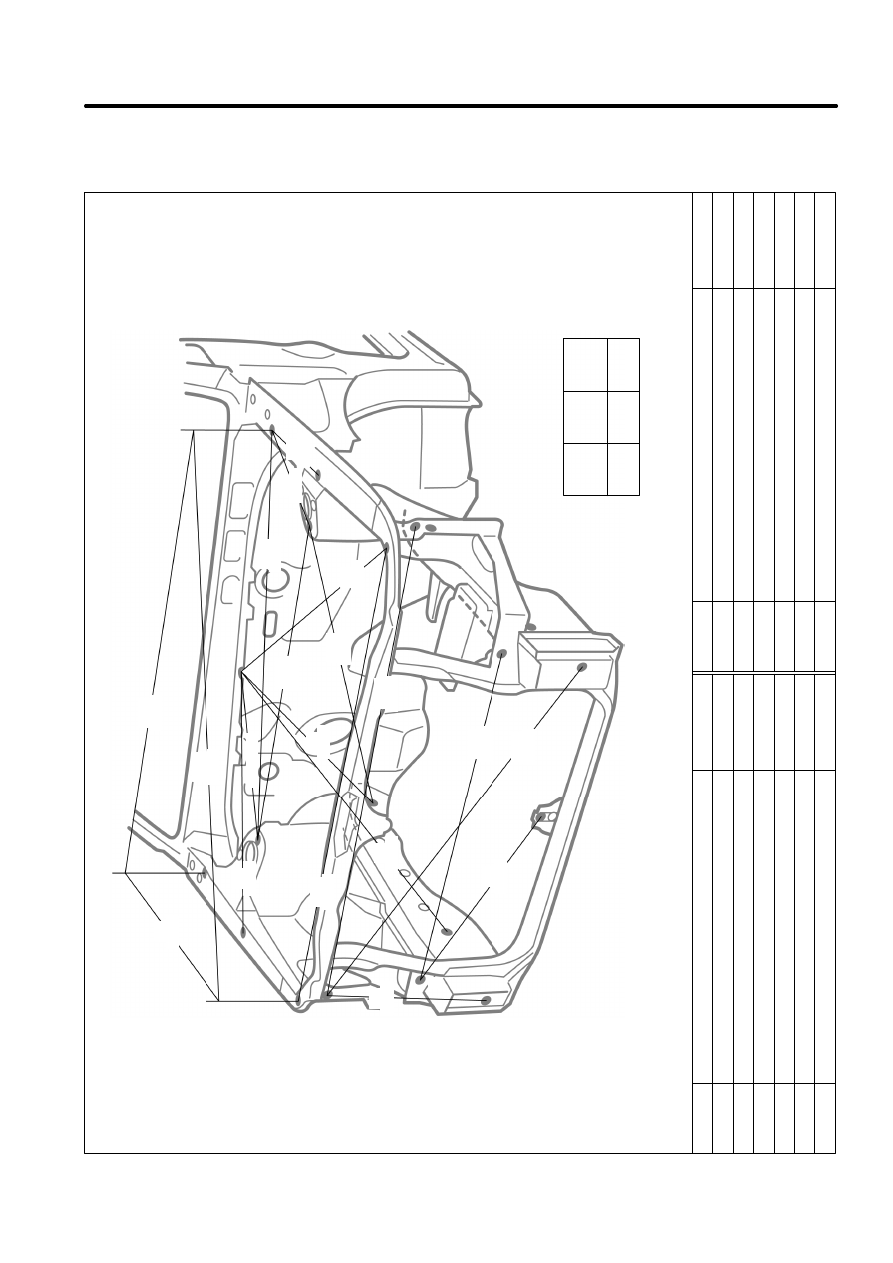

BODY DIMENSION DRAWINGS

DI-3

. . . . . . . . . . . . . . . . . . . . . . .

Pointer Looseness

Plate Looseness

BODY DIMENSIONS

 – General Information

DI-2

GENERAL INFORMATION

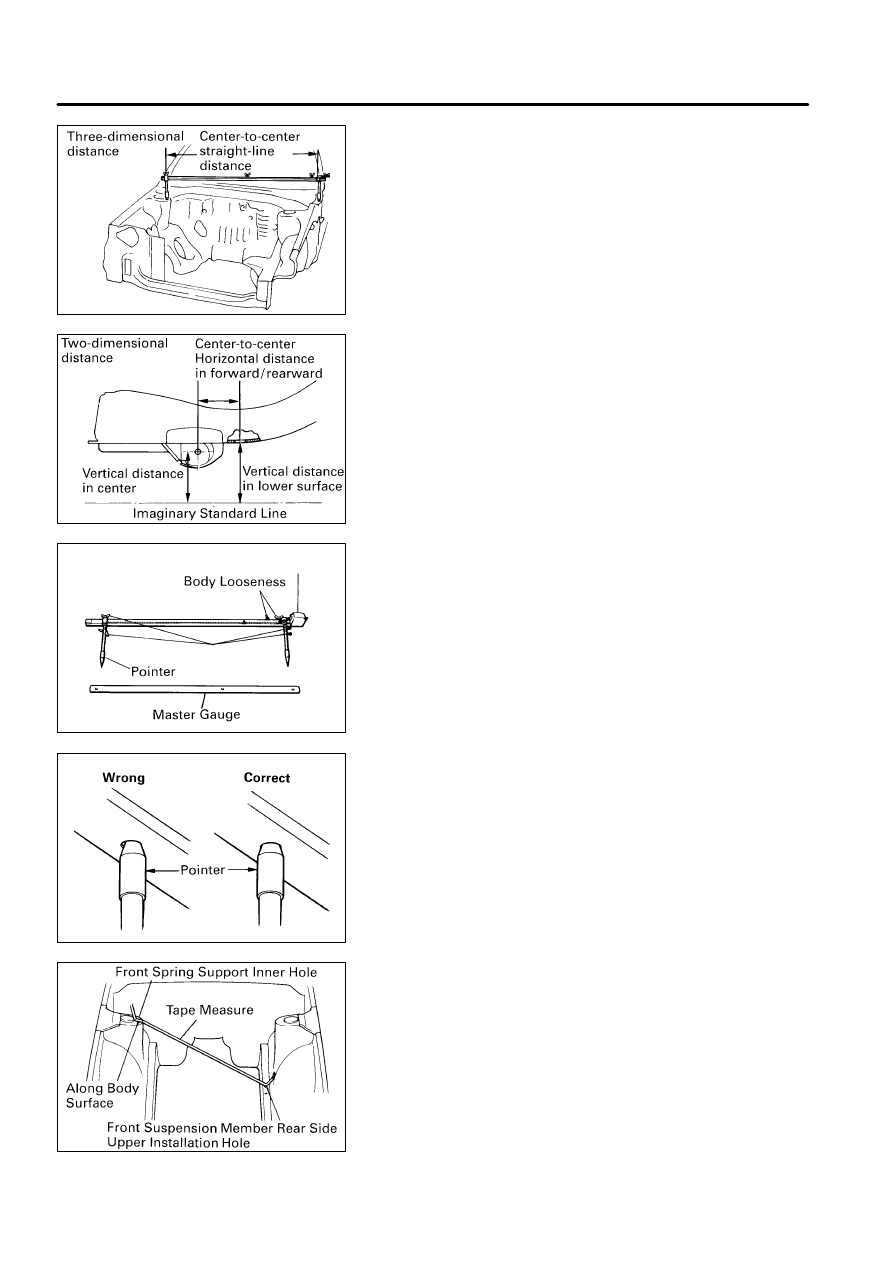

1.

BASIC DIMENSIONS

(a)

There are two types of dimensions in the diagram.
(Three-dimensional distance)
D Straight-line distance between the centers of two

measuring points.

(Two-dimensional distance)
D Horizontal distance in forward/rearward be-

tween the centers of two measuring points.

D The height from an imaginary standard line.

(b)

Incases in which only one dimension is given, left
and right are symmetrical.

(c)

The dimensions in the following drawing indicate
actual distance. Therefore, please use the dimen-
sions as a reference.

2.

MEASURING

(a)

Basically, all measurements are to be done with a
tracking gauge. For portions where it is not possible
to use a tracking gauge, a tape measure should be
used.

(b)

Use only a tracking gauge that has no looseness in
the body, measuring plate, or pointers.

HINT:
1.

The height of the left and right pointers must be equal.

2.

Always calibrate the tracking gauge before measuring or
after adjusting the pointer height.

3.

Take care not to drop the tracking gauge or otherwise
shock it.

4.

Confirm that the pointers are securely in the holes.

(c)

When using a tape measure, avoid twists and bends
in the tape.

(d)

When tracking a diagonal measurement from the
front spring support inner hole to the suspension
member upper rear installation hole, measure
along the front spring support panel surface.

Symbol

Symbol

Name

Name

Hole dia.

Hole dia.

mm (in.)

HINT

:

For symbols, capital letters indicate right side of vehicle,

small letters indicate left side of vehicle (Seen from rear).

A,

 a

B, b

C, c

D

E, e

F,

 f

Front fender installation nut

Front spring support hole – inner

Front fender installation nut

Cowl top panel center mark

Front side member working hole

Front side member standard hole

6 (0.24) nut

11 (0.43)

6 (0.24) nut

2.5 (0.098) R

15 (0.59)

17 (0.67)

G, g

H, h

I

J, j

K, k

—

Radiator support standard hole

Radiator support standard hole

Hood lock support installation hole

Front side member working hole

Front fender installation nut

—

10 (0.39)

10 (0.39)

6.2 (0.244)

15 (0.59)

6 (0.24) nut

—

(Three-Dimensional  Distance)

A

C

K

G

J

E

F

B

D

h

I

j

e

f

g

a

k

c

b

H

636

(25.04)

784

(30.87)

1,468

(57.80)

1,563

(61.54)

539

 (21.22)

641

(25.24)

1,035

(40.75)

1,040

(40.94)

944

(37.17)

1,262

(49.69)

271

(10.67)

298

(11.73)

1,388

(54.65)

505

(19.88)

942

(37.09)

1,450

(57.09)

1,000

(39.37)

563

(22.17)

1,327

(52.24)

C-k

J-j

K-k

or

c-K

1,038

1,445

1,487

(40.87)

(56.89)

(58.54)

V

ehicle

 Dimensions Left

$

 Right

BODY DIMENSION DRAWINGS
