Lexus SC300 / Lexus SC400. Manual - part 909





–

ENGINE TROUBLESHOOTING

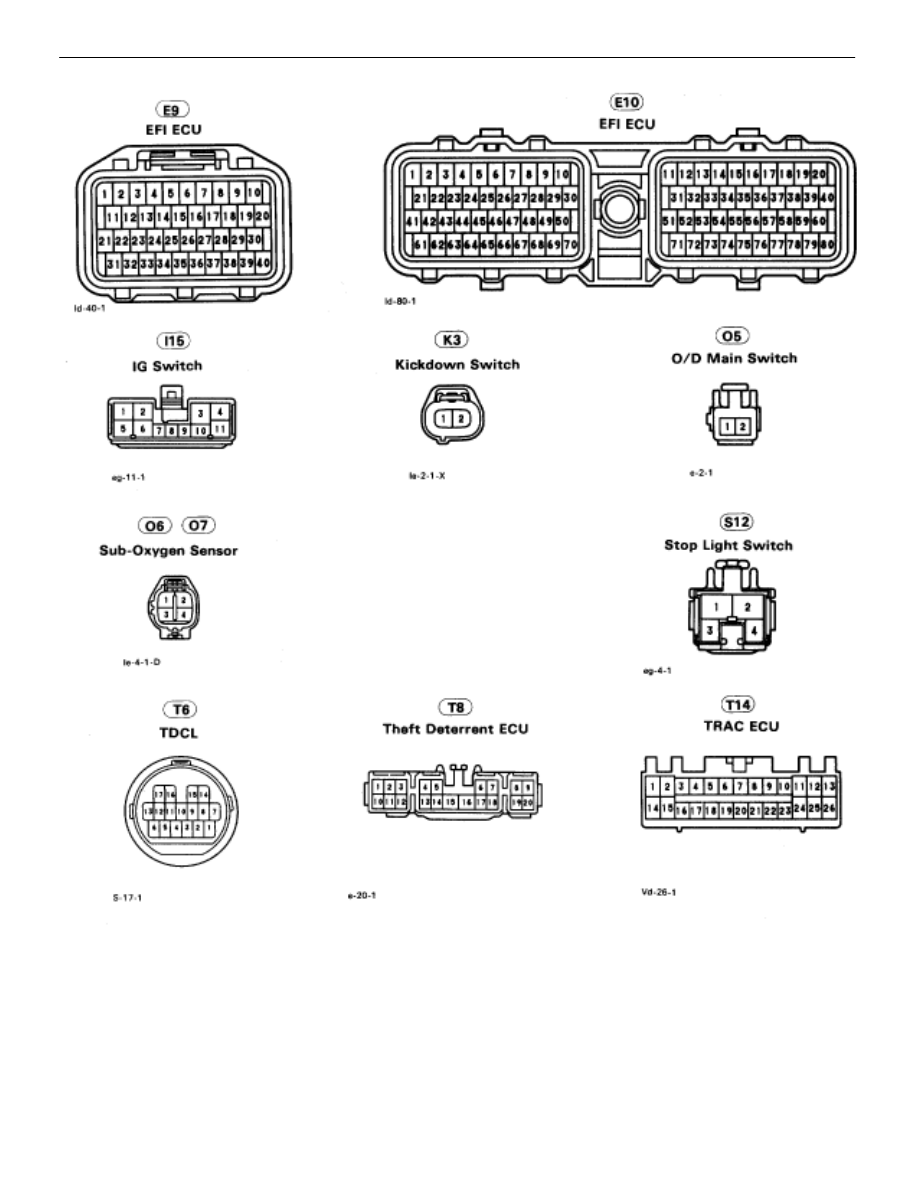

Locations of Connectors

TR–43

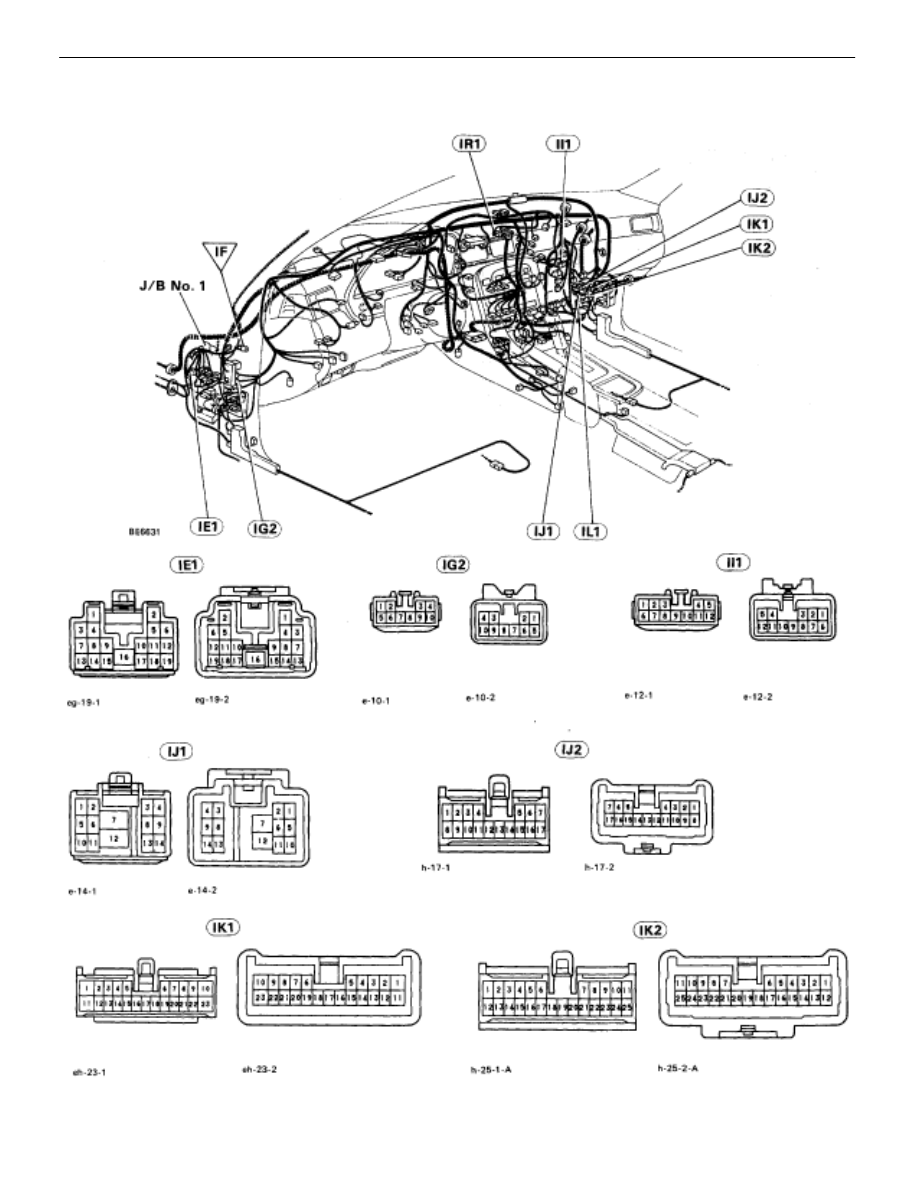

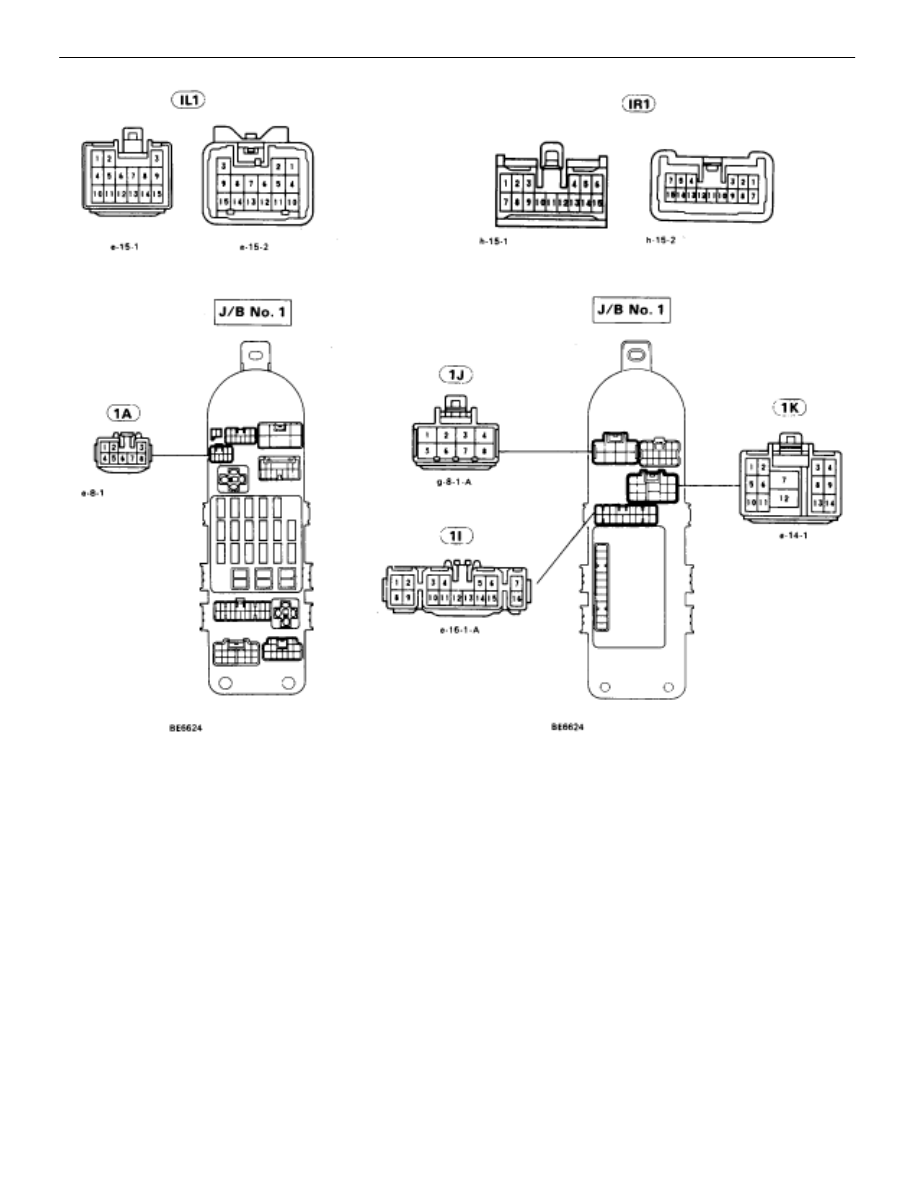

Location of Connectors in Instrument Panel (Cont’d)

TR–44

–

ENGINE TROUBLESHOOTING

Locations of Connectors

–

ENGINE TROUBLESHOOTING

Locations of Connectors

TR–45

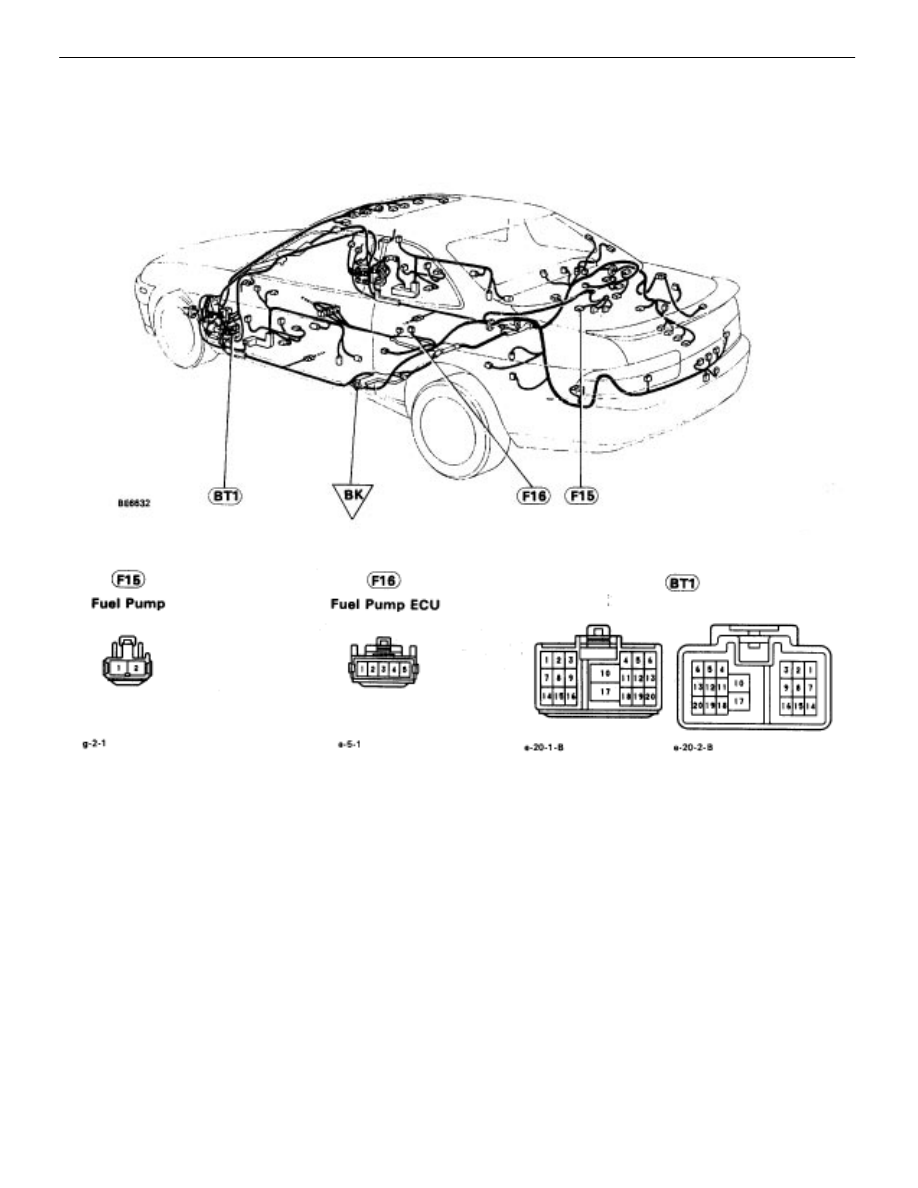

Location of Connectors in Body

TR–46

–

ENGINE TROUBLESHOOTING

Locations of Connectors
