If the preload is greater than the specification, replace
the spacer.

•

If the preload is less than the specification, retighten the
nut 13 NVm (130 kgfVcm, 9 ftVlbf) at a time until the
specified preload is reached.

Maximum torque:

490 N

⋅

m (5,000 kgf

⋅

cm, 362 ft

⋅

lbf)

If the maximum torque is exceeded while retightening the
nut, replace the spacer and repeat the preload procedure.
Do not back off the nut to reduce the preload.

26.  CHECK RUNOUT OF DRIVE PINION SHAFT

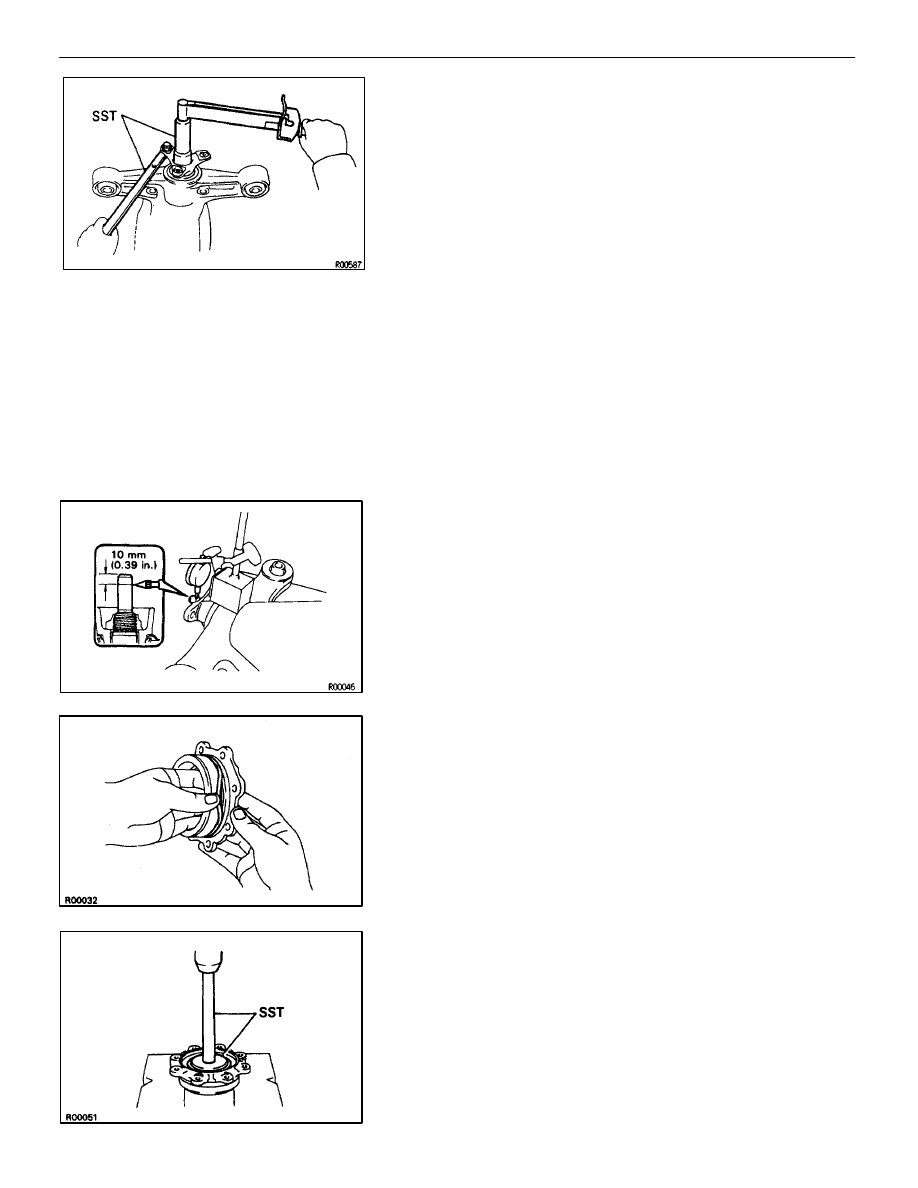

Measure the runout of the drive pinion shaft at a point 10 mm
(0.39 in.) from the end of the shaft.

Maximum runout:

0.08 mm (0.0031 in.)

27.  INSTALL DIFFERENTIAL CASE IN CARRIER

(See page

SA–97

)

28. INSTALL

O–RING

(a)  Coat a new O–ring with hypoid gear oil.
(b)  Install the O–ring to the carrier retainer.

29.  INSTALL OIL SEAL
(a)  Using SST and a press, install a new oil seal to the carrier

retainer.
SST 09608–32010, 09608–35014 (09608–06020)

(b)  Coat the MP grease to the oil seal lip.
30.  INSTALL SIDE BEARING RETAINER

(See page

SA–97

)

31.  RECHECK BACKLASH, TOTAL PRELOAD AND TOOTH

CONTACT PATTERN

SA–102

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

32.  STAKE DRIVE PINION NUT

33.  INSTALL SNAP RING TO SIDE GEAR SHAFT
(a)  Install a new snap ring to the shaft.
(b)  Coat the MP grease to the snap ring.

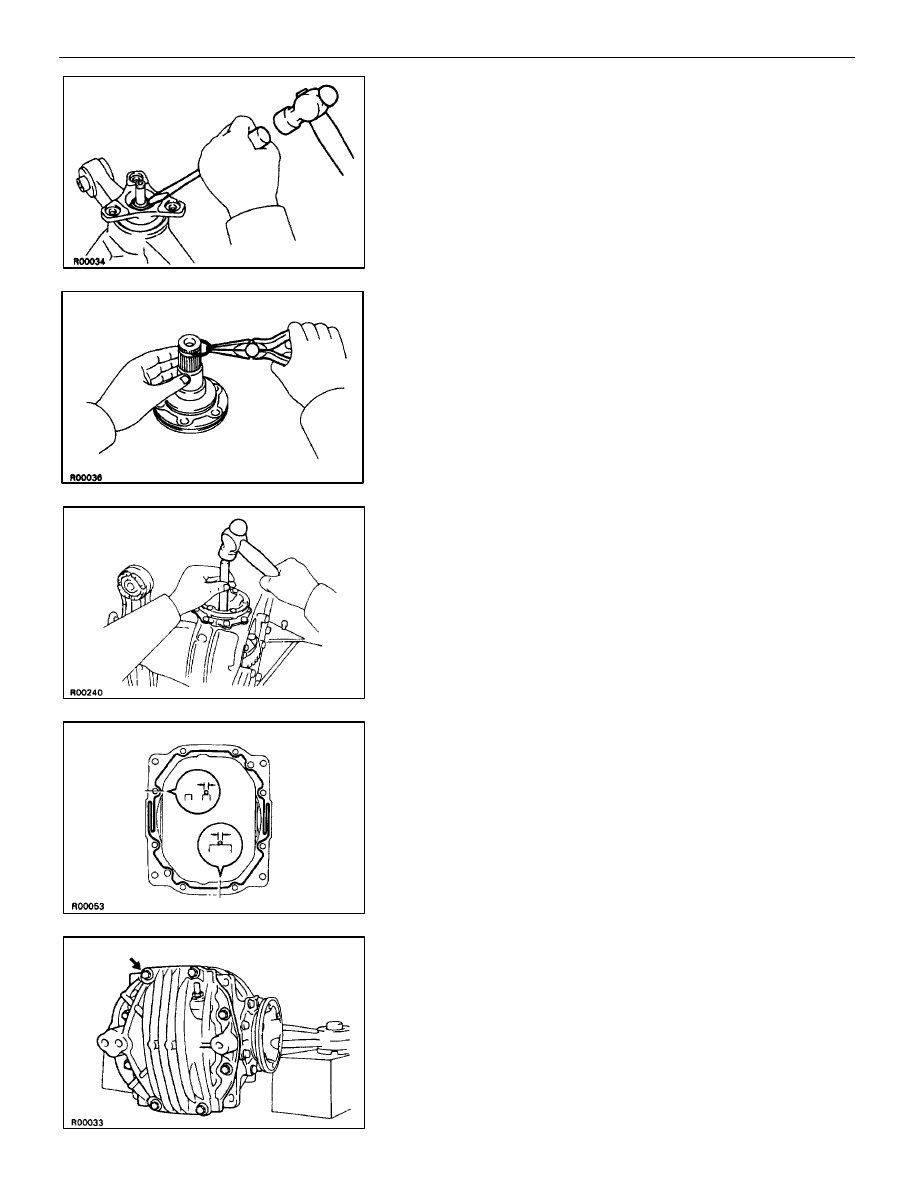

34.  INSTALL SIDE GEAR SHAFTS

Using a hammer and brass bar install the side gear shafts.
HINT: Whether or not the side gear shaft is making contact
with the pinion shaft can be known by the sound or feeling
when driving it in.

NOTICE: Be careful not to damage the oil seal.

35.  REMOVE DIFFERENTIAL CARRIER FROM OVERHAUL

STAND, ETC.

36.  INSTALL DIFFERENTIAL CARRIER COVER
(a)  Clean the contact surfaces of the carrier and cover of any

residual packing material using cleaner.

(b)  Coat the seal packing to the carrier or cover.

Seal packing:

Part No. 08826–00110, THREE BOND 1389 or equivalent

NOTICE: After installing the cover, wait at least 1 hour before

filling it with oil or running the vehicle.

(c)  Install the carrier cover to the carrier with the 8 bolts.

Torque: 47 N

⋅

m (475 kgf

⋅

cm, 34 ft

⋅

lbf)

(d)  Install the breather plug.

Torque: 21 N

⋅

m (210 kgf

⋅

cm, 15 ft

⋅

lbf)

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

SA–103

DIFFERENTIAL MOUNTING CUSHION
DIFFERENTIAL MOUNT CUSHION
REPLACEMENT

SA0V7–03

1. REMOVE

DIFFERENTIAL

(See page

SA–82

)

2.

REMOVE DIFFERENTIAL MOUNT CUSHION

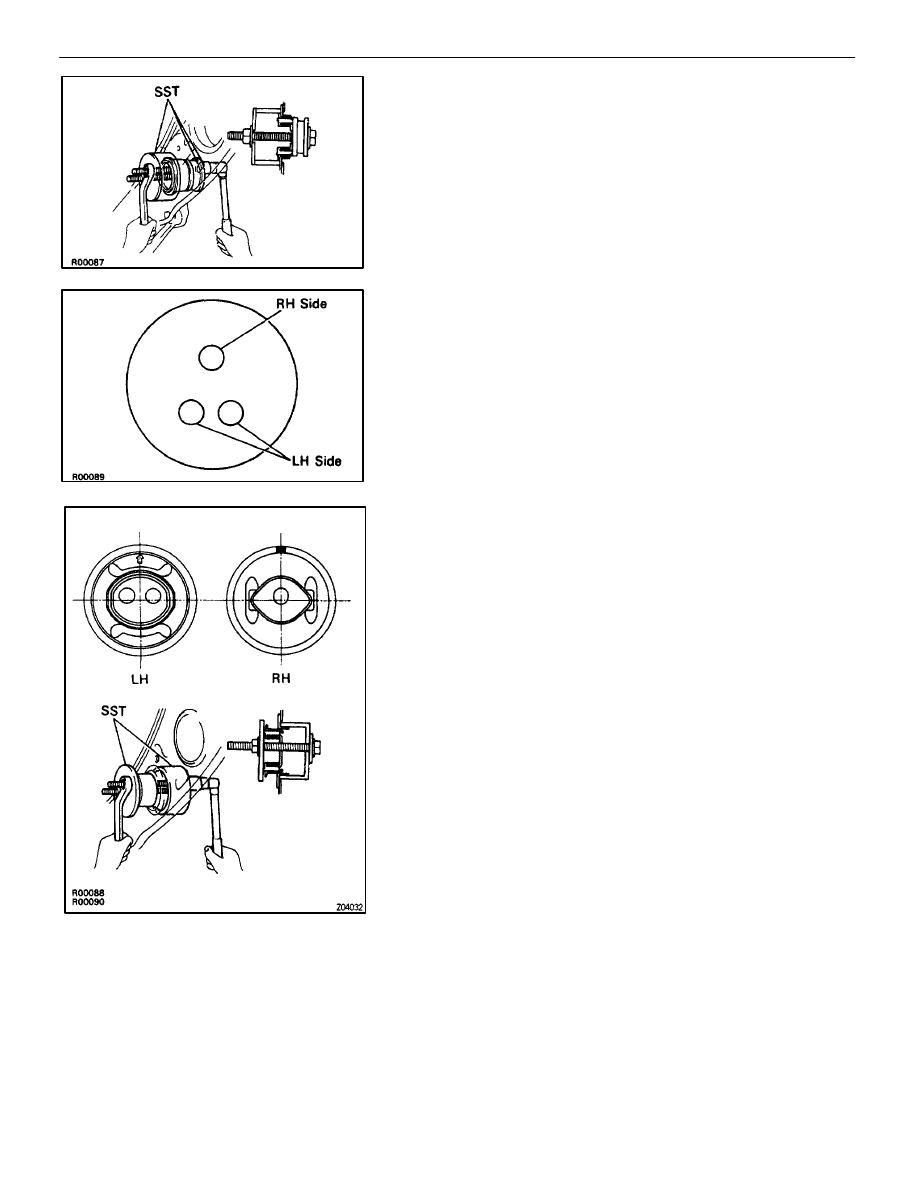

Using SST, remove the differential mount cushion.
SST 09316–12010, 09570–24010

NOTICE:

•

When driving out the mount cushion, be careful not to

touch the member with the SST.

•

Align the SST straight so that the bolt of the SST parallels

the center line of the mount cushion.

•

When installing the bolts to the LH and RH differential

mount cushions, make sure the bolts are passed through

the correct holes in the SST, as shown in the illustration.

3.

INSTALL DIFFERENTIAL MOUNT CUSHION
Using SST, install the cushion so that the marks are posi-
tioned, as shown in the illustration.
SST 09570–24010
NOTICE:

•

Do not make a mistake with left and right sides or top
and bottom.

•

Set the SST after temporarily installing the differential
mount cushion into the member so as not to be installed
at an angle.

•

To confirm that the differential mount cushion is aligned
straight in relation to the member, check that the SST is
fully in contact with all of the cushion.

4. INSTALL

DIFFERENTIAL

(See page

SA–83

)

SA–104

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

REAR SUSPENSION

SA0A4–07

DESCRIPTION

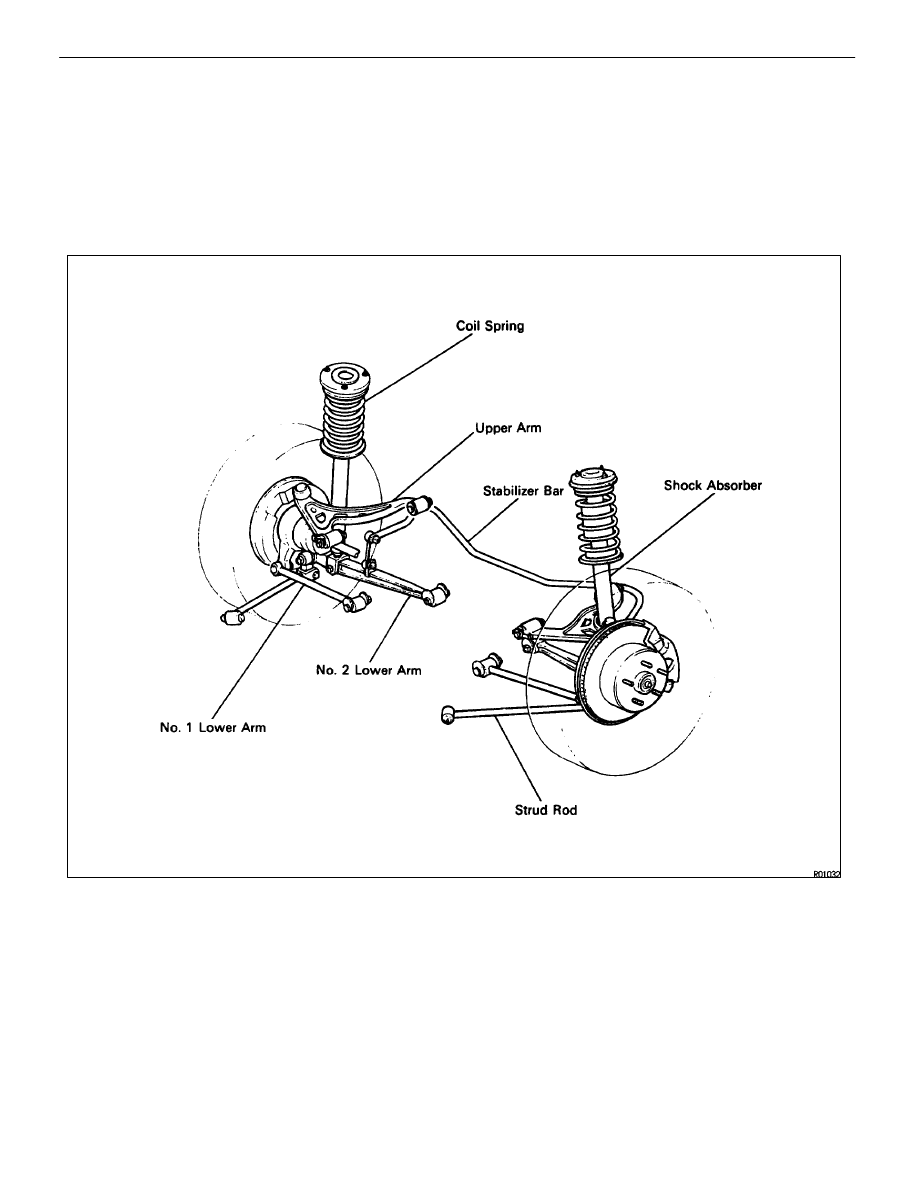

The suspension is double wishbone type at the rear. Optimal suspension geometry and wheel alignment
are achieved through analysis of the component design, materials and characteristics to provide a high
level of controllability and riding comfort.
The support rigidity of the suspension has been realized through the adoption of the rear subframe.

–
