DIAGNOSTIC CHART

DIAGNOSTIC CHART

(See page

RS–49

).

(See page

RS–48

).

–

SUPPLEMENTAL RESTRAINT SYSTEM

TROUBLESHOOTING

RS–71

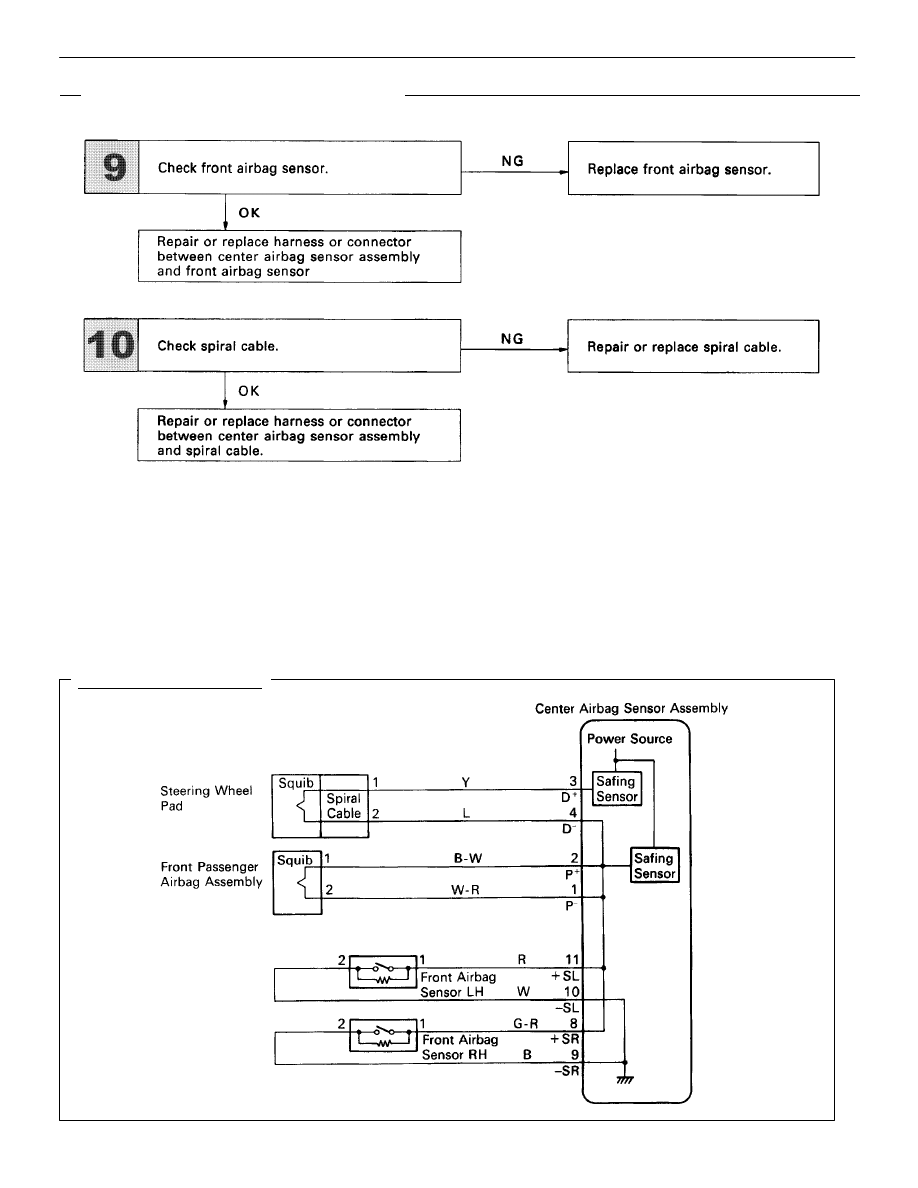

WIRING DIAGRAM

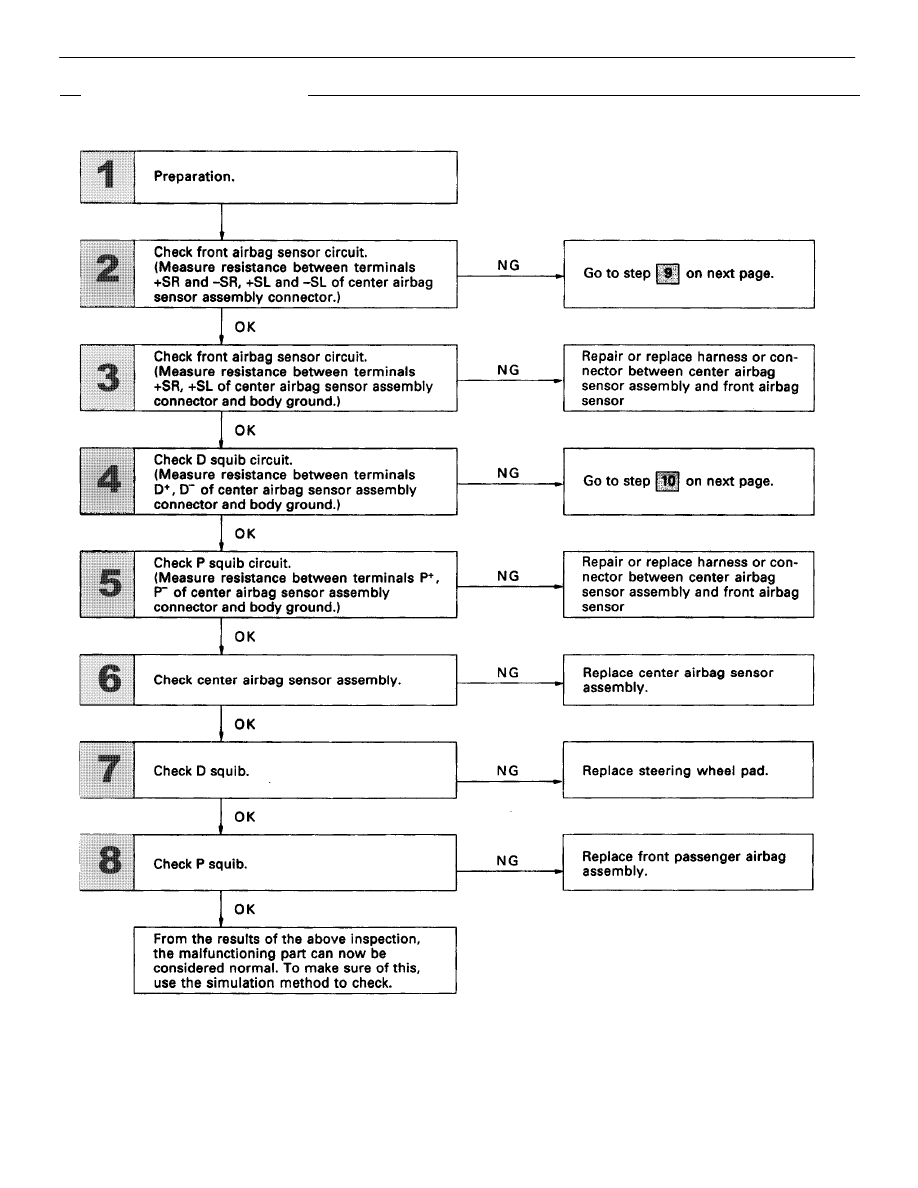

DIAGNOSTIC CHART (Cont’d)

DIAGNOSTIC CHART (Cont’d)

(See page

RS–49

).

RS–72

–

SUPPLEMENTAL RESTRAINT SYSTEM

TROUBLESHOOTING

OK

NG

INSPECTION PROCEDURE

1

Preparation.

P

1.

Disconnect battery negative (–) terminal cable, and
wait at least 90 seconds.

2.

Remove steering wheel pad (See page

RS–19

).

3.

Disconnect connectors of front passenger airbag
assembly (See page

RS–32

).

Caution:

Store the steering wheel pad with the

surface facing upward.

2

Check front airbag sensor circuit. (Measure resistance between terminals +SR and –SR, +SL
and –SL of center airbag sensor assembly connector.)

C

OK

P

Disconnect center airbag sensor assembly connector.

Measure resistance between terminals +SR and –SR,
+SL and –SL of harness side connector o center airbag
sensor assembly.

Resistance:

755

 – 885

Go to step

–

SUPPLEMENTAL RESTRAINT SYSTEM

TROUBLESHOOTING

RS–73

OK

NG

OK

NG

3

Check front airbag sensor circuit. (Measure resistance between terminals +SR and +SL of cen-
ter airbag sensor assembly connector and body ground.)

C

OK

Measure resistance between terminals +SR, +SL of
harness side connector of center airbag sensor assem-
bly and body ground.

Resistance:

1 M

 or higher

Repair or replace harness or connector between center
airbag sensor assembly and front airbag sensor (See
page

RS–48

).

4

Check D squib circuit.

C

OK

For the connector (on the spiral cable side) between the
spiral cable and steering wheel pad, measure the resist-
ance between D+, D– and body ground.

Resistance:

1 M

 or higher

Go to step



RS–74

–

SUPPLEMENTAL RESTRAINT SYSTEM

TROUBLESHOOTING
