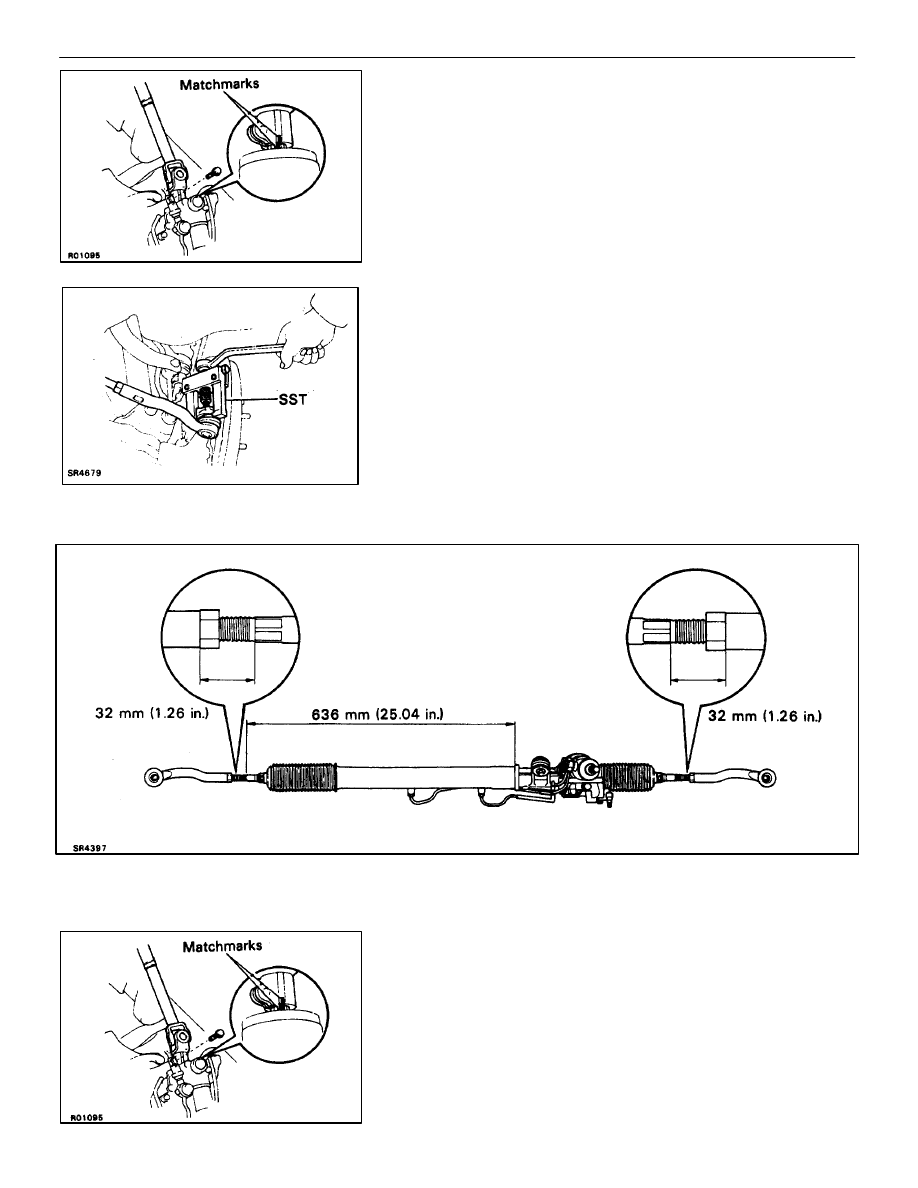

(c)  Place matchmarks on the intermediate shaft and control

valve shaft.

(d)  Loosen the bolt on the upper side of the intermediate shaft,

remove the bolt on the lower side and disconnect the
intermediate shaft.

2.

DISCONNECT TIE ROD ENDS

(a)  Remove the cotter pin and nut.
(b)  Using SST, disconnect the tie rod end from the knuckle arm.

SST 09628–62011

3. CONNECT

INTERMEDIATE

SHAFT

(a)  Set the gear housing so that it matches the dimensions

shown below, with the gear housing at the center point.

(b) Align

matchmarks on the intermediate shaft and control valve

shaft and connect them.

Torque: 35 N

⋅

m (360 kgf

⋅

cm, 26 ft

⋅

lbf)

SR–146

–

STEERING

POWER STEERING

4.

CONNECT PRESSURE AND RETURN TUBES

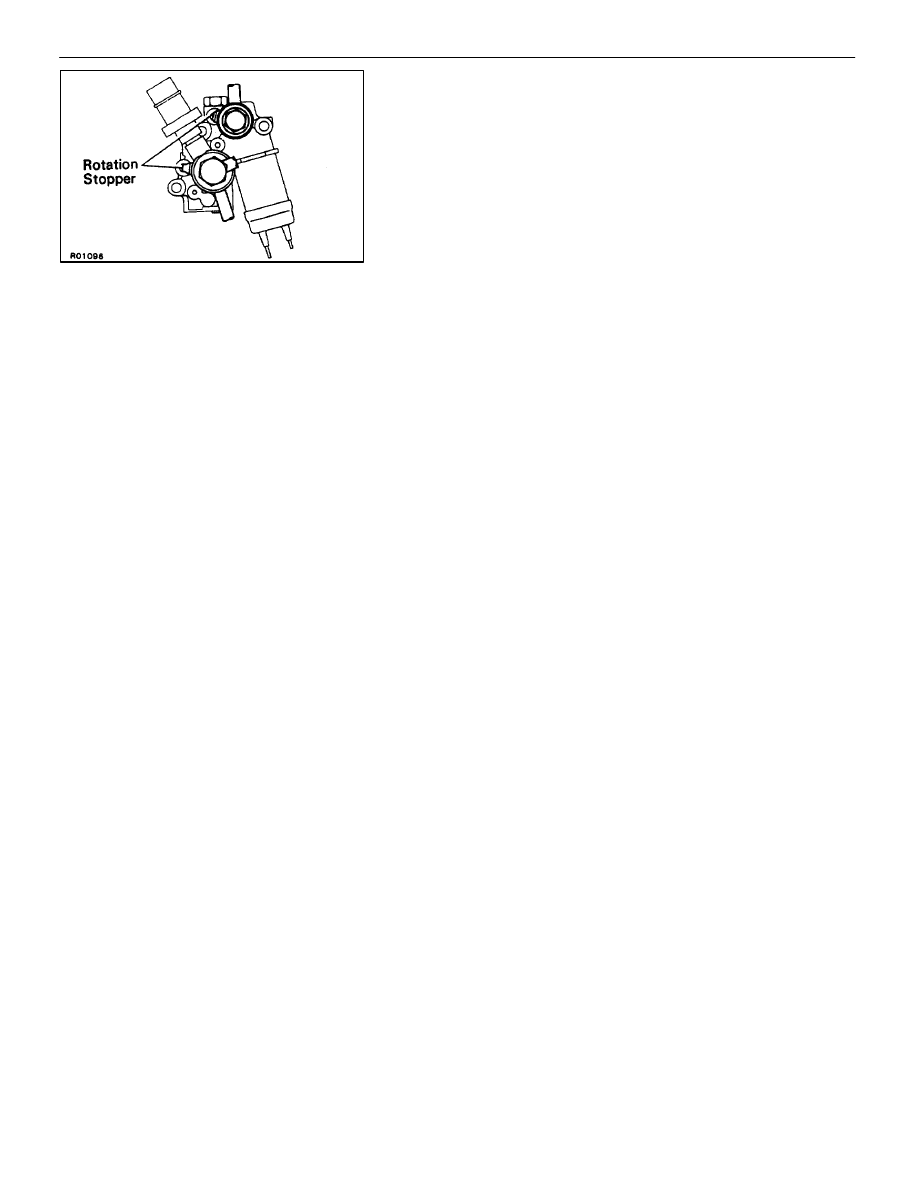

After inserting the rotation stopper in the valve housing holes,
tighten the union bolts.

Torque: 46 N

⋅

m (500 kgf

⋅

cm, 36 ft

⋅

lbf)

5.

CENTER SPIRAL CABLE
If the steering wheel has been removed, or the steering
wheel may have moved during the operation, always perform
centering of the spiral cable.
(See page

SR–11

)

6.

CHECK STEERING WHEEL CENTER POINT

7.

BLEED POWER STEERING SYSTEM
(See page

SR–115

)

8. CHECK

TOE–IN

(See page

SA–5

)

–

STEERING

POWER STEERING

SR–147

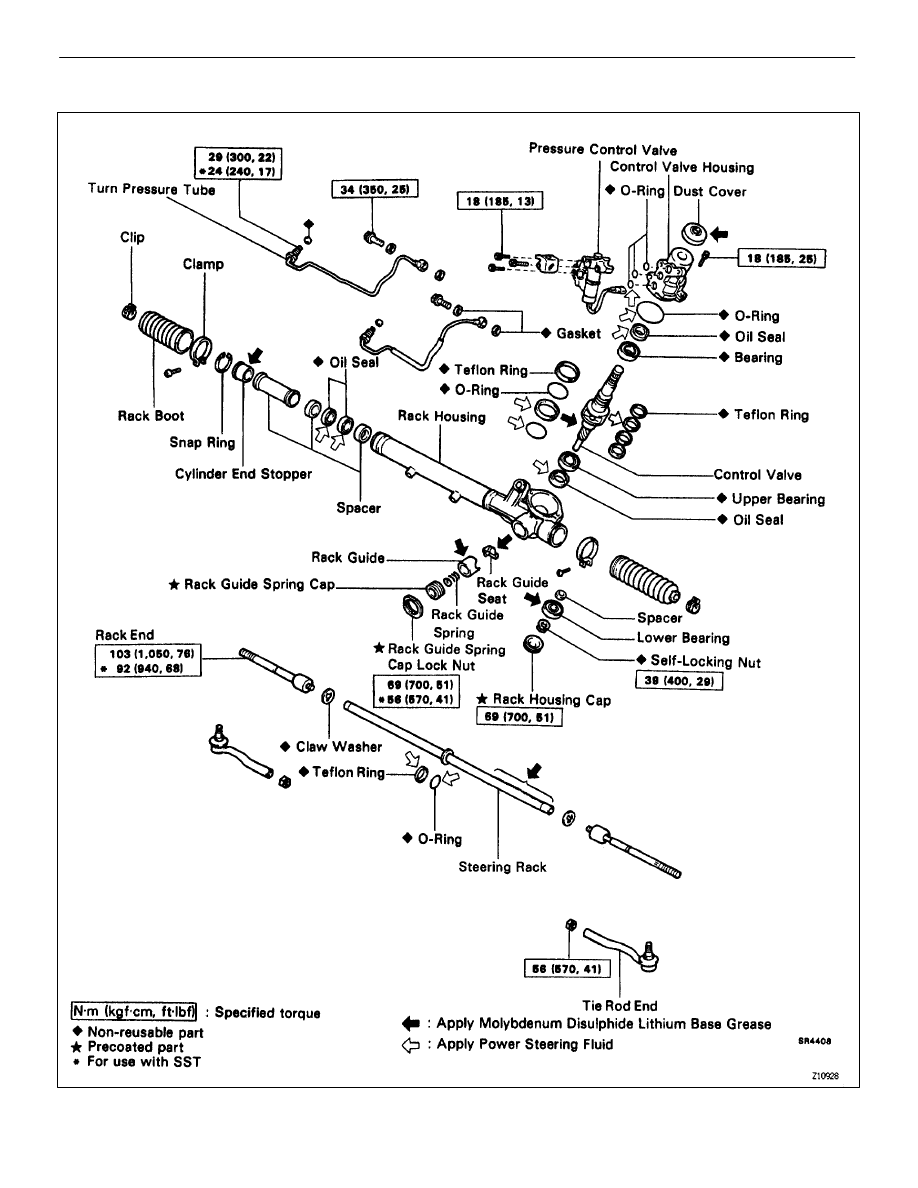

COMPONENTS

SR0GJ–02

SR–148

–

STEERING

POWER STEERING

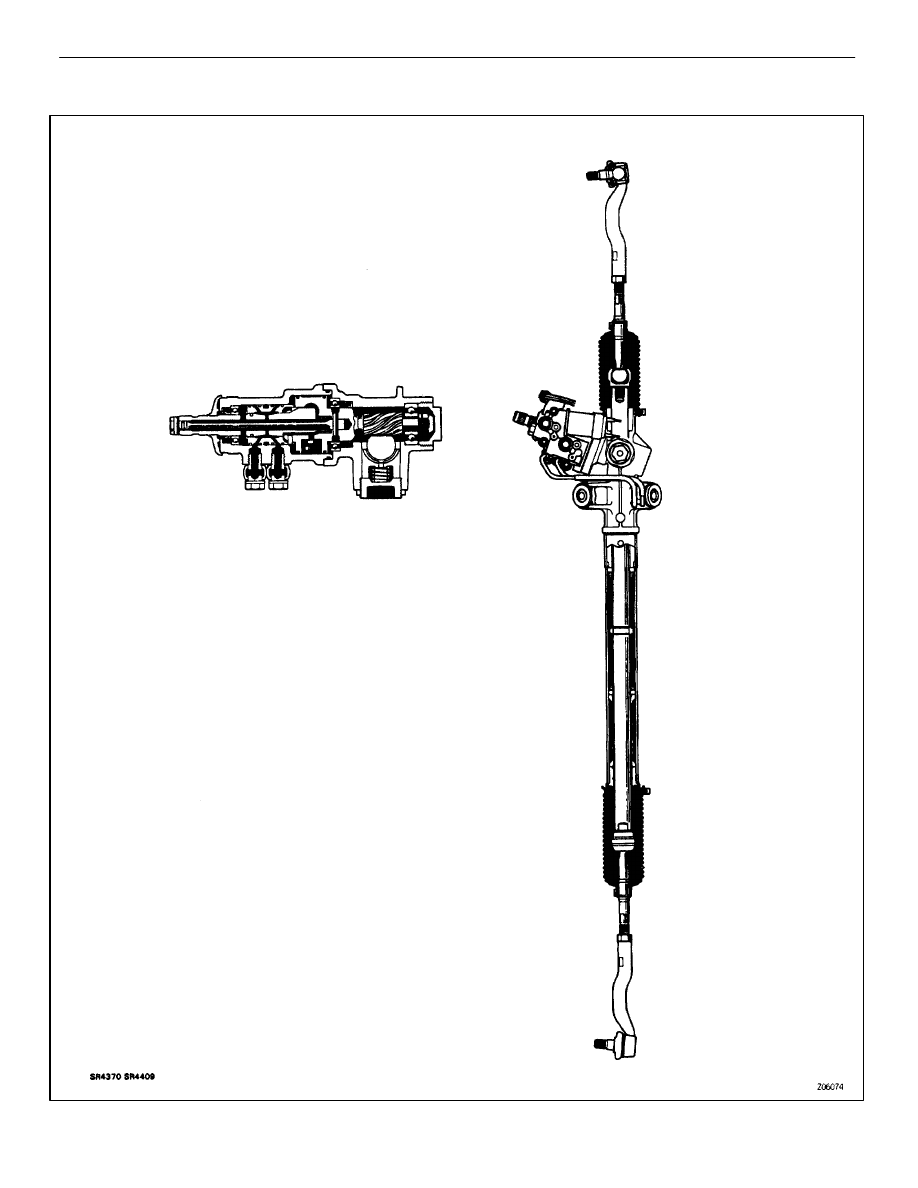

SECTIONAL VIEW

SR0GK–01

–

STEERING

POWER STEERING

SR–149
