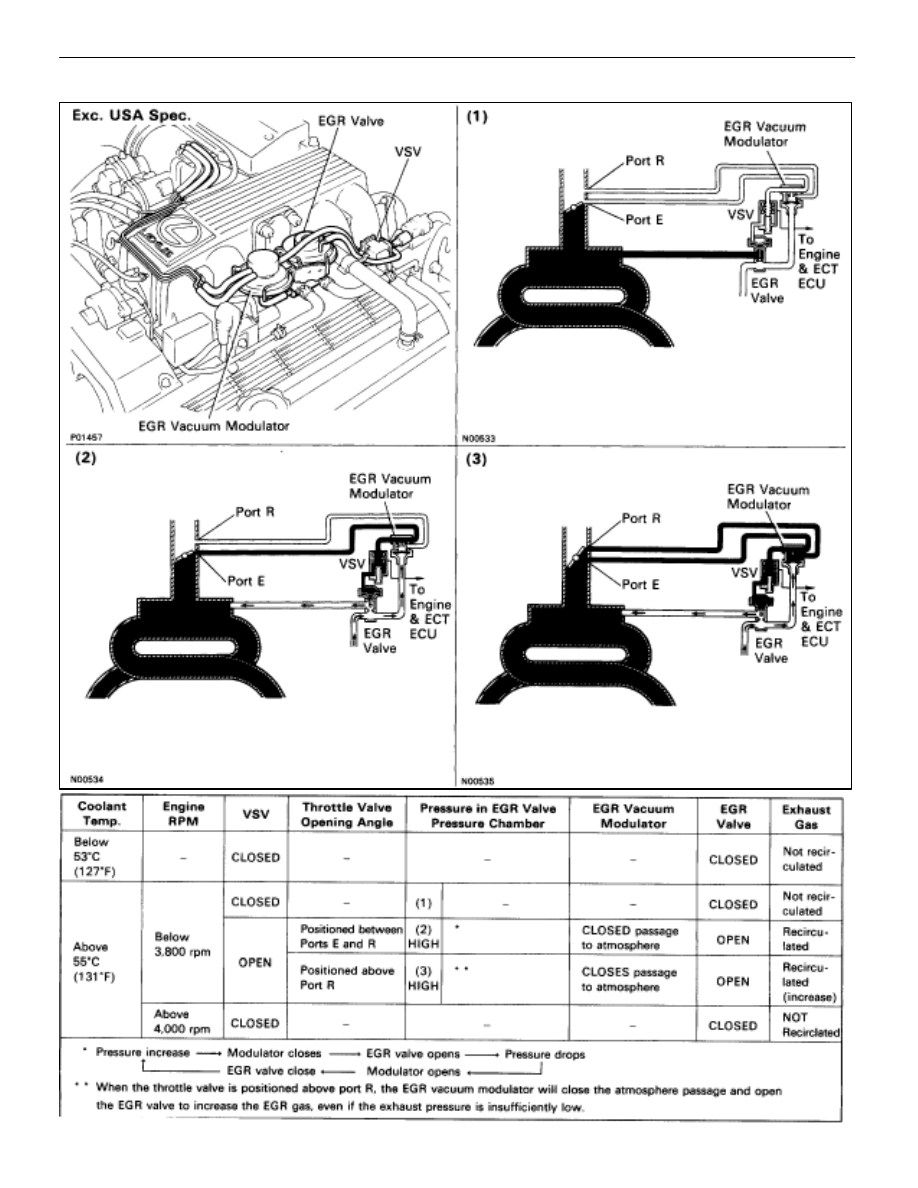

OPERATION (Cont’d)

EC–16

–

EMISSION CONTROL SYSTEMS

Exhaust Gas Recirculation (EGR) System

INSPECTION OF EGR SYSTEM (USA
Spec.)
INSPECT SYSTEM OPERATION

(a)  Using SST, connect terminals TE1 and E1 of the check

(”DIAGNOSIS”) connector.

SST 09843–18020

(b)  Keep the engine at 3,500 rpm.

(c)  Set the transmission shift lever to the ”N” position.
(d)  Remove the SST from the check connector.
SST 09843–18020

(e)  Check whether the engine rpm increases 100–300 rpm

under the following conditions.

Coolant temp.

Below 53

°

C (127

°

F) No increase

Above 55

°

C (131

°

F) Increases

–

EMISSION CONTROL SYSTEMS

Exhaust Gas Recirculation (EGR) System

EC–17

INSPECTION OF EGR SYSTEM
(Exc. USA Spec.)

1. CHECK

AND

CLEAN

FILTERS

IN

EGR

VACUUM

MODULATOR

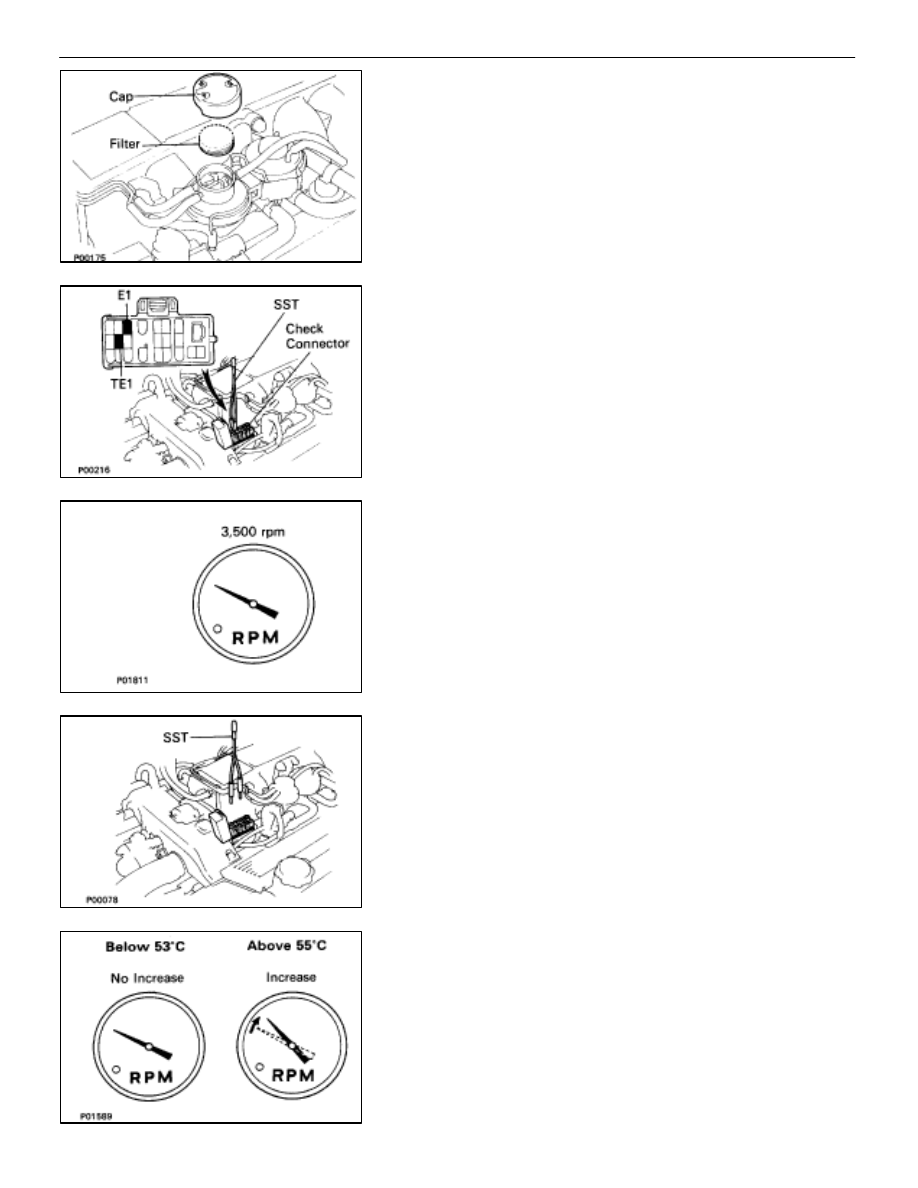

(a)  Remove the cap and filter.
(b)  Check the filter for contamination or damage.
(c)  Using compressed air, clean the filters.
(d)  Reinstall the filter and cap.
HINT: Install the filter with the coarser surface facing the at-
mospheric side (outward).

2.

INSPECT SYSTEM OPERATION

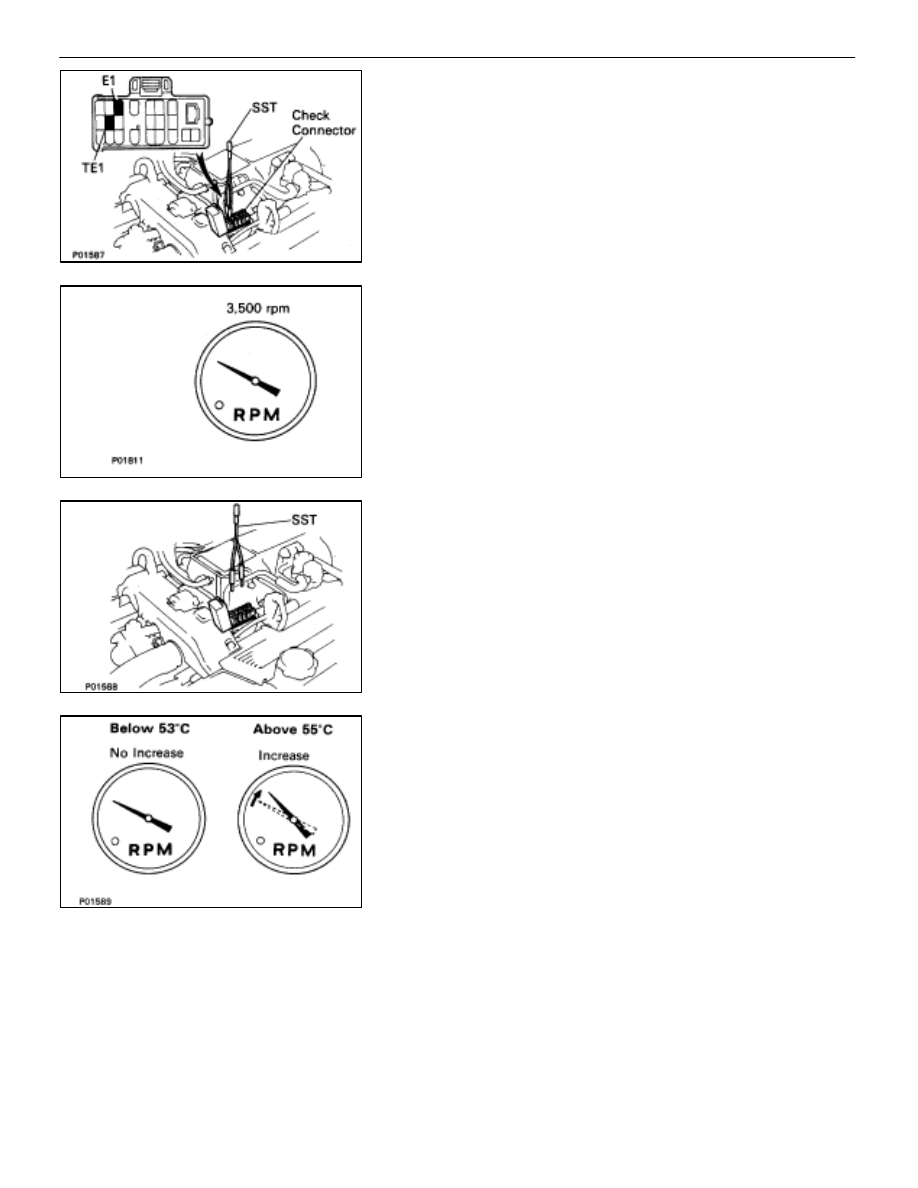

(a)  Using SST, connect terminals TE1 and E1 of the check

(”DIAGNOSIS”) connector.

SST 09843–18020

(b)  Keep the engine at 3,500 rpm.

(c)  Set the transmission shift lever to the ”N” position.
(d)  Remove the SST from the check connector.
SST 09843–18020

(e)  Check whether the engine rpm increases 100–300 rpm

under the following conditions:

Coolant temp.

Below 53

°

C (127

°

F) No increase

Above 55

°

C (131

°

F) Increases

EC–18

–

EMISSION CONTROL SYSTEMS

Exhaust Gas Recirculation (EGR) System

INSPECTION OF VSV (Exc. USA Spec.)

1.

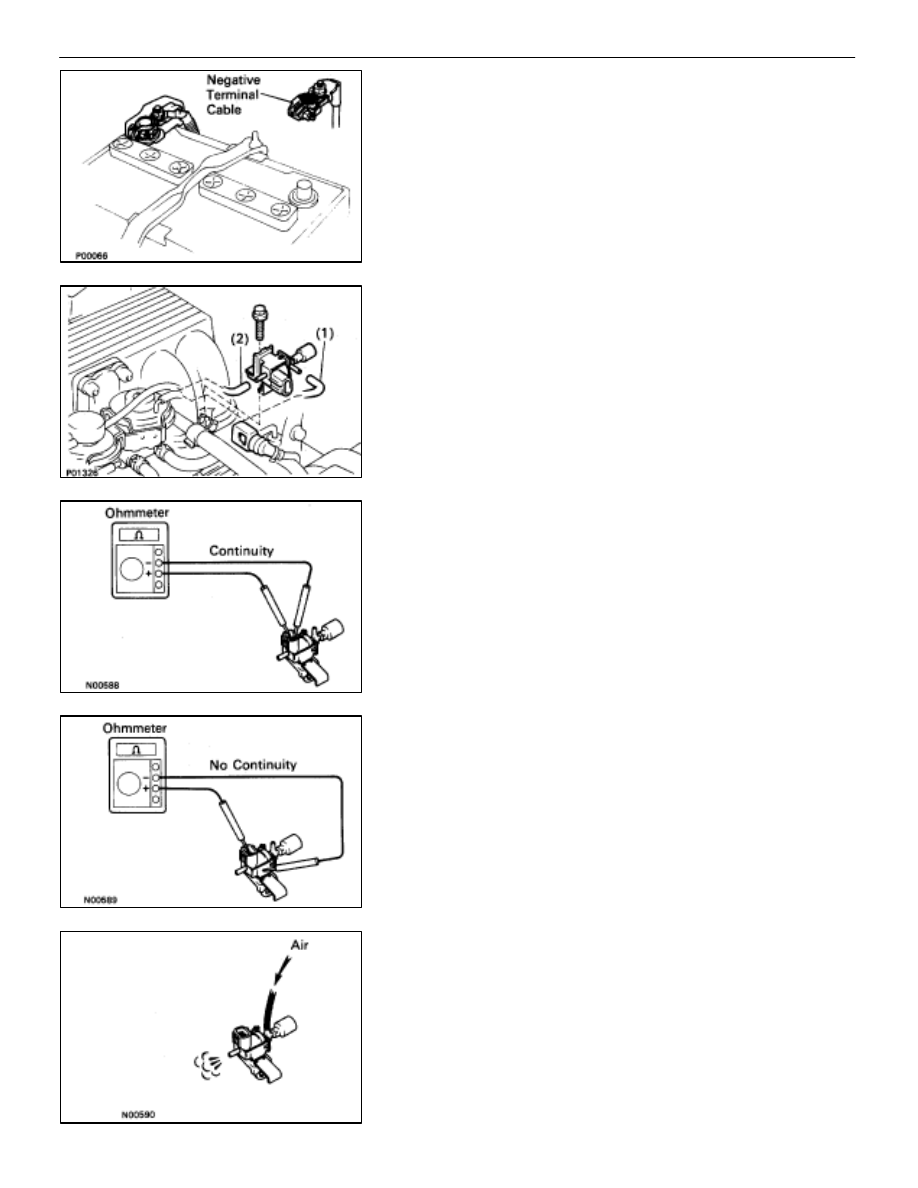

DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
turned to the ”LOCK” position and the negative (–) termi-
nal cable is disconnected from the battery.

2. REMOVE

VSV

(a)  Disconnect the VSV connector.
(b)  Disconnect the following hoses:

(1)  Vacuum hose (from EGR valve) from VSV
(2)  Vacuum hose (from EGR vacuum modulator) from

VSV

(c)  Remove the bolt and VSV.

3. INSPECT

VSV

A.  Inspect VSV for open circuit

Using an ohmmeter, check that there is continuity between
the terminals.

Resistance (Cold): 33–39

If there is no continuity, replace the VSV.

B.  Inspect VSV for ground

Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.

C.  Inspect VSV operation

(a)  Check that the air flows from ports E to G.

–

EMISSION CONTROL SYSTEMS

Exhaust Gas Recirculation (EGR) System

EC–19
