LOCATION OF CONNECTORS

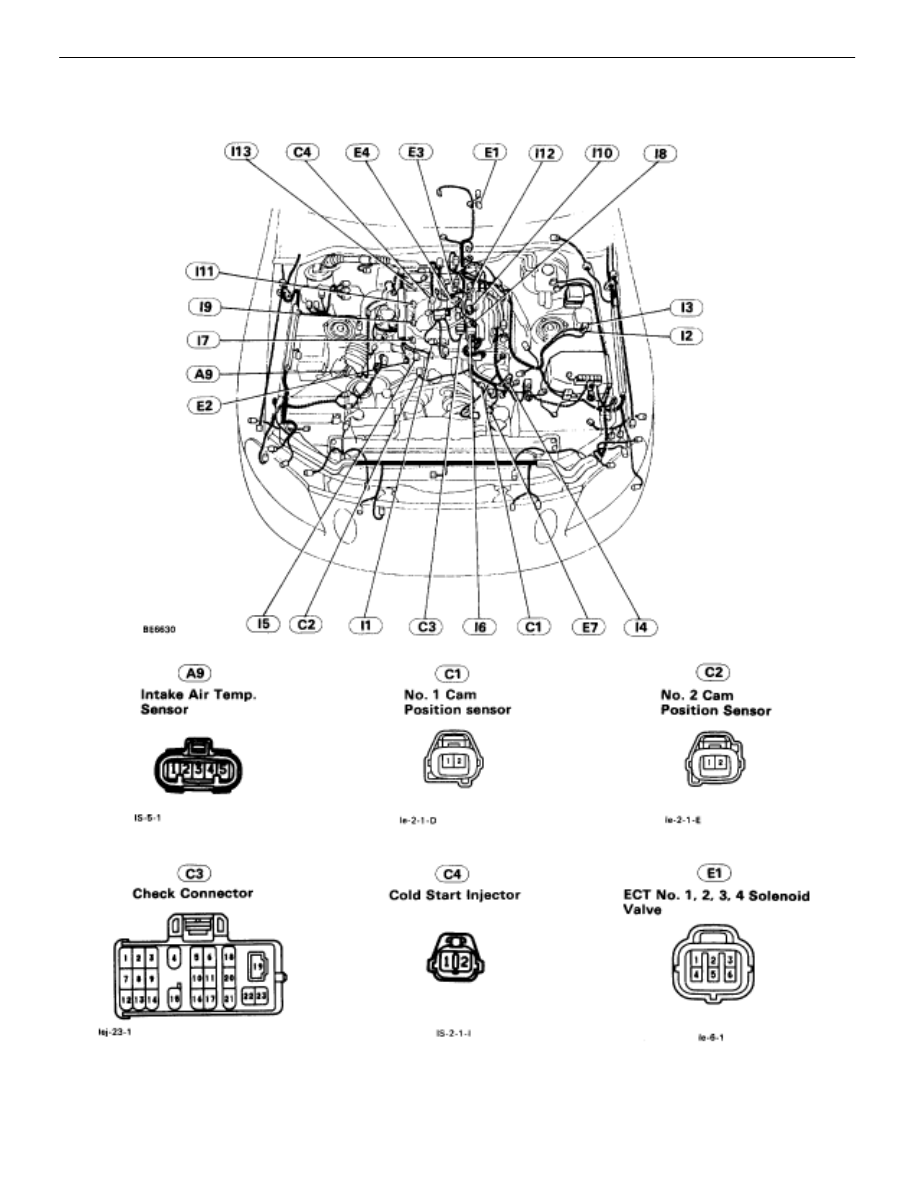

Location of Connectors in Engine Compartment

TR–36

–

ENGINE TROUBLESHOOTING

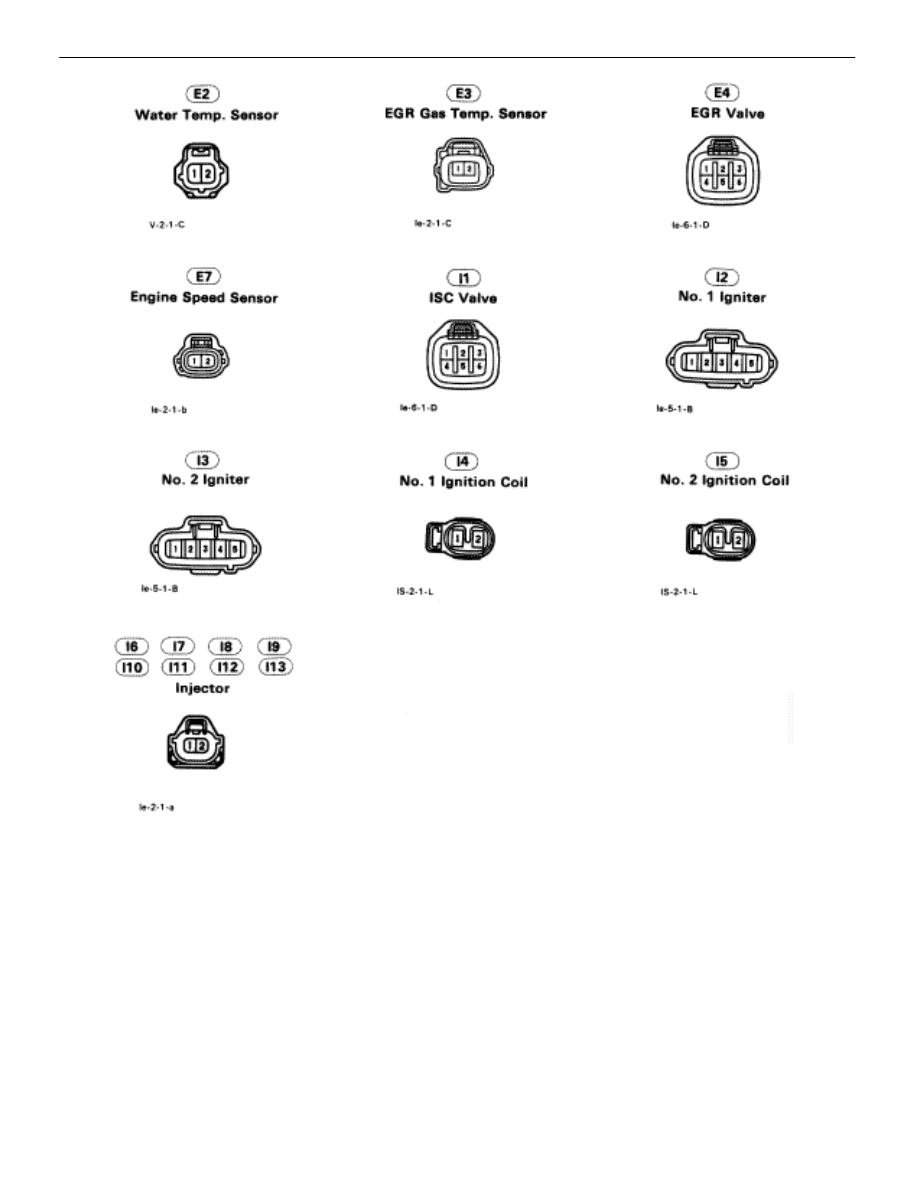

Location of Connectors

–

ENGINE TROUBLESHOOTING

Location of Connectors

TR–37

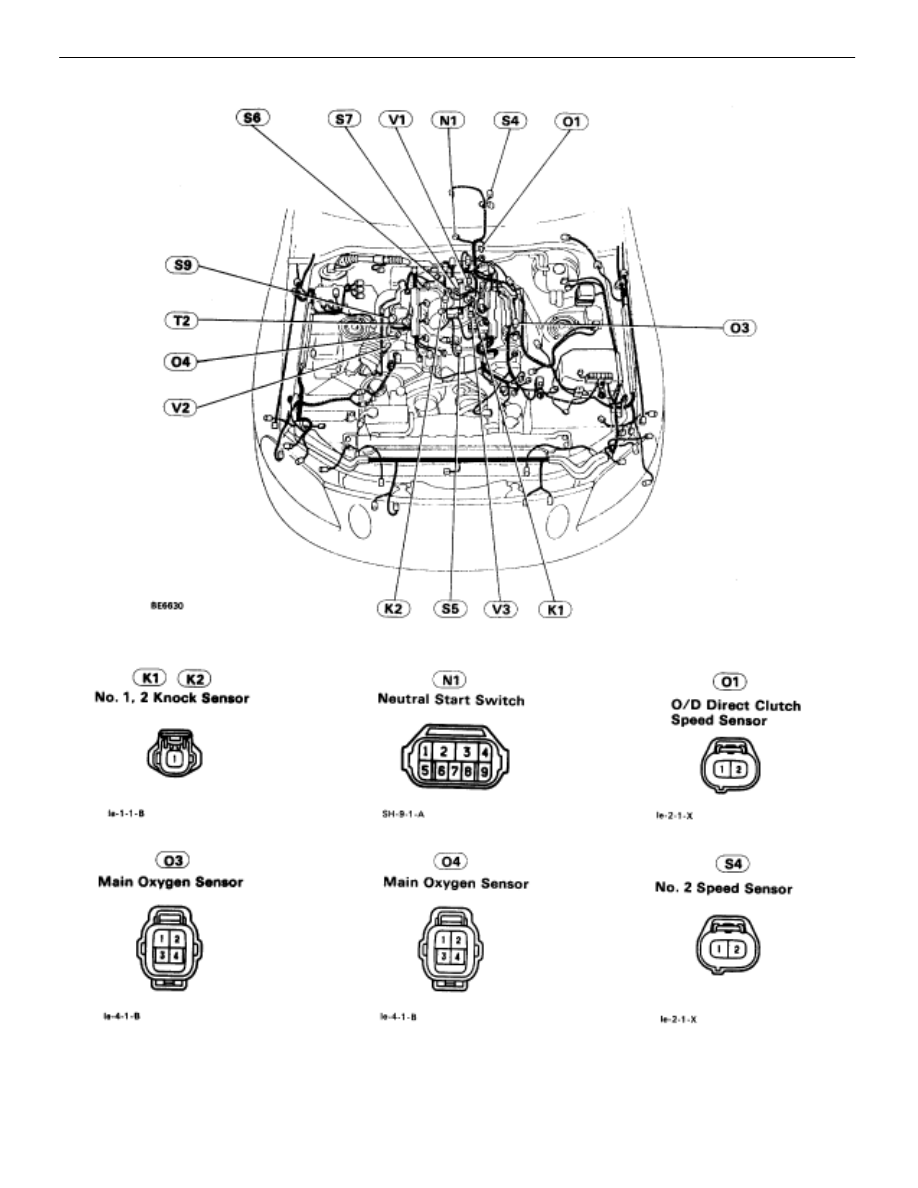

Location of Connectors in Engine Compartment (Cont’d)

TR–38

–

ENGINE TROUBLESHOOTING

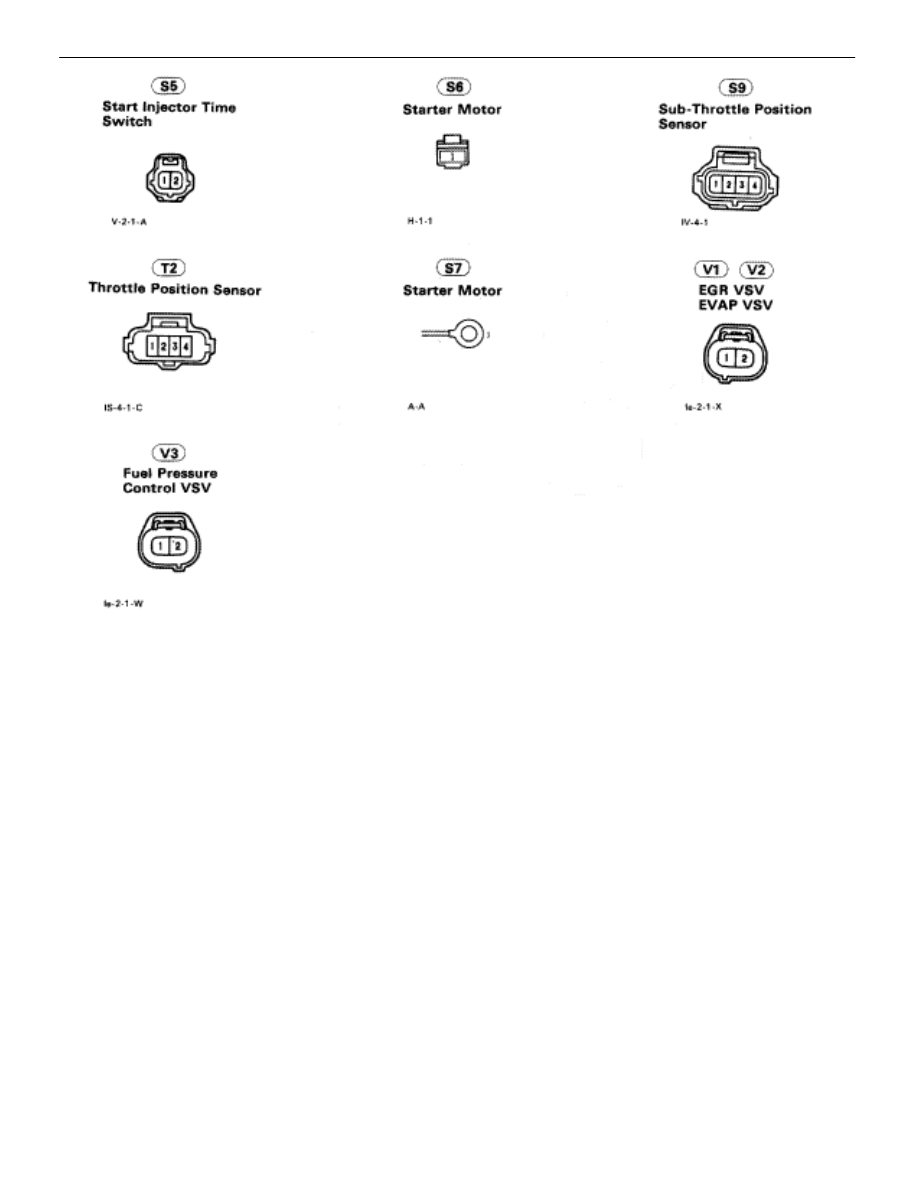

Location of Connectors

–

ENGINE TROUBLESHOOTING

Location of Connectors

TR–39
