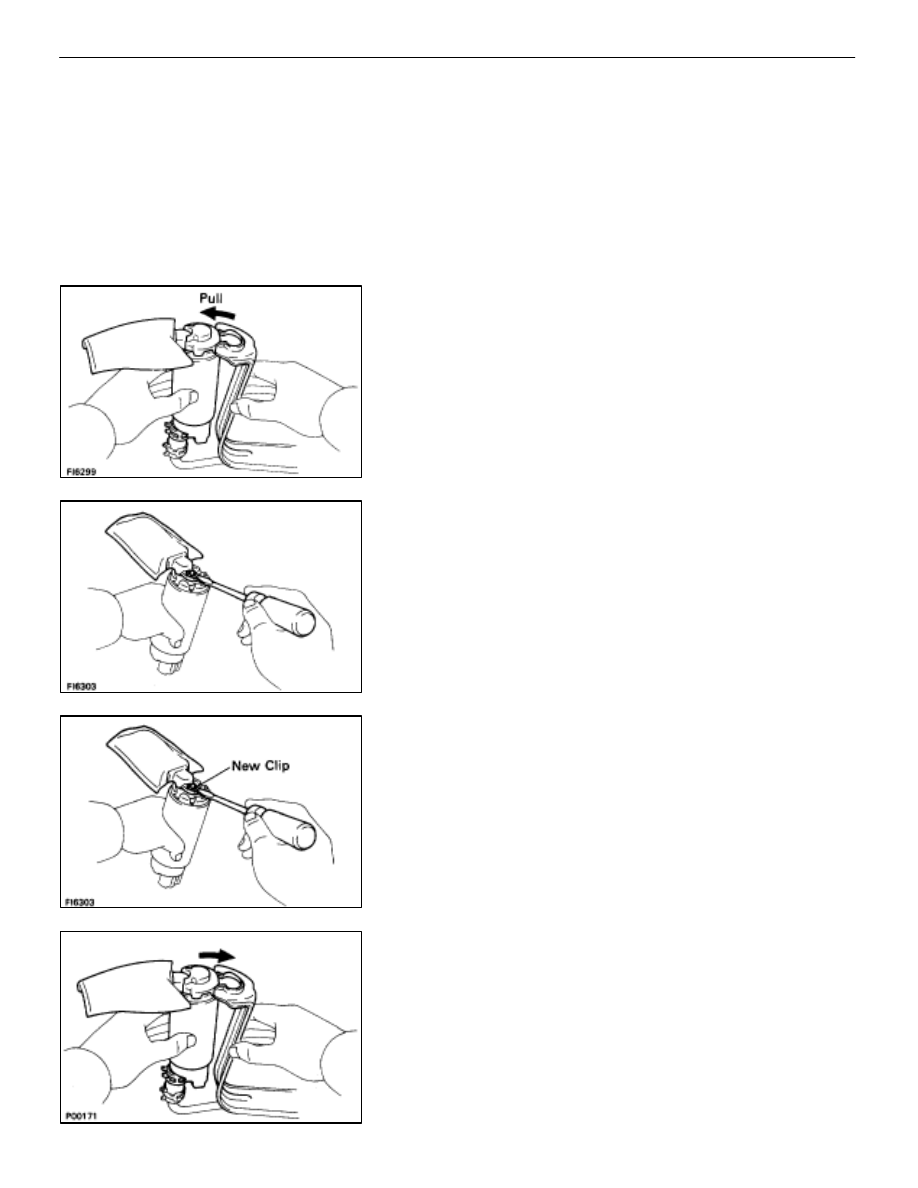

DISASSEMBLY OF FUEL PUMP

(See Components on page

FI–22

)

1.

REMOVE PUMP SET PLATE FROM FUEL PUMP
Disconnect the lead connector from the fuel pump, and re-
move the set plate.

2.

REMOVE FUEL PUMP FROM PUMP BRACKET
(a)  Pull out the lower side of the fuel pump from the pump

bracket.

(b)  Remove the rubber cushion from the fuel pump.
(c) Disconnect the fuel hose from the fuel pump, and

remove the fuel pump.

3.

REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a)  Using a small screwdriver, remove the clip.
(b)  Pull out the pump filter.

ASSEMBLY OF FUEL PUMP

(See Components on page

FI–22

)

1.

INSTALL FUEL PUMP FILTER TO FUEL PUMP
Install the pump filter with a new clip.

2.

INSTALL FUEL PUMP TO FUEL PUMP BRACKET
(a) Connect

the fuel hose to the outlet port of the fuel pump.

(b)  Install the rubber cushion to the fuel pump.
(c)  Install the fuel pump by pushing the lower side of the fuel

pump.

3.

INSTALL PUMP SET PLATE TO FUEL PUMP
Connect the lead connector on the set plate to the fuel pump.

FI–23

EFI SYSTEM   –   Fuel System (Fuel Pump)

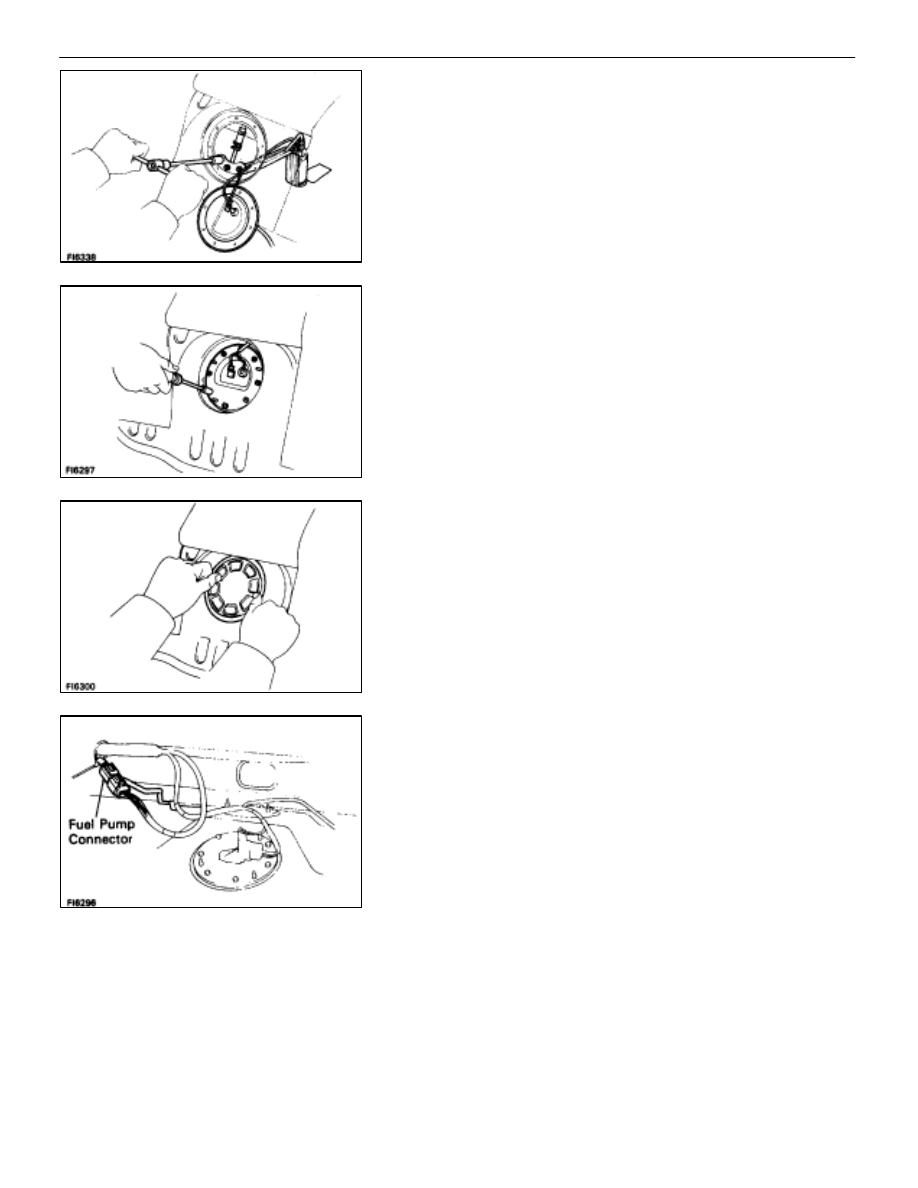

INSTALLATION OF FUEL PUMP

(See Components on page

FI–20

)

1.

INSTALL FUEL PUMP
(a)  Install a new gasket to the pump set plate.
(b)  Connect the fuel hose to the fuel pump bracket, and

install the fuel pump and bracket assembly with the
three nuts.

Torque: 5.4 N

⋅

m (55 kgf

⋅

cm, 48 in.

⋅

lbf)

(b)  Install the fuel pump set plate with the eight bolts.

Torque: 3.9 N

⋅

m (40 kgf

⋅

cm, 35 in.

⋅

lbf)

2. INSTALL

PARTITION

COVER

Install the partition cover with butyl tape.

3.

INSTALL SEAT BACK AND CUSHION

4.

CONNECT FUEL PUMP CONNECTOR

5.

INSTALL LUGGAGE COMPARTMENT TRIM COVER

6.

INSTALL SPARE TIRE

7.

INSTALL LUGGAGE COMPARTMENT FLOOR MAT

8.  CONNECT CABLE TO NEGATIVE TERMINAL OF

BATTERY

9.

START ENGINE, AND CHECK FOR FUEL LEAKS

FI–24

EFI SYSTEM   –   Fuel System (Fuel Pump)

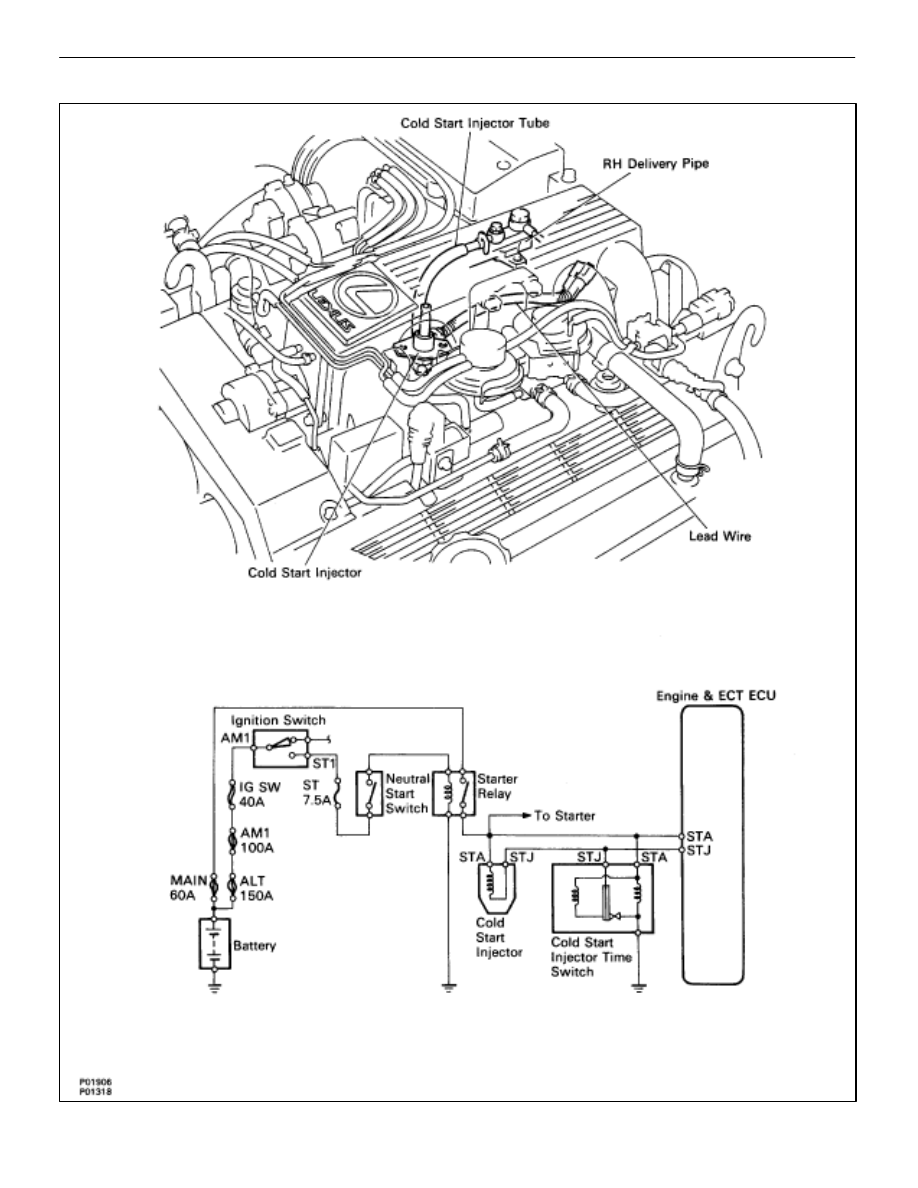

Cold Start Injector

FI–25

                          –   Fuel System (Cold Start Injector)

EFI SYSTEM

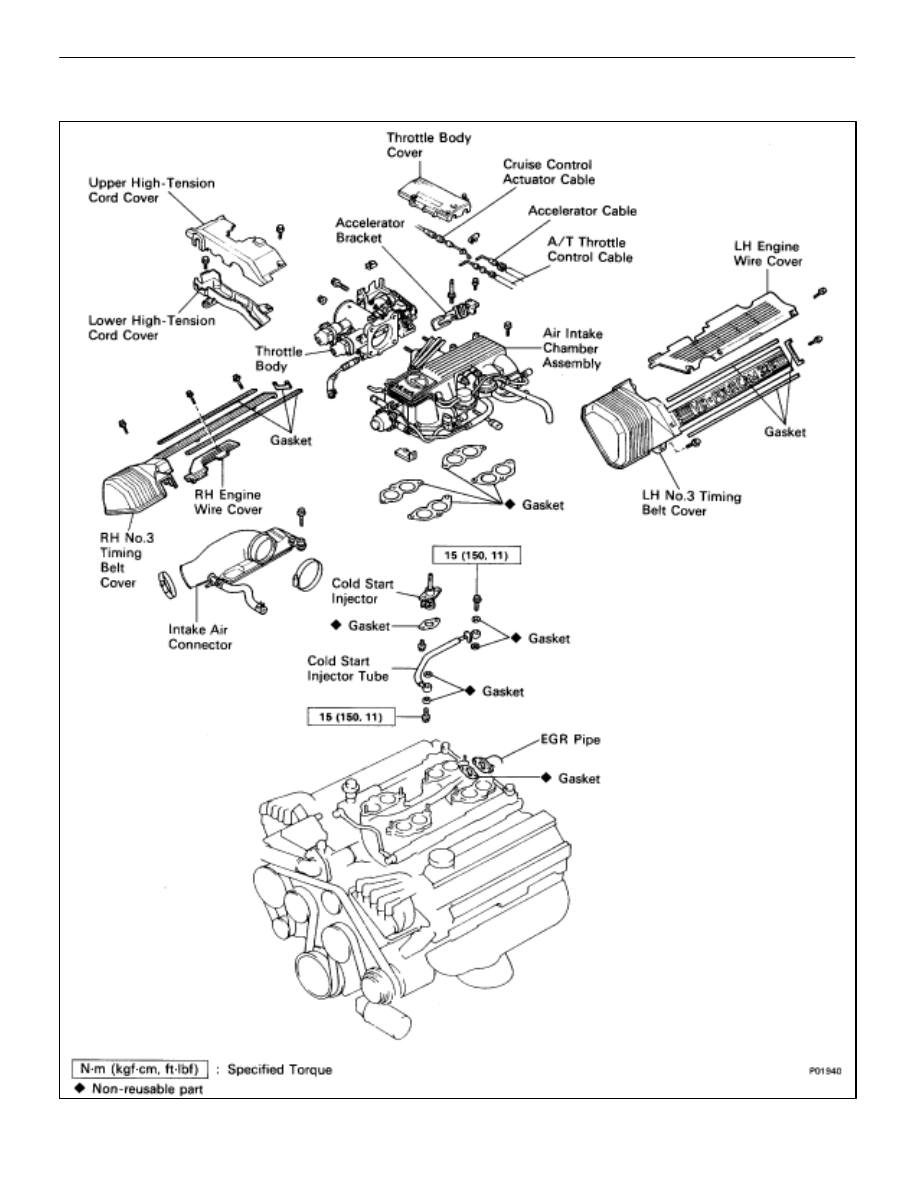

COMPONENTS FOR REMOVAL AND INSTALLATION

FI–26

EFI SYSTEM   –   Fuel System (Cold Start Injector)
