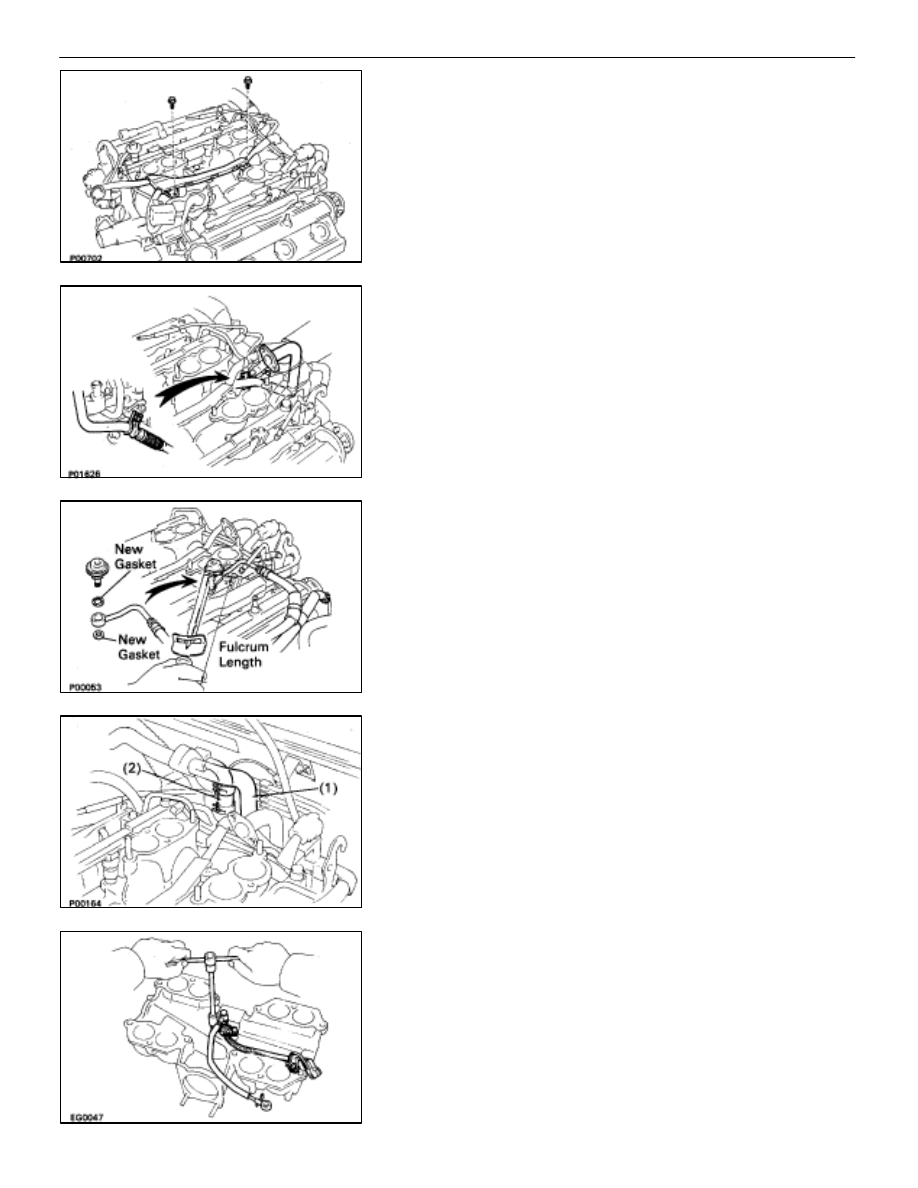

25.  INSTALL ENGINE WIRE TO INTAKE MANIFOLD

Install the engine wire with the two bolts.

26.  TEMPORARILY INSTALL EGR PIPE TO RH CYLINDER

HEAD
Temporarily install a new gasket and the EGR pipe with the
two bolts.
HINT: Use bolt 25 mm (0.98 in.) in length.

27. CONNECT

FUEL RETURN HOSE TO FUEL RETURN PIPE

28.  CONNECT FUEL INLET HOSE TO LH DELIVERY PIPE

Connect the inlet hose with two new gaskets and the pulsa-
tion damper.
SST 09612–24012 (09617–24011)

Torque: 39 N

⋅

m (400 kgf

⋅

cm, 29 ft

⋅

lbf)

33 N

⋅

m (340 kgf

⋅

cm, 24 ft

⋅

lbf) for SST

HINT: Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.).

29. CONNECT

HEATER

WATER

HOSES

Connect the following hoses:

(1)

Water hose to water by–pass pipe

(2)

Water hose to rear water by–pass joint

30.  INSTALL AIR INTAKE CHAMBER

(a)  Install the cold start injector, tube and wire assembly

with the three bolts.

Torque: 7.8 N

⋅

m (80 kgf

⋅

cm, 69 in.

⋅

lbf)

–

ENGINE MECHANICAL

Cylinder Heads

EM–107

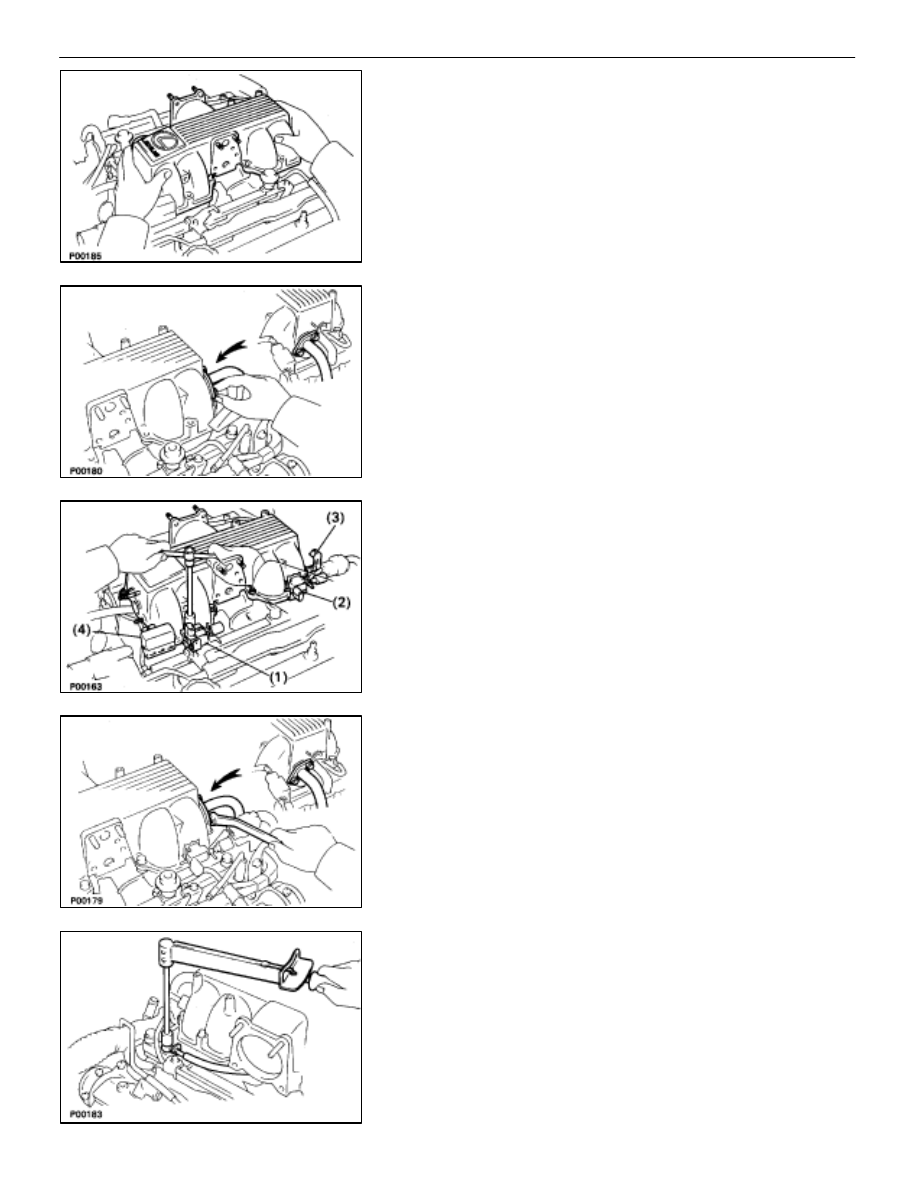

(b)  Place four new gaskets on the intake manifold.
HINT: Gaskets can only be used twice before being replaced.
(c)  Place the air intake chamber on the intake manifold.

(d)  Temporarily connect the EGR pipe to the air intake

chamber with a new gasket and the two bolts.

HINT: Use bolts 20 mm (0.79 in.) in length.

(e)  Temporarily install the air intake chamber and following

parts with the four bolts and eight nuts:

(1)

VSV for fuel pressure control system

(2)

(Exc. USA Spec.)
VSV for EGR system

(3)

A/T throttle cable bracket

(4)

Check connector (”DIAGNOSIS”) connector

(f)  Uniformly tighten the bolts and nuts in several passes.

Torque: 18 N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

HINT: Use bolts 40 mm (1.57 in.) in length.
(g)  Tighten the two bolts holding the EGR pipe to the air

intake chamber.

Torque: 18 N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

(h)  Tighten the two bolts holding the EGR pipe to the RH

cylinder head.

Torque: 18 N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

(i)

Connect the cold start injector tube to the RH delivery
pipe with the two new gaskets and the union bolt.

Torque: 15 N

⋅

m (150 kgf

⋅

cm, 11 ft

⋅

lbf)

(j)

Connect the following connectors:

•

Cold start injector connector

•

SV connector for fuel pressure control system

•

(Exc. USA Spec.)
VSV connector for EGR system

EM–108

–

ENGINE MECHANICAL

Cylinder Heads

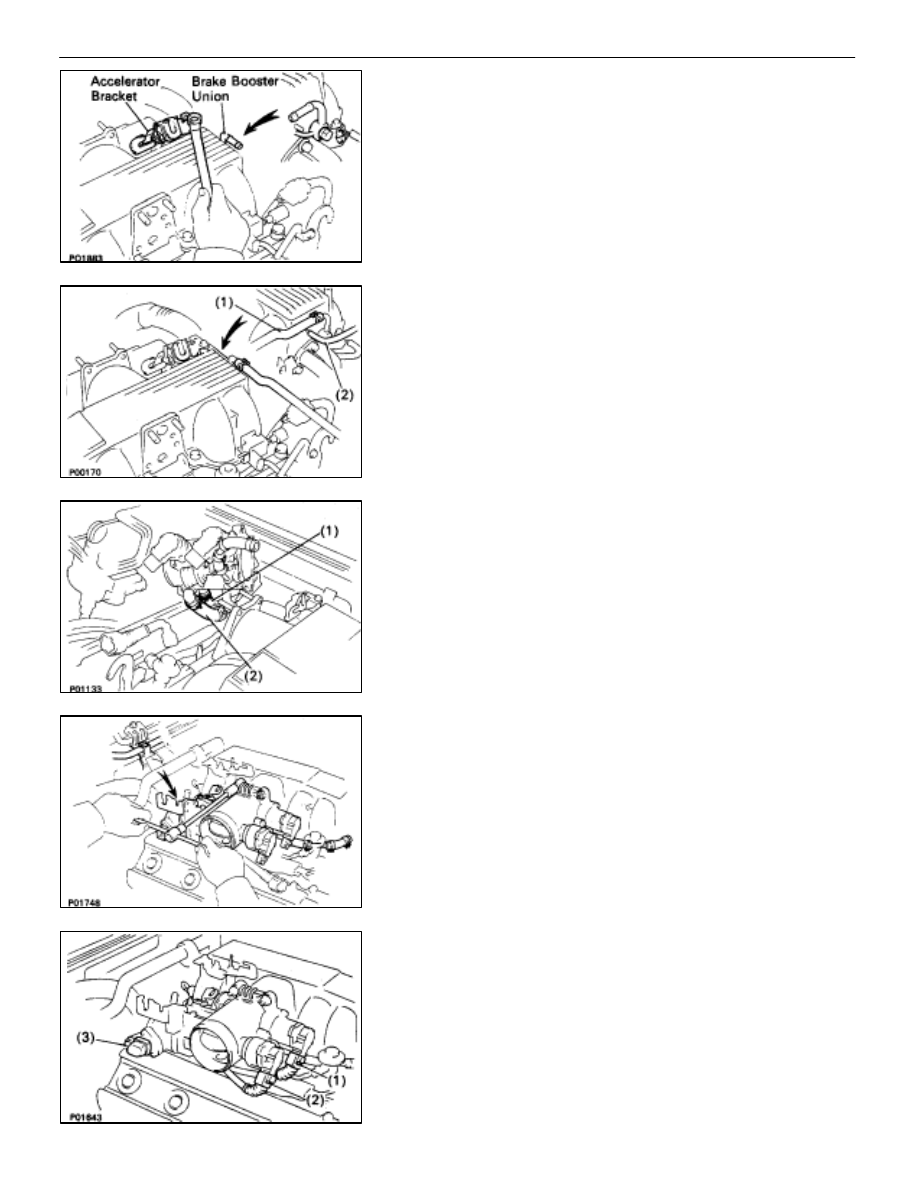

31. INSTALL

ACCELERATOR

BRACKET

Install the bracket with the bolt and stud bolt.

32.  INSTALL BRAKE BOOSTER UNION

Install the union with two new gaskets and the union bolt.

Torque: 29 N

⋅

m (300 kgf

⋅

cm, 22 ft

⋅

lbf)

33. CONNECT

VACUUM

HOSES

Connect the following hoses:

(1)

Vacuum hose to brake booster union

(2)

Vacuum hose (from VSV for heater water valve) to
air intake chamber

34.  INSTALL THROTTLE BODY

(a)  Connect the following hoses:

(1)

Water by–pass hose to throttle body

(2)

PCV hose to throttle body

(b)  Install a new gasket and throttle body with the two bolts

and two nuts.

Torque: 18 N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

HINT: Use bolts 40 mm (1.57 in.) in length.
(c)  Install the water by–pass pipe (from rear water bypass

joint) to the clamp on the engine wire cover.

(d)  Connect the following connectors:

(1) Throttle position sensor connector
(2) (w/ TRAC)

Sub–throttle position sensor connector

(3) (w/ TRAC)

Sub–throttle actuator connector

–

ENGINE MECHANICAL

Cylinder Heads

EM–109

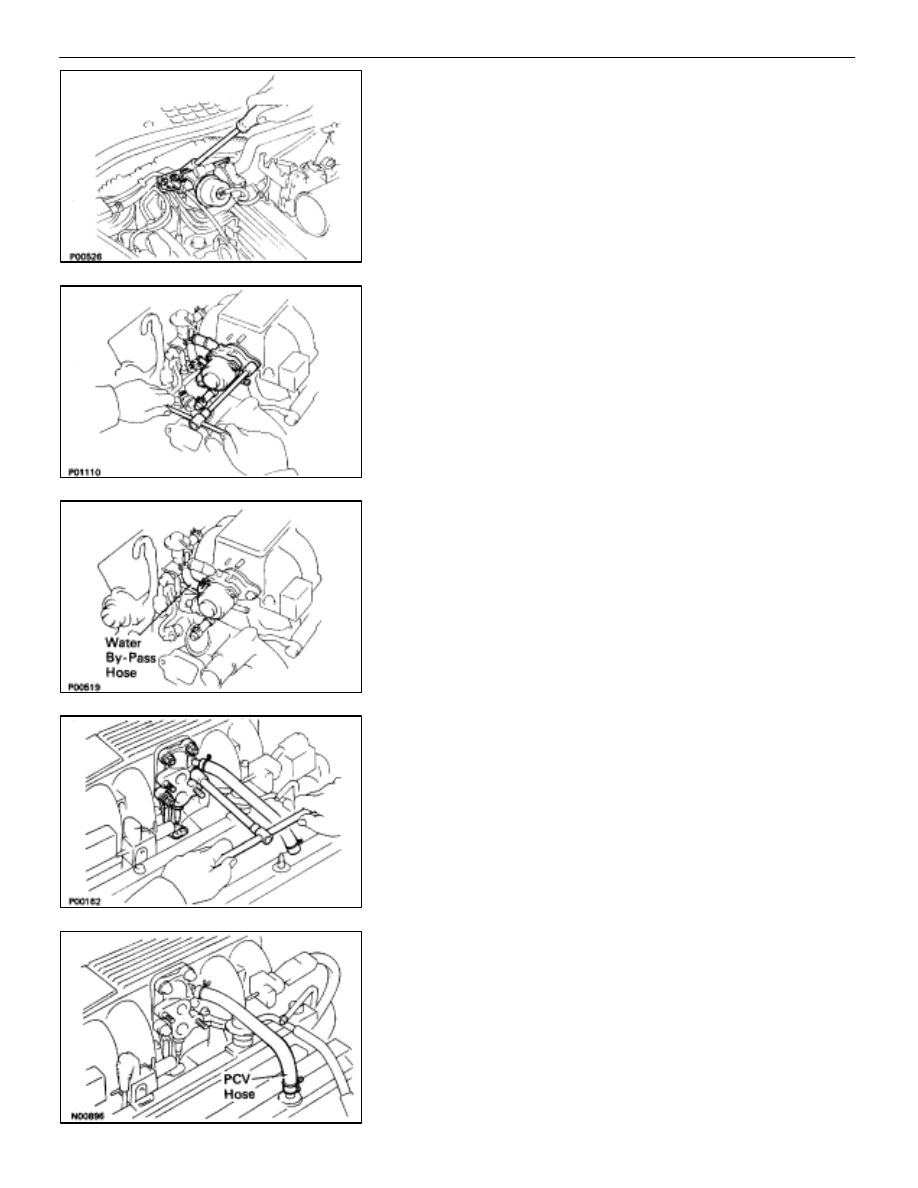

35. INSTALL

HEATER

WATER

VALVE

(a)  Install the water valve and bracket assembly with the

two bolts.

(b)  Install the engine wire clamp with the bolt.
(c)  Connect the VSV connector.

36.  INSTALL ISC VALVE

(a) Install

a

new gasket and the ISC valve with the two nuts.

Torque: 18 N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

(b)  Connect the water by–pass hose (from throttle body) to

the ISC valve.

(c)  Connect the ISC valve connector.

37.  INSTALL EGR VALVE ADAPTOR

(a)  Install a new gasket, the adaptor and connector bracket

(USA spec. only) with the two bolts and two nuts.

Torque: 18 N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

HINT: Use bolts 20 mm (1.79 in.) in length.
NOTICE: Do not touch the air intake chamber and adap-
tor surfaces of the gasket with your hand.

(b)  Connect the PCV hose to cylinder head.
(c)  (USA Spec. only)

Connect the EGR gas temperature sensor connector.

EM–110

–

ENGINE MECHANICAL

Cylinder Heads
