Lexus SC300 / Lexus SC400. Manual - part 544

PREPARATION

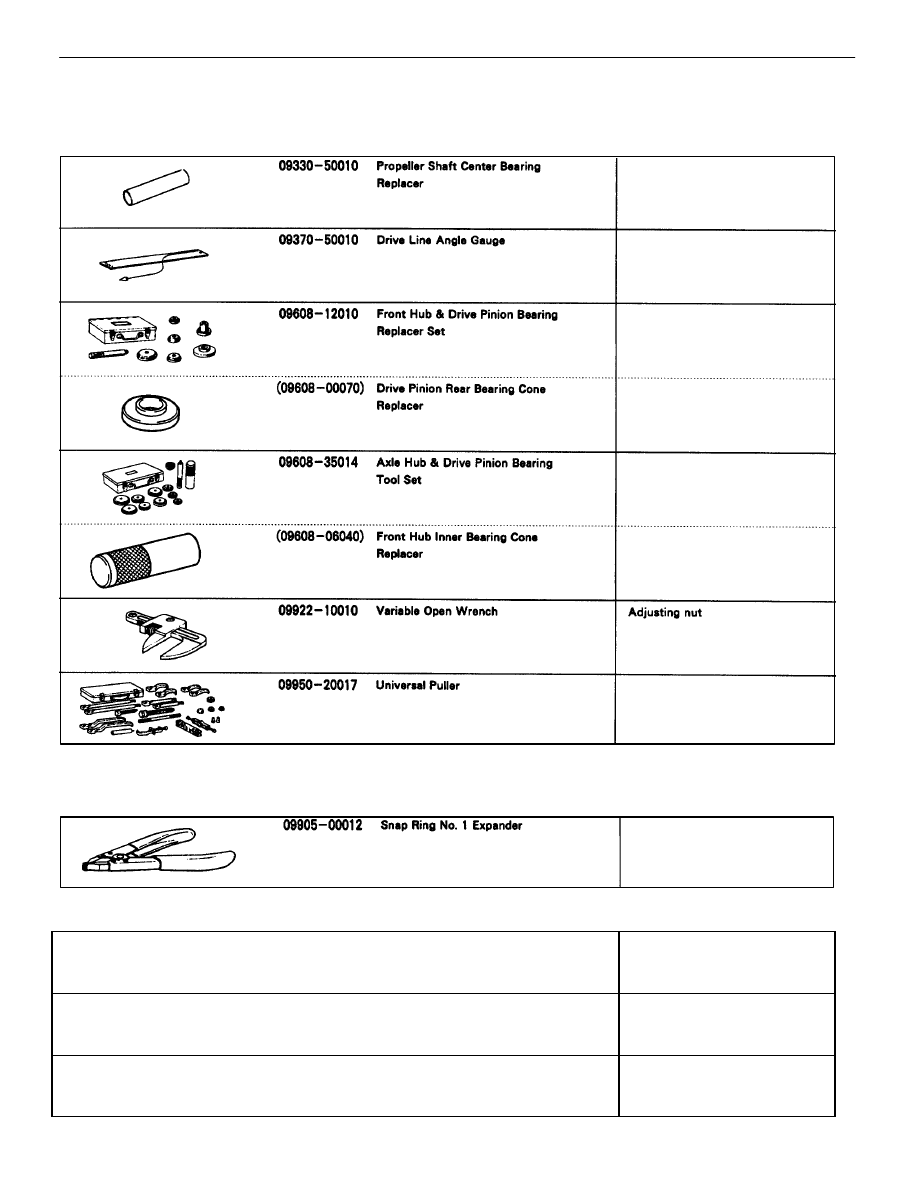

SST (SPECIAL SERVICE TOOLS)

PR01A–04

RECOMMENDED TOOLS

PR01B–02

EQUIPMENT

PR01C–02

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Torque wrench

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Dial indicator

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Vernier calipers

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑ

–

PROPELLER SHAFT

PRECAUTION, TROUBLESHOOTING

PR–3

PRECAUTION

PR02P–02

Be careful not to grip the propeller shaft tube too tightly in the vise as this will cause deformation.

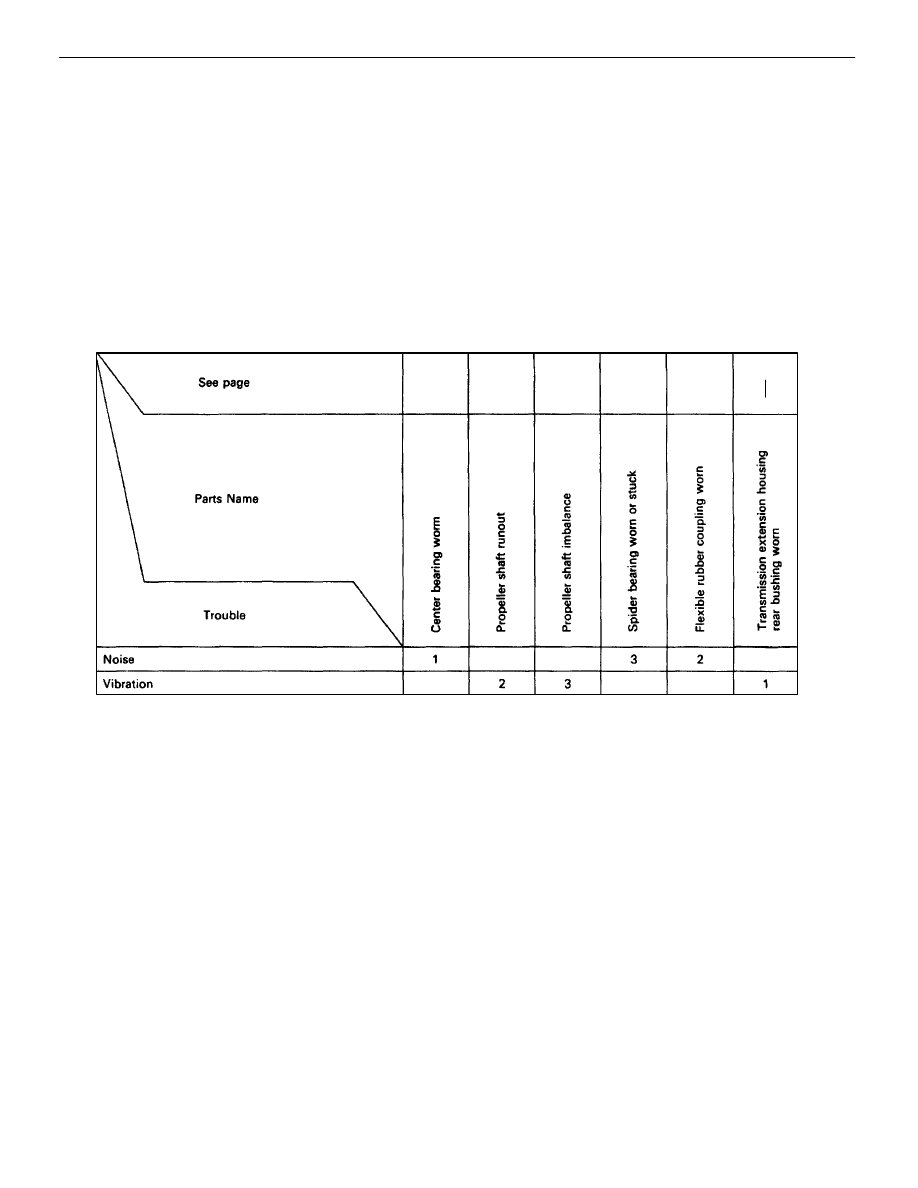

TROUBLESHOOTING

PR019–09

Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause
of the problem. Check each part in order. If necessary, replace these parts.

PR–8

PR–10

PR–10

PR–10

PR–8

PR–4

–

PROPELLER SHAFT

PRECAUTION, TROUBLESHOOTING

PROPELLER SHAFT

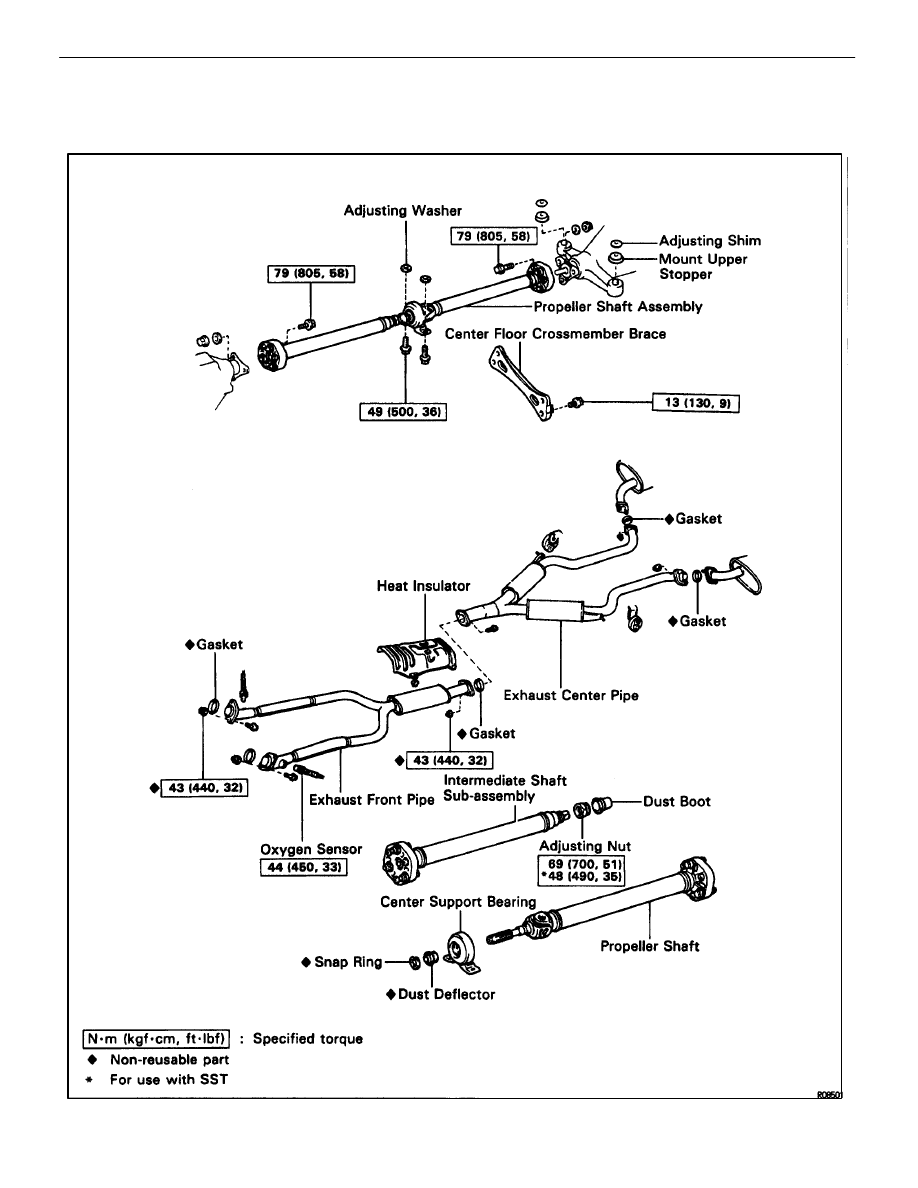

COMPONENTS

PR00W–06

–

PROPELLER SHAFT

PROPELLER SHAFT

PR–5

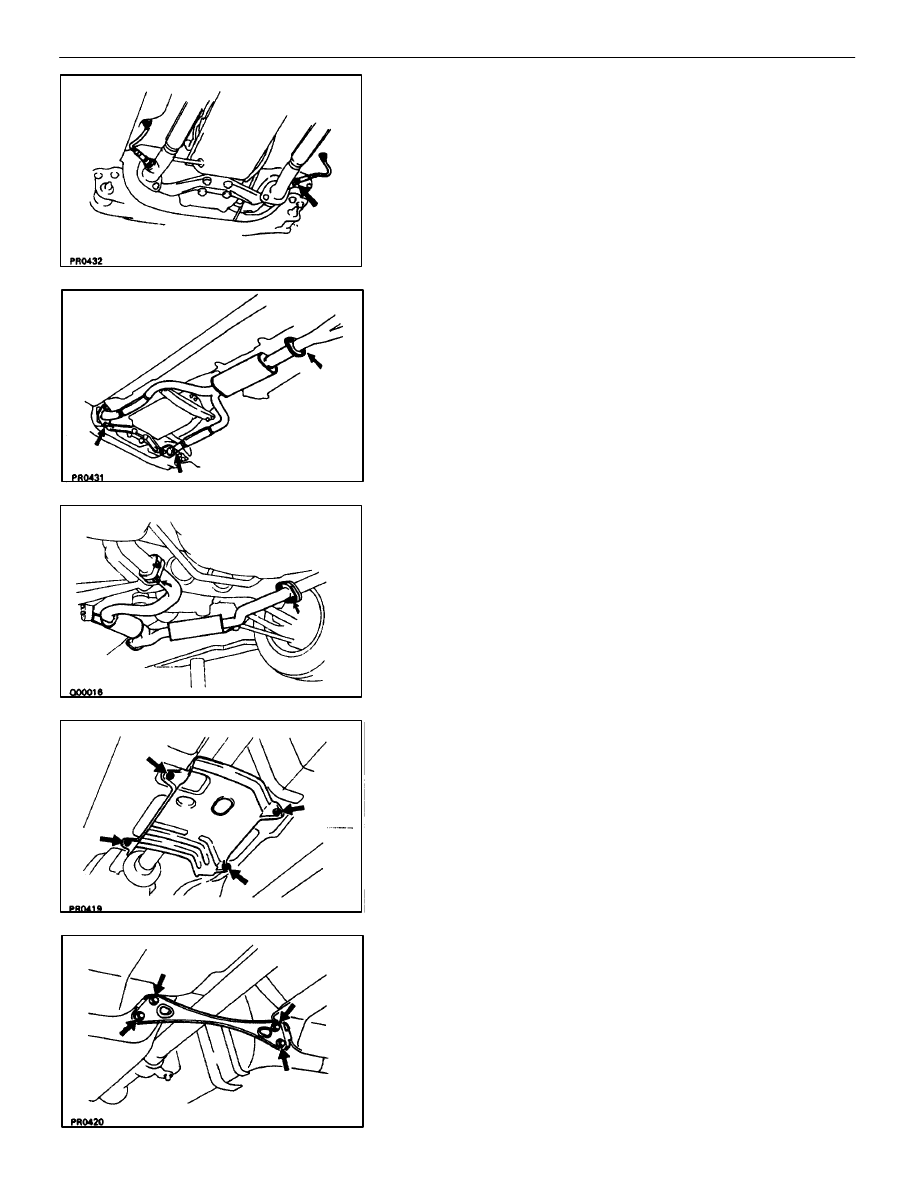

PROPELLER SHAFT REMOVAL

PR02Q–06

1.

REMOVE EXHAUST FRONT PIPE

(a)  Disconnect the oxygen sensor grommets from the floor.
(b)  Disconnect the oxygen sensors from the exhaust front pipe.

(c)  Remove the 6 nuts, bolts and exhaust center pipe.

2.

REMOVE EXHAUST CENTER PIPE
HINT: To prevent interference, of the tail pipes must be sus-
pended from the stabilizer bar.

(a)  Disconnect the exhaust center pipe from the 2 rings.
(b)  Remove the 4 nuts.
(c)  Remove the exhaust center pipe.

3. REMOVE

HEAT

INSULATOR

Remove the 4 nuts and the heat insulator.

4.

REMOVE CROSSMEMBER BRACE
Remove the 4 bolts and the center floor crossmember brace.

PR–6

–

PROPELLER SHAFT

PROPELLER SHAFT
