Lexus SC300 / Lexus SC400. Manual - part 539

MA033–0C

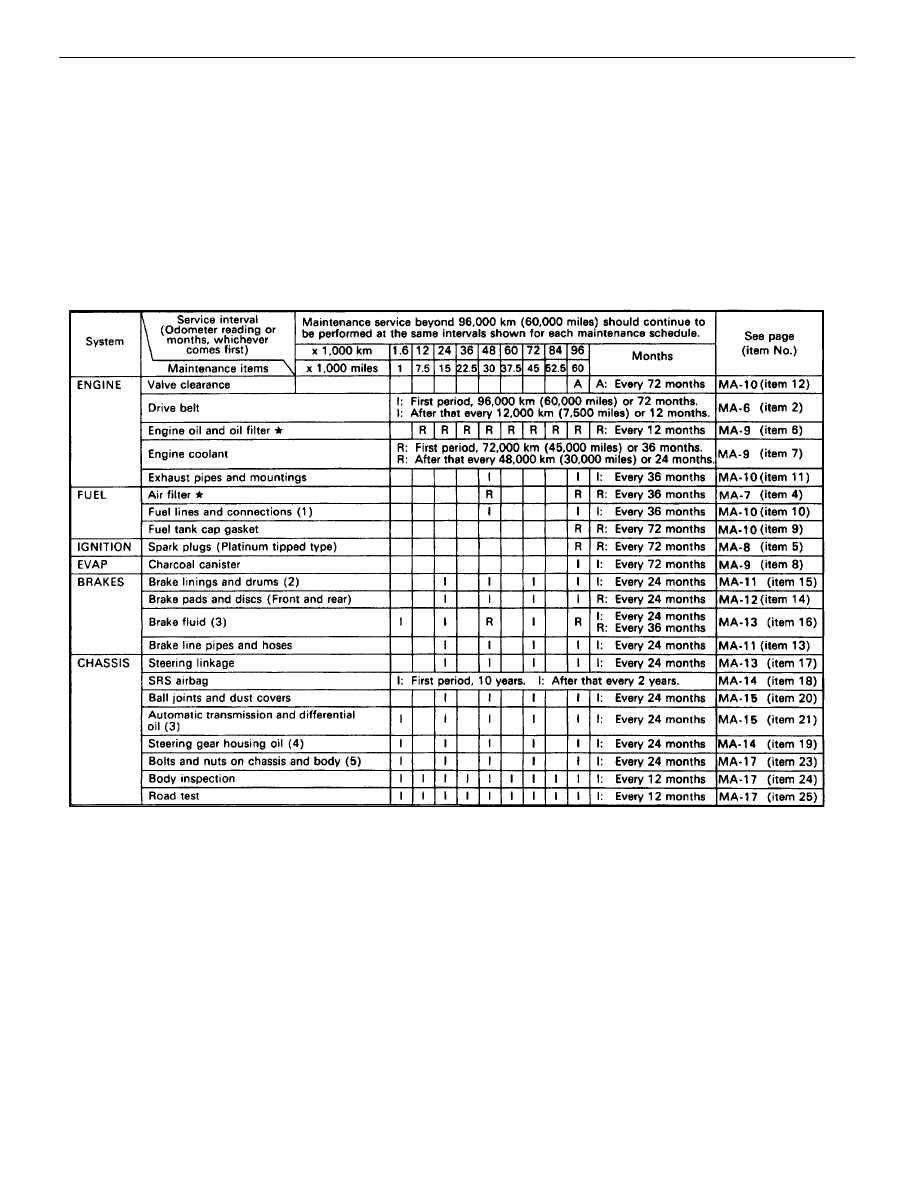

SCHEDULE B

CONDITIONS:
Conditions others than those listed for SCHEDULE A.

Maintenance operation:

A = Check and adjust if necessary.
R = Replace, change or lubricate.
I = Inspect and correct or replace if necessary.

V04409

mark indicates maintenance which is part of the warranty conditions for the Emission Control Systems.

The warranty period is in accordance with the owner’s guide or the warranty booklet.
(

: California and New York specification vehicles only)

(1)  Includes inspection of fuel tank band and vaper vent system.
(2)  Also applicable to drum lining for parking brake.
(3)  Check for leakage.
(4)  Check for oil leaks from steering gear housing.
(5)  The applicable parts are listed below.

Front and rear suspension member to cross body.

Bolts for seat installation.

MA–4

–

MAINTENANCE

(1UZ – FE)

PREPARATION

EG0AZ–0A

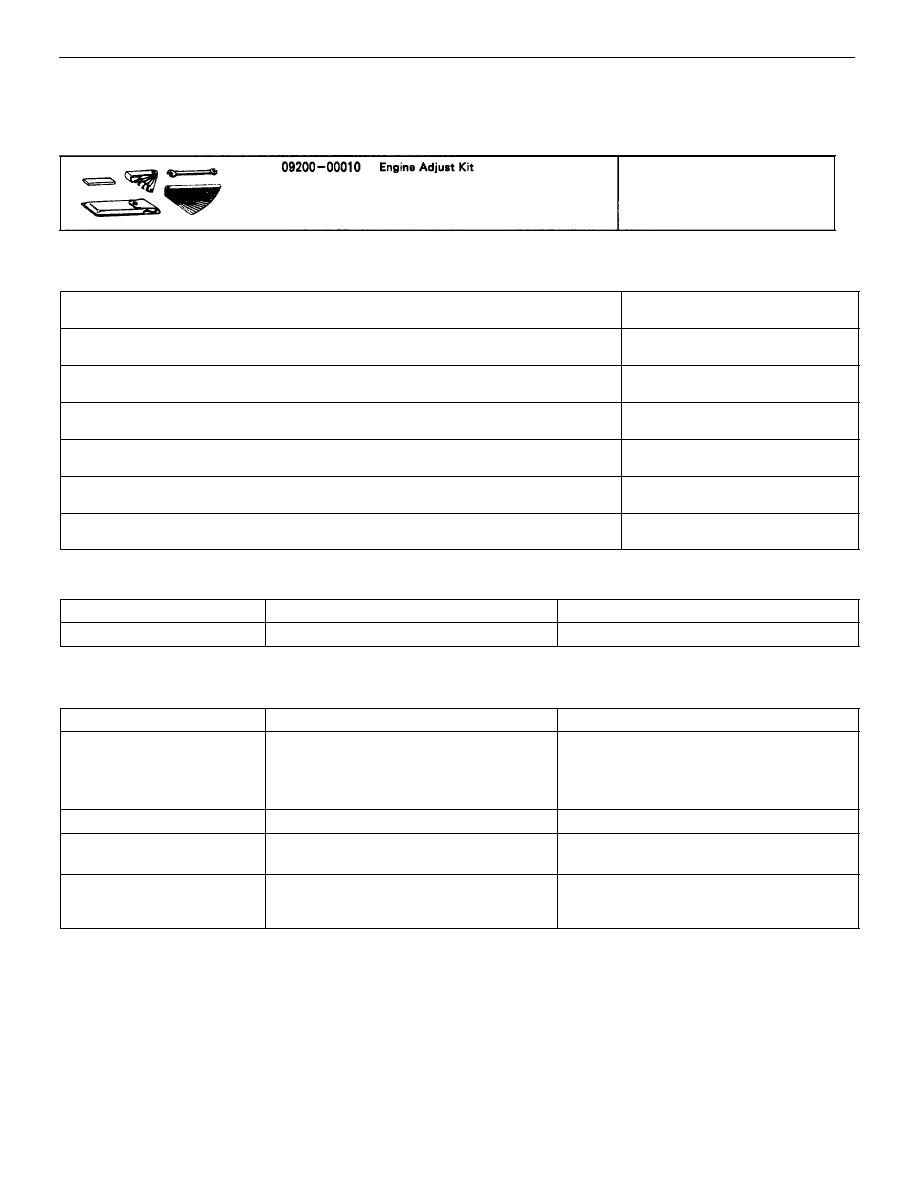

RECOMMENDED TOOLS

MA009–02

EQUIPMENT

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Dial indicator with magnetic base

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Micrometer

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Mirror

Brake hose

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Steel square

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Thermometer

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Torque wrench

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Vernier calipers

MA00B–02

COOLANT

ÑÑÑÑÑÑÑÑÑÑ

Item

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Capacity

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Classification

ÑÑÑÑÑÑÑÑÑÑ

Engine coolant (w/ Heater)

10.8 liters (11.4 US qts, 9.5 lmp. qts)

Ethylene–glycol base

MA00D–0E

LUBRICANT

ÑÑÑÑÑÑÑÑÑÑ

Item

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Capacity

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Classification

ÑÑÑÑÑÑÑÑÑÑ

Engine oil (Drain and refill)

w/ Oil filter change

/ Oil filt

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

4.8 liters (5.1 US qts, 4.2 lmp. qts)

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

API grade SG or SH, Energy–Conserving II
or ILSAC multigrade, and recommended

ÑÑÑÑÑÑÑÑÑÑ

w/o Oil filter change

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

4.8 liters (5.1 US qts, 4.2 lm . qts)
4.5 liters (4.8 US qts, 4.0 lmp. qts)

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

or ILSAC multigrade, and recommended
viscosity oil with SAE 5W–30 being pre-
ferred engine oil

ÑÑÑÑÑÑÑÑÑÑ

Brake fluid

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

—

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

SAE J1703 or FMVSS No.116 DOT3

ÑÑÑÑÑÑÑÑÑÑ

Automatic transmission fluid

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1.9 liters (2.0 US qts, 1.7 lmp. qts)

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ATF TYPE T–II

ÑÑÑÑÑÑÑÑÑÑ

Automatic transmission fluid
(Drain and refill)

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1.9 liters (2.0 US qts, 1.7 lm . qts)

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ATF TYPE T II

ÑÑÑÑÑÑÑÑÑÑ

Differential oil

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1.35 liters (1.43 US qts, 1.19 lmp. qts)

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Hypoid gear oil API GL–5
Above–18

C (0

F): SAE 90

Below–18

C (0

F): SAE 80W–90 or 80W

–

MAINTENANCE

(1UZ – FE)

MA–5

MAINTENANCE OPERATIONS

MA035–04

ENGINE
Cold Engine Operations

REPLACE TIMING BELT

(a) Remove the timing belt.

(See page

EG–46

)

(b) Install the timing belt.

(See page

EG–59

)

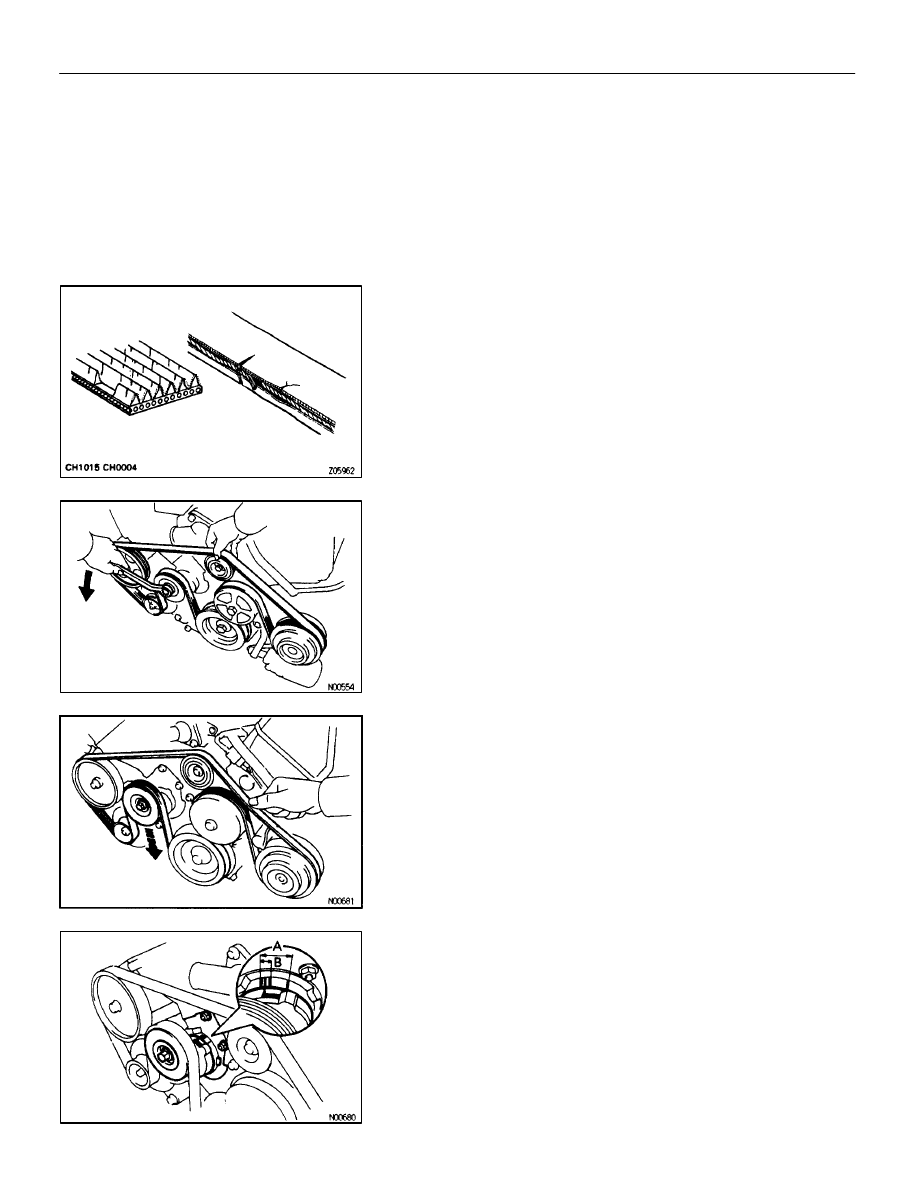

INSPECT DRIVE BELT
HINT: A belt tensioner is used, so checking the belt tension
is not necessary.

(a) Visually

check the drive belt for excessive wear, frayed cords,

etc.
If necessary, replace the drive belt.
HINT:

•

Cracks on the rib side of a drive belt are considered
acceptable. If the drive belt has chunks missing from the
ribs, it should be replaced.

•

The drive belt tension can be released by turning the
belt tensioner counterclockwise. The pulley bolt for the
belt tensioner has a left–hand thread.

(b) Check the belt tensioner operation.

•

Check that the belt tensioner moves downward when
the drive belt is pressed down at the points indicated in
the illustration with approx. 98 N (10 kgf, 22.0 lbf) of
force.

•

Check the alignment of the belt tensioner pulley to make
sure the drive belt will not slip off the pulley.

If necessary, replace the belt tensioner.

•

Check that the arrow mark on the belt tensioner falls
within area A of the scale.

If it is outside area A, replace the drive belt.
HINT:

•

When a new belt is installed, it should lie within area B.
If not, the drive belt is not correct.

MA–6

–

MAINTENANCE

(1UZ – FE)

•

After installing a drive belt, check that it fits properly in
the ribbed grooves.

•

Check by hand to confirm that the belt has not slipped
out of the groove on the bottom of the pulley.

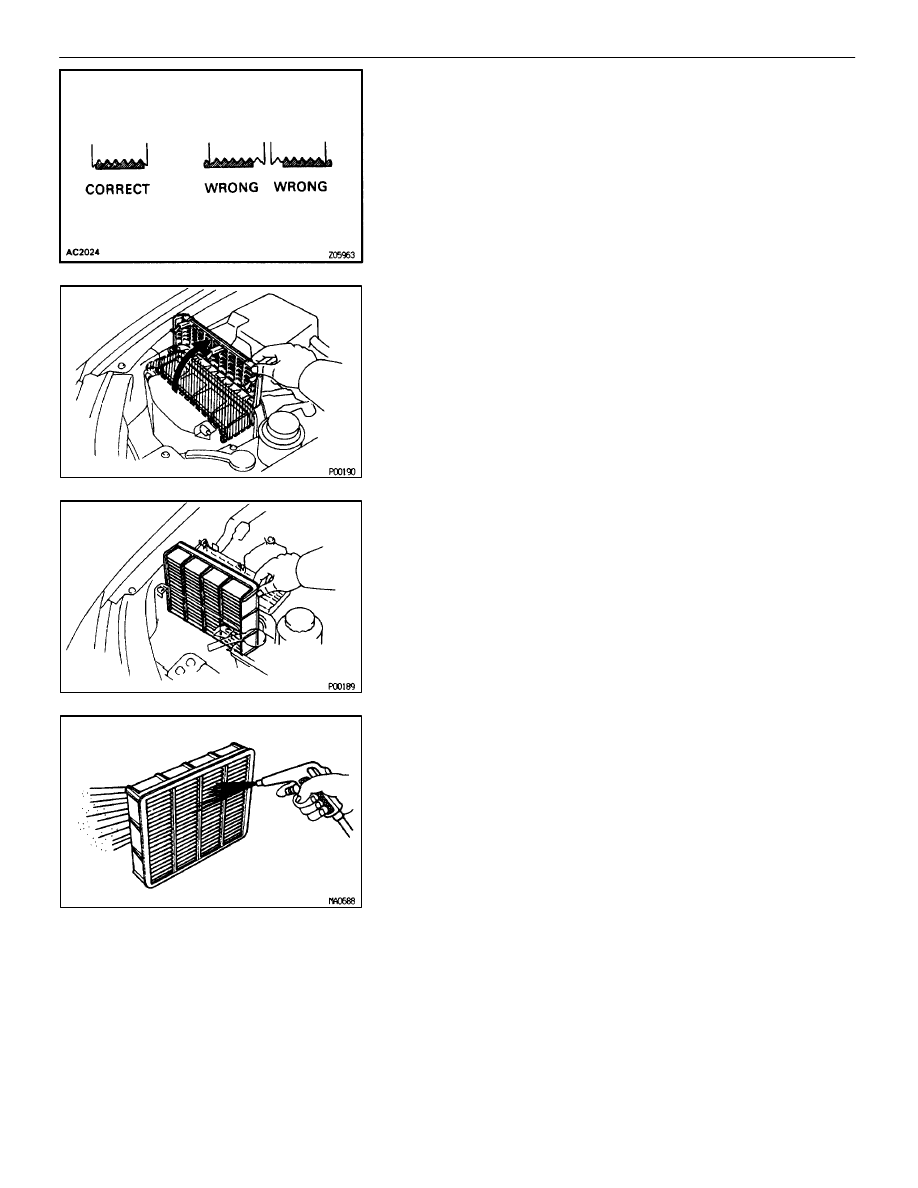

INSPECT AIR FILTER

(a) Open the air cleaner cap.

(b) Remove the air filter.
(c) Visually check that the air filter is not excessively damaged

or oily.
If necessary, replace the air filter.

(d) Clean the air filter with compressed air.

First blow from the inside thoroughly, then blow off from the
outside of the air filter.

(e) Reinstall the air filter and air cleaner cap.

REPLACE AIR FILTER
Replace the air filter with a new one.

–

MAINTENANCE

(1UZ – FE)

MA–7
