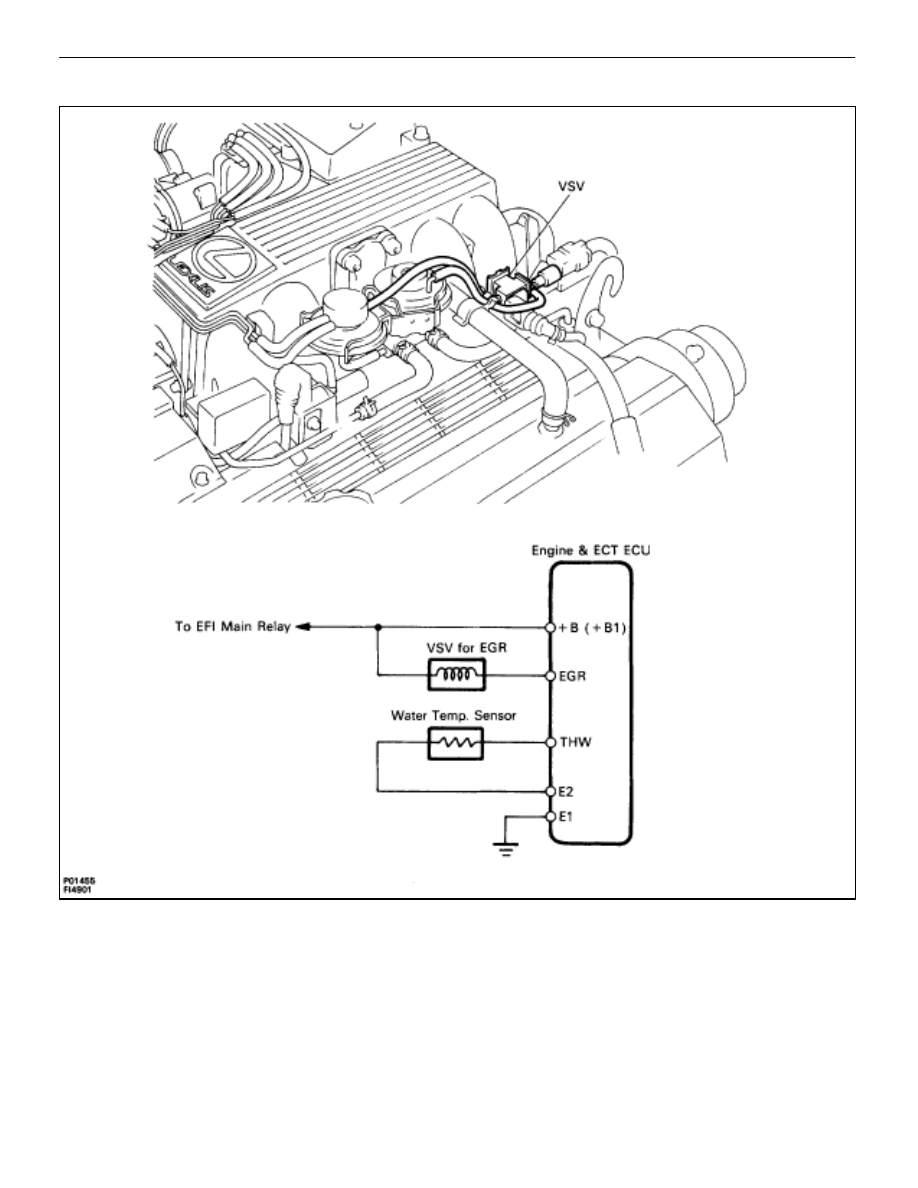

VSV for EGR (Exc. USA Spec.)

INSPECTION OF VSV FOR EGR

(See Emission Control Systems on page

EC–18

)

FI–96

                                          –   Electronic Control System (VSV for EGR (Exc. USA Spec.))

EFI SYSTEM

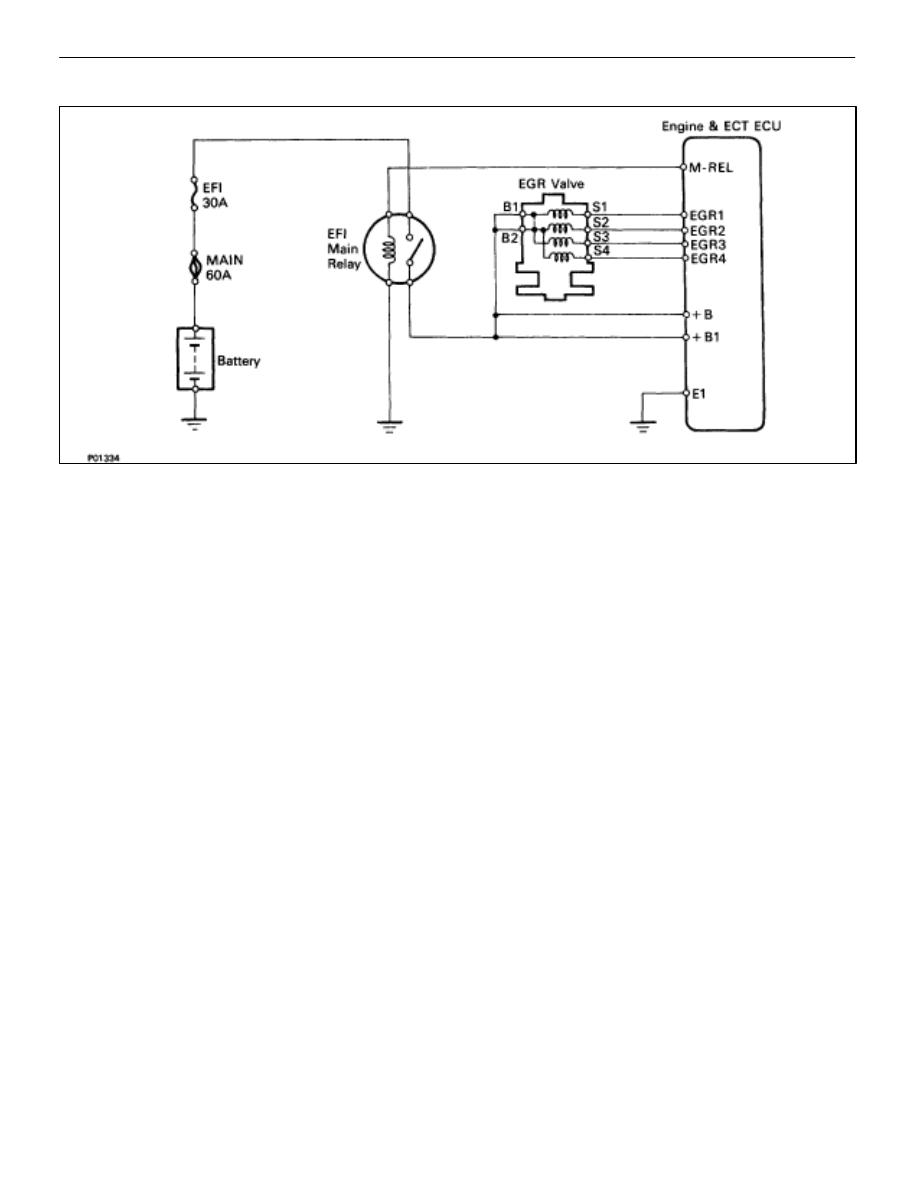

EGR Valve (USA Spec. only)

INSPECTION OF VSV FOR EGR

(See Emission Control Systems on page

EC–21

)

FI–97

                                    –   Electronic Control System (EGR Valve (USA Spec. Only))

EFI SYSTEM

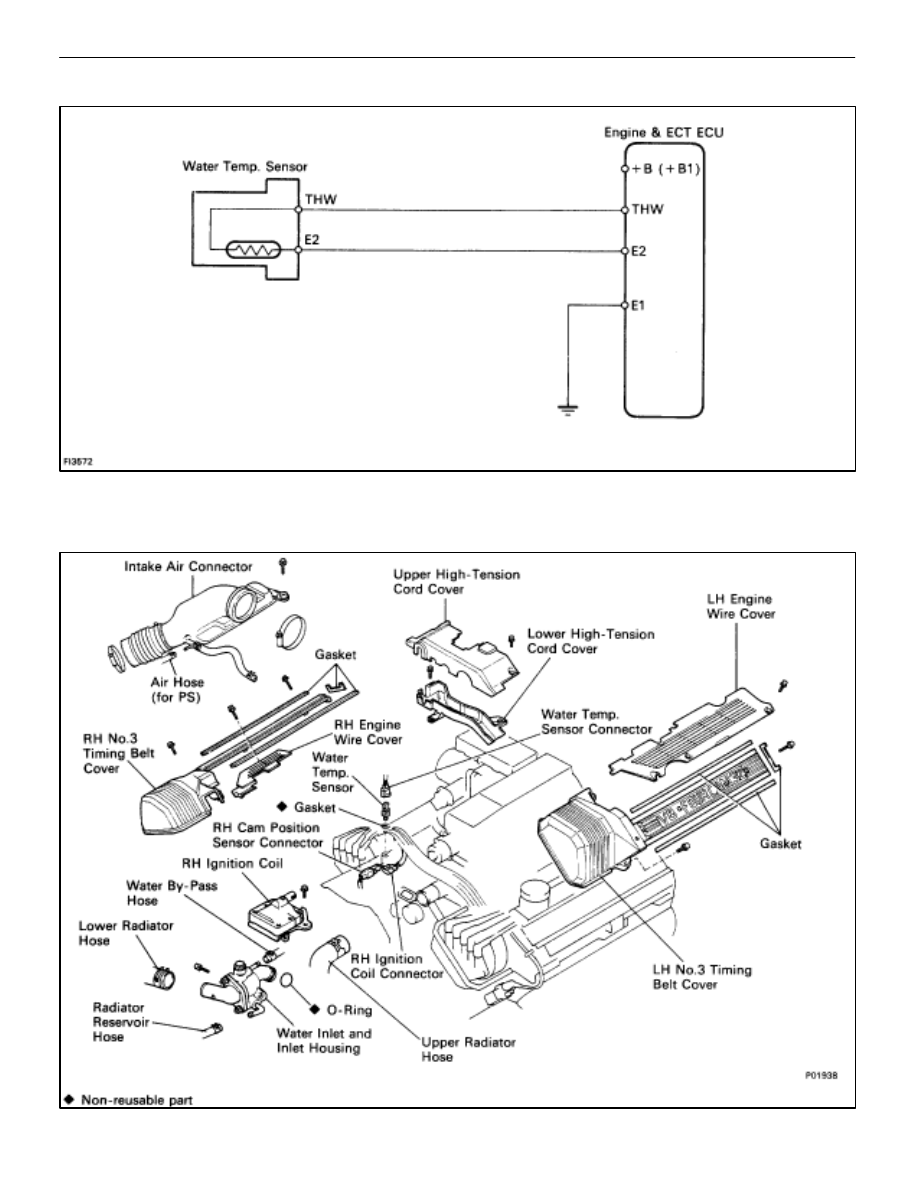

Water Temperature Sensor

COMPONENTS FOR REMOVAL AND
INSTALLATION

FI–98

                                           –   Electronic Control System (Water Temperature Sensor)

EFI SYSTEM

INSPECTION OF WATER TEMPERATURE
SENSOR

1.

REMOVE LOWER HIGH–TENSION CORD COVER
(See steps 1, 2 and 5 to 12 on pages

FI–27

 to 29)

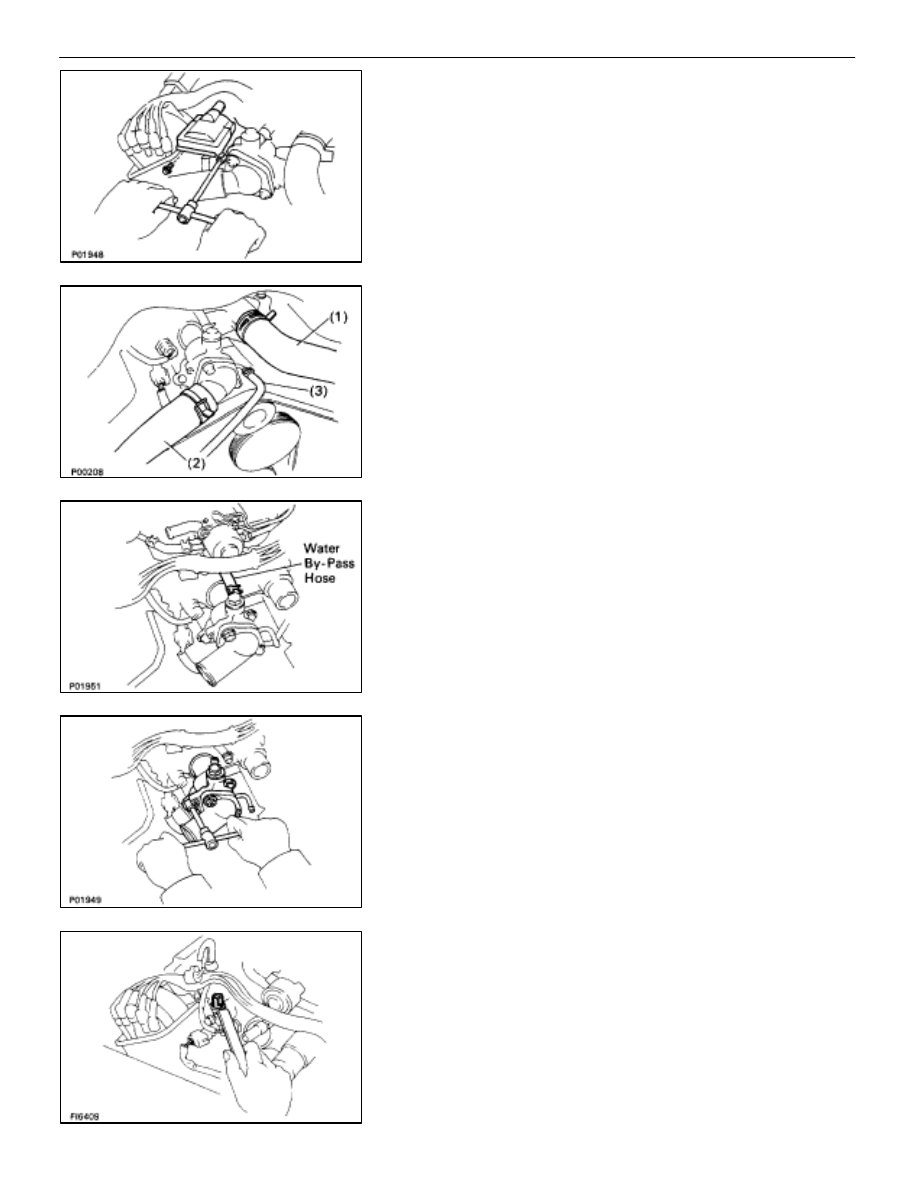

2.

REMOVE RH IGNITION COIL
(a)  Disconnect the ignition coil connector.
(b)  Remove the two bolts, and disconnect the ignition coil.

(c)  Disconnect the cam position sensor connector from the

ignition coil bracket, and remove the ignition coil.

3. DISCONNECT

HOSES

Disconnect the following hoses:

(1)  Upper radiator hose from front water by–pass joint
(2)  Lower radiator hose from water inlet
(3)  Radiator reservoir hose from front water inlet hous-

ing

4.

REMOVE WATER INLET AND INLET HOUSING
(a)  Disconnect the water by–pass hose from the water inlet

housing.

(b)  Remove the two bolts holding the water inlet housing to

the water pump.

(c)  Pull out the water inlet and inlet housing assembly.
(d)  Remove the O–ring from the water inlet housing.

5. REMOVE

WATER

TEMPERATURE

SENSOR

(a)  Disconnect the water temperature sensor connector.
(b)  Remove the water temperature sensor and gasket.

FI–99

EFI SYSTEM   –   Electronic Control System (Water Temperature Sensor)
