6.

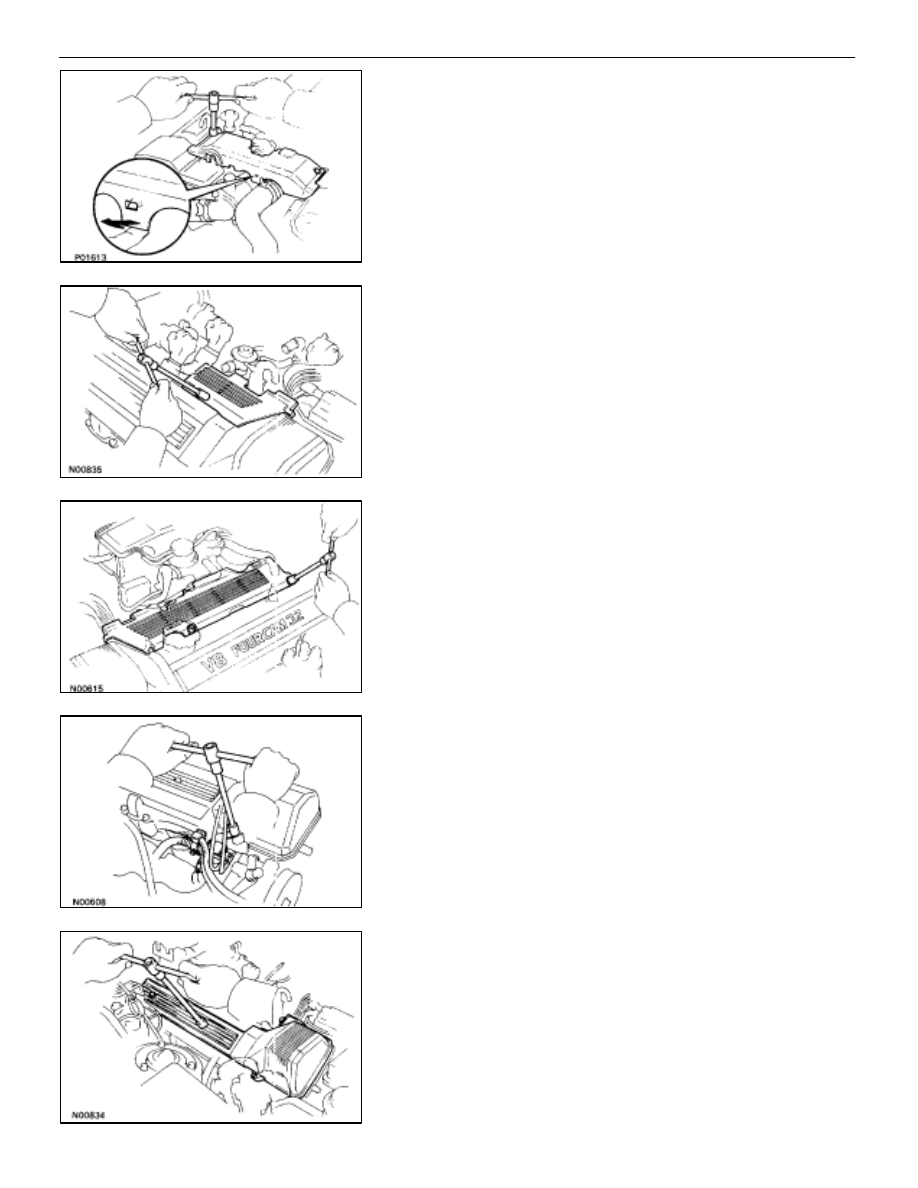

REMOVE UPPER HIGH–TENSION CORD COVER
(a)  Remove the two mounting bolts.
(b)  Disconnect the front side claw groove of the cord cover

from the claw of the lower cover, and remove the cord
cover.

7.

REMOVE RH ENGINE WIRE COVER
Remove the bolt and engine wire cover.

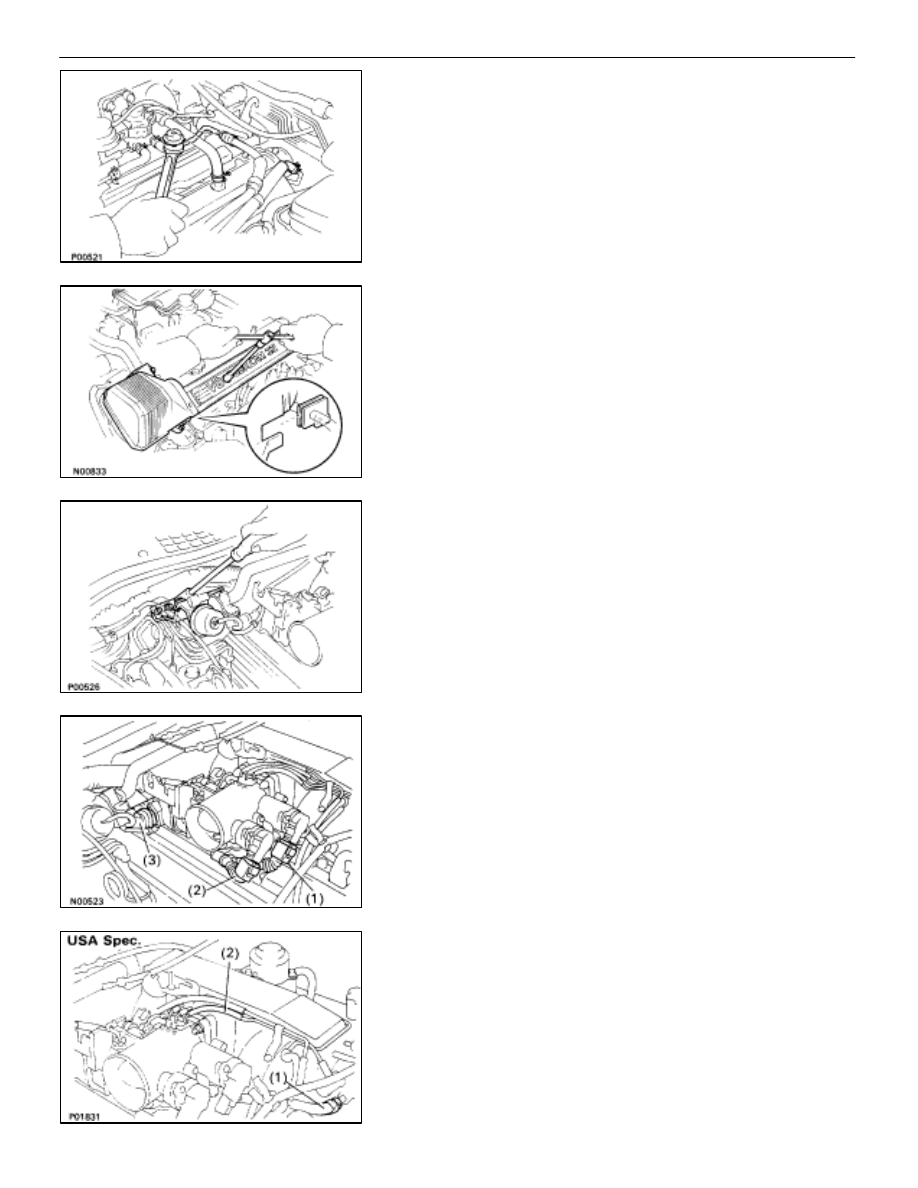

8.

REMOVE LH ENGINE WIRE COVER
Remove the two bolts and engine wire cover.

9.

REMOVE VSV FOR EVAP SYSTEM
Remove the two bolts, and disconnect the VSV from cylinder
head and timing belt cover.

10.  REMOVE RH NO.3 TIMING BELT COVER

Remove the three bolts and timing belt cover.

EM–12

–

ENGINE MECHANICAL

Engine Tune–Up

11.  DISCONNECT FUEL INLET HOSE FROM LH DELIVERY

PIPE
Remove the pulsation damper and two gaskets, and discon-
nect the inlet hose.

12. DISCONNECT FUEL RETURN HOSE FROM FUEL

RETURN PIPE

13.  DISCONNECT PCV HOSE FROM LH CYLINDER HEAD

14.  REMOVE LH NO.3 TIMING BELT COVER

(a)  Remove the four mounting bolts.
(b) Disconnect

the cord grommet from the timing belt cover,

and remove the timing belt cover.

(c)  Remove the cord grommet from the high–tension cord.

15.  DISCONNECT HEATER WATER VALVE FROM BODY

(a)  Disconnect the VSV connector.
(b)  Remove the bolt holding the engine wire clamp to the

water valve bracket.

(c)  Remove the two bolts, and disconnect the water valve

and bracket assembly.

16.  REMOVE THROTTLE BODY

(a)  Disconnect the following connectors:

(1)

Throttle position sensor connector

(2)

(w/ TRAC)
Sub–throttle position sensor connector

(3)

(w/ TRAC)
Sub–throttle actuator connector

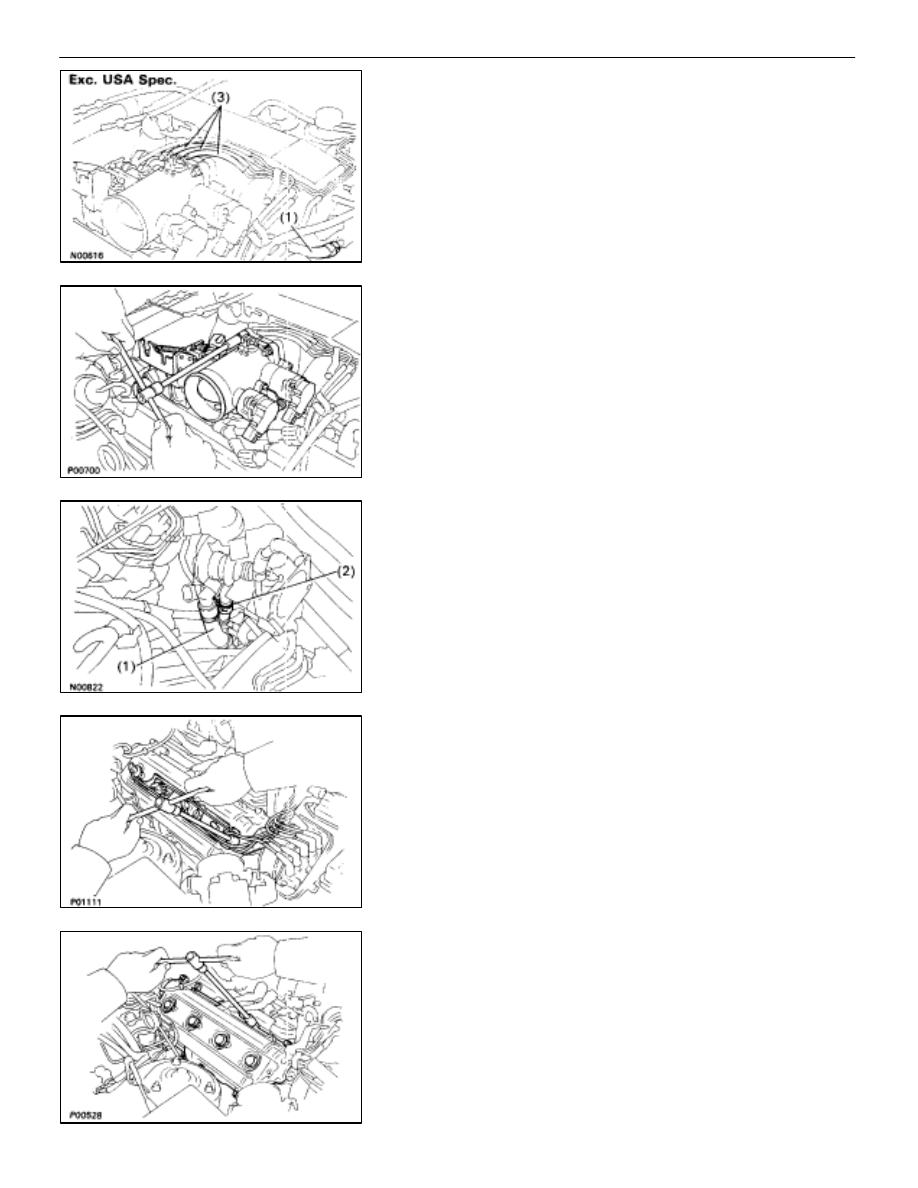

(b)  Disconnect the following hoses:

(1)

Water by–pass hose from ISC valve

(2)

(USA Spec.)
Vacuum hose from throttle body

(3)

(Exc. USA Spec.)
Three vacuum hoses from throttle body

–

ENGINE MECHANICAL

Engine Tune–Up

EM–13

(c)  Remove the two bolts and two nuts, disconnect the

throttle body from the air intake chamber.

(d)  Disconnect the following hoses, and remove the throttle

body:

(1)

PCV hose from throttle body

(2)

Water by–pass hose from throttle body

(e)  Remove the throttle body gasket.

17.  REMOVE RH CYLINDER HEAD COVER

(a)  Remove the two bolts holding the cord clamp to the

cylinder head.

(b) Disconnect the high–tension cords from the spark

plugs.

(c) Disconnect

the

high–tension

cords

from

the

front

high–tension cord clamp.

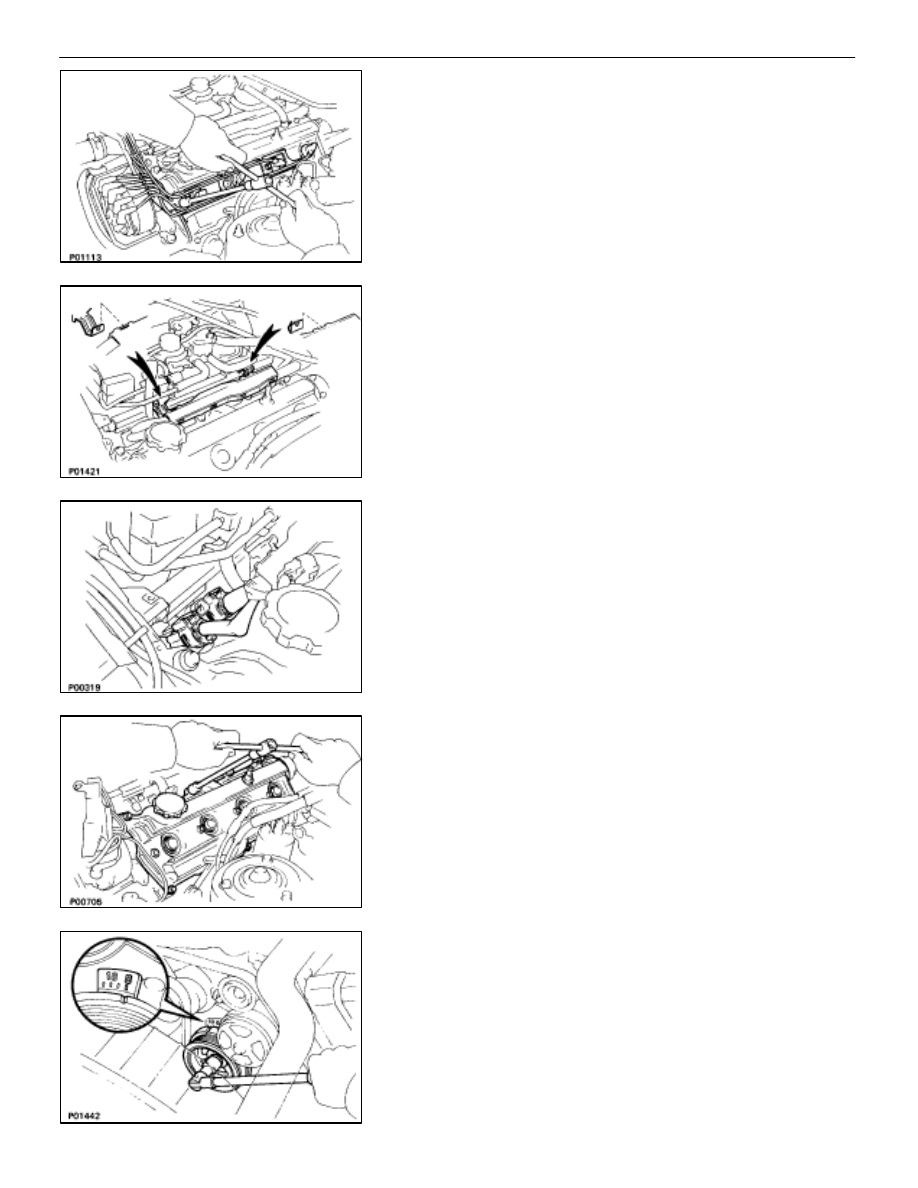

(d)  Remove the eight bolts, seal washers, cylinder head

cover and gasket.

EM–14

–

ENGINE MECHANICAL

Engine Tune–Up

16.  REMOVE LH CYLINDER HEAD COVER

(a)  Remove the two bolts holding the high–tension cord

clamp to the cylinder head.

(b) Disconnect the high–tension cords from the spark

plugs.

(c) Disconnect

the

high–tension

cords

from

the

front

high–tension cord clamp.

(d) Disconnect

the engine wire from the two wire clamps on

the LH delivery pipe.

(e)  Disconnect the four injector connectors.

(f)  Disconnect the two engine wire connectors.

(g)  Remove the eight bolts, seal washers, cylinder head

cover and gasket.

19.  SET NO.1 CYLINDER TO TDC/COMPRESSION

(a)  Turn the crankshaft pulley, and align its groove with the

timing mark ”0” of the No.1 timing belt cover.

–

ENGINE MECHANICAL

Engine Tune–Up

EM–15
