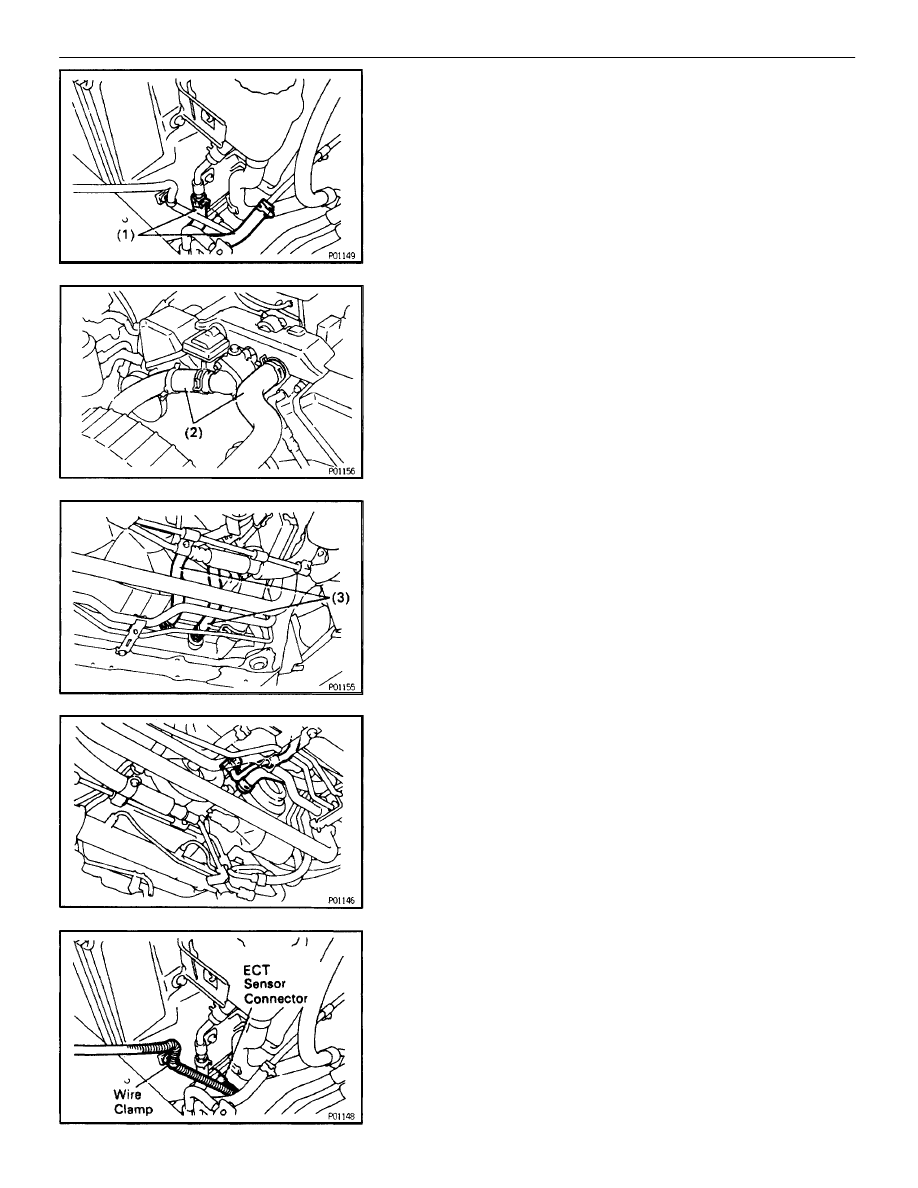

(e)  Connect the following hoses:

(1)  2 oil cooler hoses (for cooling fan) to pipes

(2)  2 radiator hoses

(3)  2 oil cooler hoses (for transmission) to radiator

(4)  Suction hose to hydraulic pump
(5)  Pressure hose to hydraulic pump

(f)  Connect the ECT sensor connector (for cooling fan).
(g)  Install the ECT sensor wire clamp to the radiator fan shroud.

–

1UZ–FE ENGINE

ENGINE MECHANICAL

EG–71

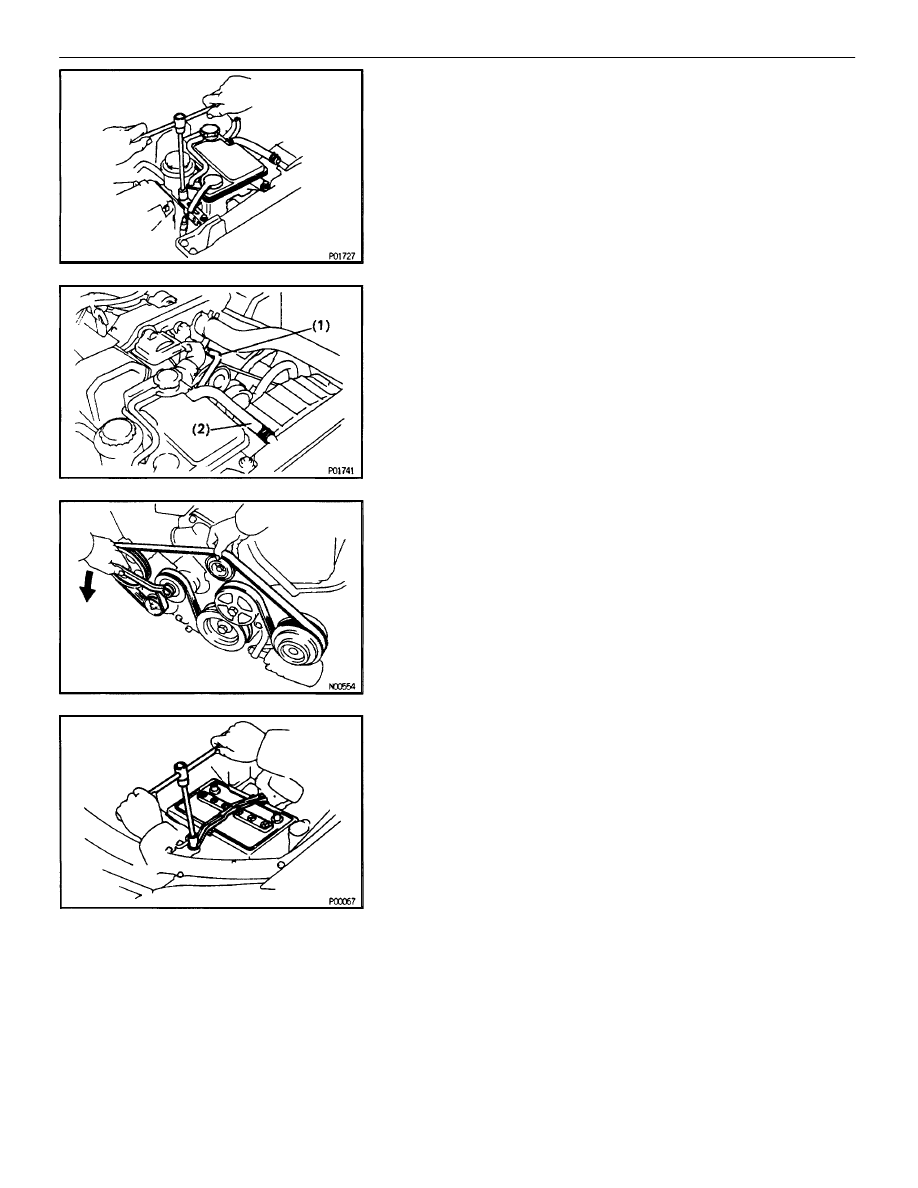

39. INSTALL

RADIATOR RESERVOIR TANK

(a)  Install the reservoir tank to the reservoir tank bracket.
(b)  Install the reservoir tank with the bracket and 3 bolts.

Torque: 4.9 N

⋅

m (50 kgf

⋅

cm, 43 in.

⋅

lbf)

(c)  Connect the following hoses:

(1)  Reservoir hose to water inlet housing
(2)  Reservoir hose to radiator

(d)  Connect the coolant level sensor connector.

40.  INSTALL DRIVE BELT

Install the drive belt by turning the drive belt tensioner coun-
terclockwise.
HINT: The pulley bolt for the dive belt tensioner has a left
hand thread.

41. INSTALL

BATTERY

42.  FILL WITH ENGINE COOLANT
43.  START ENGINE AND CHECK FOR LEAKS
44.  CHECK TRANSMISSION FLUID LEVEL
45.  INSTALL ENGINE UNDER COVER

EG–72

–

1UZ–FE ENGINE

ENGINE MECHANICAL

CYLINDER HEAD

EG279–01

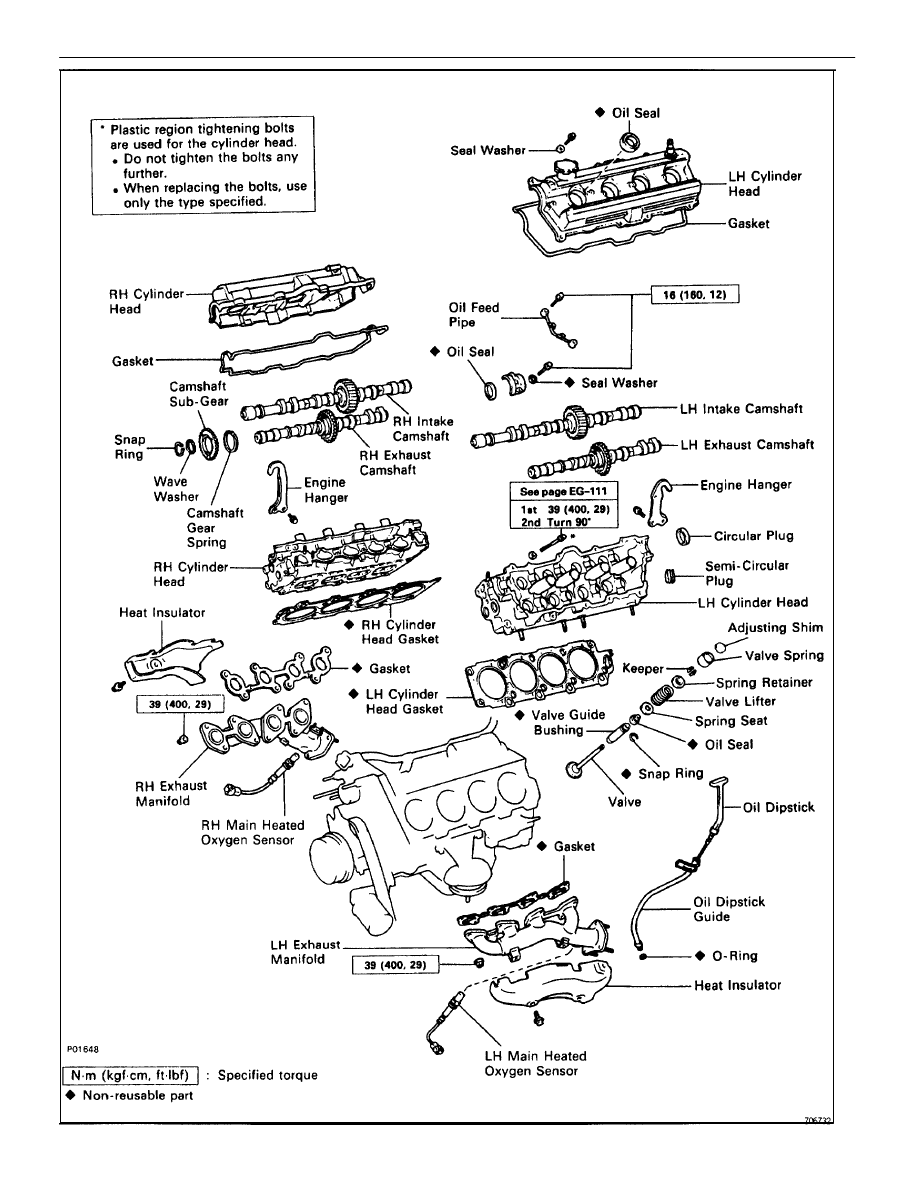

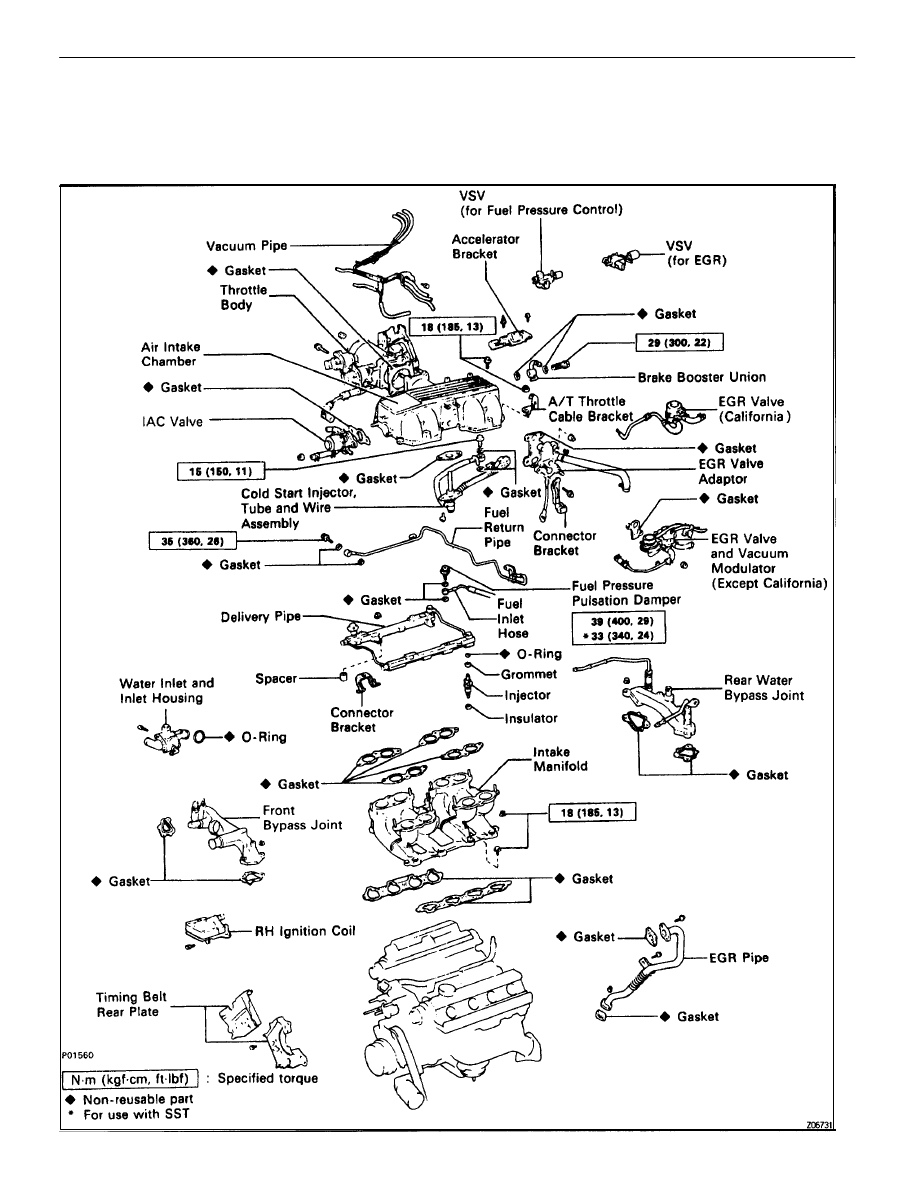

COMPONENTS FOR REMOVAL AND
INSTALLATION

–

1UZ–FE ENGINE

ENGINE MECHANICAL

EG–73

EG–74

–

1UZ–FE ENGINE

ENGINE MECHANICAL
