HINT:

•

If the instruction ”Proceed to next circuit inspection shown on matrix chart” is given in the flow chart for each
circuit, proceed to the circuit with the next highest number in the table to continue the check.

•

If the trouble still reappears even though there are no abnormalities in any of the other circuits, then check
and replace the driver’s seat ECU as the last step.

–

BODY ELECTRICAL SYSTEM

Power Seat Control System (Driver’s Seat)

BE–277

LOCATION OF CONNECTORS

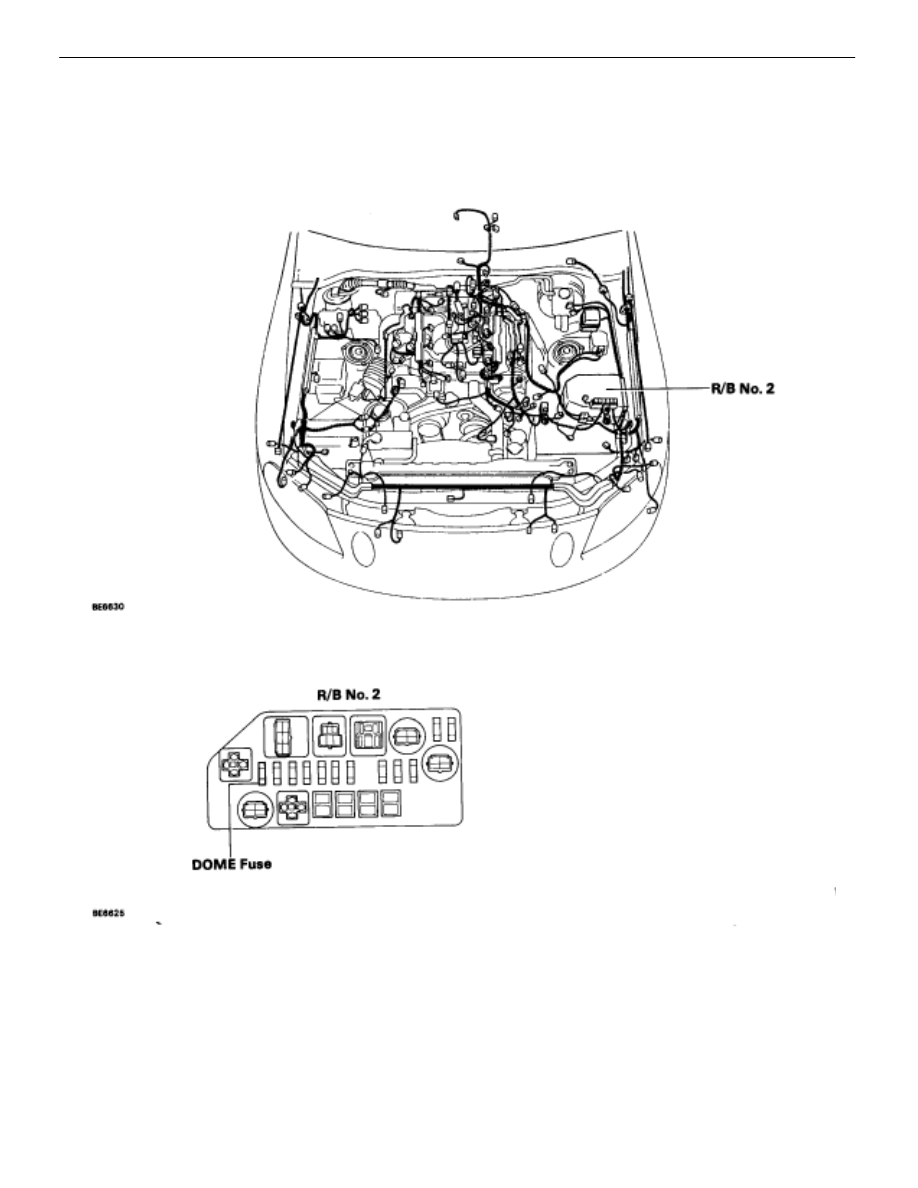

Location of Connectors in Engine Compartment

BE–278

–

BODY ELECTRICAL SYSTEM

Power Seat Control System (Driver’s Seat)

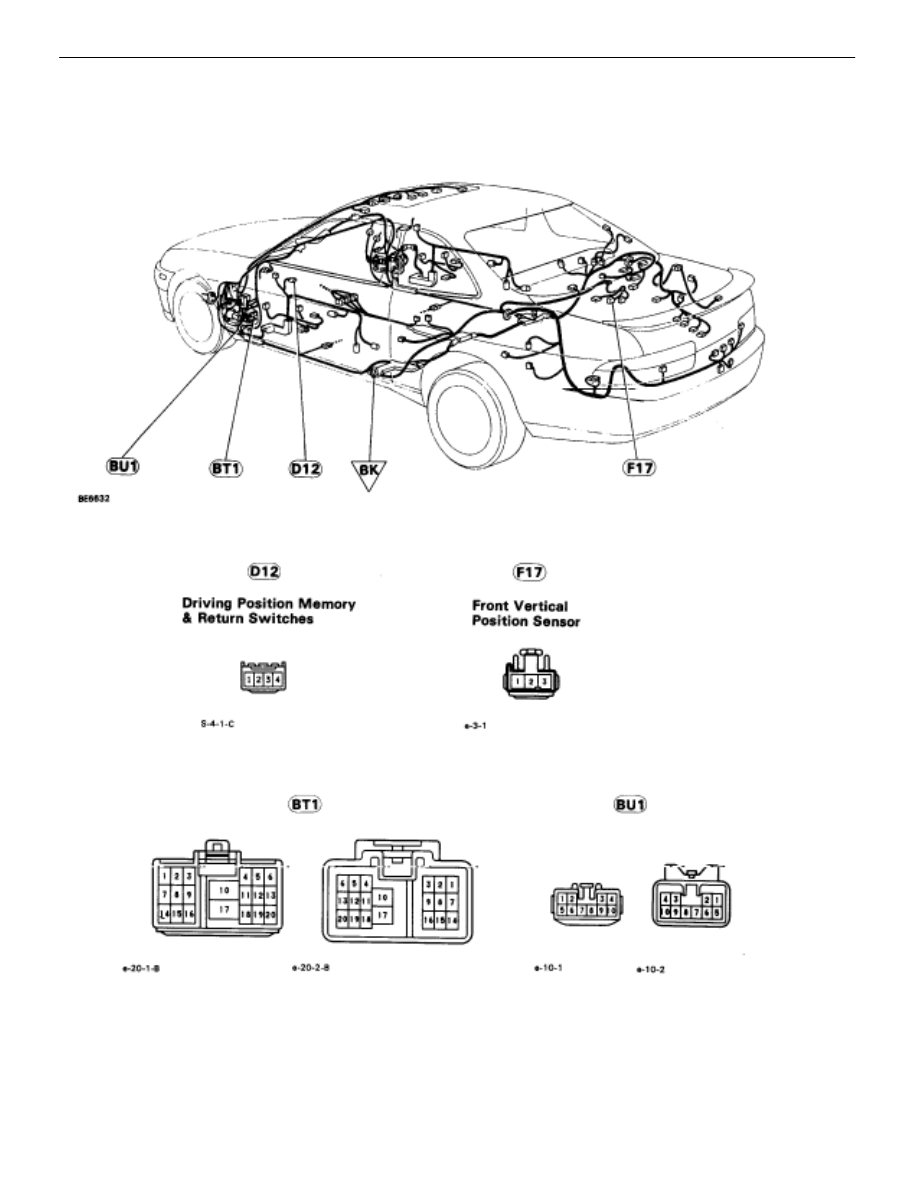

Location of Connectors in Body

–

BODY ELECTRICAL SYSTEM

Power Seat Control System (Driver’s Seat)

BE–279

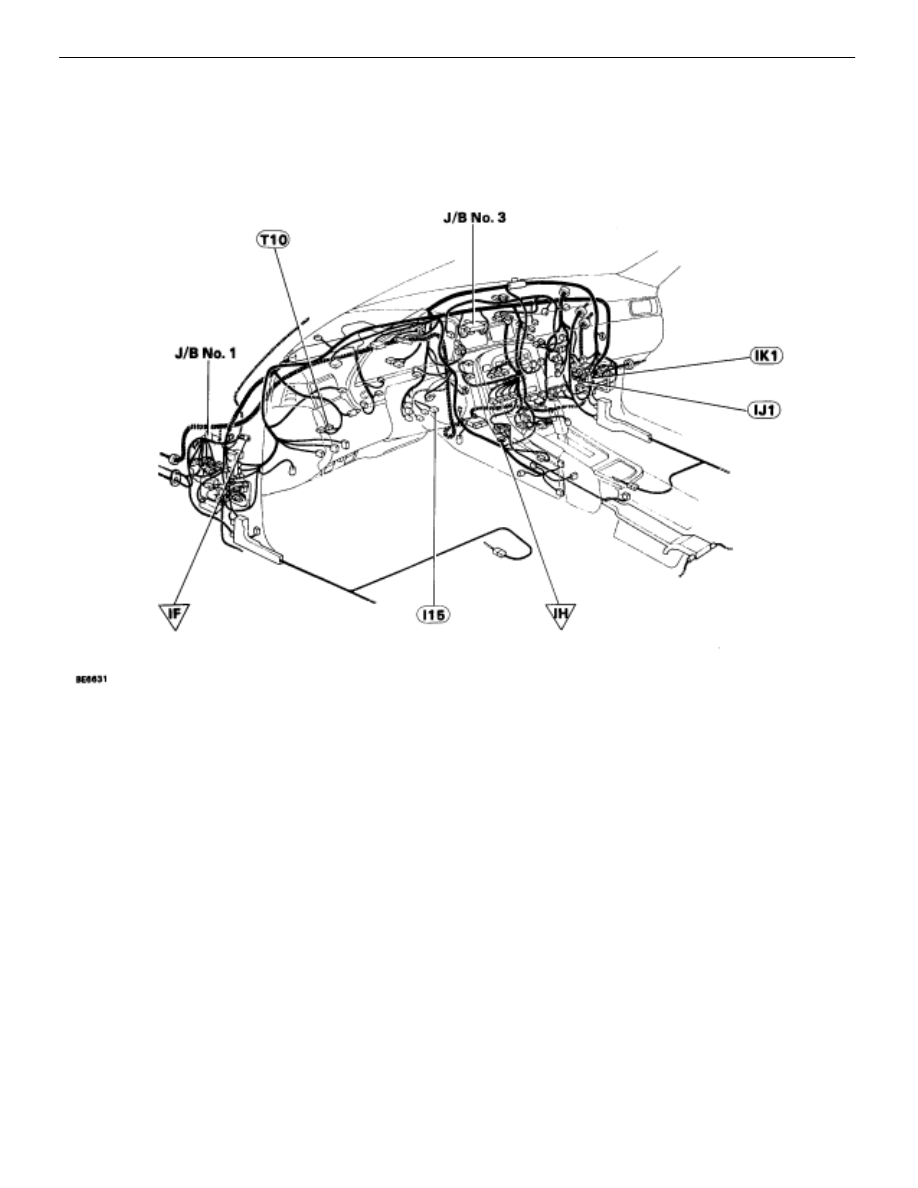

Location of Connectors in Instrument Panel

BE–280

–

BODY ELECTRICAL SYSTEM

Power Seat Control System (Driver’s Seat)
