REMOVAL OF SLIDING ROOF HOUSING

(See pages

BO–85

 to 87)

1.

REMOVE FOLLOWING PARTS:
(a)  Interior light (See step 2 on page

BO–85

)

(b)  Front pillar garnish (See step 2 on page

BO–122

)

(c)  Rear seat cushion, rear seat back

(See steps 1 to 2 on page

BO–66

)

(d)  Roof side inner garnish (See step 8 on page

BO–123

)

(e)  Center visor (See step 4 on page

BO–122

)

(f)  Shoulder belt anchor (See step 7 on page

BO–122

)

(g)  Sun visor (See step 3 on page

BO–122

)

(h)  Sliding roof garnishes (See step 4 on page

BO–85

)

(i)

Roof headlining (See step 2 on page

BO–120

)

(j)

Sliding roof glass (See step 5 on page

BO–85

)

(k)  Quarter trim (See step 7 on page

BO–122

)

2.

REMOVE SLIDING ROOF HOUSING

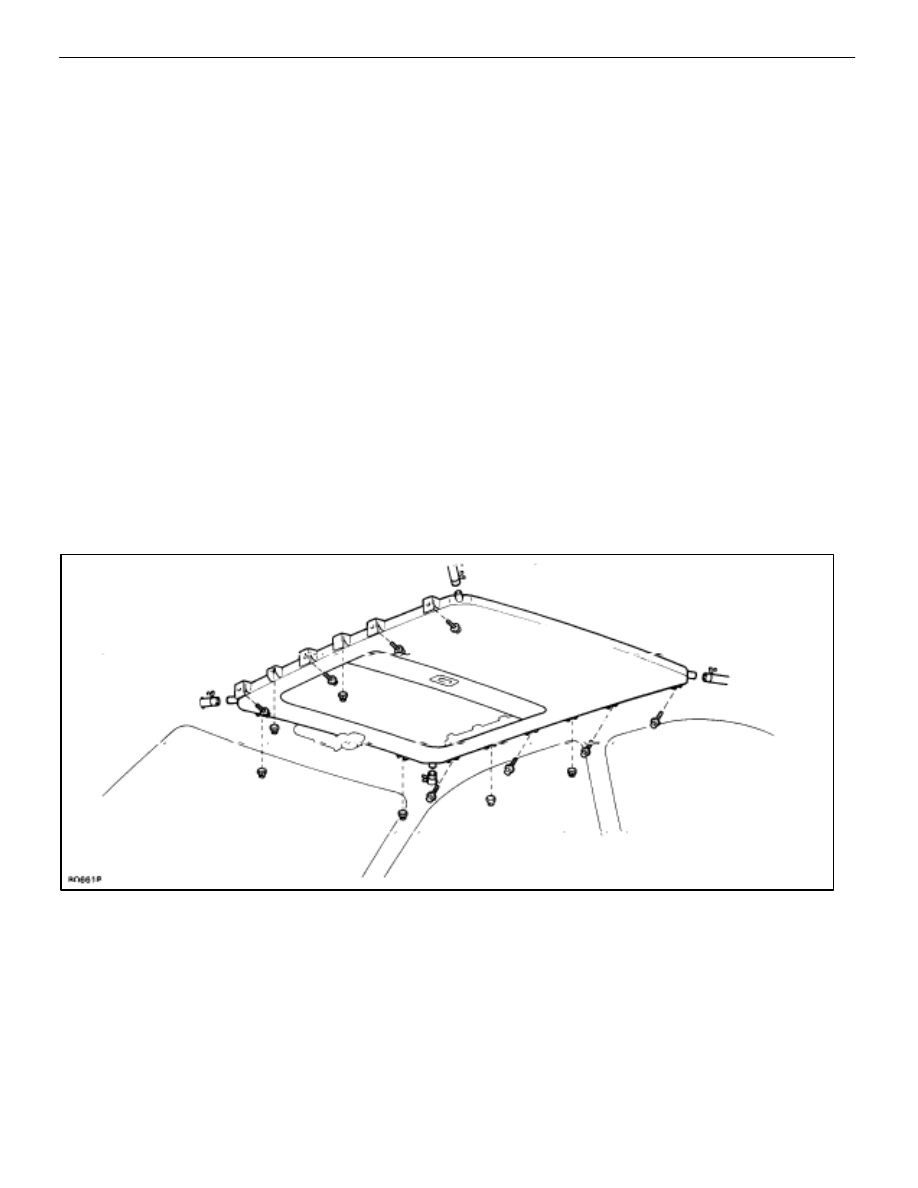

(a)  Disconnect the four drain hoses from the housing.
(b)  Disconnect the connectors.
(c)  Remove eight bolts.
(d)  While supporting the housing, remove six nuts and the

housing.

3.

REMOVE FOLLOWING PARTS:
(a)  Drive gear assembly (See step 6 on page

BO–85

)

(b)  Sliding roof control relay
(c)  Wind deflector (See step 7 on page

BO–86

)

(d)  Cable guide casing (See step 8 on page

BO–86

)

(e)  Roof drip channel (See step 9 on page

BO–86

)

(f)  Sunshade trim (See step 10 on page

BO–86

)

(g)  Drive rail (See step 11 on page

BO–87

)

–

BODY

Moon Roof (Sliding Roof)

BO–89

INSTALLATION OF SLIDING ROOF
HOUSING

(See pages

BO–85

 to 87)

1.  INSTALL SLIDING ROOF PARTS BY FOLLOWING

REMOVAL SEQUENCE IN REVERSE
HINT:

When installing the sliding roof housing weather-

strip, make sure that there is no clearance in either lip of the
weatherstrip.

2.

TORQUE FOLLOWING BOLTS:
(a)  Rear seat back

Torque: 18

N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

(b)  Rear seat inner belt

Torque: 43

N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

(c)  Front seat belt shoulder anchor bolt

Torque: 43

N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

BO–90

–

BODY

Moon Roof (Sliding Roof)

FRONT FENDER

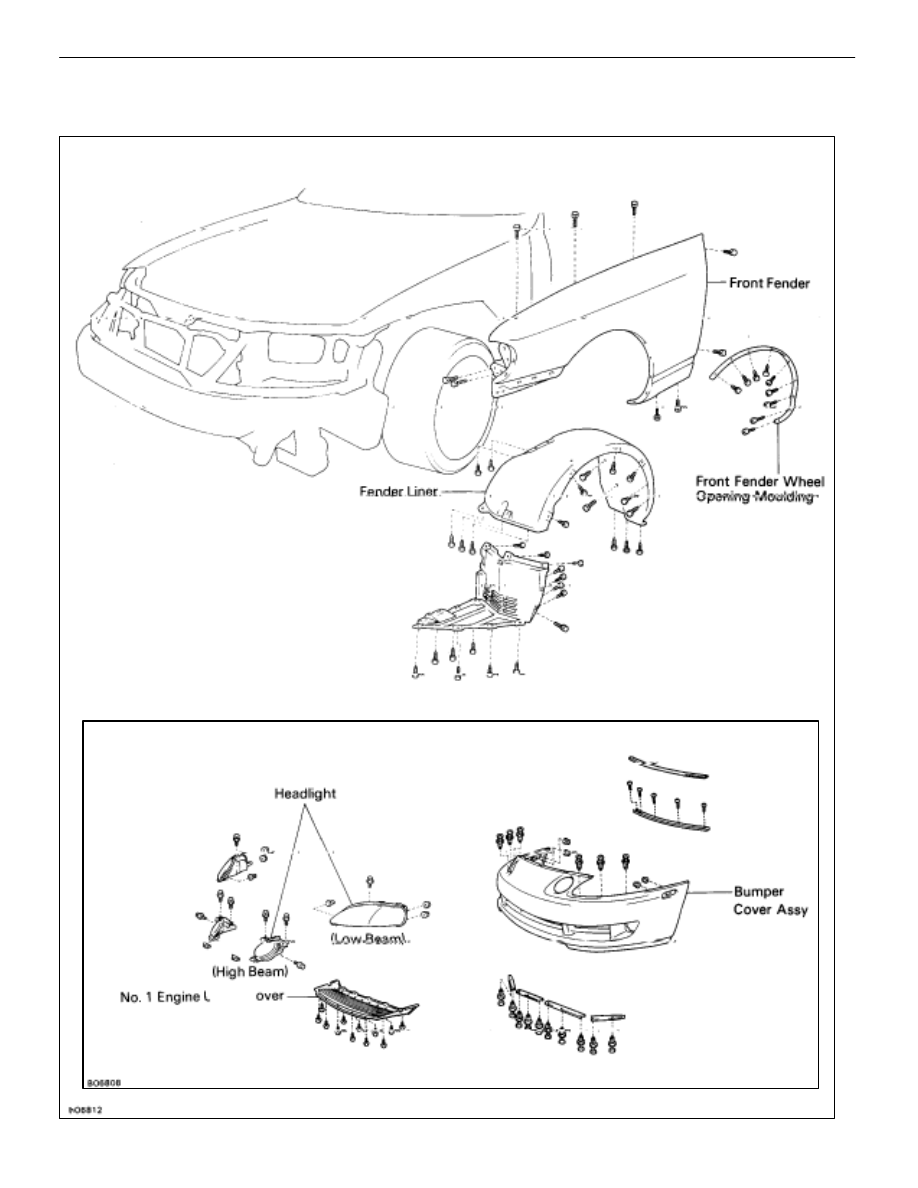

COMPONENTS

Front Bumper

–

BODY

Front Fender

BO–91

REMOVAL OF FRONT FENDER

(See page

BO–92

)

1.

REMOVE FRONT BUMPER
(See page

BO–91

)

2. REMOVE

FRONT FENDER WHEEL OPENING MOULDING

(See page

BO–102

)

3.

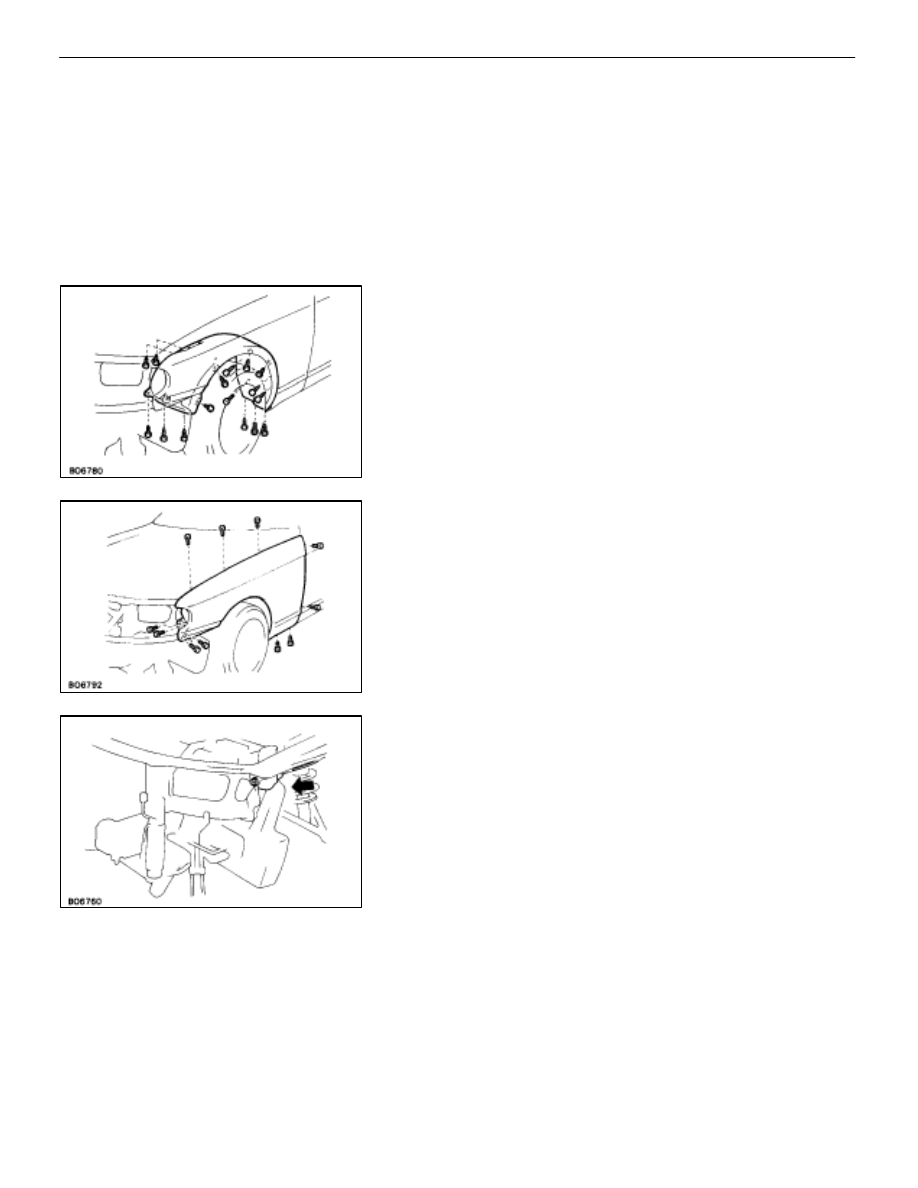

REMOVE FENDER LINER
(a)  Remove eight screws.
(b)  Remove the liner with four clips.

4.

REMOVE FRONT FENDER
Remove eleven bolts and the fender.

CAUTION: Do not damage or shock the front airbag
sensor at all.

INSTALLATION OF FRONT FENDER

(See page

BO–91

)

1.

INSTALL FRONT FENDER
Install eleven bolts and the fender.

BO–92

–

BODY

Front Fender
