176

REMOTE CONTROL MIRRORS (w/o DRIVING POSITION MEMORY)

R18



REMOTE CONTROL MIRROR SW

12–GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ACC OR  ON POSITION
11–8

: CONTINUITY WITH OPERATION SW AT LEFT OR UP POSITION

3–11

:  CONTINUITY WITH OPERATION SW AT RIGHT OR DOWN POSITION

8–GROUND

: ALWAYS

CONTINUITY

: PARTS LOCATION

CODE

SEE PAGE

CODE

SEE PAGE

CODE

SEE PAGE

R16

31

R17

31

R18

31

: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

CODE

SEE PAGE

JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)

1D

20

FRONT DOOR LH WIRE

1J

20

COWL WIRE

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

CODE

SEE PAGE

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

IF2

38

FRONT DOOR LH WIRE AND COWL WIRE (LEFT KICK PANEL)

IP1

38

FRONT DOOR RH WIRE AND COWL WIRE (RIGHT KICK PANEL)

: GROUND POINTS

CODE

SEE PAGE

GROUND POINTS LOCATION

IF

36

LEFT KICK PANEL

: SPLICE POINTS

CODE

SEE PAGE

WIRE HARNESS WITH SPLICE POINTS

CODE

SEE PAGE

WIRE HARNESS WITH SPLICE POINTS

B 32

40

FRONT DOOR LH WIRE

2

1

3

X

2

3

X

X

X

X

8

9

1 0

1 1

1 2

R 1 6 , R 1 7

R 1 8

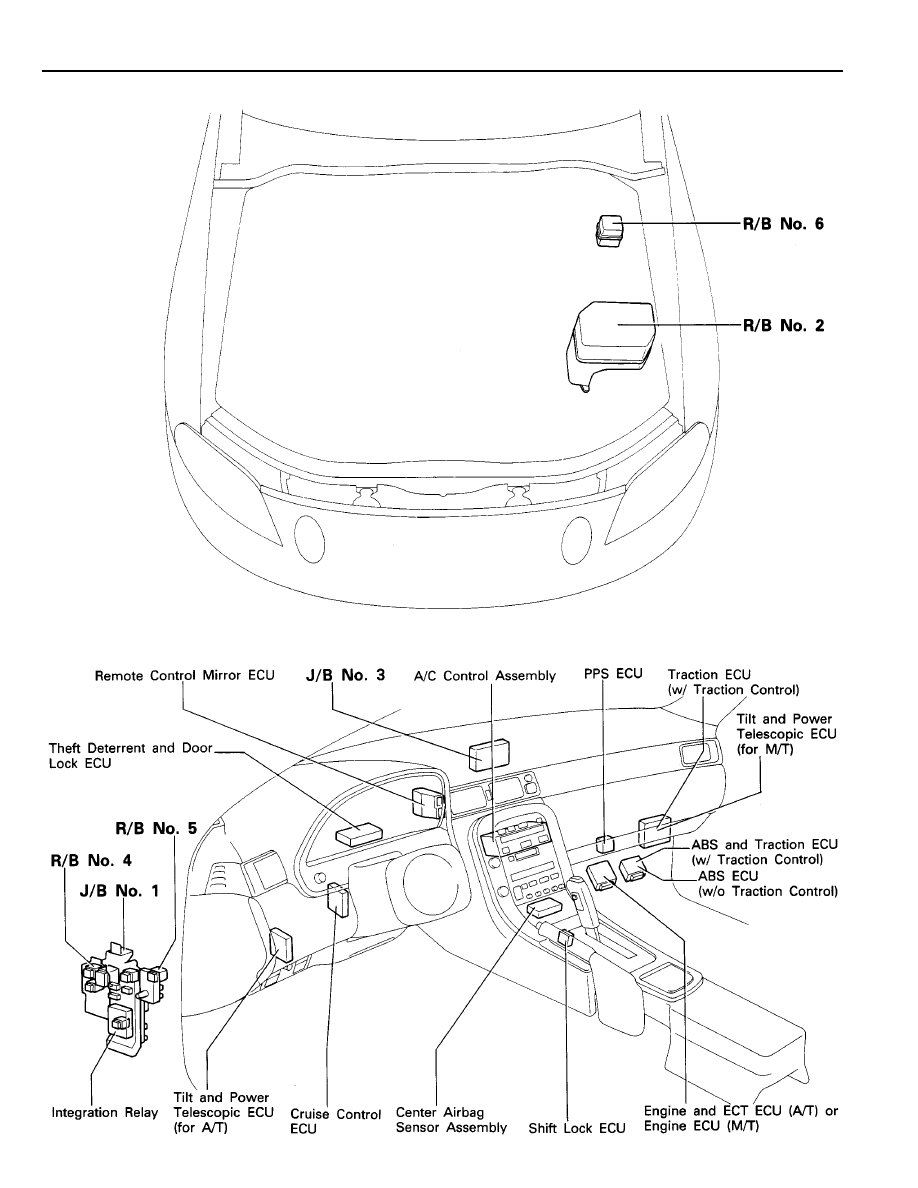

SERVICE HINTS

[Engine Compartment]

[Instrument Panel]

18

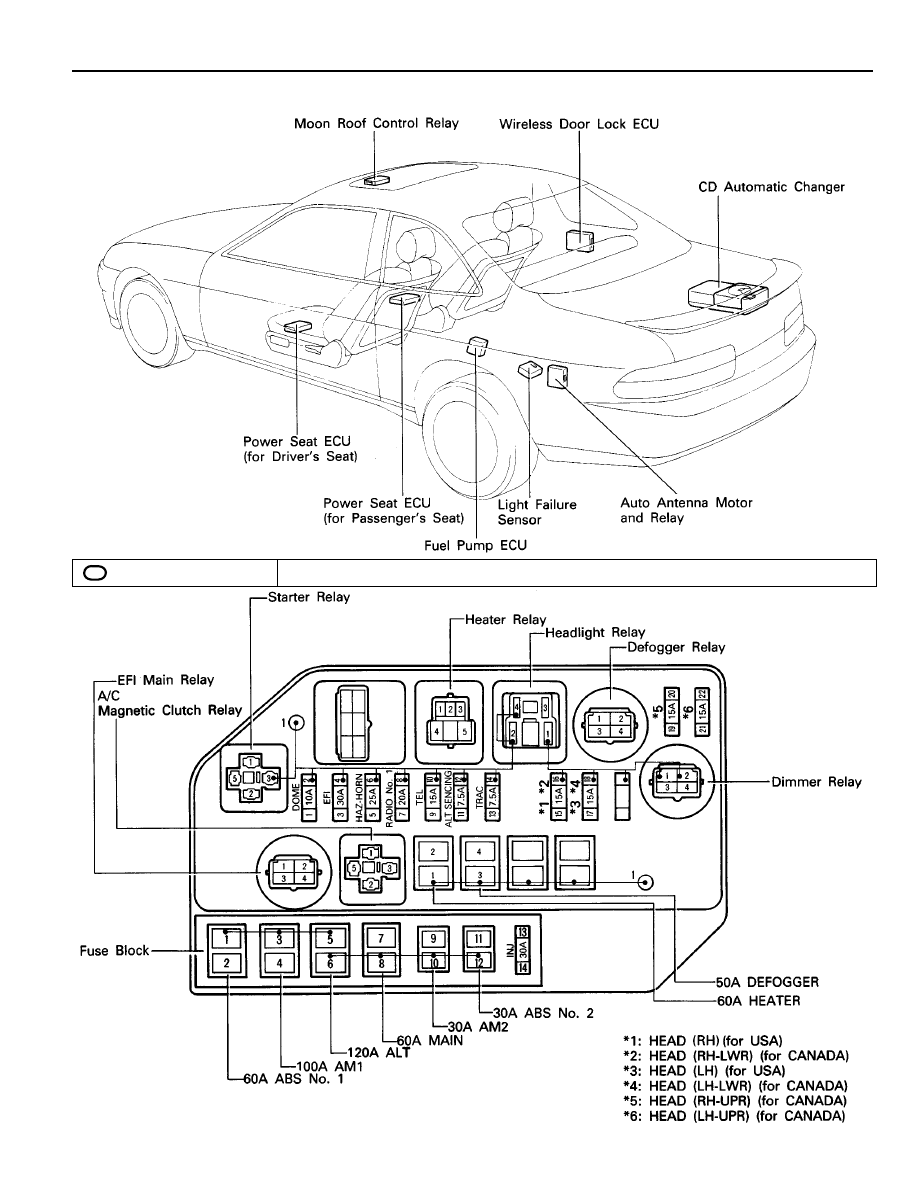

RELAY LOCATIONS

19

[Body]

2

: R/B No. 2

Engine Compartment Left

(See Page 18)

20

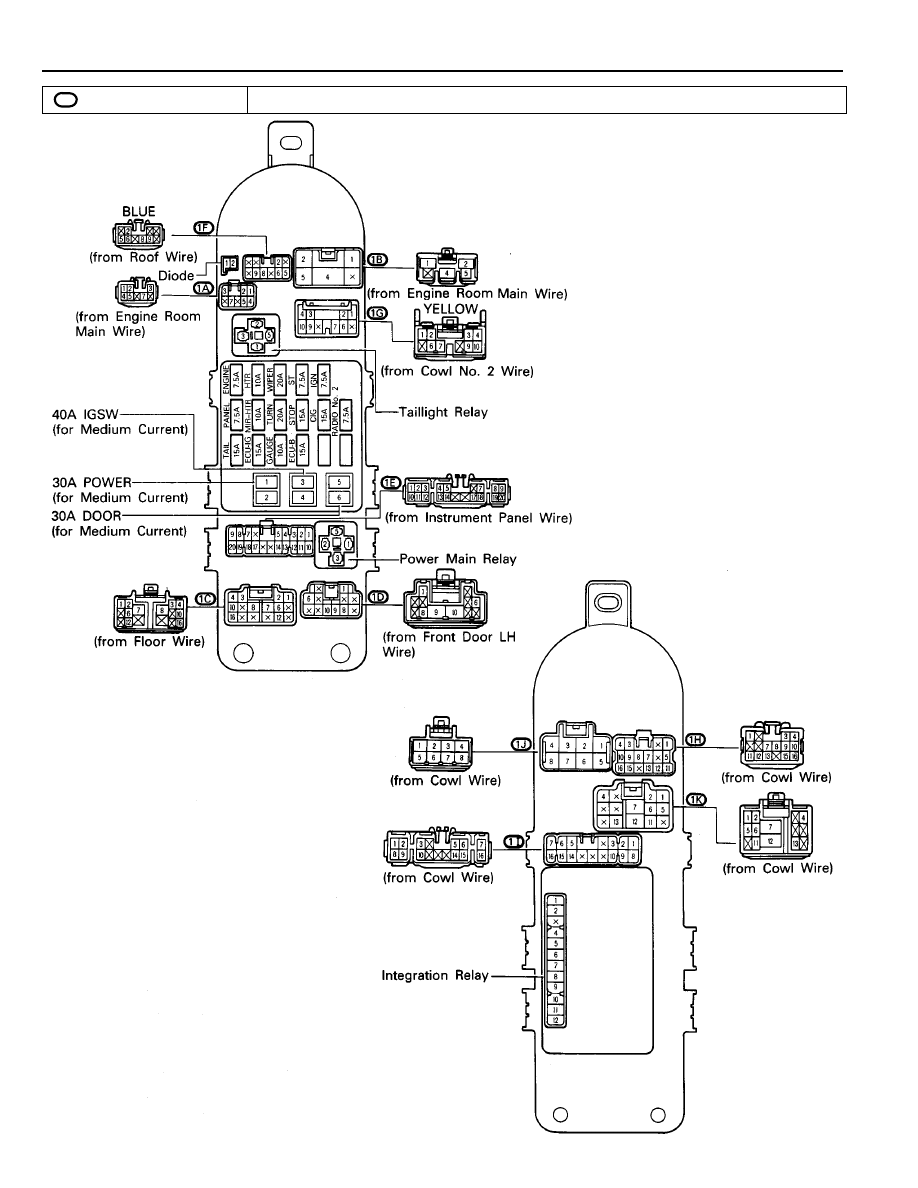

RELAY LOCATIONS

,,,

,,,

,,,

: J/B No. 1

Left Kick Panel

(See Page 18)
