D03794

D03605

SST

Hold

Turn

D03914

D26383

D03606

SST

Hold

Turn

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSAXLE ASSY (U150E)

40-35

57

U150E A/T REPAIR MANUAL   (RM913U)

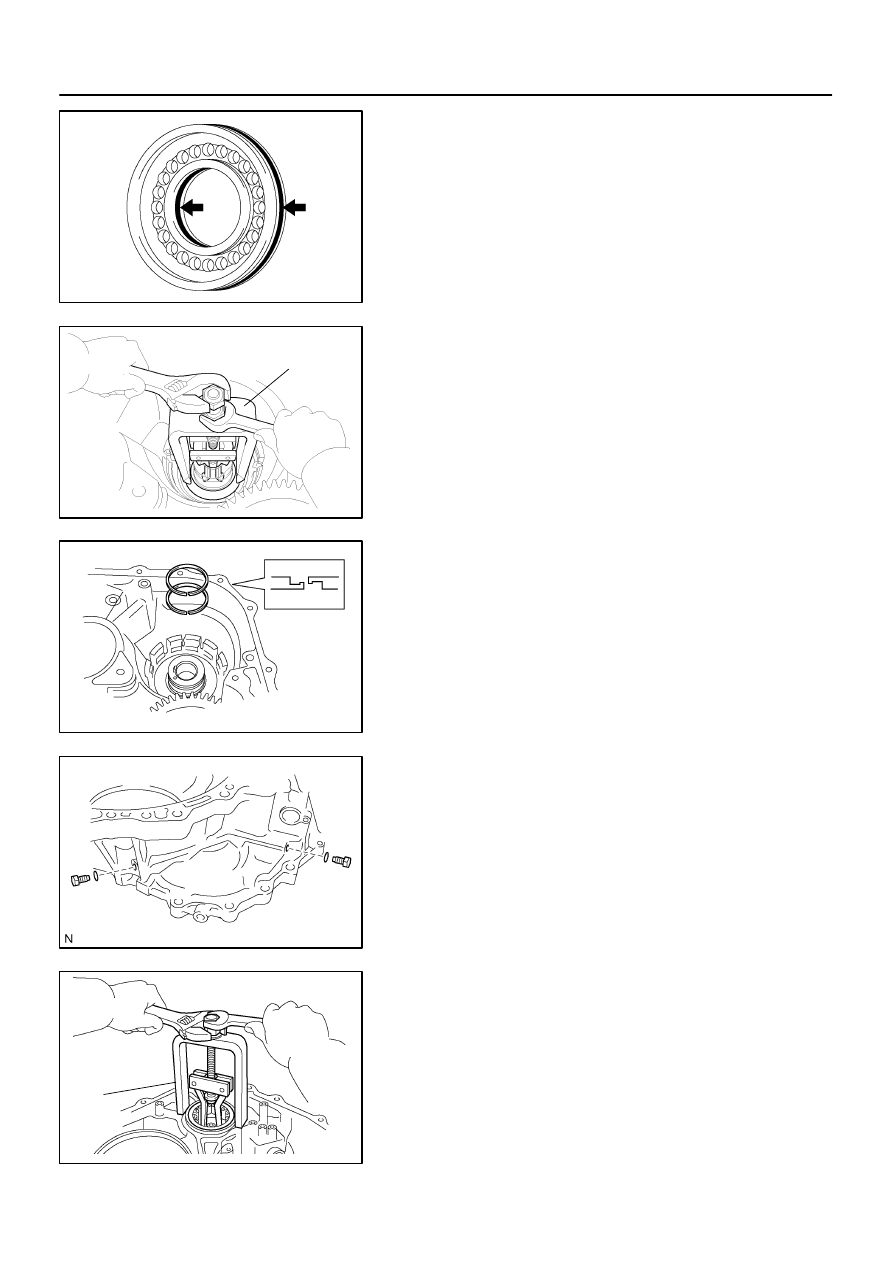

(b)

Remove the 2 O-rings from the U/D brake piston.

77.

REMOVE NEEDLE ROLLER BEARING

(a)

Using SST, remove the needle-roller bearing from the
transaxle case.
SST

09387- 00041 (09387- 01010, 09387- 01030,
09387-01040)

78.

REMOVE UNDERDRIVE CLUTCH DRUM OIL SEAL
RING

(a)

Remove the 2 oil seal rings from the transaxle case.

79.

REMOVE PLUG, W/HEAD STRAIGHT SCREW

(a)

Remove the 2 transaxle case No. 1 plugs.

(b)

Remove the 2 O-rings from the 2 transaxle case No. 1
plugs.

80.

REMOVE UNDERDRIVE CYLINDRICAL ROLLER
BEARING

(a)

Using SST, remove the cylindrical roller bearing from the
transaxle case.
SST

09514-3501 1

D03915

D26400

40-36

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSAXLE ASSY (U150E)

58

U150E A/T REPAIR MANUAL   (RM913U)

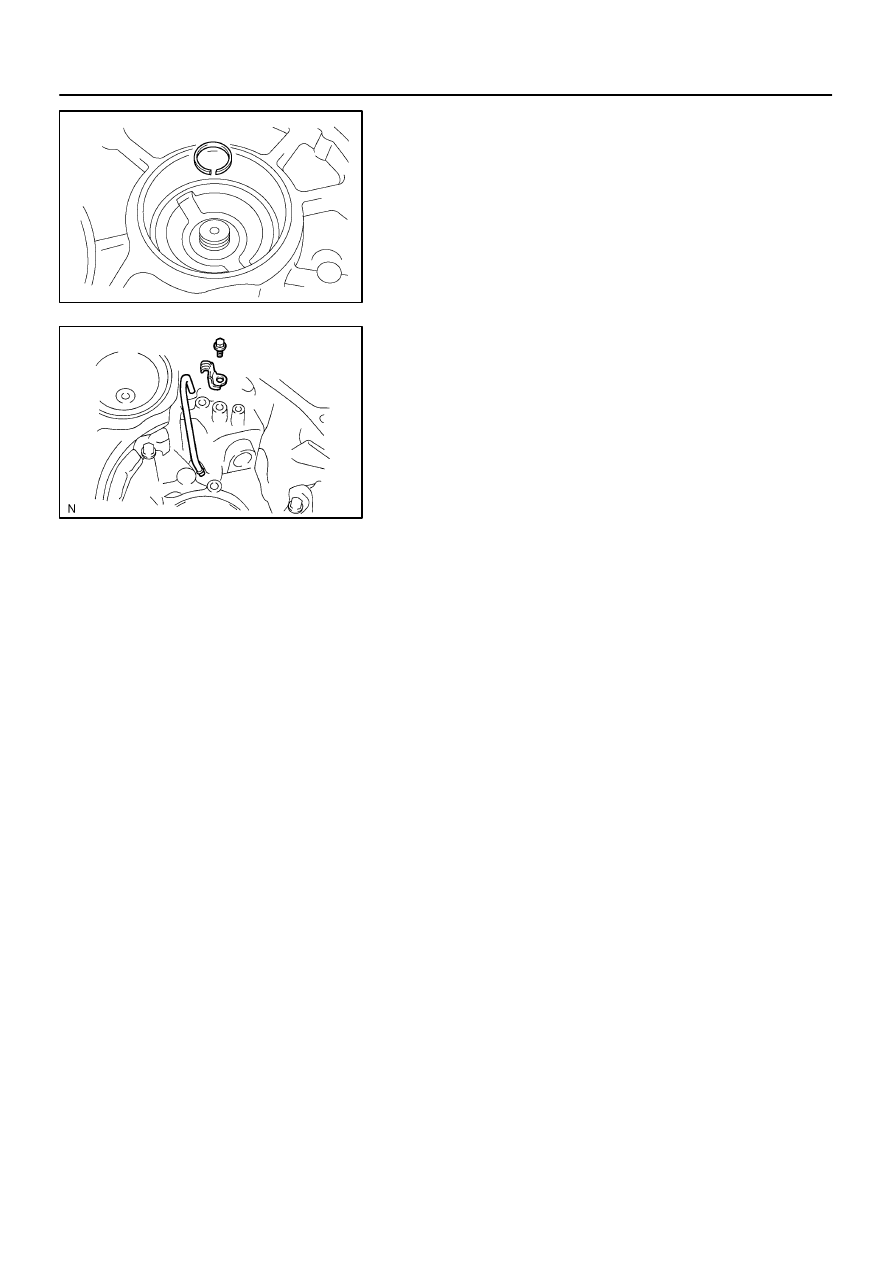

81.

REMOVE UNDERDRIVE OUTPUT SHAFT OIL SEAL
RING

(a)

Remove the oil seal ring from the transaxle housing.

82.

REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE

(a)

Remove the bolt, clamp and apply tube from the transaxle
housing.

D26460

A

B

C

D

E

F

G

H

I

J

K

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSAXLE ASSY (U150E)

40-37

59

U150E A/T REPAIR MANUAL   (RM913U)

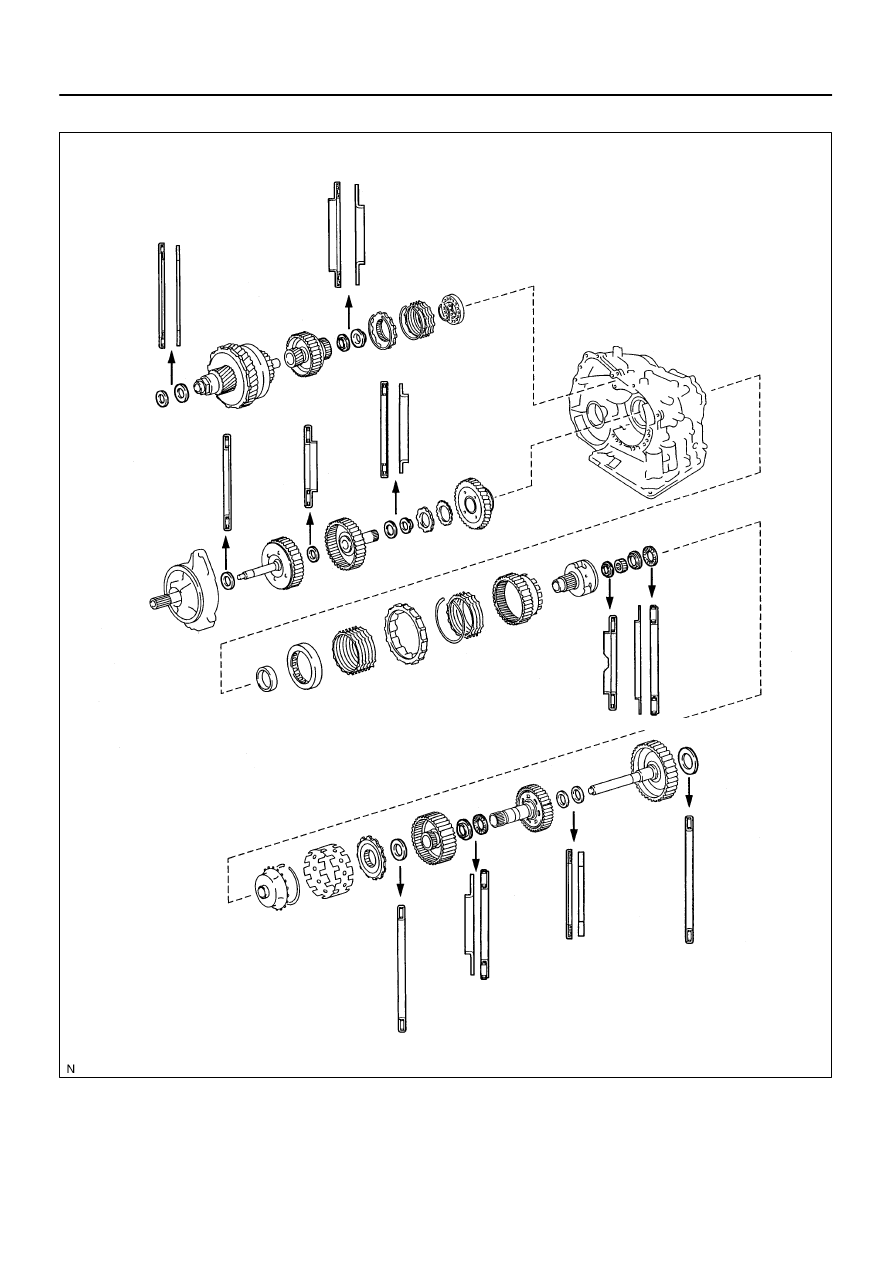

83.

BEARING POSITION

40-38

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSAXLE ASSY (U150E)

60

U150E A/T REPAIR MANUAL   (RM913U)

Mark

Front Race Diameter

Inside / Outside mm (in.)

Thrust Bearing Diameter

Inside / Outside mm (in.)

Rear Race Diameter

Inside / Outside mm (in.)

A

-

57.2 (2.252) / 84.96 (3.3449)

56.4 (2.220) / 83.0 (3.268)

B

-

37.73 (1.4854) / 58.0 (2.283)

29.9 (1.177) / 55.5 (2.185)

C

-

33.85 (1.3327) / 52.2 (2.055)

-

D

-

23.5 (0.925) / 44.0 (1.732)

-

E

-

36.3 (1.429) / 52.2 (2.055)

34.5 (1.358) / 48.5 (1.909)

F

40.3 (1.587) / 58.0 (2.283)

38.6 (1.520) / 60.0 (2.362)

-

G

-

34.5 (1.358) / 52.2 (2.055)

-

H

-

53.6 (2.110) / 69.6 (2.740)

-

I

33.1 (1.303) / 45.4 (1.787)

31.85 (1.254) / 45.2 (1.780)

-

J

-

25.0 (0.984) / 39.5 (1.555)

23.6 (0.929) / 36.6 (1.441)

K

-

55.9 (2.201) / 76.0 (2.992) or 76.6 (3.016)

-
