DIAGNOSTICS

ABS WITH EBD & BA & TRAC & VSC SYSTEM

05-367

520

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

3

INSPECT BATTERY(TERMINAL VOLTAGE)

(a)

Check the battery positive voltage.
OK: 10 - 14 V

NG

CHECK AND REPLACE CHARGING SYSTEM

OK

4

CHECK VSC WARNING LIGHT

IN CASE OF USING THE HAND-HELD TESTER:
(a)

Select the item ”VSC WARN LIGHT” in the ACTIVE TEST and operate the VSC warning light on the
hand-held tester.

(b)

Check that ”ON” and ”OFF” of the VSC warning light can be shown on the combination meter on the
hand-held  tester.

IN CASE OF NOT USING THE HAND-HELD TESTER:
(a)

Turn the ignition switch OFF.

(b)

Disconnect the connector from the skid control ECU.

(c)

Turn the ignition switch ON.

(d)

Check the VSC warning light goes off.

OK

CHECK AND REPLACE SKID CONTROL ECU
ASSY

NG

CHECK AND REPAIR HARNESS OR CONNECTOR

055XJ-02

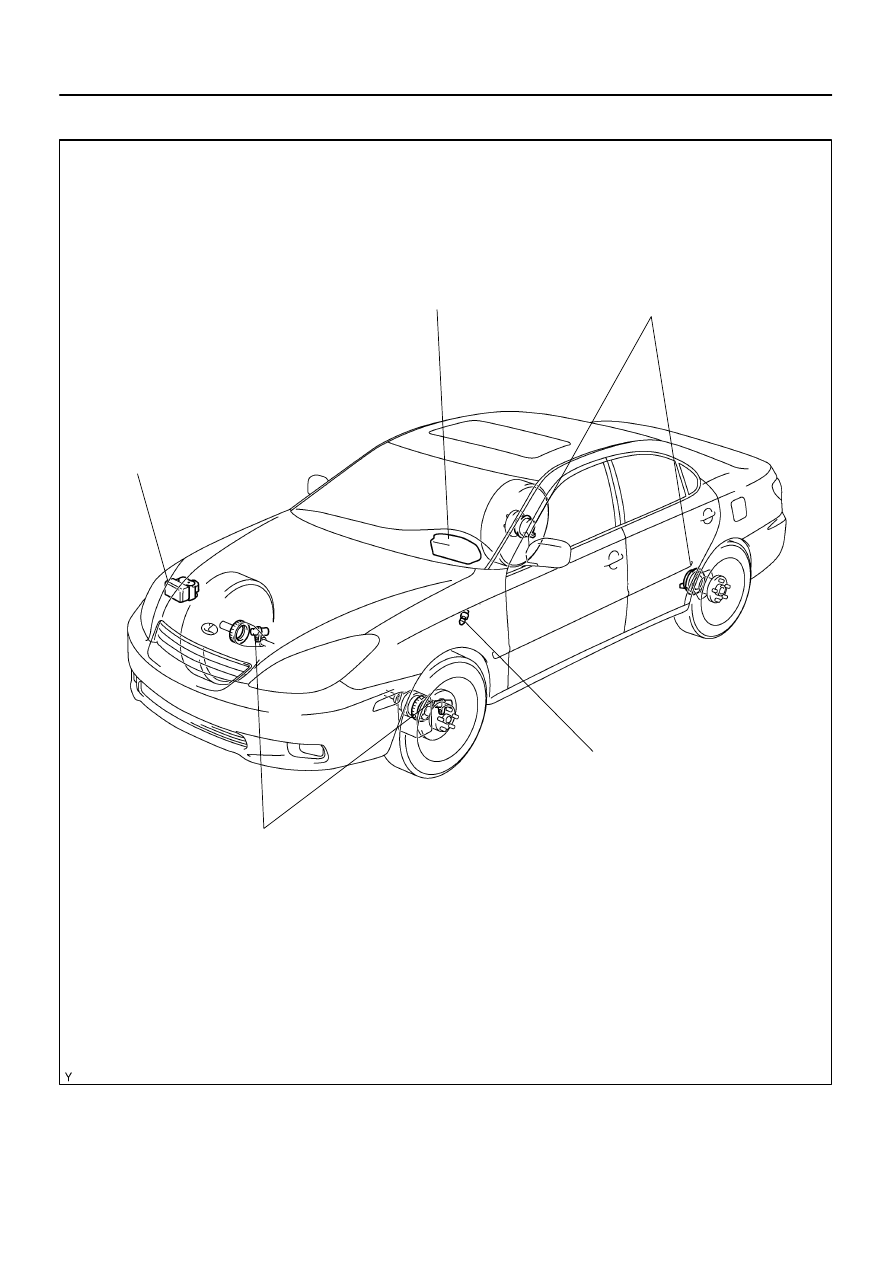

F41246

Combination Meter

 ABS Warning Light

 Brake Warning Light

Skid Control Sensor

Brake Actuator
with Skid Control ECU

Stop Lamp Switch

Front Speed Sensor

05-248

-

DIAGNOSTICS

ABS WITH EBD SYSTEM

401

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

LOCATION

B-G

F41991

Skid Control ECU

Combination Meter

1

WA

S7

Passenger Side J/B

ABS

R-B

86

57

96

40

C7

6

3A

C7

3A

3B

3B

87

W

Driver Side J/B

From
Ignition SW

B-Y

IG1 Relay

2

8

2E

2A

IA

5

1

1

8

From Battery

2

GAUGE1

2M

2R

W-B

W

W

W

3

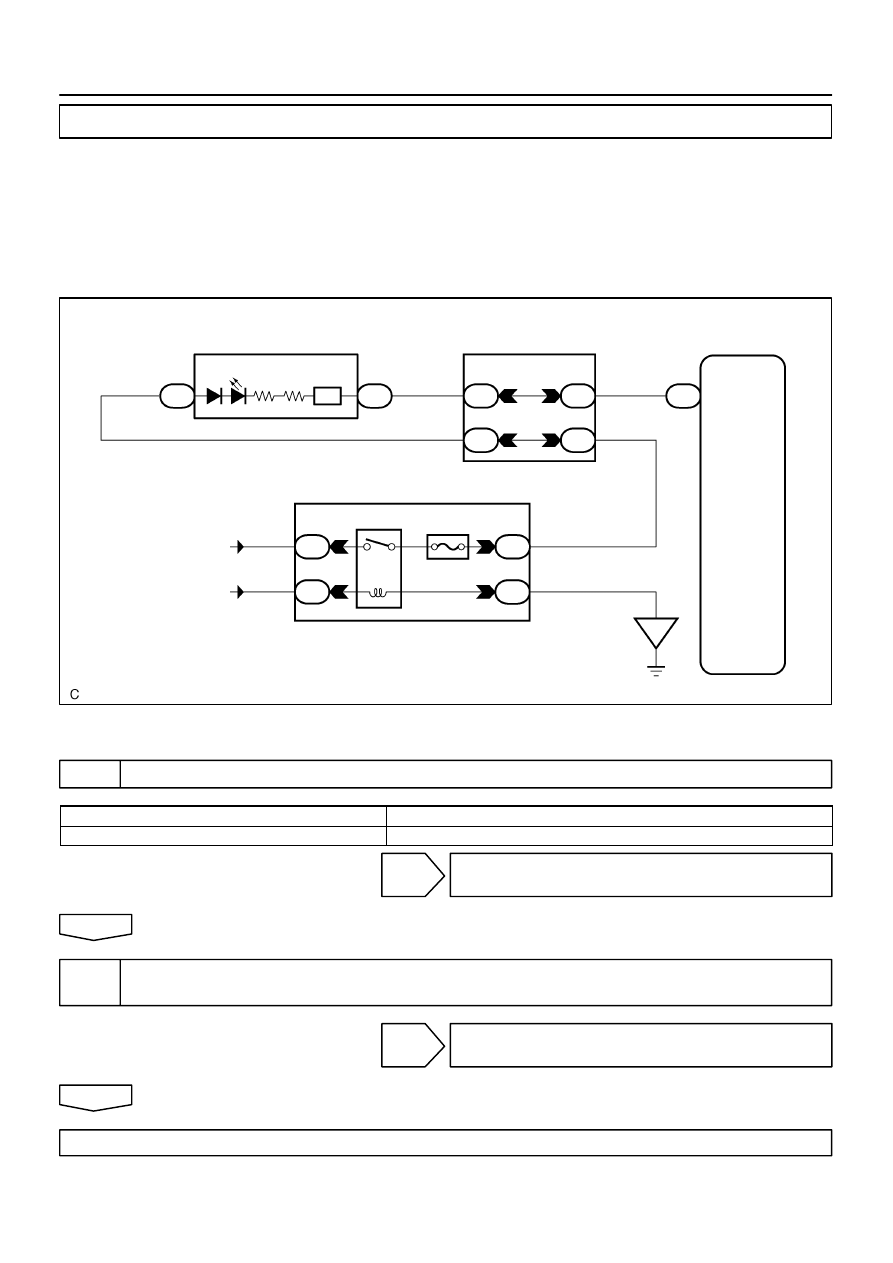

05-368

-

DIAGNOSTICS

ABS WITH EBD & BA & TRAC & VSC SYSTEM

521

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

ABS WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

If the ECU detects trouble, it lights the ABS warning light while prohibiting ABS control. At this time, the ECU
records a DTC in memory.
Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

WIRING DIAGRAM

INSPECTION PROCEDURE

1

RECONFIRM DTC(See page

05-288

)

A

Normal Code

B

Malfunction Code

B

REPAIR CIRCUIT INDICATED BY OUTPUT
CODE

A

2

CHECK HARNESS AND CONNECTOR(DLC3 - SKID CONTROL ECU ASSY)
(See page

01-31

)

NG

REPAIR OR REPLACE HARNESS OR
CONNECTOR

OK

CHECK AND REPLACE SKID CONTROL ECU ASSY

055W4-02

-

DIAGNOSTICS

ABS WITH EBD & BA & TRAC & VSC SYSTEM

05-369

522

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION

Refer to ABS Warning Light Circuit (Remains ON) on page

05-368

.

WIRING DIAGRAM

Refer to ABS Warning Light Circuit (Remains ON) on page

05-368

.

INSPECTION PROCEDURE

HINT:
Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not
using the hand-held tester.

1

PERFORM ACTIVE TEST BY HAND-HELD TESTER(ABS WARNING LIGHT
OPERATION)

(a)

Select the item ”ABS WARN LIGHT” in the ACTIVE TEST and operate the ABS warning light on the
hand-held tester.

(b)

Check that ”ON” of the ABS warning light can be shown on the combination meter using the hand-held
tester.

OK

CHECK AND REPLACE SKID CONTROL ECU
ASSY

NG

2

INSPECT COMBINATION METER ASSY(ABS WARNING LIGHT CIRCUIT)

NG

REPAIR COMBINATION METER ASSY

OK

CHECK AND REPAIR HARNESS AND CONNECTOR
