Multiplex Communication System

: Ground Points

Code

See Page

Ground Points Location

EB

44

Right Fender

EC

44

Left Fender

ED

44

Left Fender

IA

46

Instrument Panel Reinforcement LH

IB

46

Instrument Panel Brace LH

ID

46

Instrument Panel Brace RH

IF

46

Instrument Panel Reinforcement RH

BA

50

Under the Driver’s Seat

BB

50

Under the Front Passenger’s Seat

BC

50

Front Side of Rear Quarter Wheel House LH

BD

50

Front Side of Rear Quarter Wheel House RH

: Splice Points

Code

See Page

Wire Harness with Splice Points

Code

See Page

Wire Harness with Splice Points

E1

44

B7

50

Rear Door No.2 Wire

E4

44

Engine Room Main Wire

B8

50

Floor No.1 Wire

I2

48

g

B10

50

Floor No.2 Wire

B2

50

Roof Wire

B11

50

Rear Door No.1 Wire

B3

50

Roof Wire

B14

50

Floor No 1 Wire

B6

50

Floor No.1 Wire

B17

50

Floor No.1 Wire

20

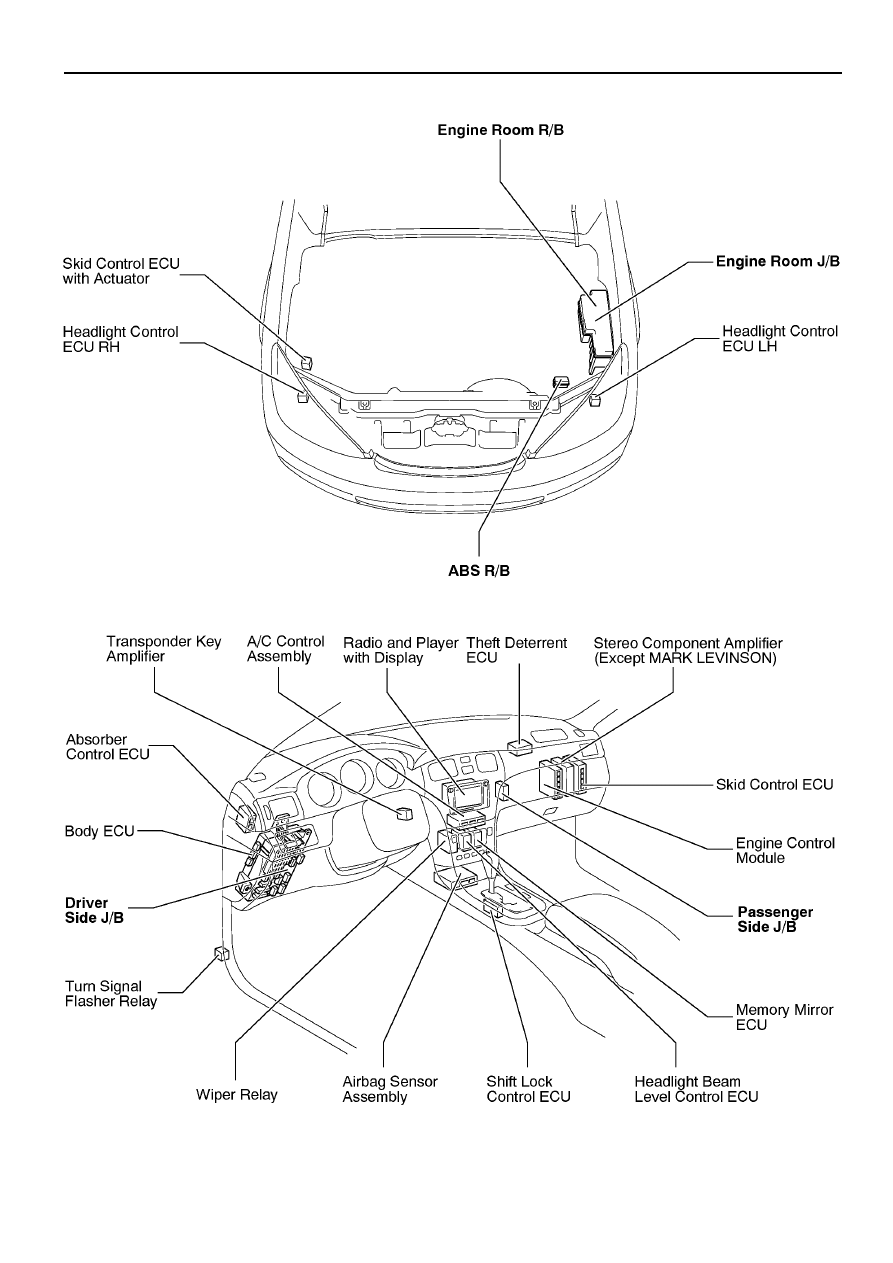

F  RELAY LOCATIONS

[Engine Compartment]

[Instrument Panel]

21

F

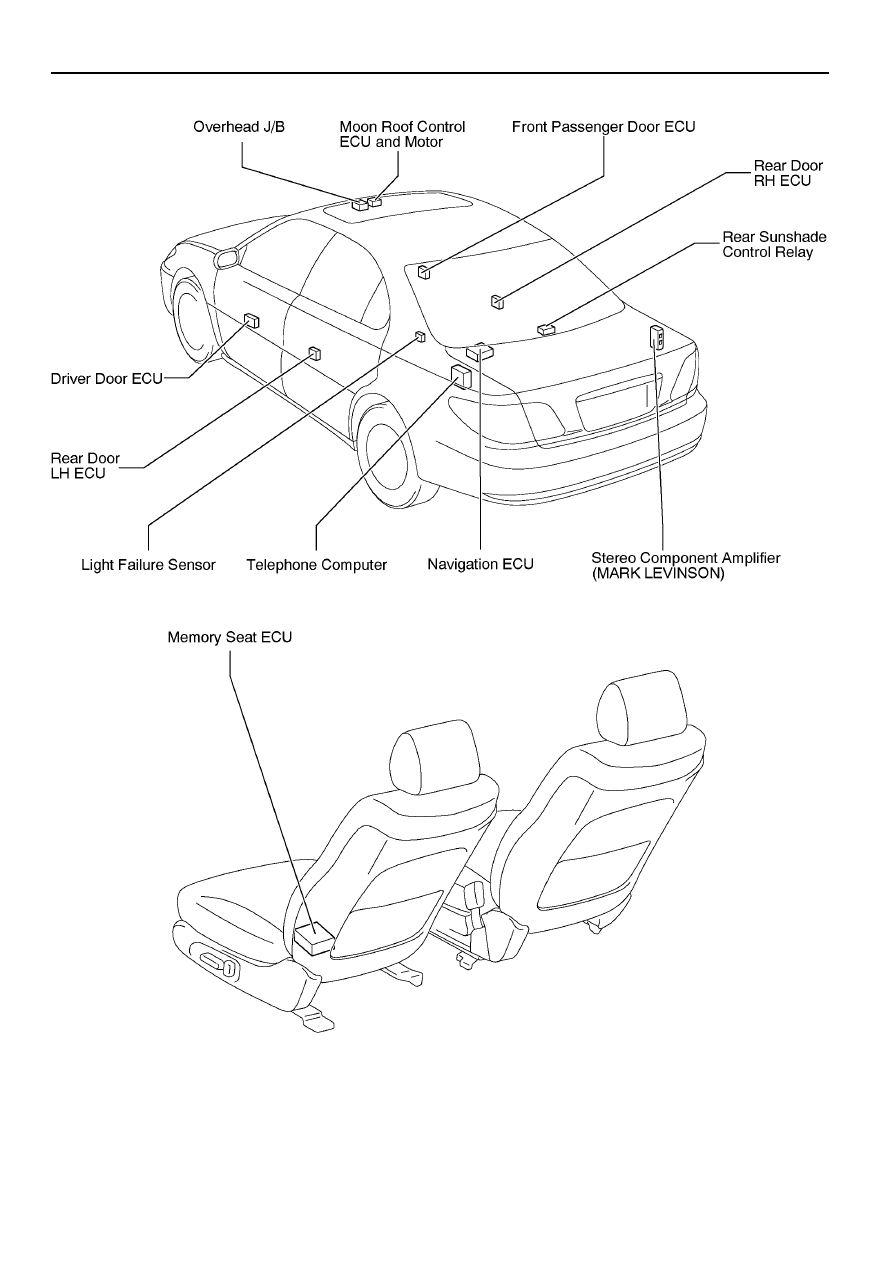

[Body]

[Seat]

22

F  RELAY LOCATIONS

1

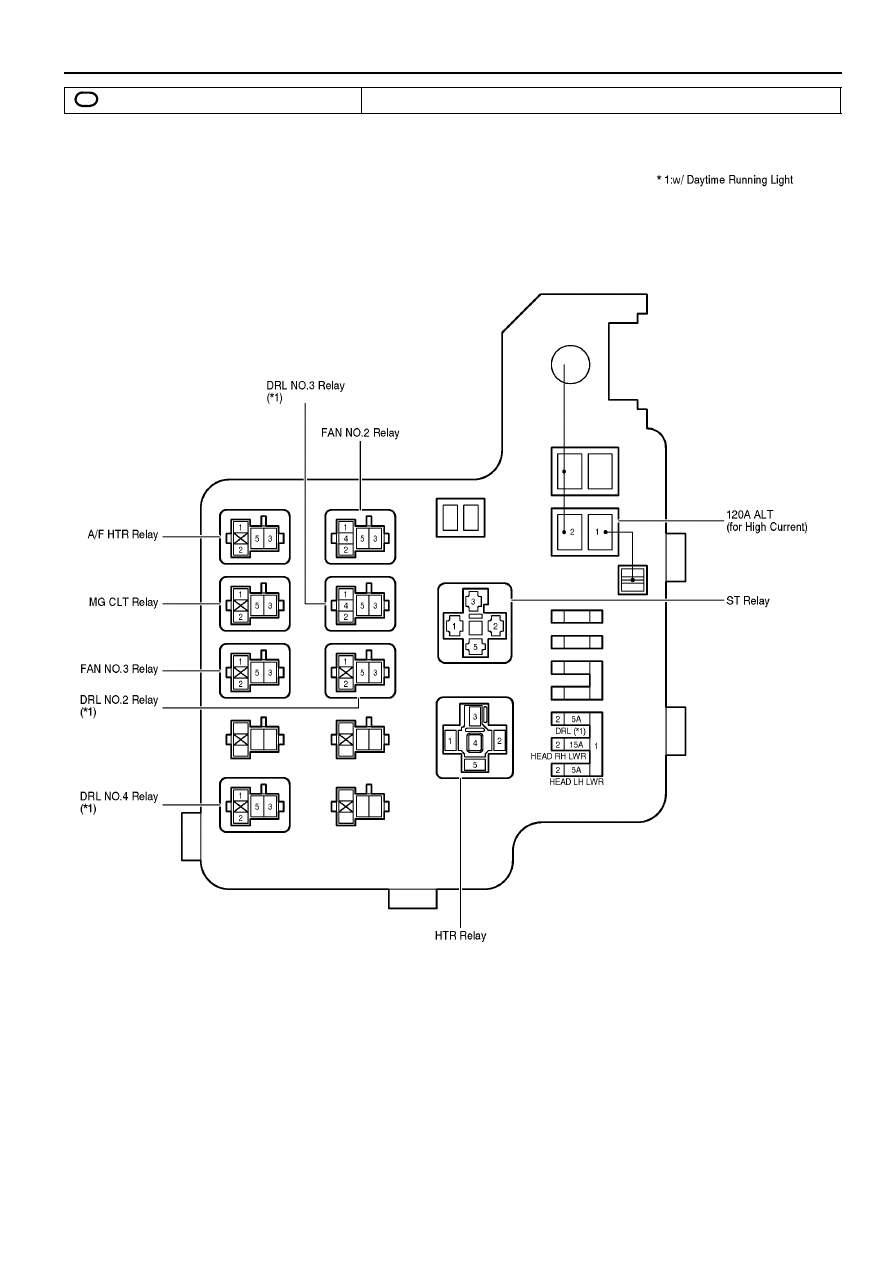

: Engine Room R/B

Engine Compartment Left (See Page 20)
