SA0EB–01

W03646

SA–28

–

SUSPENSION AND AXLE

FRONT SHOCK ABSORBER

1076

1997 LEXUS ES300   (RM511U)

INSPECTION

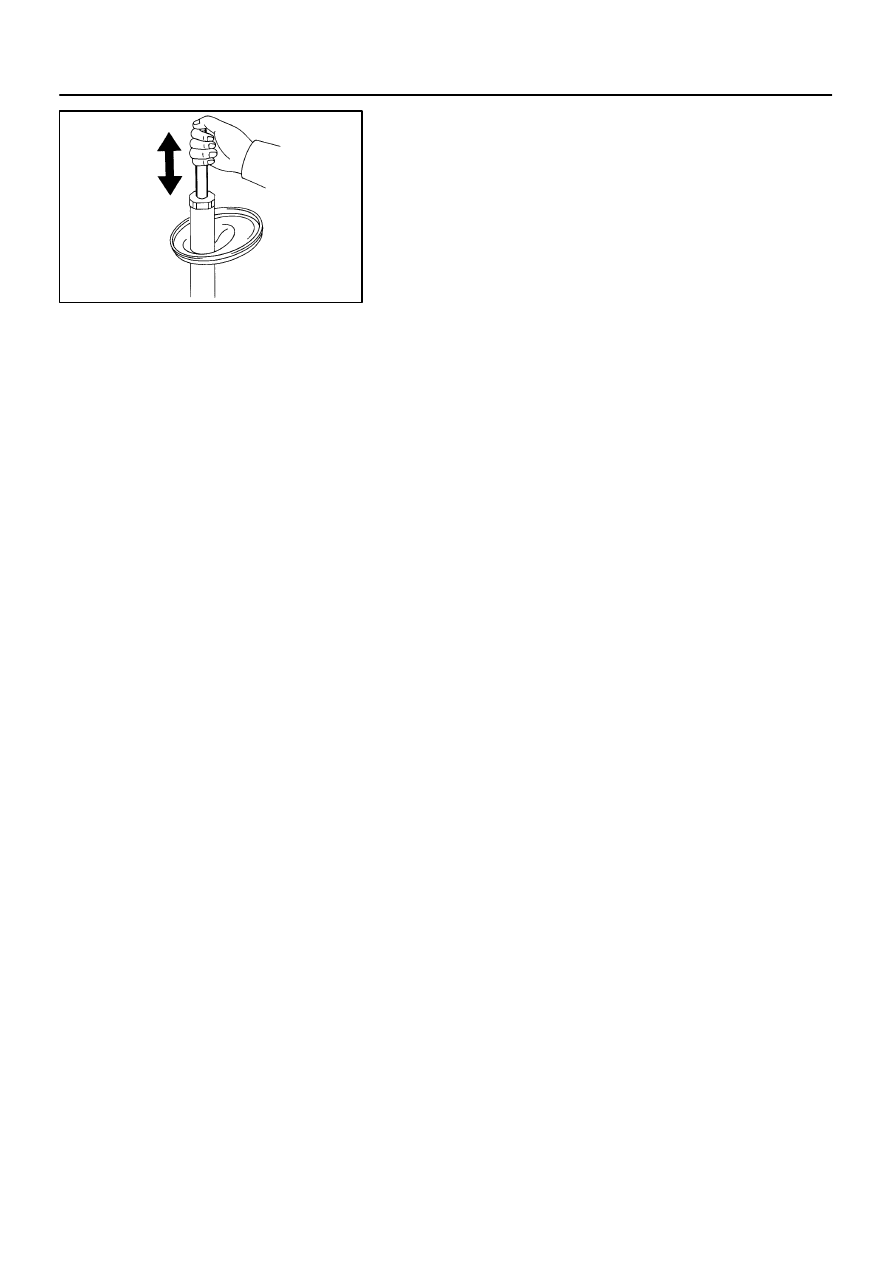

INSPECT SHOCK ABSORBER
Compress and extend the shock absorber rod and check that
there is no abnormal resistance or unusual operation sounds.
NOTICE:
When discarding the shock absorber, see page DISPOSAL
on page

SA–29

.

W03648

SA0EE–01

–

SUSPENSION AND AXLE

FRONT SHOCK ABSORBER

SA–29

1077

1997 LEXUS ES300   (RM511U)

DISPOSAL

1.

FULLY EXTEND SHOCK ABSORBER ROD

2.

DRILL HOLE TO REMOVE GAS FROM CYLINDER

Drill a hole between the lines, as shown.
CAUTION:
The gas coming out is harmless, but be careful of chips
which may fly up when drilling.

SA0EC–02

W03200

SST

W03201

Z19358

SST

w/o ELECTRONIC MODULATED

SUSPENSION

SA–30

–

SUSPENSION AND AXLE

FRONT SHOCK ABSORBER

1078

1997 LEXUS ES300   (RM511U)

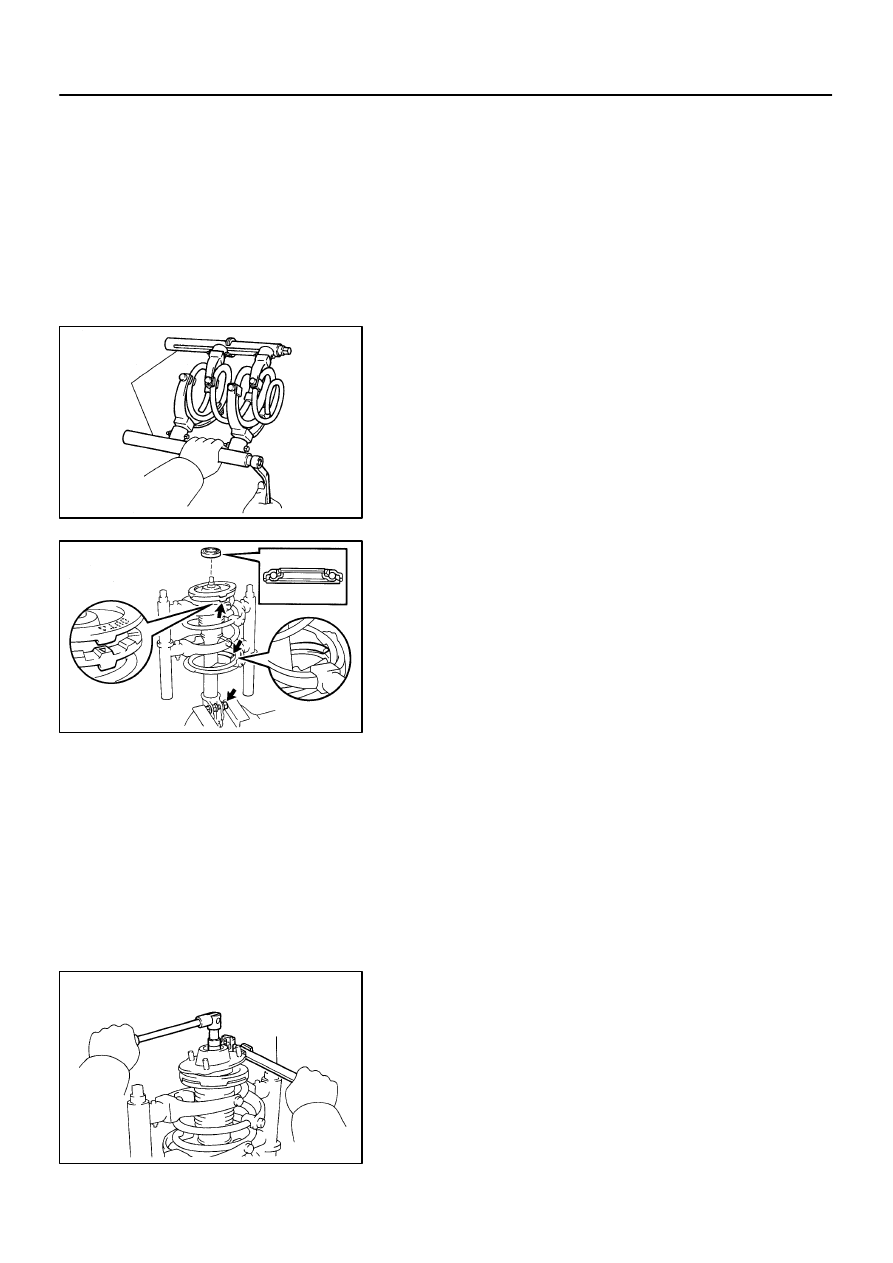

REASSEMBLY

1.

INSTALL LOWER INSULATOR ONTO SHOCK AB-
SORBER

2.

INSTALL SPRING BUMPER TO PISTON ROD

3.

INSTALL COIL SPRING

(a)

Using SST, compress the coil spring.
SST

09727–30021

NOTICE:
Do not use an impact wrench. It will damage the SST.
HINT:
Use 2 of the same type of SST.

(b)

Install the coil spring to the shock absorber.

HINT:
Fit the lower end of the coil spring into the gap of the spring low-
er seat.
4.

INSTALL SPRING UPPER SEAT AND INSULATOR

(a)

Align the ’OUT’ mark of spring upper seat with the mark
of the upper insulator.

(b)

Install the spring upper seat with upper insulator to the
shock absorber with the mark facing the outside of the ve-
hicle.

(c)

Install the bearing and suspension support.

(d)

w/o ELECTRONIC MODULATED SUSPENSION:
Using SST to hold the suspension support, install a new
nut.
SST

09729–22031

Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

(e)

w/ ELECTRONIC MODULATED SUSPENSION:
Temporarily tighten the nut.

–

SUSPENSION AND AXLE

FRONT SHOCK ABSORBER

SA–31

1079

1997 LEXUS ES300   (RM511U)

(f)

Remove the SST from the coil spring.
SST

09727–30021

NOTICE:
Check that the bearing fits into the recess in the suspen-
sion support.
