SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

1360

1997 LEXUS ES300   (RM511U)

(4)

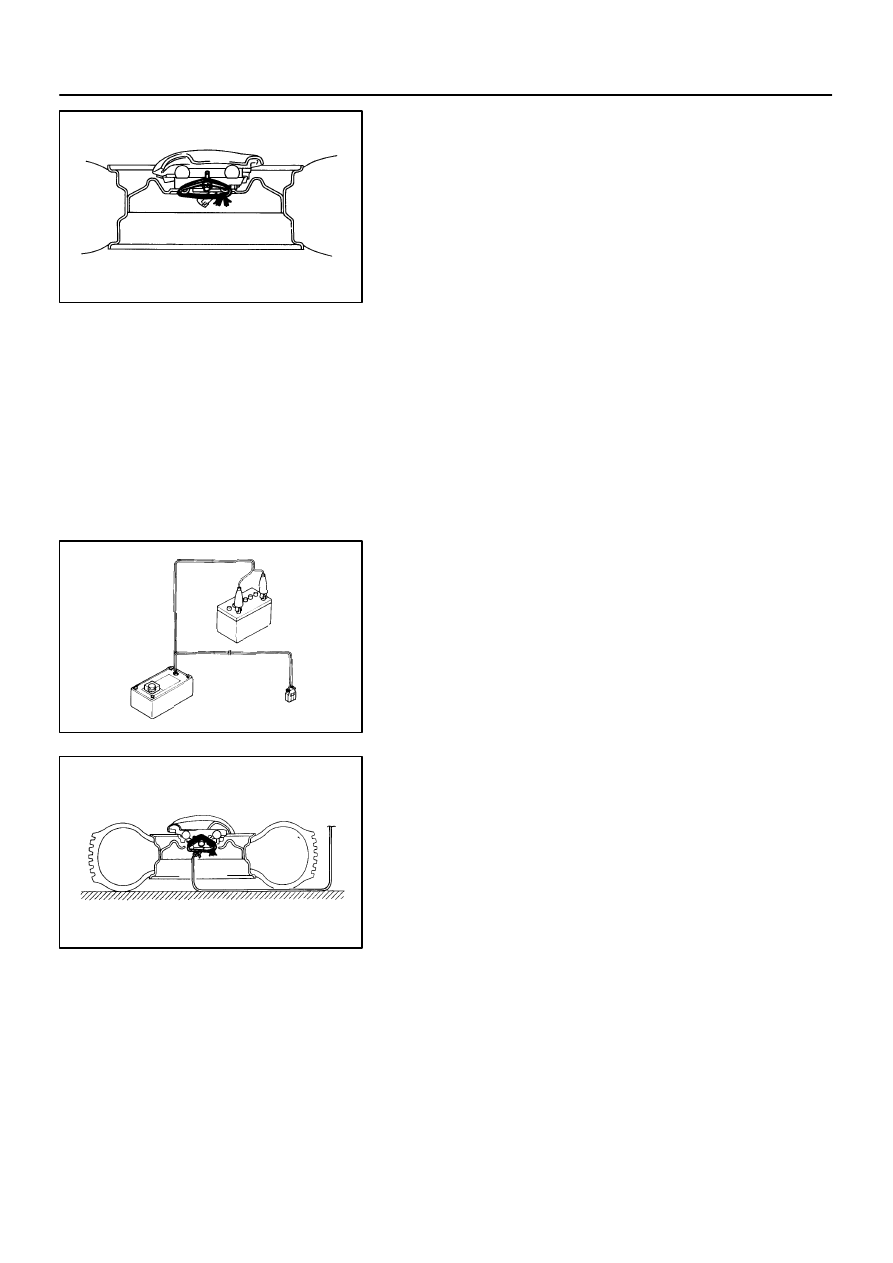

Face the upper surface of the steering wheel pad
upward. Separately tie the left and right sides of the
steering wheel pad to the disc wheel through the
hub nut holes. Position the steering wheel pad con-
nector so that it hangs downward though a hub hole
in the disc wheel.

CAUTION:

Make sure that the wire harness is tight. It is very dan-
gerous when looseness in the wire harness results in
the steering wheel pad coming free through the shock
from the airbag deploying.

Always tie down the steering wheel pad with the pad
side facing upward. It is very dangerous if the steer-
ing wheel pad is tied down with the metal surface fac-
ing upward as the wire harness will be cut by the
shock of the airbag deploying and the steering wheel
pad will be thrown into the air.

NOTICE:
The disc wheel will be marked by airbag deployment, so
use the spare disc wheel.
(d)

Confirm functioning of the SST.
SST

09082–00700

(e)

Install the SST.

CAUTION:
Place the disc wheel on the level ground.

(1)

Connect the 2 SST connector to the steering wheel
pad connector.

SST

09082–00700

NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock. Also, se-
cure some slack for the SST wire harness inside the disc
wheel.

(2)

Move the SST to at least 10 m (33 ft) away from the
steering wheel pad tied down on the disc wheel.

H00401

Weight

x

y

y

R04211

Inner Diam

Tires
(3 or More)

Width

R13763

10 m (33 ft) or more

–

SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

RS–17

1361

1997 LEXUS ES300   (RM511U)

(f)

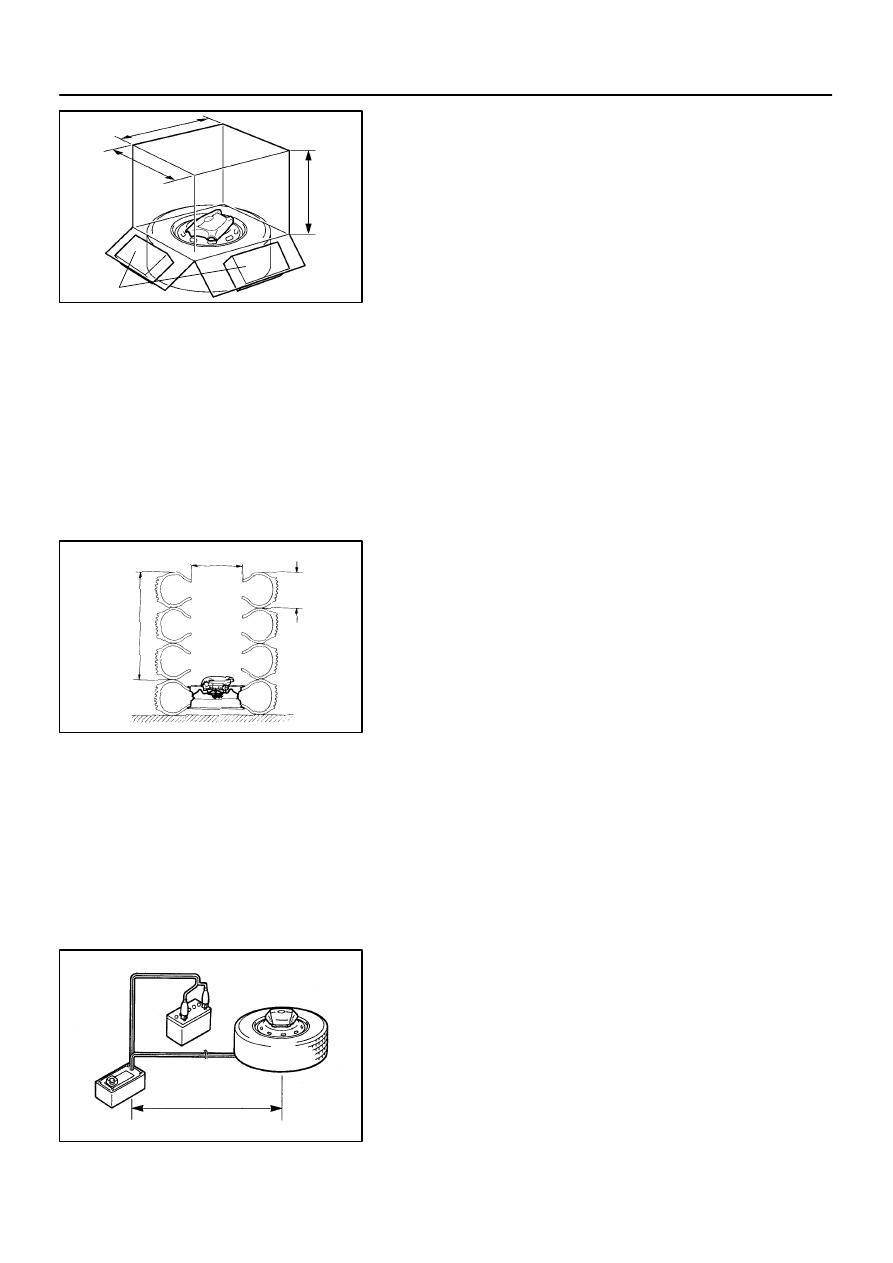

Cover the steering wheel pad with cardboard box or tires.

Covering method using cardboard box:
Cover the steering wheel pad with the cardboard
box and weight the cardboard box down in 4 places
with at least 196 N (20 kg, 44 lb).

Size of cardboard box:
Must exceed the following dimensions:
x=460 mm (18.11 in.)
When dimension of the cardboard box exceeds the di-
ameter of the disc wheel with tire to which the steer-
ing wheel pad is tied –
x=460 mm (18.11 in.) + width of tire
y= 650 mm (25.59 in.)

NOTICE:
If a cardboard box smaller than the specified size is used,
the cardboard box will be broken by the shock from the air-
bag deployment.

Covering method using tires:
Place at least 3 tires without disc wheel on top of the
disc wheel with tire to which the steering wheel pad
is tied.

Tire size: Must exceed the following dimensions–
Width: 185 mm (7.87 in.)
Inner diameter: 360 mm (14.17 in.)

CAUTION:
Do not use tires with disc wheels.
NOTICE:
The tires may be marked by the airbag deployment, so use
the spare tires.
(g)

Deploy the airbag.
(1)

Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(–) terminal.

(2)

Check that no one is within 10 m (33 ft) area around
the disc wheel which the steering wheel pad is tied
to.

(3)

Press the SST activation switch and deploy the air-
bag.

HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.

AB0166

RS–18

–

SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

1362

1997 LEXUS ES300   (RM511U)

(h)

Dispose of the steering wheel pad (with airbag).

CAUTION:

The steering wheel pad is very hot when the airbag is
deployed, so leave it alone for at least 30 minutes af-
ter deployment.

Use gloves and safety glasses when handling a steer-
ing wheel pad with deployed airbag.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a steering wheel pad with
deployed airbag.
(1)

Remove the steering wheel pad from the disc
wheel.

(2)

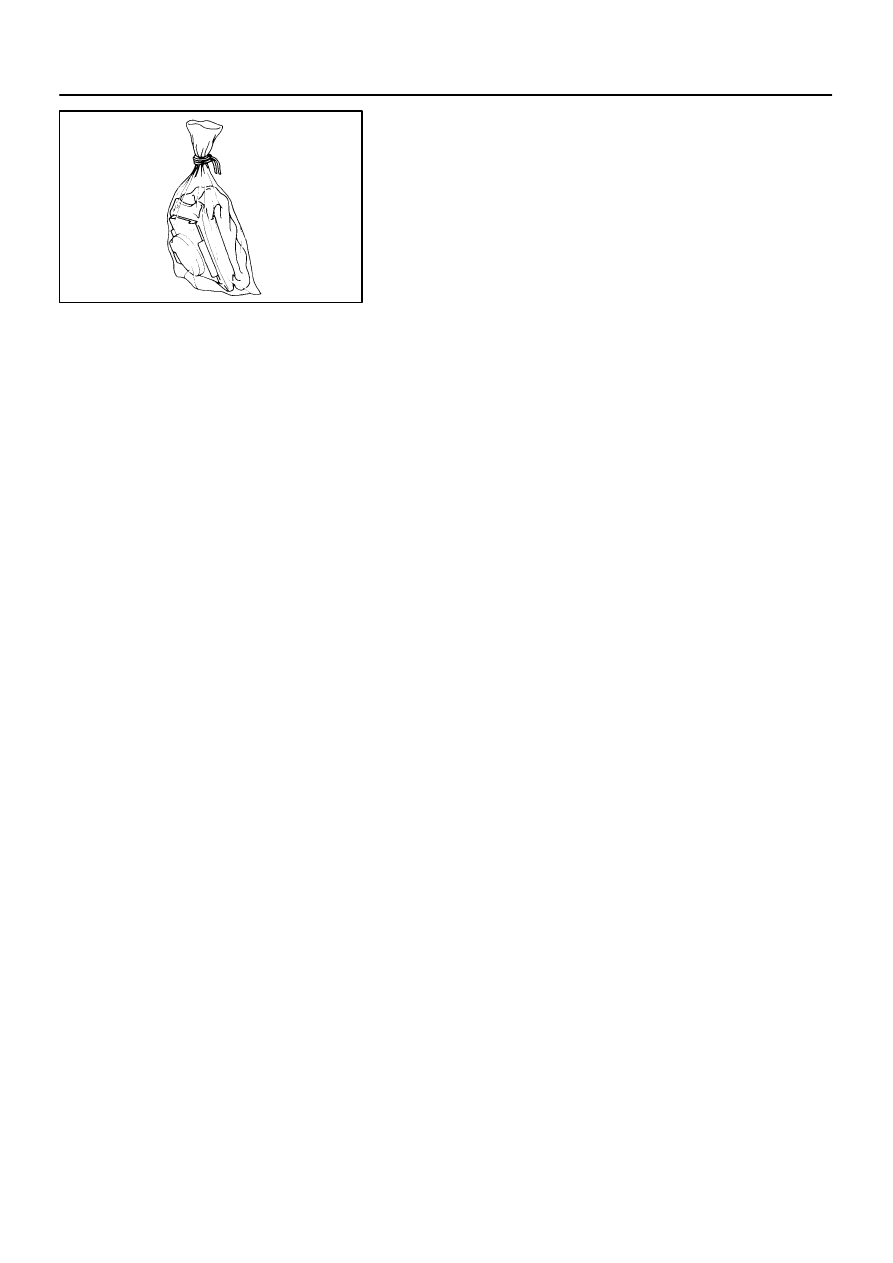

Place the steering wheel pad in a vinyl bag, tie the
end tightly and dispose of it in the same way as oth-
er general parts disposal.

RS012–02

–

SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

RS–19

1363

1997 LEXUS ES300   (RM511U)

REPLACEMENT

REPLACEMENT REQUIREMENTS
In the following cases, replace the steering wheel pad, steering wheel or spiral cable.

If the airbag has been deployed.

If the steering wheel pad or spiral cable has been found to be faulty in troubleshooting.

If the steering wheel pad, steering or spiral cable has been found to be faulty during the check
in items (See page

RS–9

)

If the steering wheel pad has been dropped.

CAUTION:
For removal and installation of the steering wheel pad, see page

SR–11

,

SR–16

 and be sure to follow

the correct procedure.
