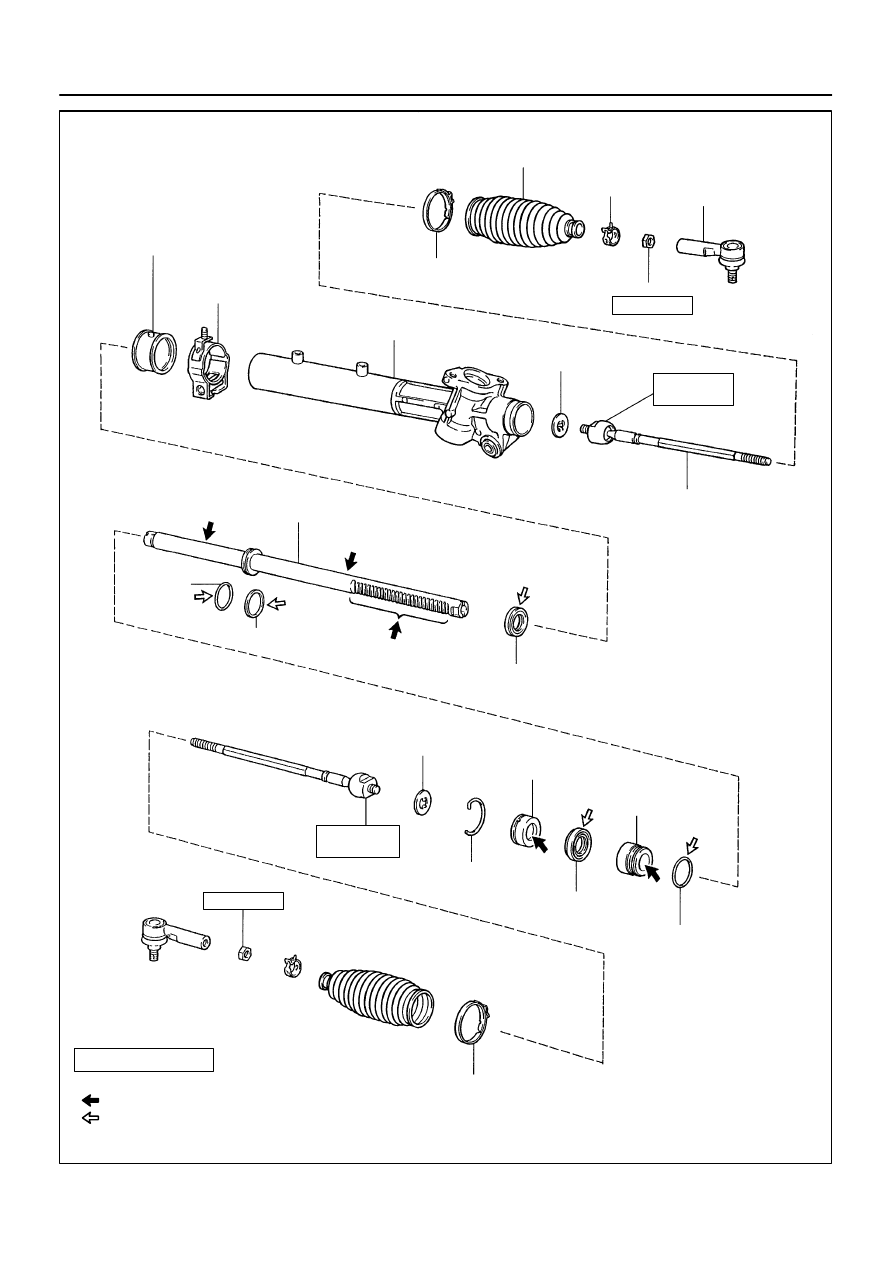

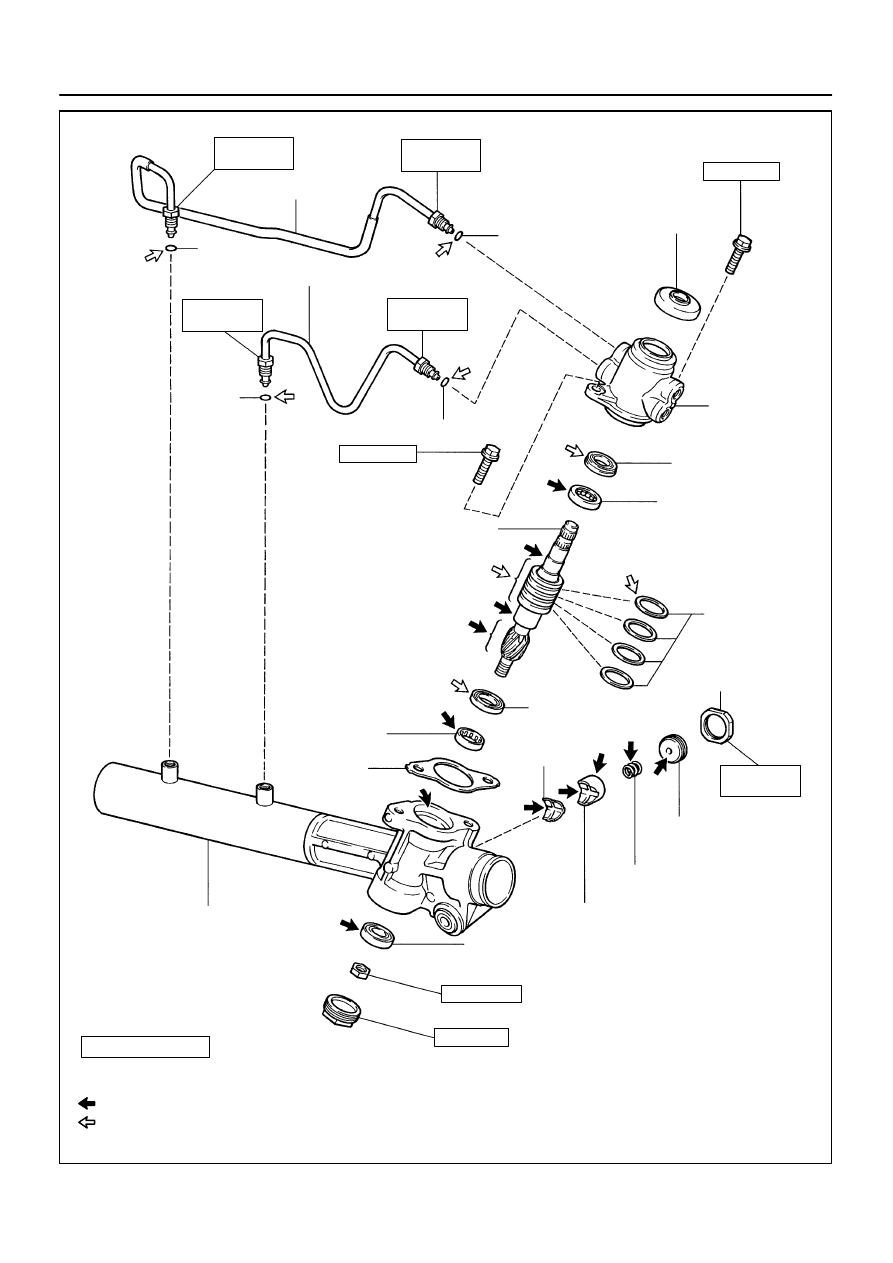

STEERING
POWER STEERING VANE PUMP
1324
1997 LEXUS ES300 (RM511U)
4.

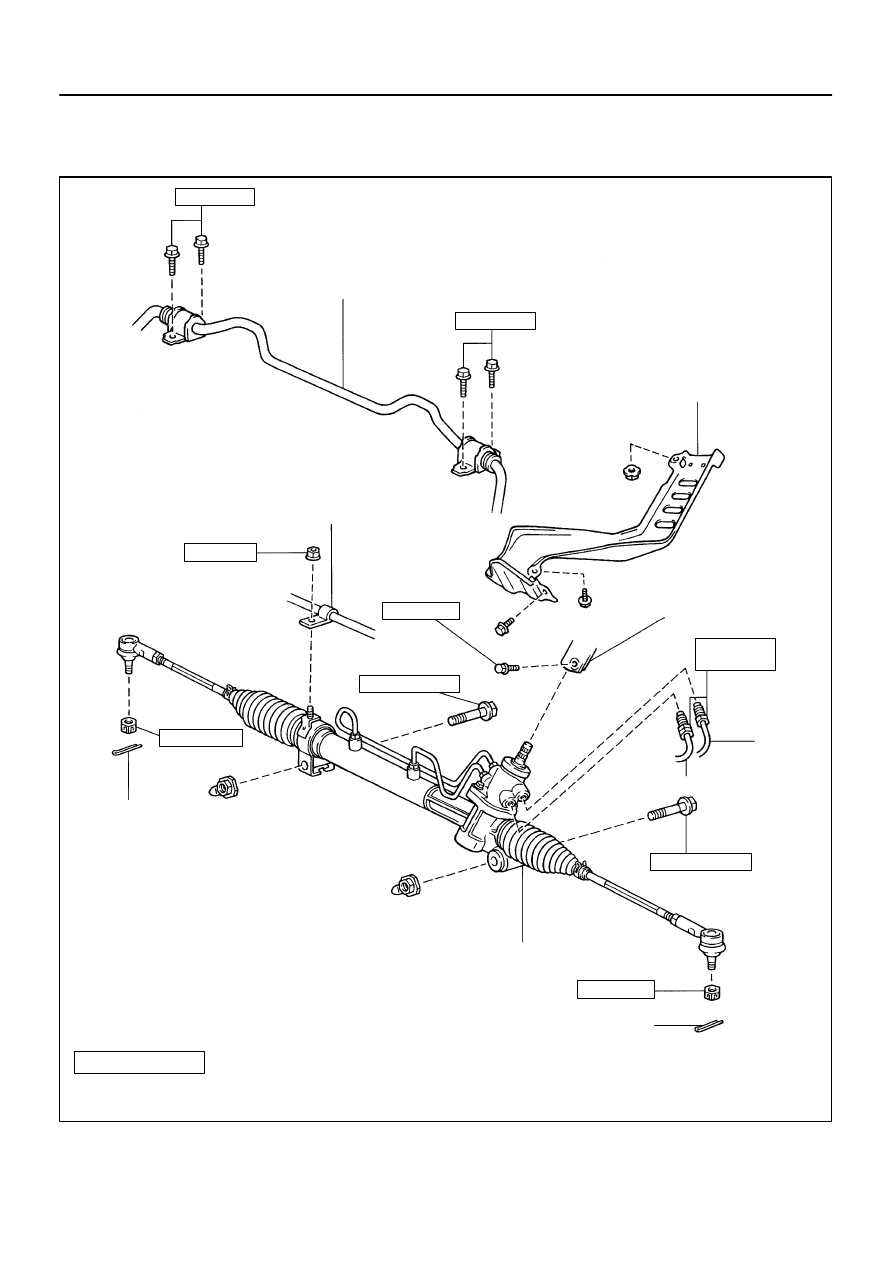

CONNECT PRESSURE FEED TUBE
(a)
Using SST, connect the tube.
SST
09631–22020
Torque: 20 N·m (203 kgf·cm, 15 ft·lbf)
HINT:

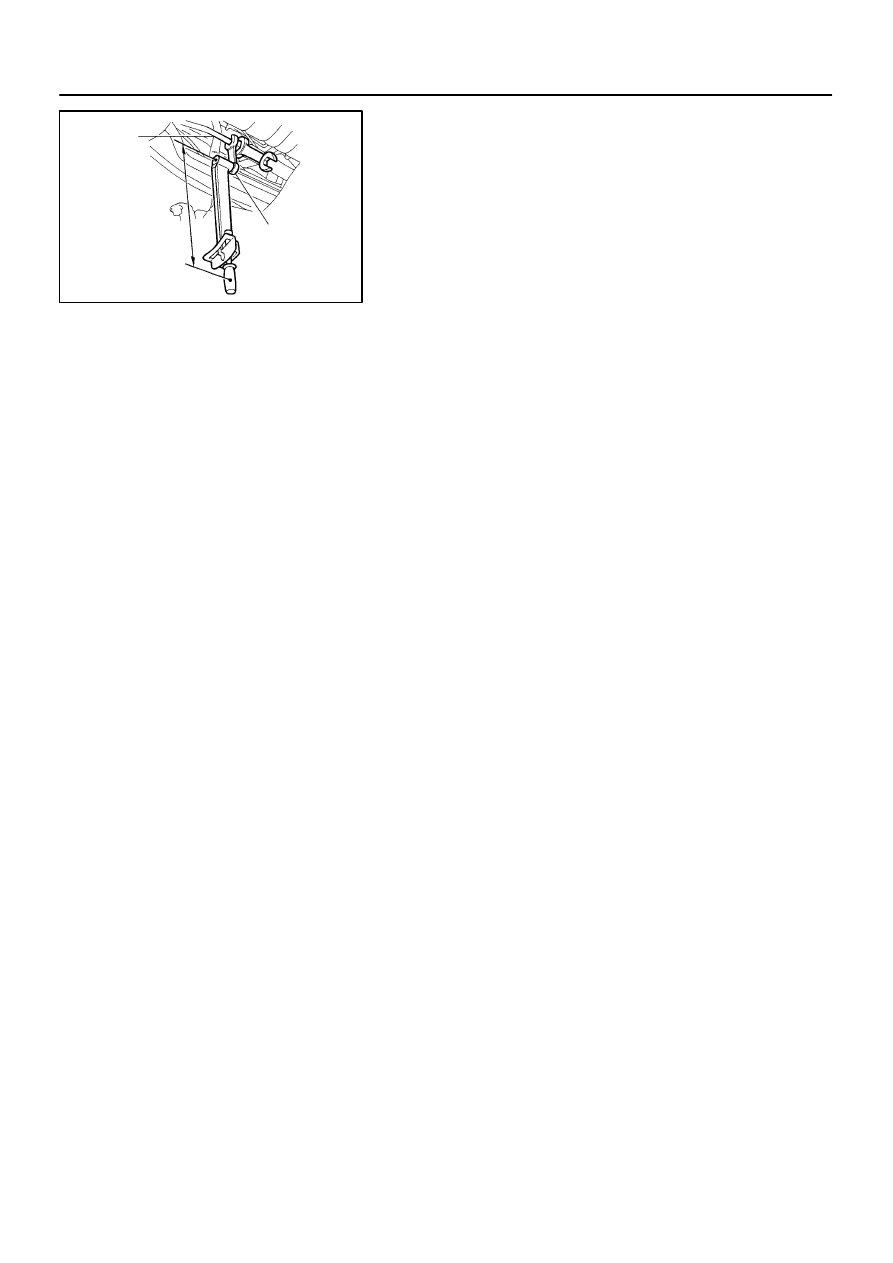

Use a torque wrench with a fulcrum length of 300 mm
(11.81 in.).
This torque value is effective in case that SST is parallel
to a torque wrench.
(b)
Install the 2 clamp plates and 2 holders to the tube.
(c)
Tighten the bolt.
(d)
Install the 2 clamp plate set nuts.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
5.
CONNECT RETURN HOSE
6.
INSTALL FRONT FENDER APRON SEAL RH
Tighten the 2 bolts.
7.
BLEED POWER STEERING SYSTEM
(See page
