Lexus ES300 (1997 year). Manual - part 493

IN–36

–

INTRODUCTION

TERMS

1997 LEXUS ES300 (RM511U)

TCM

Transmission Control Module

Transmission ECU (Electronic Control Unit)

Throttle Position

Transmission Range

–

TVV

Thermal Vacuum Valve

Bimetallic Vacuum Switching Valve (BVSV)

Thermostatic Vacuum Switching Valve (TVSV)

TWC

Three–Way Catalytic Converter

Three–Way Catalytic (TWC)

TWC+OC

Three–Way + Oxidation Catalytic Converter

+ CCo

VAF

Volume Air Flow

Air Flow Meter

Voltage Regulator

VSS

Vehicle Speed Sensor

Vehicle Speed Sensor (Read Switch Type)

WOT

Wide Open Throttle

Full Throttle

WU–OC

Warm Up Oxidation Catalytic Converter

–

WU–TWC

Warm Up Three–Way Catalytic Converter

Manifold Converter

3GR

Third Gear

–

4GR

Fourth Gear

–

B01077

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

10W–30

5W–30 PREFERRED

Recommended Viscosity (SAE):

F –20

–29

100

–7

–18

S05626

S05624

SST

LU01P–01

S05623

Oil Pressure Gauge

–

LUBRICATION

OIL AND FILTER

LU–1

954

1997 LEXUS ES300 (RM511U)

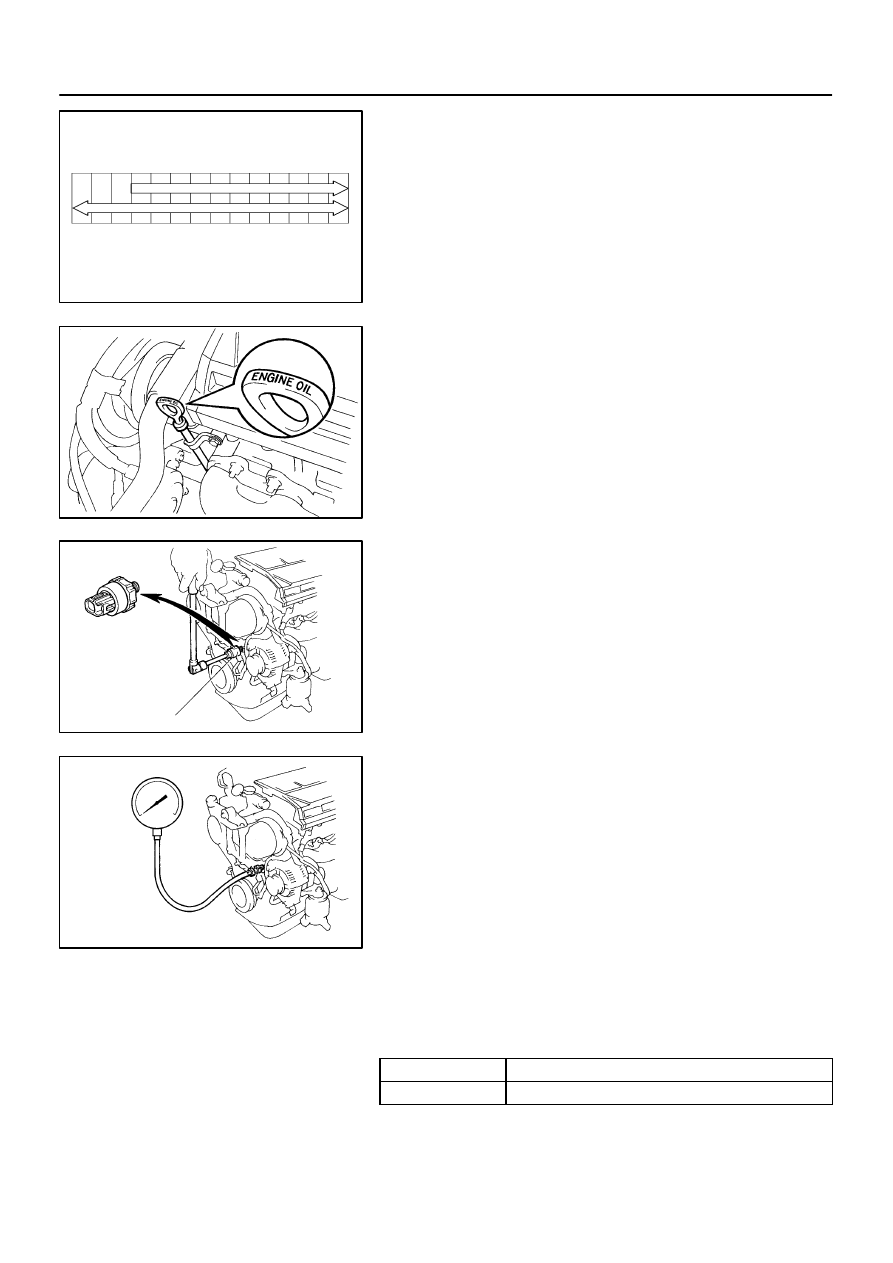

OIL AND FILTER

INSPECTION

CHECK ENGINE OIL QUALITY

Check the oil for deterioration, entry of water, discoloring or thin-
ning.
If the quality is visibly poor, replace the oil.

Oil grade:
API grade SH, Energy–Conserving II or SJ, Energy–
Conserving or ILSAC multigrade engine oil.
SAE 5W–30 is the best choice for your vehicle, for
good fuel economy, and good starting in cold weath-
er.

CHECK ENGINE OIL LEVEL

After warm up the engine and then 5 minutes after the engine
stop, oil level should be between the ”L” and ”F” of the dipstick.
If low, check for leakage and add oil up to the ”F” mark.
NOTICE:

Do not fill with engine oil above the ”F” mark.

Install the oil dipstick facing the direction shown in
the illustration.

REMOVE OIL PRESSURE SWITCH, AND INSTALL
OIL PRESSURE GAUGE

(a)

Using SST, remove the oil pressure switch.
SST

09816–30010

(b)

Install the oil pressure gauge.

WARM UP ENGINE

Allow the engine to warm up to normal operating temperature.
5.

CHECK OIL PRESSURE
Oil pressure:

At idle

29 kPa (0.3 kgf/cm

, 4.3 psi) or more

At 3,000 rpm

294 – 539 kPa (3.0 – 5.5 kgf/cm

, 43 – 78 psi)

P12478

Adhesive

LU–2

–

LUBRICATION

OIL AND FILTER

955

1997 LEXUS ES300 (RM511U)

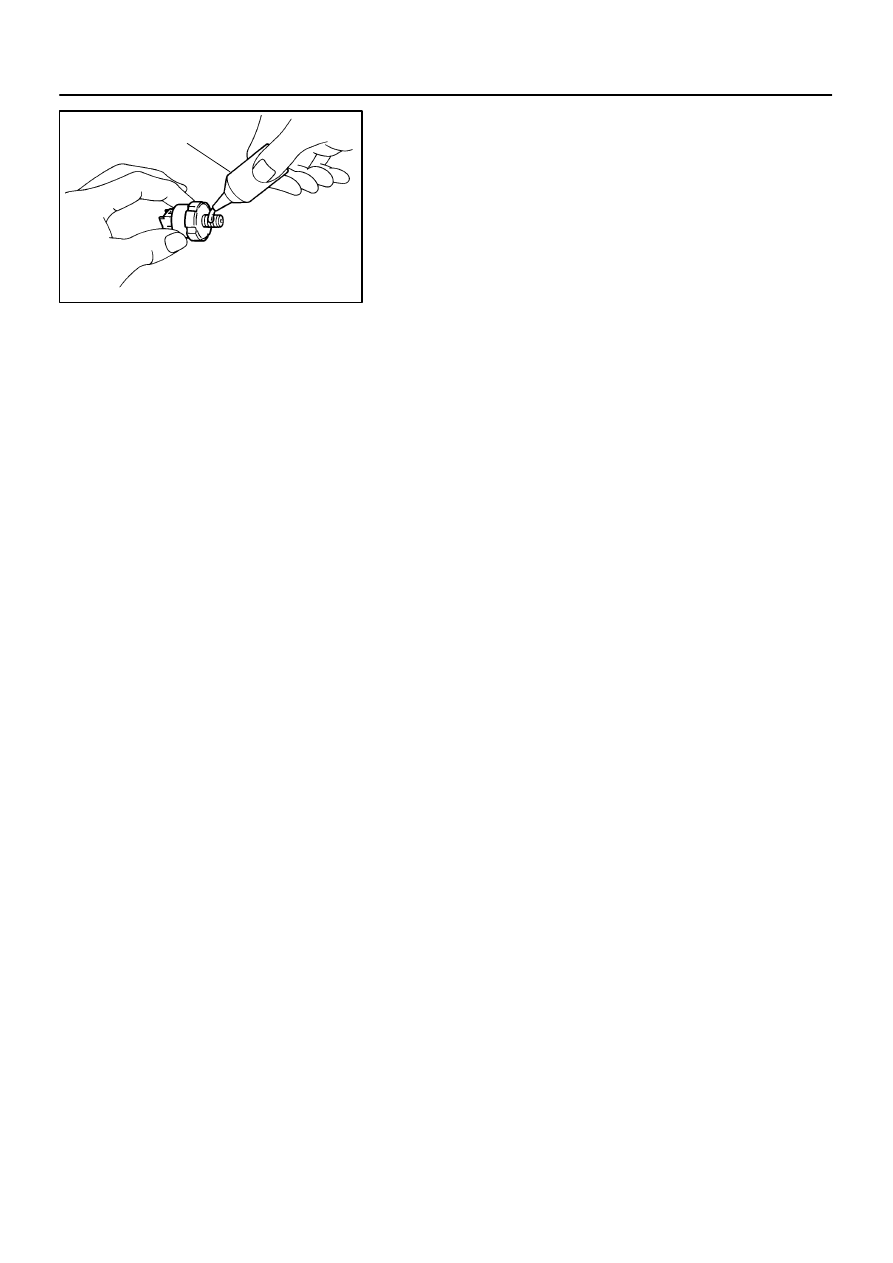

REMOVE OIL PRESSURE GAUGE AND REINSTALL
OIL PRESSURE SWITCH

(a)

Remove the oil pressure gauge.

(b)

Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive: Part No. 08833–00080, THREE BOND 1344,
LOCTITE 242 or equivalent

(c)

Using SST, install the oil pressure switch.
SST

09816–30010

Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)

START ENGINE AND CHECK FOR LEAKS

LU01Q–04

P12486

P12580

SST

P12582

SST

3/4 Turn

–

LUBRICATION

OIL AND FILTER

LU–3

956

1997 LEXUS ES300 (RM511U)

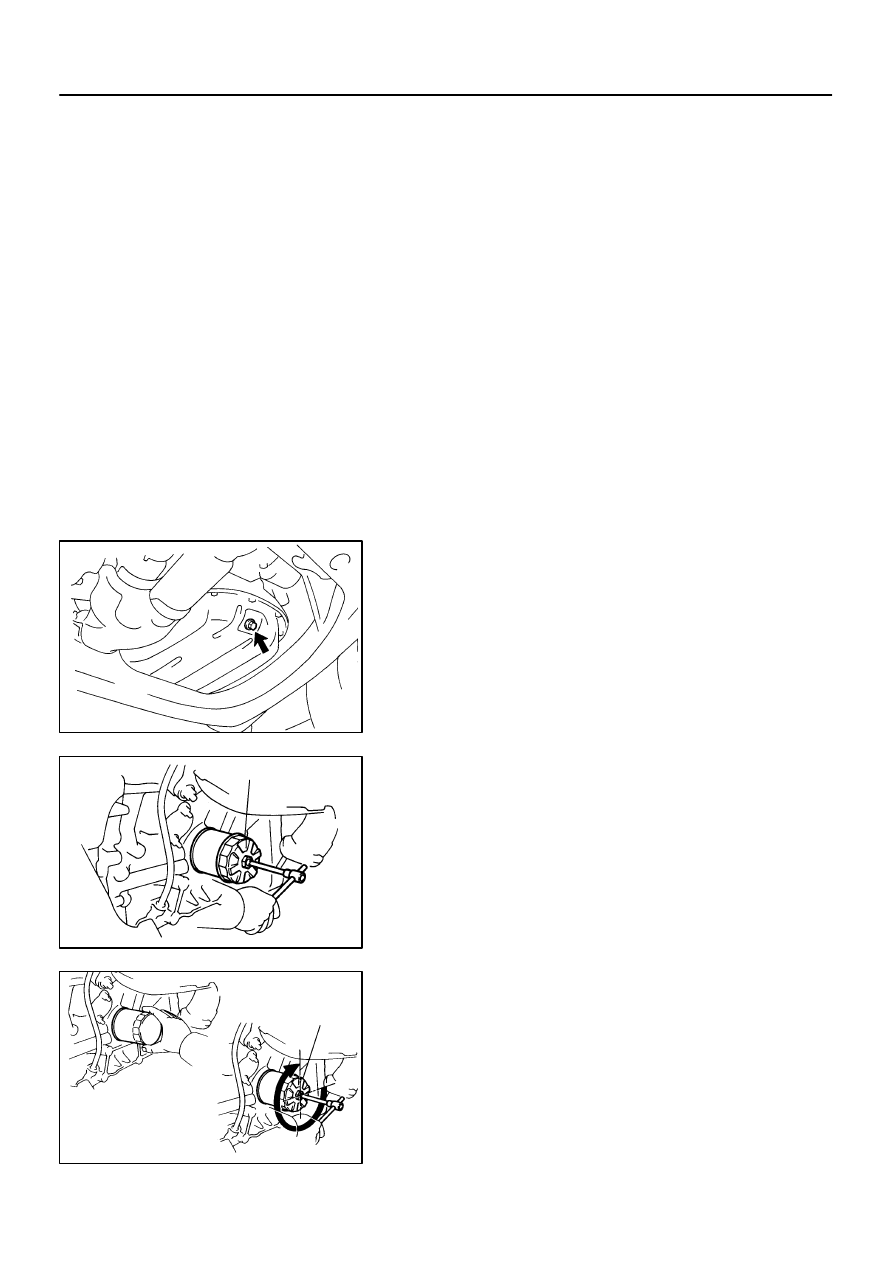

REPLACEMENT

CAUTION:

Prolonged and repeated contact with mineral oil will
result in the removal of natural fats from the skin,
leading to dryness, irritation and dermatitis. In addi-
tion, used engine oil contains potentially harmful
contaminants which may cause skin cancer.

Exercise caution in order to minimize the length and
frequency of contact of your skin to used oil. Wear
protective clothing and gloves. Wash your skin thor-
oughly with soap and water, or use water–less hand
cleaner, to remove any used engine oil. Do not use
gasoline, thinners, or solvents.

In order to preserve the environment, used oil and
used oil filter must be disposed of only at designated
disposal sites.

DRAIN ENGINE OIL

(a)

Remove the oil filler cap.

(b)

Remove the oil drain plug, and drain the oil into a contain-
er.

REPLACE OIL FILTER

(a)

Using SST, remove the oil filter.
SST

09228–07501

(b)

Check and clean the oil filter installation surface.

(c)

Apply clean engine oil to the gasket of a new oil filter.

(d)

Lightly screw the oil filter into place, and tighten it until the
gasket contacts the seat.

(e)

Using SST, tighten it an additional 3/4 turn.
SST

09228–07501
