ENGINE MECHANICAL

CYLINDER HEAD

EM–33

770

1997 LEXUS ES300   (RM511U)

22.

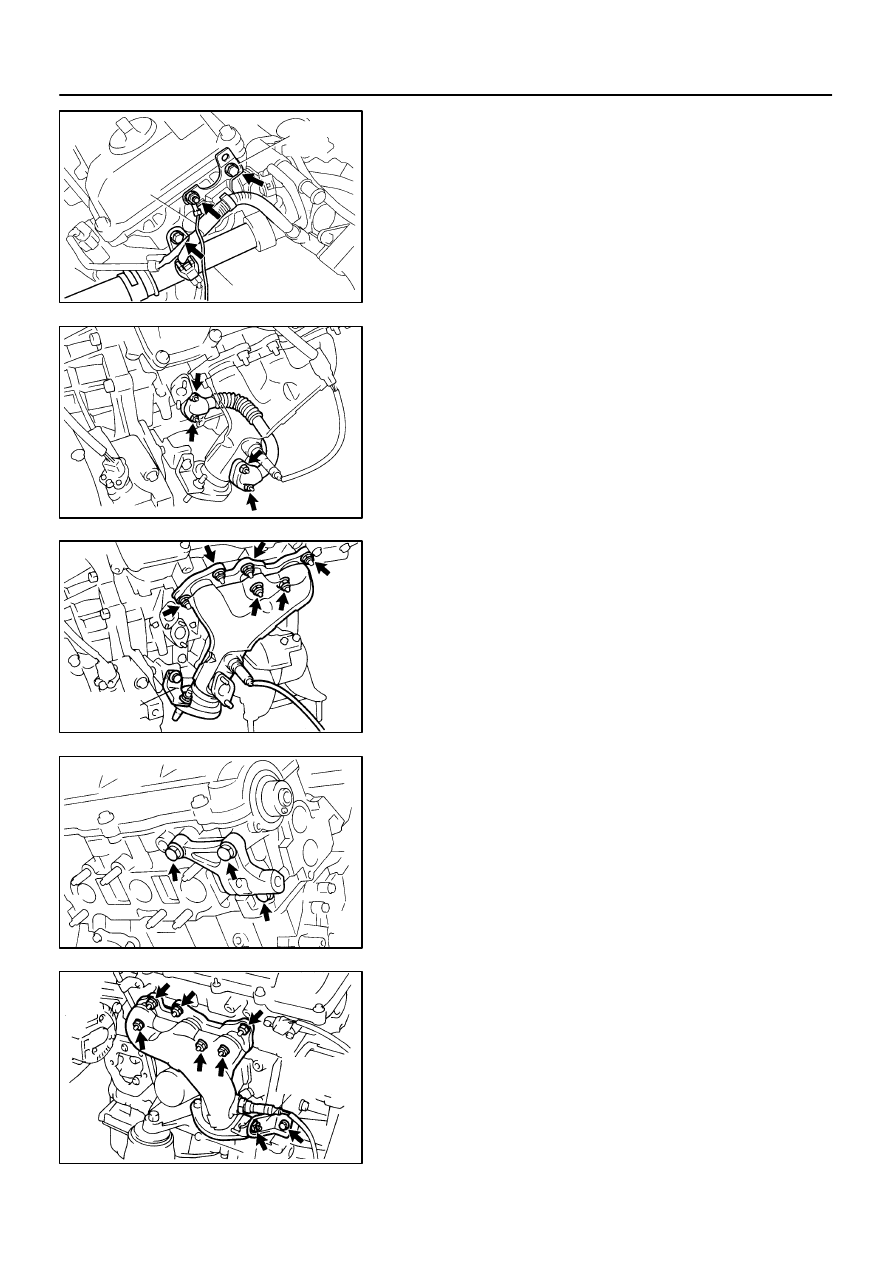

DISCONNECT CYLINDER HEAD REAR PLATE
FROM LH CYLINDER HEAD

(a)

Remove the nut, and disconnect the ground strap.

(b)

Remove the bolt, and disconnect the rear plate.

23.

DISCONNECT WATER INLET PIPE FROM LH
CYLINDER HEAD AND WATER INLET

(a)

Remove the bolt, and disconnect the inlet pipe from the
water inlet.

(b)

Remove the O–ring from the inlet pipe.

24.

REMOVE NO.1 EGR PIPE

Remove the 4 nuts, EGR pipe and 2 gaskets.

25.

REMOVE RH EXHAUST MANIFOLD

(a)

Disconnect the oxygen sensor (bank 1 sensor 1) connec-
tor.

(b)

Remove the bolt, nut and exhaust manifold stay.

(c)

Remove the 6 nuts, exhaust manifold and gasket.

26.

REMOVE PS PUMP BRACKET

Remove the 3 bolts and pump bracket.

27.

REMOVE LH EXHAUST MANIFOLD

(a)

Disconnect the heated oxygen sensor connector.

(b)

Remove the bolt, nut and exhaust manifold stay.

(c)

Remove the 6 nuts, exhaust manifold and gasket.

28.

REMOVE CAMSHAFT POSITION SENSOR

P12710

O–Ring

P12425

P12811

Align

Intake

P12871

Intake

Main Gear

Sub–Gear

Service Bolt

EM–34

–

ENGINE MECHANICAL

CYLINDER HEAD

771

1997 LEXUS ES300   (RM511U)

29.

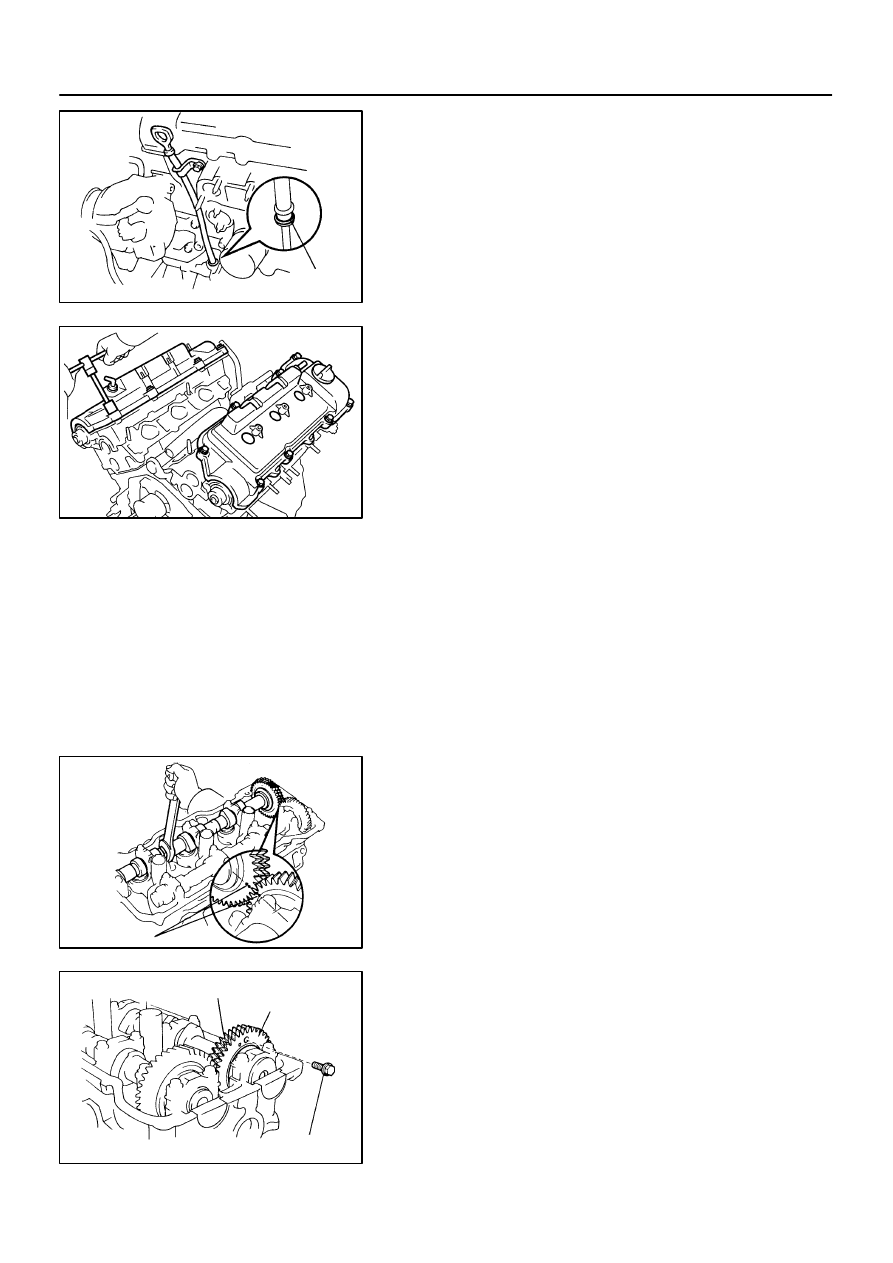

REMOVE OIL DIPSTICK AND GUIDE

(a)

Remove the bolt holding the dipstick guide to the LH cylin-
der head.

(b)

Pull out the dipstick guide together with the dipstick from
the No.1 oil pan.

(c)

Remove the O–ring from the dipstick guide.

30.

REMOVE CYLINDER HEAD COVERS

Remove the 8 bolts, cylinder head cover and gasket. Remove
the 2 cylinder head covers.

31.

REMOVE CAMSHAFTS OF RH CYLINDER HEAD

NOTICE:
Since the thrust clearance of the camshaft is small, the
camshaft must be held level while it is being removed. If the
camshaft is not kept level, the portion of the cylinder head
receiving the shaft thrust may crack or be damaged, caus-
ing the camshaft to seize or break. To avoid this, the follow-
ing steps should be carried out.

(a)

Remove the intake camshaft.
(1)

Align the timing marks (2 dot marks) of the camshaft
drive and driven gears by turning the camshaft with
a wrench.

(2)

Secure the exhaust camshaft sub–gear to the main
gear with a service bolt.

Recommended service bolt:
Thread diameter  6 mm
Thread pitch  1.0 mm
Bolt length  16 – 20 mm

HINT:
When removing the camshaft, mark certain that the torsional
spring force of the sub–gear has been eliminated by the above
operation.

P12780

Intake

7

8

5

6

3

4

1

2

9

10

P12888

7

8

5

6

3

4

1

2

9

10

Exhaust

P12917

Align

Intake

P12873

Intake

Main Gear

Sub–Gear

Service Bolt

–

ENGINE MECHANICAL

CYLINDER HEAD

EM–35

772

1997 LEXUS ES300   (RM511U)

(3)

Uniformly loosen and remove the 10 bearing cap
bolts, in several passes, in the sequence shown.

(4)

Remove the 5 bearing caps and intake camshaft.

(b)

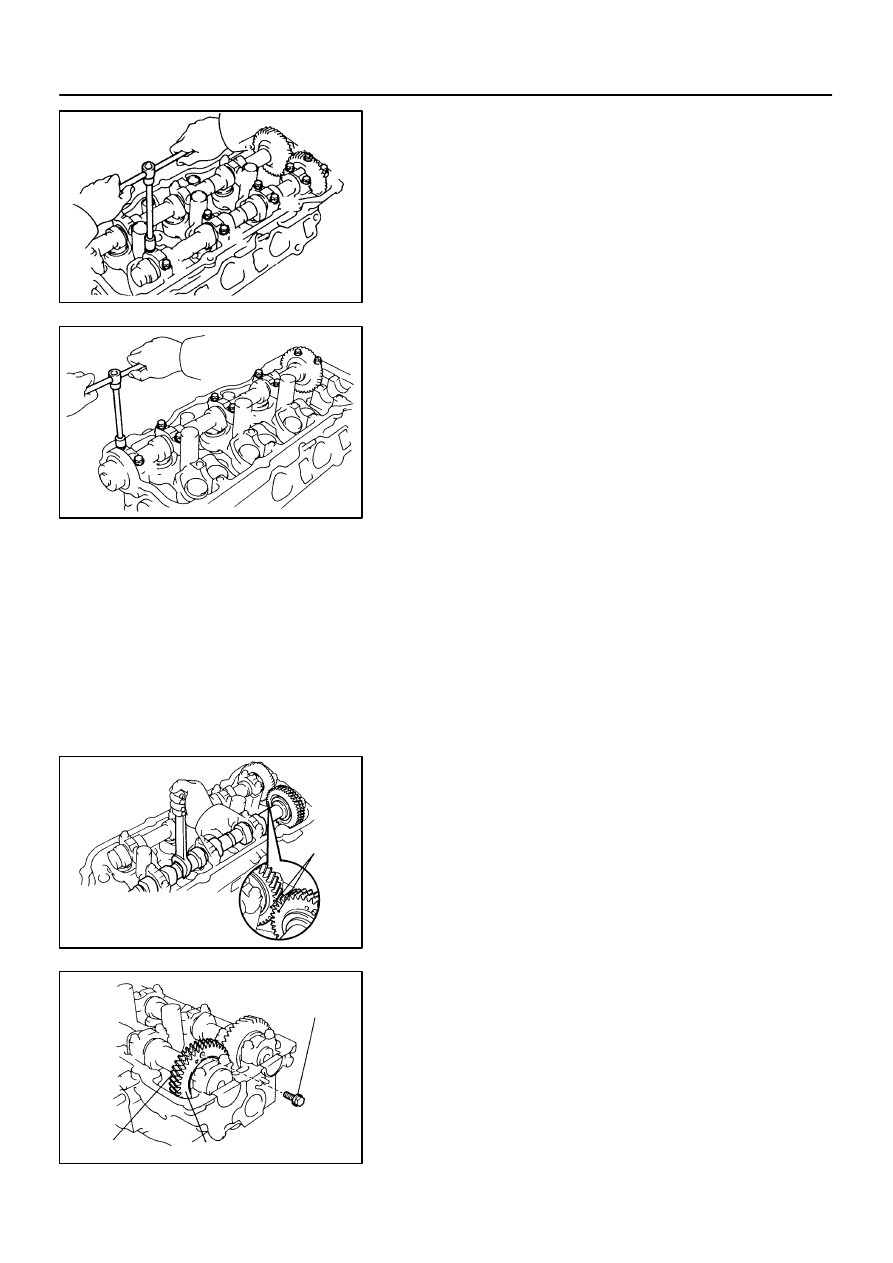

Remove the exhaust camshaft.
(1)

Uniformly loosen and remove the 10 bearing cap
bolts, in several passes, in the sequence shown.

(2)

Remove the 5 bearing caps, oil seal and exhaust
camshaft.

32.

REMOVE CAMSHAFTS OF LH CYLINDER HEAD

NOTICE:
Since the thrust clearance of the camshaft is small, the
camshaft must be held level while it is being removed. If the
camshaft is not kept level, the portion of the cylinder head
receiving the shaft thrust may crack or be damaged, caus-
ing the camshaft to seize or break. To avoid this, the follow-
ing steps should be carried out.

(a)

Remove the intake camshaft.
(1)

Align the timing marks (1 dot mark) of the camshaft
drive and driven gears by turning the camshaft with
a wrench.

(2)

Secure the exhaust camshaft sub–gear to the main
gear with a service bolt.

Recommended service bolt:
Thread diameter  6 mm
Thread pitch  1.0 mm
Bolt length  16 – 20 mm

HINT:
When removing the camshaft, make sure that the torsional
spring force of the sub–gear has been eliminated by the above
operation.

P12958

Intake

7

8

5

6

3

4

1

2

9

10

P12886

7

8

5

6

3

4

1

2

9

10

Exhaust

P12596

P12797

SST

P12590

EM–36

–

ENGINE MECHANICAL

CYLINDER HEAD

773

1997 LEXUS ES300   (RM511U)

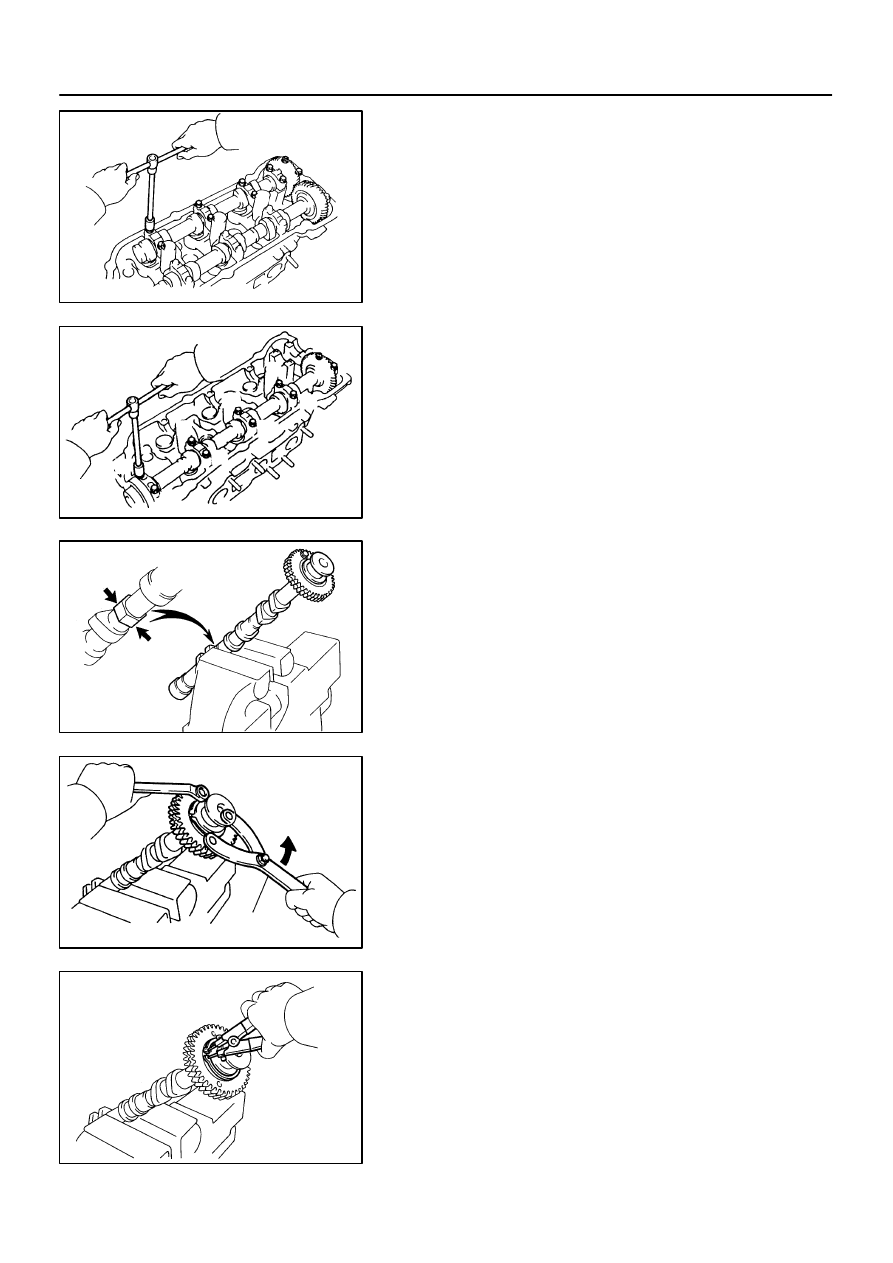

(b)

Uniformly loosen and remove the 10 bearing cap bolts, in
several passes, in the sequence shown.

(c)

Remove the 5 bearing caps and intake camshaft.

(d)

Remove the exhaust camshaft
(1)

Uniformly loosen and remove the 10 bearing cap
bolts, in several passes, in the sequence shown.

(2)

Remove the 5 bearing caps, oil seal and exhaust
camshaft.

HINT:

Arrange the camshafts in the correct order.

Arrange the bearing caps in the correct order.

33.

DISASSEMBLE EXHAUST CAMSHAFTS

(a)

Mount the hexagonal wrench head portion of the cam-
shaft in a vise.

NOTICE:
Be careful not to damage the camshaft.

(b)

Using SST, turn the sub–gear counterclockwise, and re-
move the service bolt.
SST

09960–10010 (09962–01000, 09963–00500)

(c)

Using snap ring pliers, remove the snap ring.

(d)

Remove these parts:

Wave washer

Camshaft sub–gear

Camshaft gear spring

HINT:
Arrange the camshaft sub–gears and gear springs (RH and LH
side).
