COOLING
ELECTRIC COOLING FAN
945
1997 LEXUS ES300 (RM511U)
DISASSEMBLY
1.

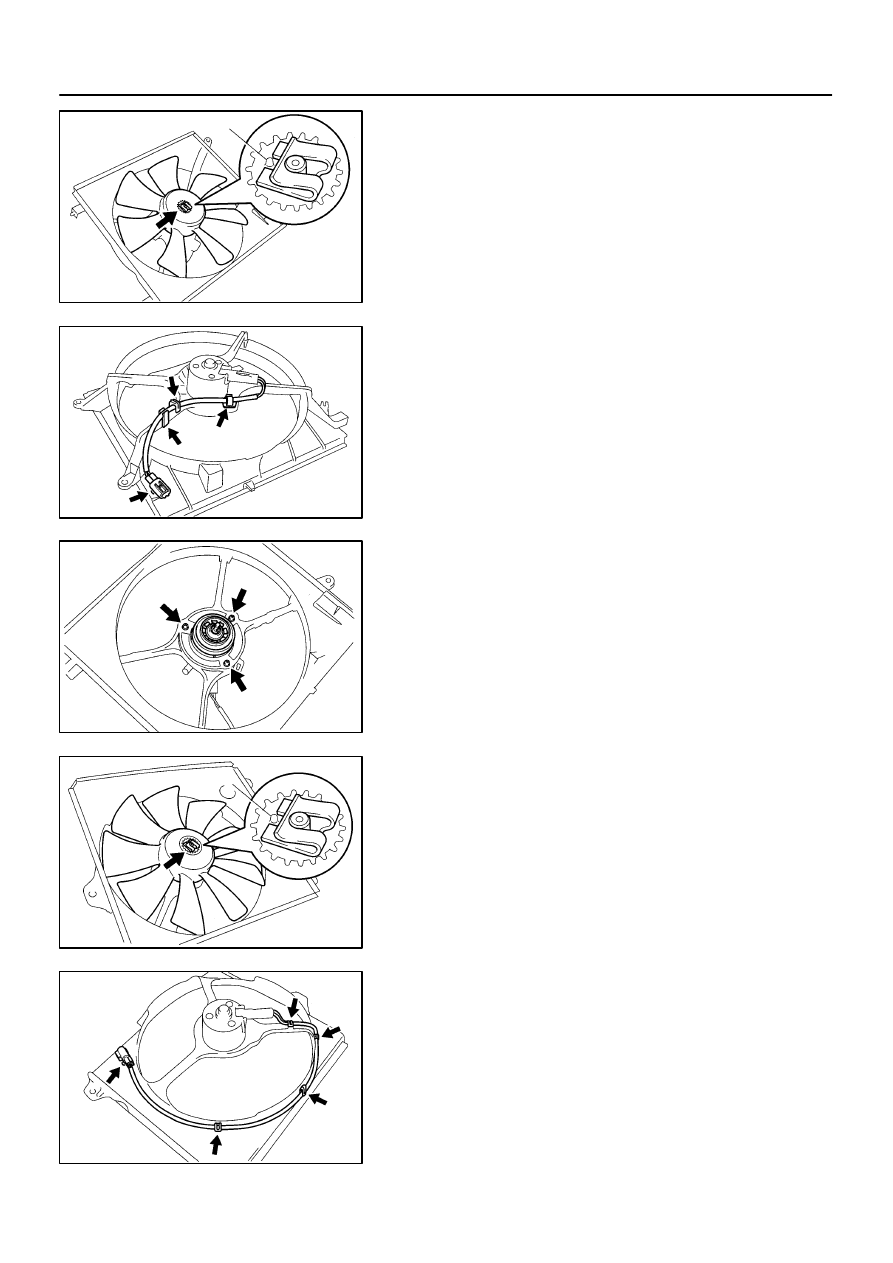

No. 1 cooling fan:
REMOVE FAN
Remove the clip and fan.
NOTICE:
When removing the clip and fan, do not apply too much
force to the motor shaft. And do not scratch the motor
shaft.
HINT:
Install a new clip from the side opposite the protrusion on the
fan.
2.
No. 1 cooling fan:
REMOVE FAN MOTOR
(a)
Disconnect the lead wire from the fan shroud.
(b)
Remove the 3 screws and fan motor.
3.
No. 2 cooling fan:
REMOVE FAN
Remove the clip and fan.
NOTICE:
When removing the clip and fan, do not apply too much
force to the motor shaft. And do not scratch the motor
shaft.
HINT:
Install a new clip from the side opposite the protrusion on the
fan.

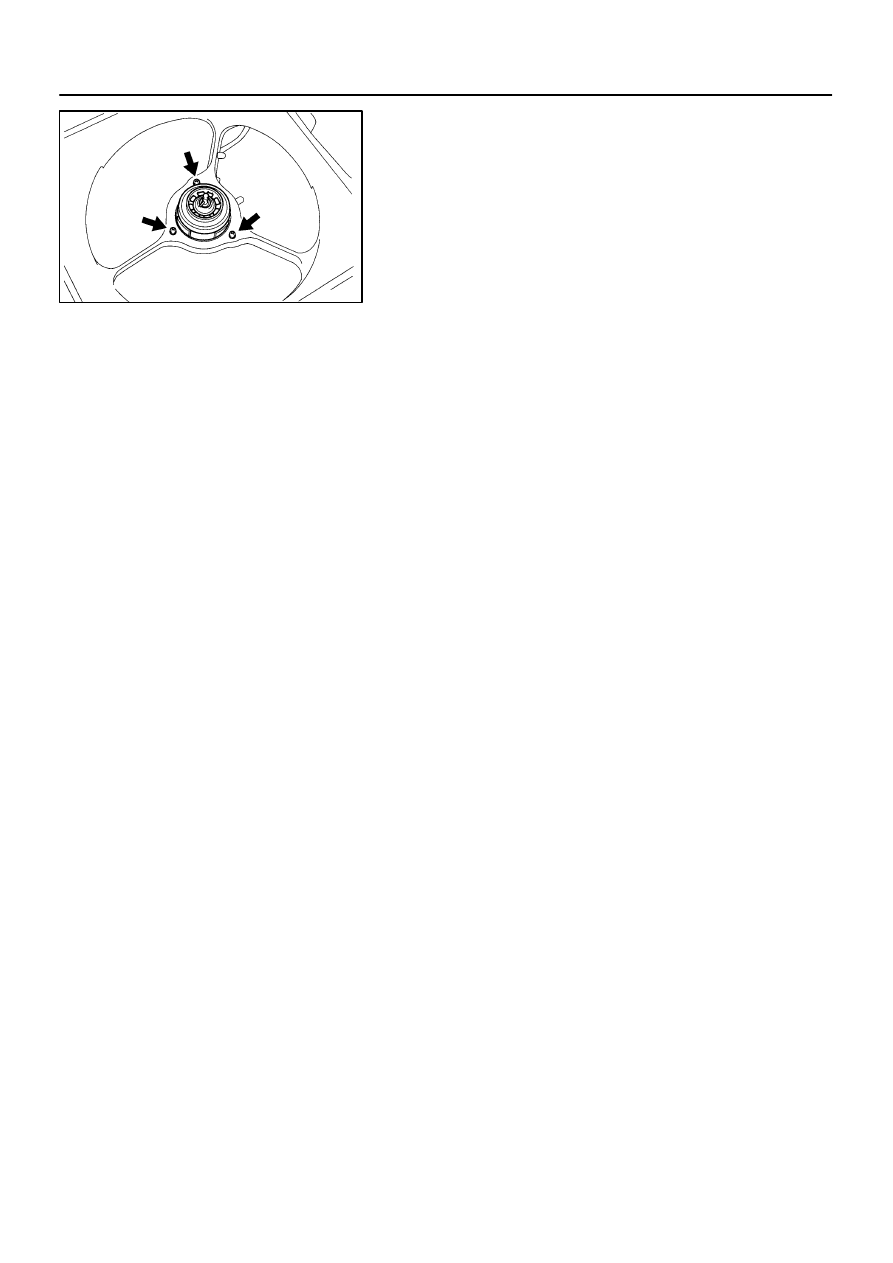

4.
No. 2 cooling fan:
REMOVE FAN MOTOR
(a)
Disconnect the lead wire from the fan shroud.
