Lexus ES300 (1997 year). Manual - part 297

CH01A–01

CH–16

–

CHARGING

GENERATOR

1020

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

CH–6

).

CO02K–01

–

COOLING

COOLANT

CO–1

918

1997 LEXUS ES300   (RM511U)

COOLANT

INSPECTION

1.

CHECK ENGINE COOLANT LEVEL AT RADIATOR RESERVOIR

The engine coolant level should be between the ”LOW” and ”FULL” lines, when the engine is cold.
If low, check for leaks and add engine coolant up to the ”FULL” line.
2.

CHECK ENGINE COOLANT QUALITY

(a)

Remove the radiator cap from the water outlet.

CAUTION:
To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator
are still hot, as fluid and steam can be blown out under pressure.
(b)

There should not be any excessive deposits of rust or scale around the radiator cap or water outlet
filler hole, and the coolant should be free from oil.

If excessively dirty, clean the coolant passages and replace the coolant.
(c)

Reinstall the radiator cap.

CO02L–01

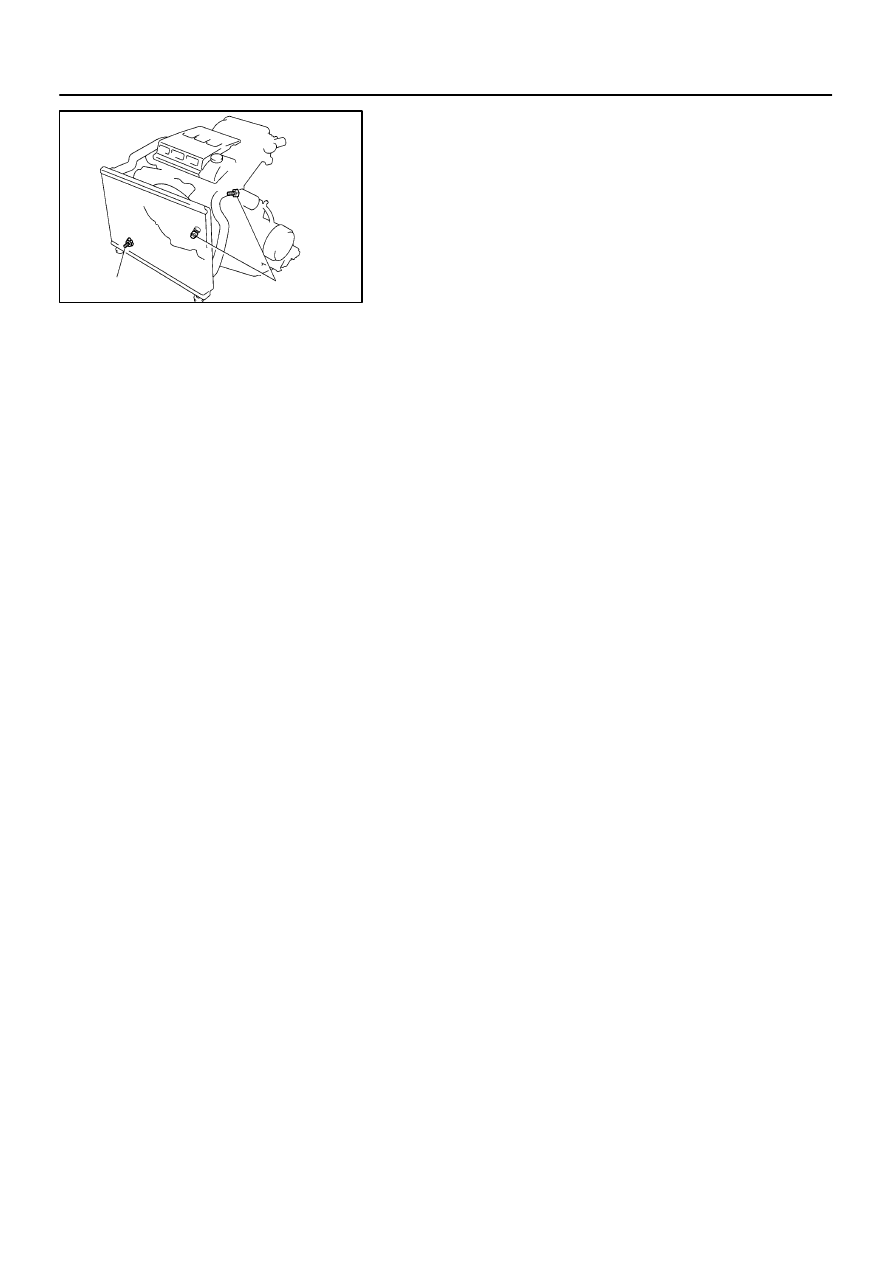

S05511

Drain Plug

Drain Plug

CO–2

–

COOLING

COOLANT

919

1997 LEXUS ES300   (RM511U)

REPLACEMENT

1.

DRAIN ENGINE COOLANT

(a)

Remove the radiator cap from the water outlet.

CAUTION:
To avoid the danger of being burned, do not remove the ra-
diator cap while the engine and radiator are still hot, as fluid
and steam can be blown out under pressure.
(b)

Loosen the radiator drain plug and engine drain plugs,
and drain the coolant.

(c)

Close the drain plugs.
Torque:
RH engine drain plug on EGR cooler:
    7 N·m (70 kgf·cm, 61 in.·lbf)
LH engine drain plug on union:
    13 N·m (130 kgf·cm, 9 ft·lbf)

2.

FILL ENGINE COOLANT

(a)

Slowly fill the system with coolant.

Use a good brand of ethylene–glycol base engine
coolant and mix it according to the manufacturer’s
directions.

Using coolant which includes more than 50 % ethyl-
ene–glycol (but not more than 70 %) is recom-
mended.

NOTICE:

Do not use an alcohol type coolant.

The coolant should be mixed with demineralized wa-
ter or distilled water.
Capacity: 9.2 liters (9.7 US qts, 8.1 lmp. qts)

(b)

Install the radiator cap.

(c)

Start the engine, and bleed the cooling system.

(d)

If necessary, refill coolant into the reservoir up to the
”FULL” line.

3.

CHECK ENGINE COOLANT FOR LEAKS

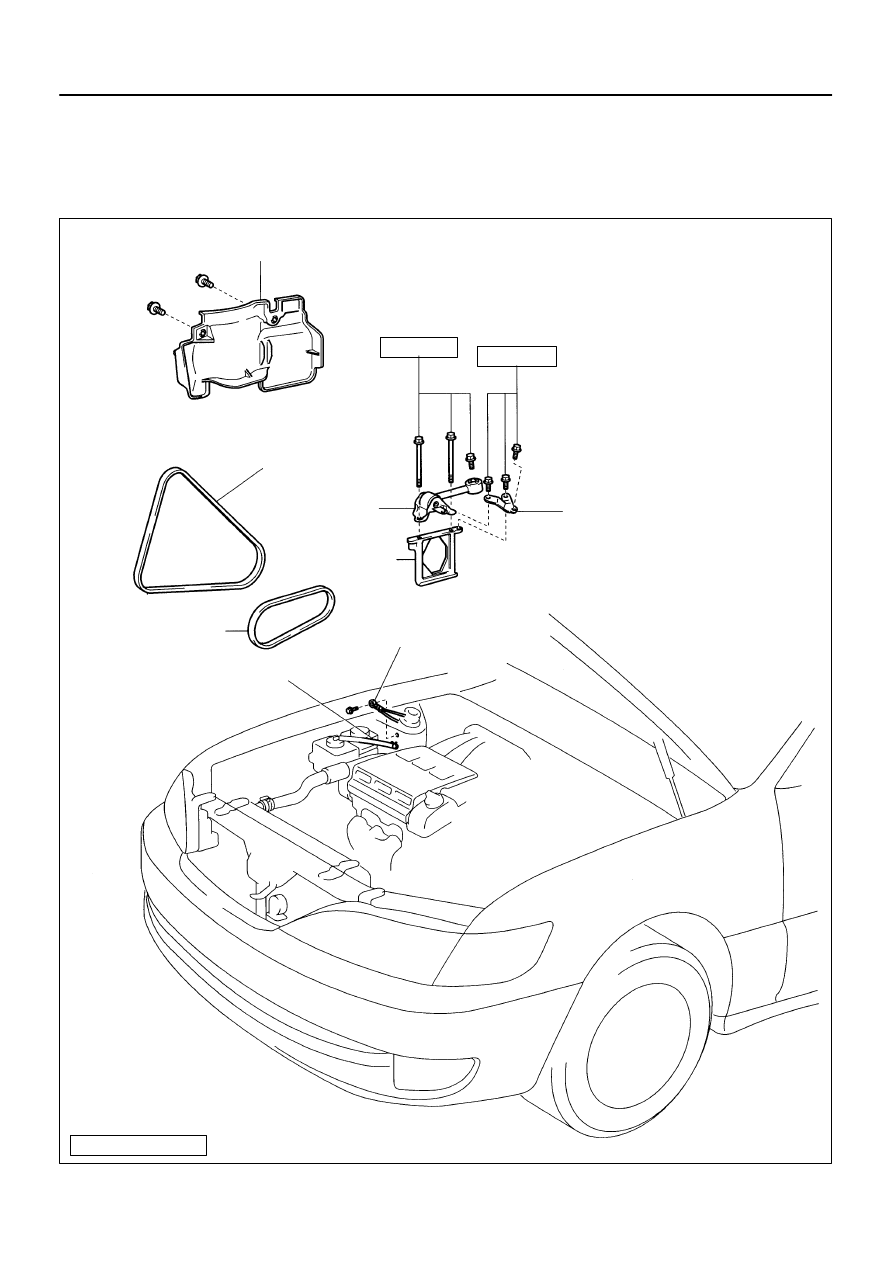

S04770

64 (650, 47)

32 (320, 23)

RH Fender Apron Seal

N·m (kgf·cm, ft·lbf) : Specified torque

Engine Coolant Reservoir Hose

PS Pump Drive Belt

Ground Strap

No.2 RH Engine
Mounting Bracket

Engine Moving
Control Rod

Generator Drive Belt

RH Engine Mounting Stay

CO02M–04

–

COOLING

WATER PUMP

CO–3

920

1997 LEXUS ES300   (RM511U)

WATER PUMP

COMPONENTS
