Lexus ES300 (1997 year). Manual - part 286

BR06T–04

W03262

W03262

Pad Support Plate

Outer Pad

Inner Anti–squeal Shim

Anti–squeal Shim

Anti–squeal Shim

Inner Anti–squeal Shim

Sliding Bushing

Torque Plate

Plug

Caliper

 Gasket

Bleeder Plug

Dust Boot

Main Pin Boot

Piston Seal

Piston

Boot

Main Pin

Inner Pad

Set Ring

N·m (kgf·cm, ft·lbf)

: Specified torque

 Non–reusable part

Lithium soap base glycol grease

Disc brake grease

29 (300, 21)

47 (475, 34)

20 (200, 14)

8.3 (85, 74 in.·lbf)

26 (270, 20)

Dust Boot

29 (300, 21)

–

BRAKE

REAR BRAKE CALIPER

BR–35

1150

1997 LEXUS ES300   (RM511U)

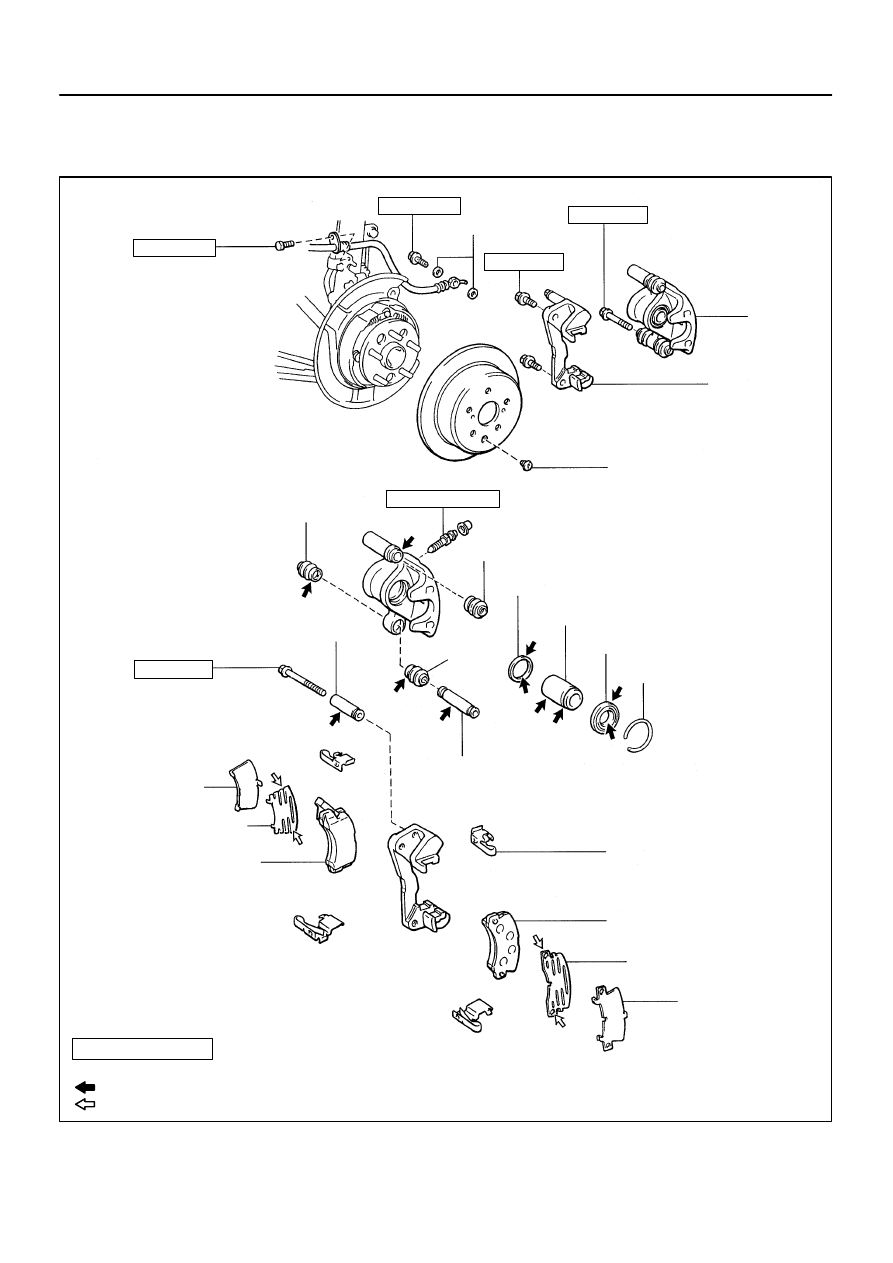

REAR BRAKE CALIPER

COMPONENTS

BR06U–01

W03263

W03264

BR–36

–

BRAKE

REAR BRAKE CALIPER

1151

1997 LEXUS ES300   (RM511U)

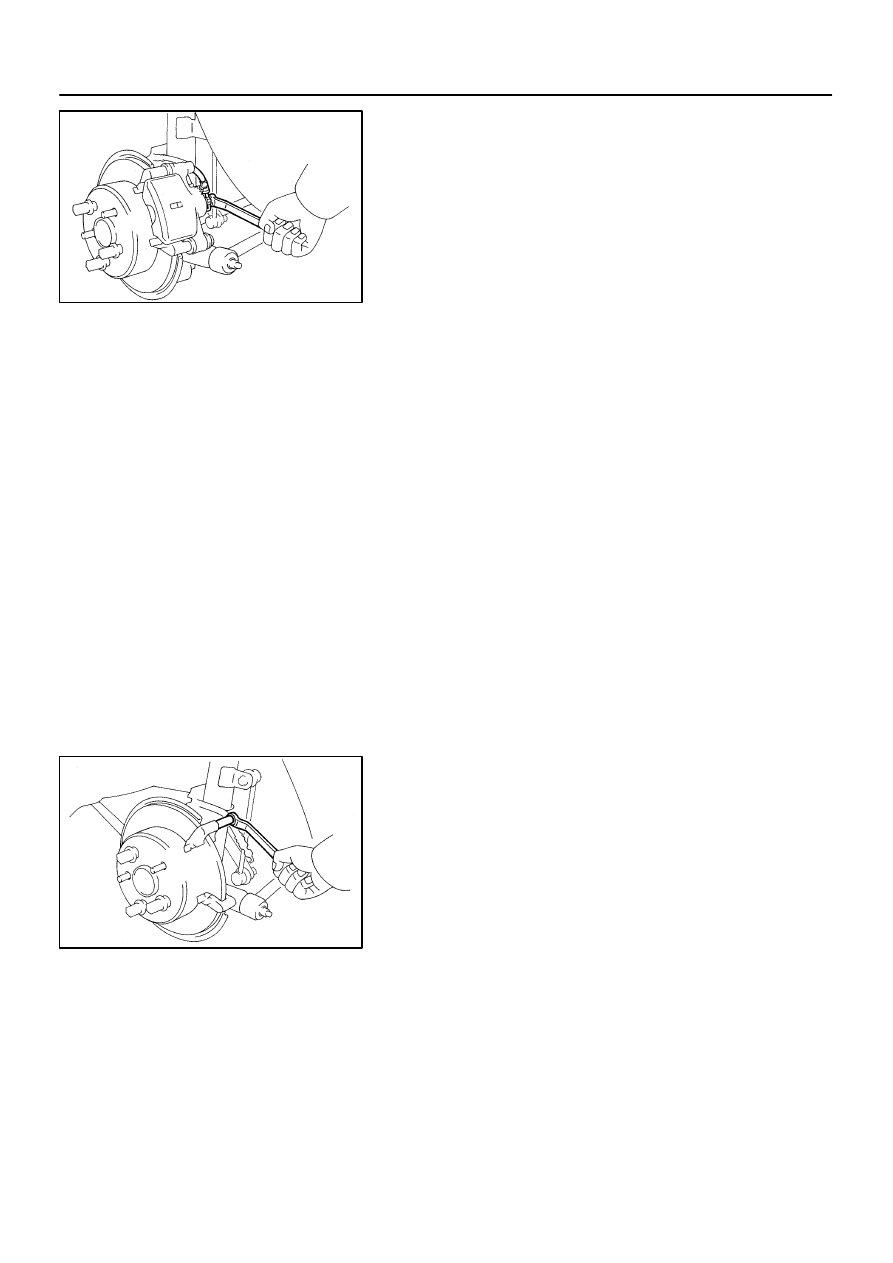

REMOVAL

1.

REMOVE REAR WHEEL

2.

DISCONNECT FLEXIBLE HOSE

(a)

Remove the union bolt and 2 gaskets from the caliper,
then disconnect the flexible hose from the caliper.
Torque: 29 N·m (300 kgf·cm, 21 ft·lbf)

HINT:
At the time of installation, please refer to the following item. In-
sert the flexible hose lock securely in the lock hole in the caliper.
(b)

Use a container to catch the brake fluid as it drains out.

3.

REMOVE CALIPER

(a)

Remove the installation bolt.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)

(b)

Remove the caliper from the torque plate.

4.

REMOVE THESE PARTS:

(a)

2 brake pads with anti–squeal shims

(b)

4 pad support plates

NOTICE:
At the time of installation, please refer to the following item.
There should be no oil or grease adhering to the friction
surfaces of the pads or disc.

5.

REMOVE MAIN PIN

Loosen the main pin installation bolt and remove the main pin.

Torque: 26 N·m (270 kgf·cm, 20 ft·lbf)

BR06V–01

R00520

–

BRAKE

REAR BRAKE CALIPER

BR–37

1152

1997 LEXUS ES300   (RM511U)

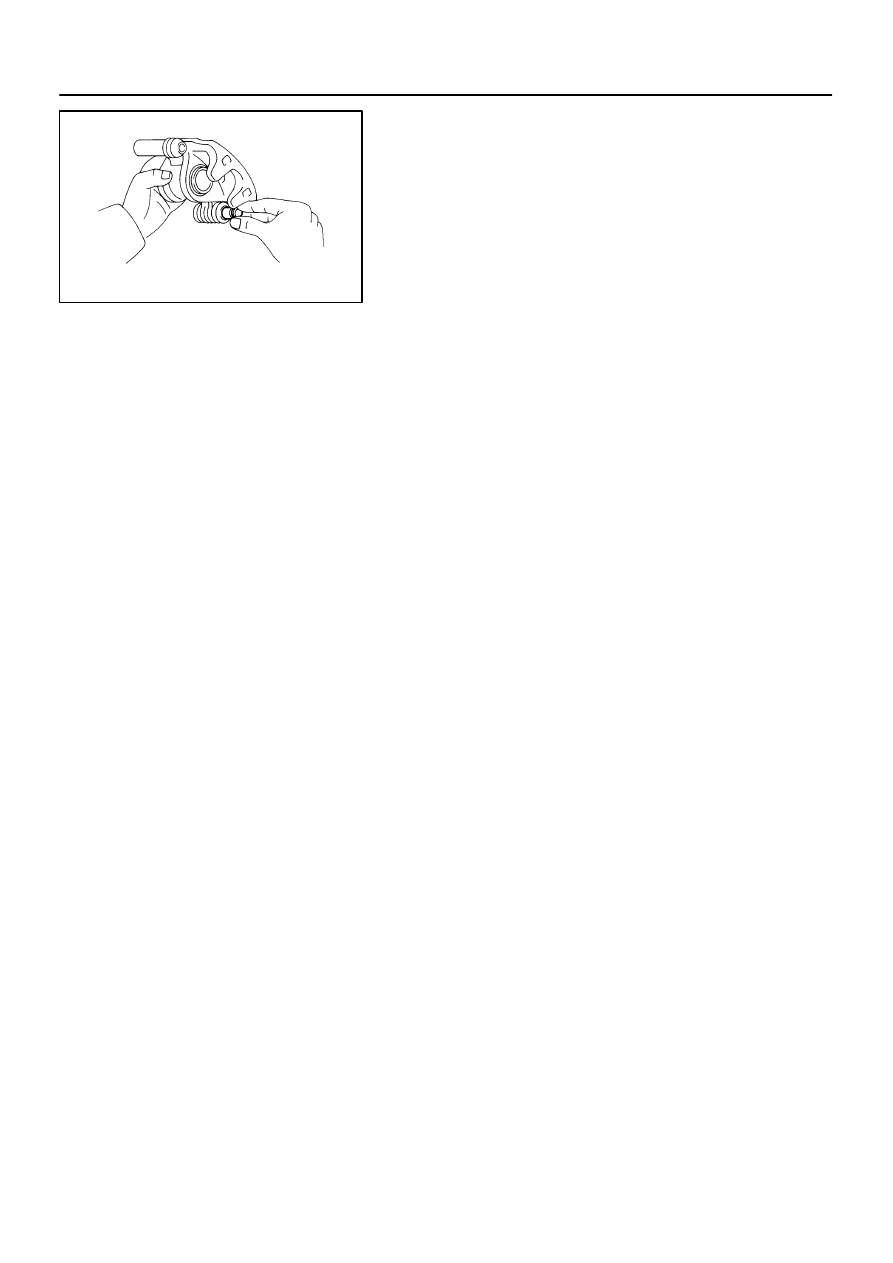

DISASSEMBLY

1.

REMOVE THESE PARTS:

(a)

Sliding bushing

(b)

2 dust boots

(c)

Main pin boot

NOTICE:
Ensure that the boots are secured firmly to the bushing and
caliper grooves.
2.

REMOVE CYLINDER BOOT SET RING AND BOOT
(See step 1 on page

BR–28

)

3.

REMOVE PISTON (See step 2 on page

BR–28

)

4.

REMOVE PISTON SEAL (See step 3 on page

BR–28

)

BR06W–01

W03265

BR–38

–

BRAKE

REAR BRAKE CALIPER

1153

1997 LEXUS ES300   (RM511U)

INSPECTION

1.

MEASURE PAD LINING THICKNESS
(See step 1 on page

BR–29

)

Standard thickness: 10.0 mm (0.394 in.)
Minimum thickness: 1.0 mm (0.039 in.)

2.

MEASURE DISC THICKNESS
(See step 2 on page

BR–29

)

Standard thickness: 10.0 mm (0.394 in.)
Minimum thickness: 9.0 mm (0.354 in.)

3.

MEASURE DISC RUNOUT
(See step 3 on page

BR–29

)

Maximum disc runout: 0.15 mm (0.0059 in.)

If the disc’s runout is maximum value or greater, check the bear-
ing play in the axial direction and check the axle hub runout
(See page

SA–46

). If the bearing play and axle hub runout are

not abnormal, adjust the disc runout or grind it on a ”On–Car”
brake lathe.

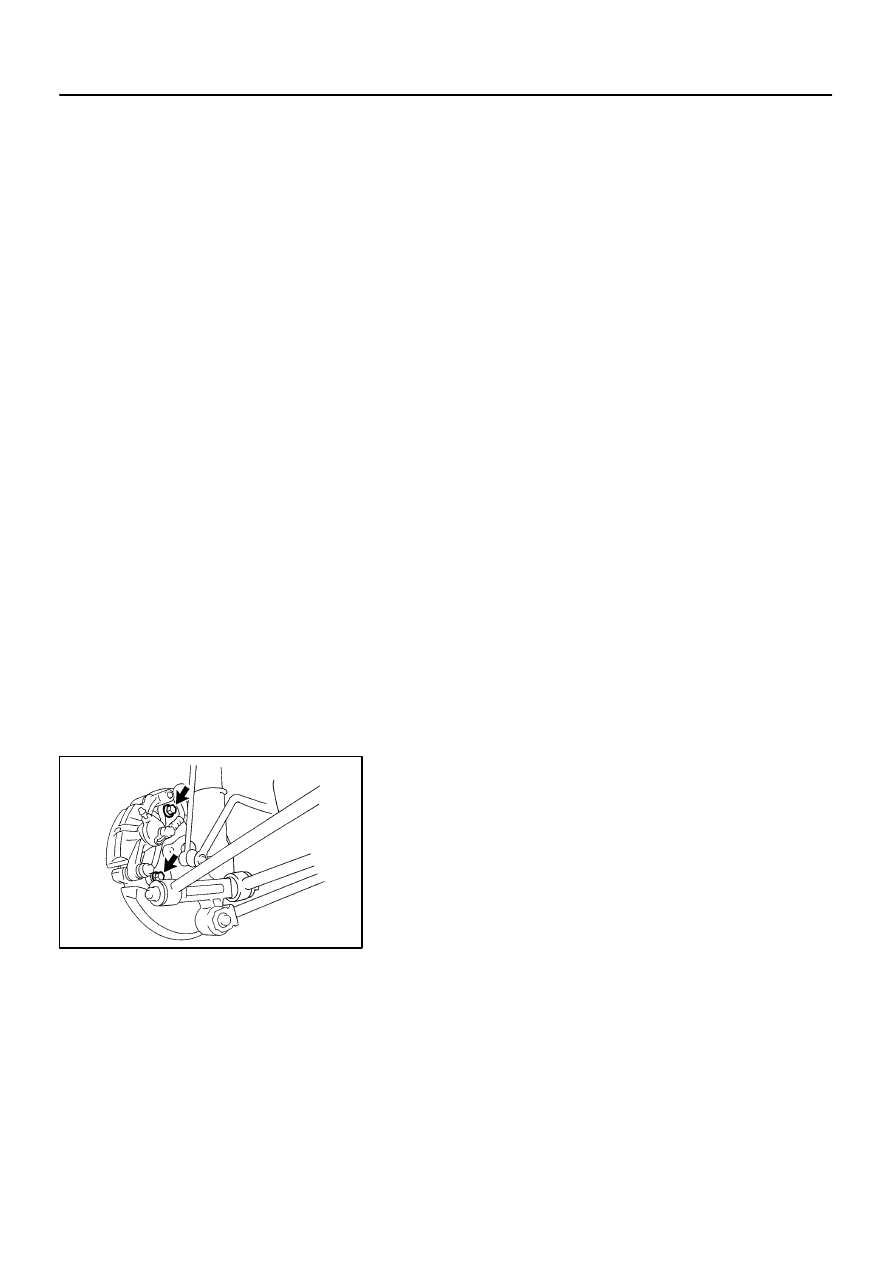

4.

IF NECESSARY, ADJUST DISC RUNOUT

(a)

Remove the 2 bolts and torque plate.

(b)

Remove the hub nuts and the disc. Reinstall the disc in
the position turned 1/5 from its original position on the
hub. Install and torque the hub nuts.
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)
Remeasure the disc runout. Make a note of the runout
and the disc’s position on the hub.

(c)

Repeat (b) until the disc has been installed on the 3 re-
maining hub positions.

(d)

If the minimum runout recorded in (b) and (c) is less than
0.15 mm (0.0059 in.), install the disc in that position.

(e)

If the minimum runout recorded in (b) and (c) is greater
than 0.15 mm (0.0059 in.), replace the disc and repeat
step 3.

(f)

Install the torque plate and torque the mounting bolts.
Torque: 47 N·m (475 kgf·cm, 34 ft·lbf)
