Lexus ES300 (1997 year). Manual - part 281

W03570

W03590

–

BRAKE

BRAKE MASTER CYLINDER

BR–15

1130

1997 LEXUS ES300   (RM511U)

6.

w/ TRAC:

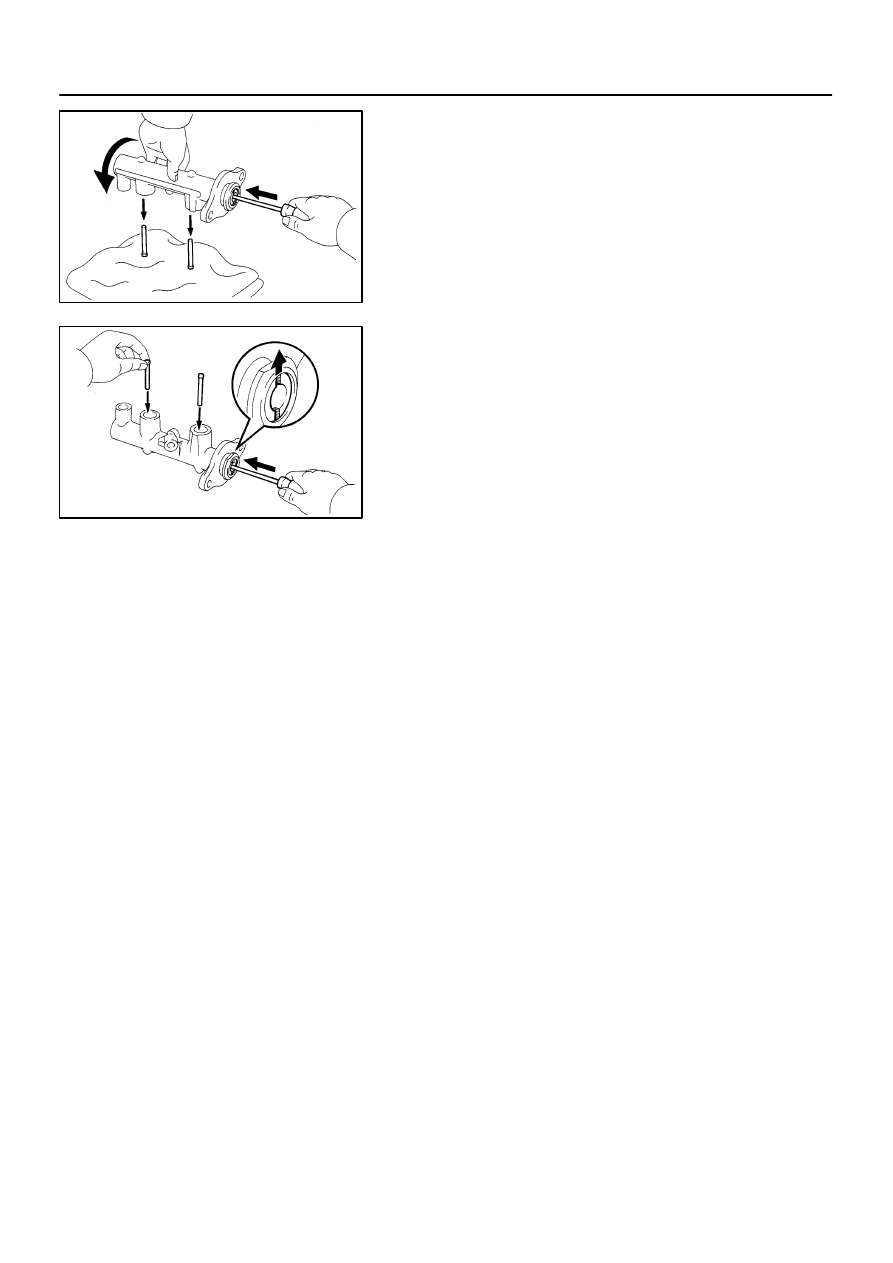

REMOVE 2 PISTONS AND SPRINGS

(a)

Push in the piston with a screwdriver, and remove the 2
straight pins by turning over the cylinder body.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 pistons and springs by hand, pulling
straight out, not at angle.

NOTICE:

If pulled out and installed at an angle, there is a possi-
bility that the cylinder bore could be damaged.

At the time of reassembly, be careful not to damage
the rubber lips on the pistons.

HINT:
At the time of reassembly, insert the pistons with elliptic hole
facing vertically.

BR06C–01

BR–16

–

BRAKE

BRAKE MASTER CYLINDER

1131

1997 LEXUS ES300   (RM511U)

INSPECTION

HINT:
Clean the disassembled parts with compressed air.
1.

INSPECT CYLINDER BORE FOR RUST OR SCORING

2.

INSPECT CYLINDER FOR WEAR OR DAMAGE

If necessary, clean or replace the cylinder.

BR06D–01

–

BRAKE

BRAKE MASTER CYLINDER

BR–17

1132

1997 LEXUS ES300   (RM511U)

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BR–14

).

NOTICE:
Apply lithium soap base glycol grease to the rubber parts indicated by the arrows
(See page

BR–12

).

BR06E–01

BR–18

–

BRAKE

BRAKE MASTER CYLINDER

1133

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BR–13

).

1.

BEFORE INSTALLATION, ADJUST LENGTH OF BRAKE BOOSTER PUSH ROD (See page

BR–22

)

2.

AFTER INSTALLATION, FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE
SYSTEM (See page

BR–4

)

3.

CHECK FOR LEAKS, CHECK AND ADJUST BRAKE PEDAL (See page

BR–6

)
