Lexus ES300 (1997 year). Manual - part 256

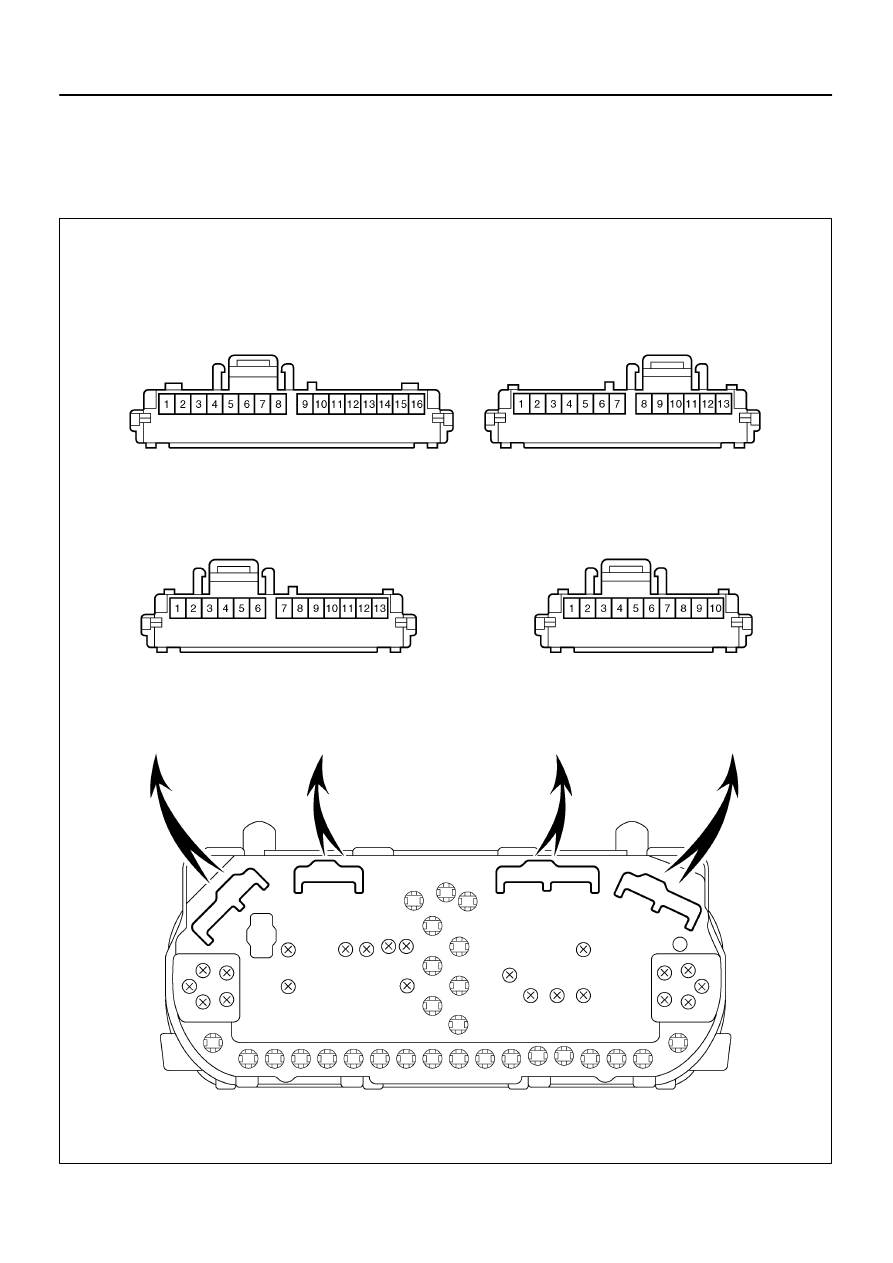

I02678

Connector ”B”

Connector ”D”

Connector ”C”

Connector ”A”

J–13–1

J–10–1

J–16–1

J–13–1–A

Connector ”D”

Connector ”C”

Connector ”B”

Connector ”A”

BE–88

–

BODY ELECTRICAL

COMBINATION METER

1472

1997 LEXUS ES300   (RM511U)

2.

CONNECTOR DIAGRAMS

BE05G–01

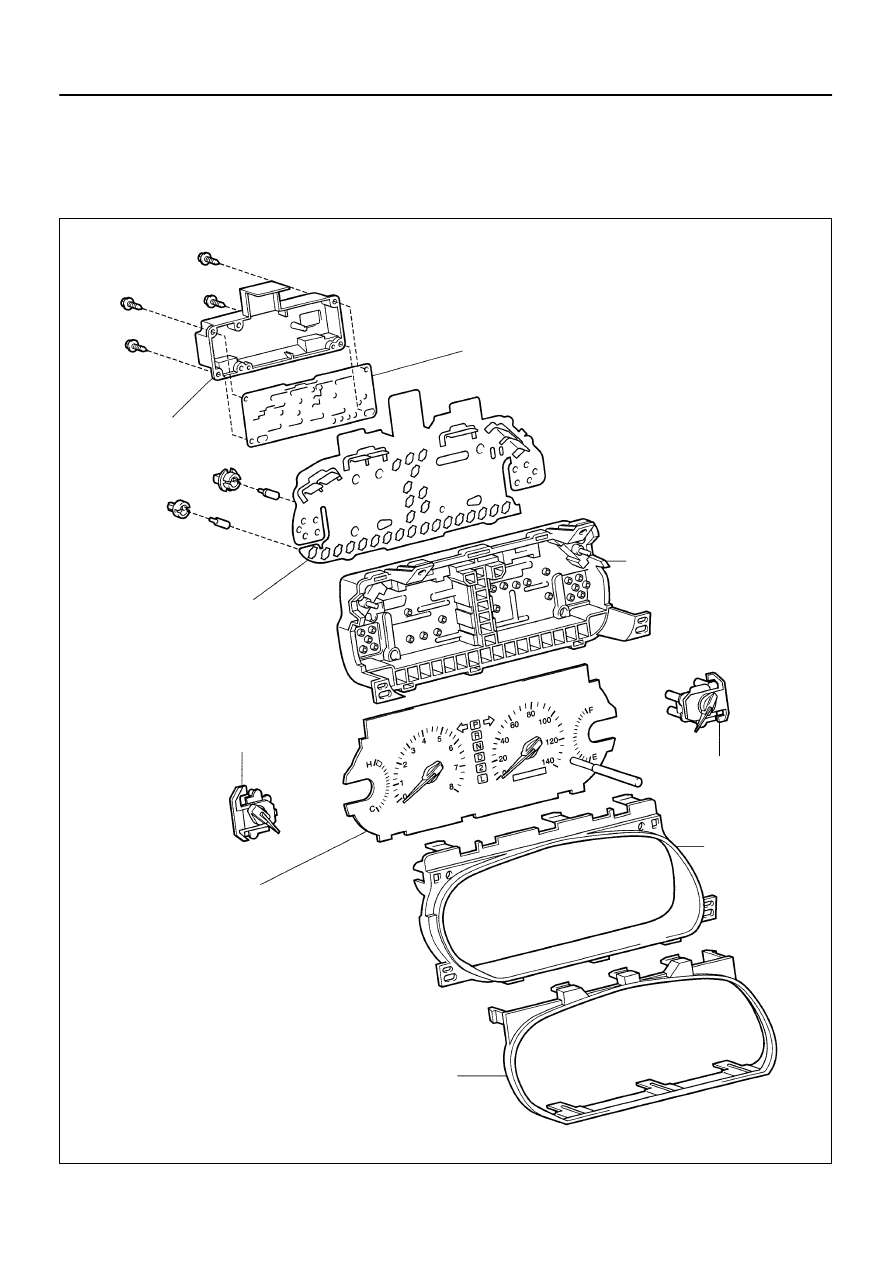

N19977

Combination Meter Computer

Back Case

Meter Circuit Plate

Combination Meter Case

Fuel Receiver Gauge

Speedometer Assembly

Meter Glass

Engine Coolant Temperature
Receive Gauge

Meter Case

–

BODY ELECTRICAL

COMBINATION METER

BE–89

1473

1997 LEXUS ES300   (RM511U)

COMPONENTS

BE05H–01

N19978

N19979

N19980

N19981

N19982

BE–90

–

BODY ELECTRICAL

COMBINATION METER

1474

1997 LEXUS ES300   (RM511U)

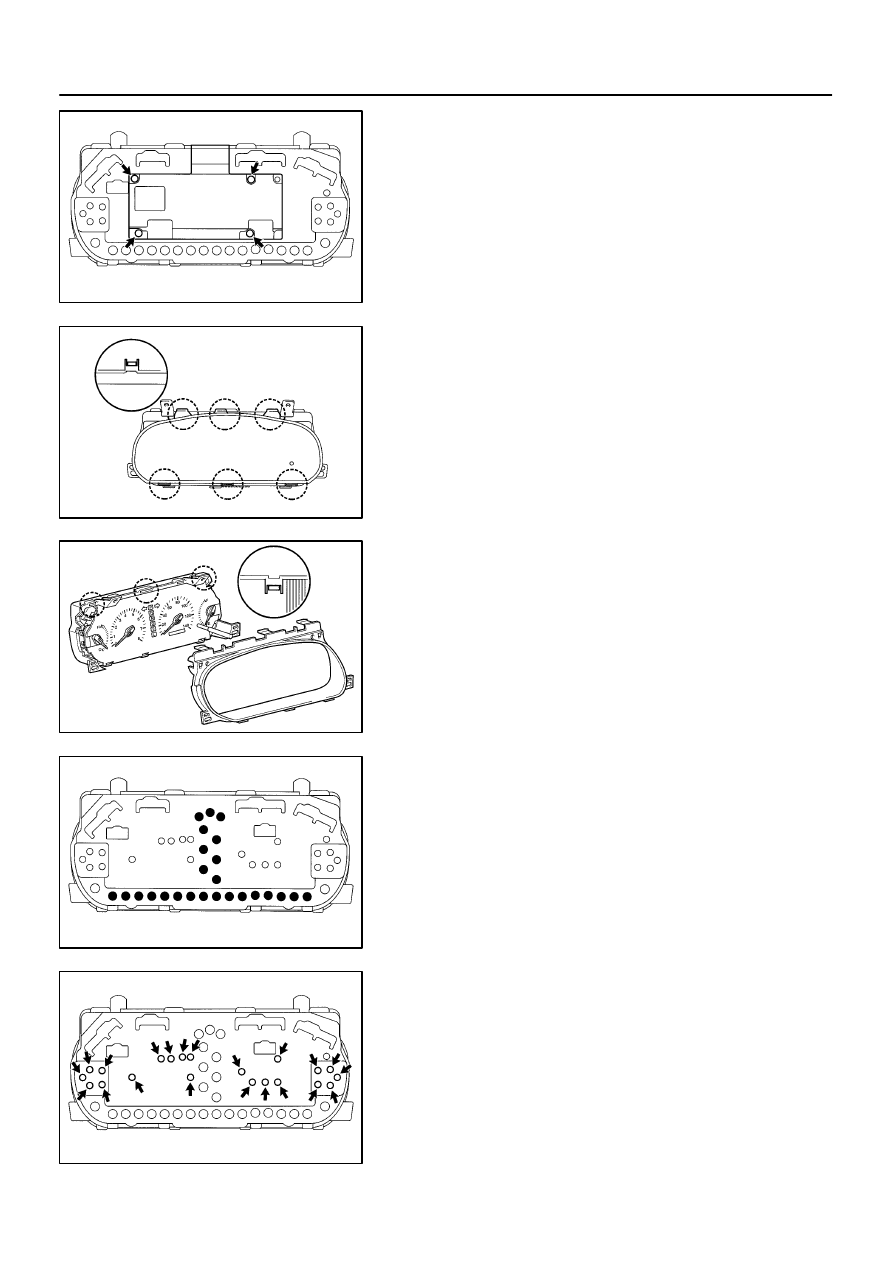

DISASSEMBLY

1.

REMOVE BACK COVER

(a)

Remove the 4 screws.

(b)

Remove the back cover from the meter case.

2.

REMOVE METER GLASS

(a)

Remove the 6 claws.

(b)

Remove the meter glass from the meter case.

3.

REMOVE METER PLATE

(a)

Remove the 3 claws.

(b)

Remove the meter plate from the meter case.

4.

REMOVE METER CIRCUIT PLATE

(a)

Remove the 27 bulbs.

(b)

Remove the 22 screws.

(c)

Remove the meter circuit plate from the meter case.

N19983

–

BODY ELECTRICAL

COMBINATION METER

BE–91

1475

1997 LEXUS ES300   (RM511U)

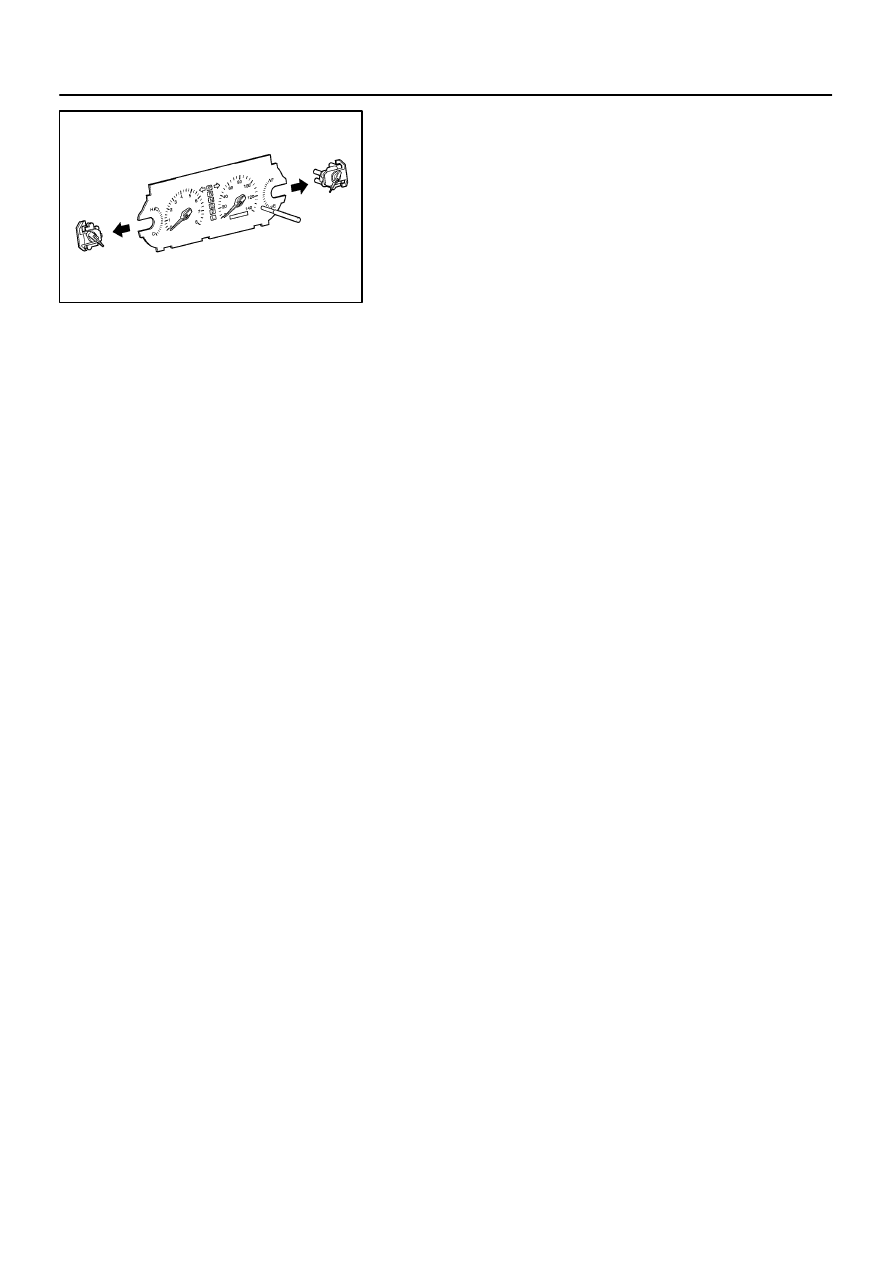

5.

REMOVE SPEEDOMETER ASSEMBLY

6.

REMOVE FUEL GAUGE

7.

REMOVE ENGINE COOLANT TEMPERATURE
GAUGE
