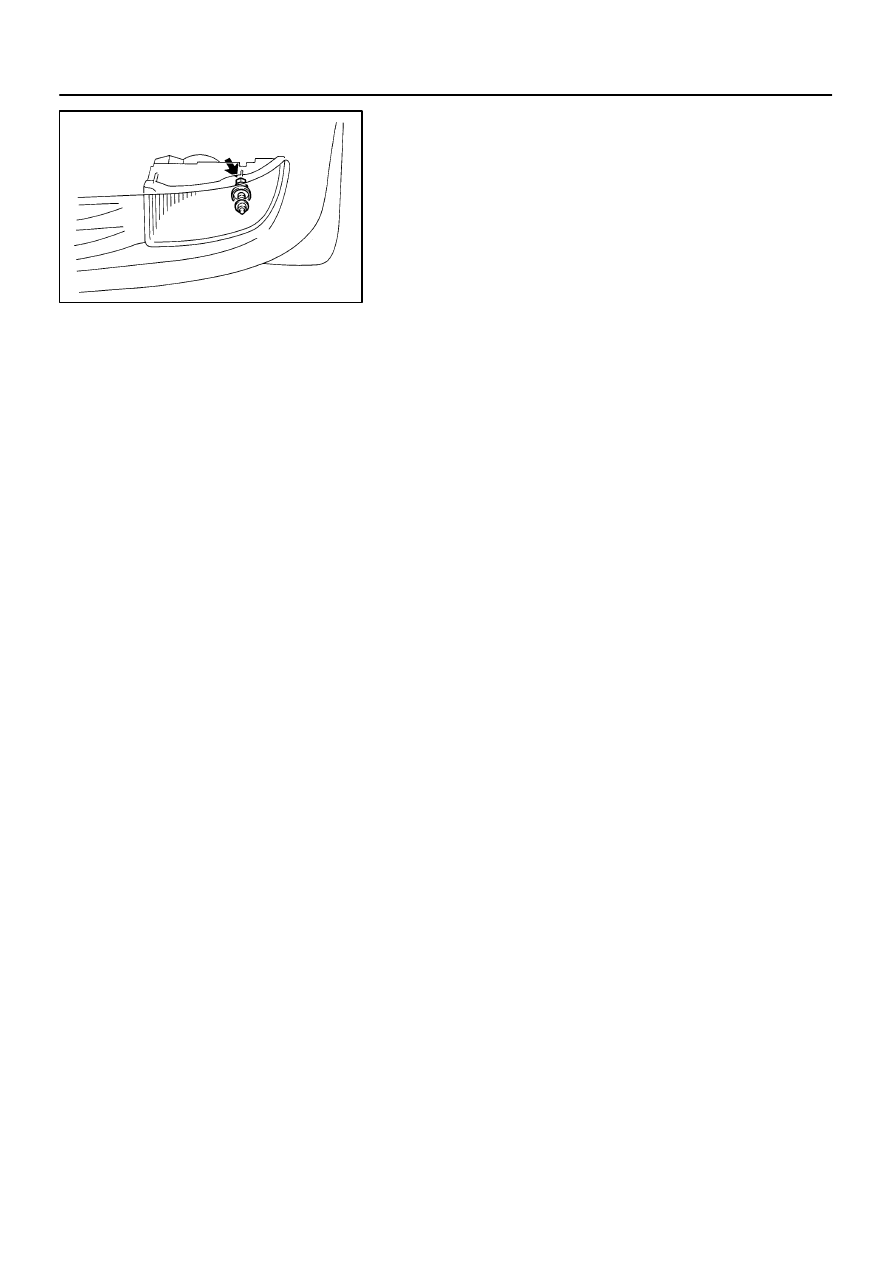

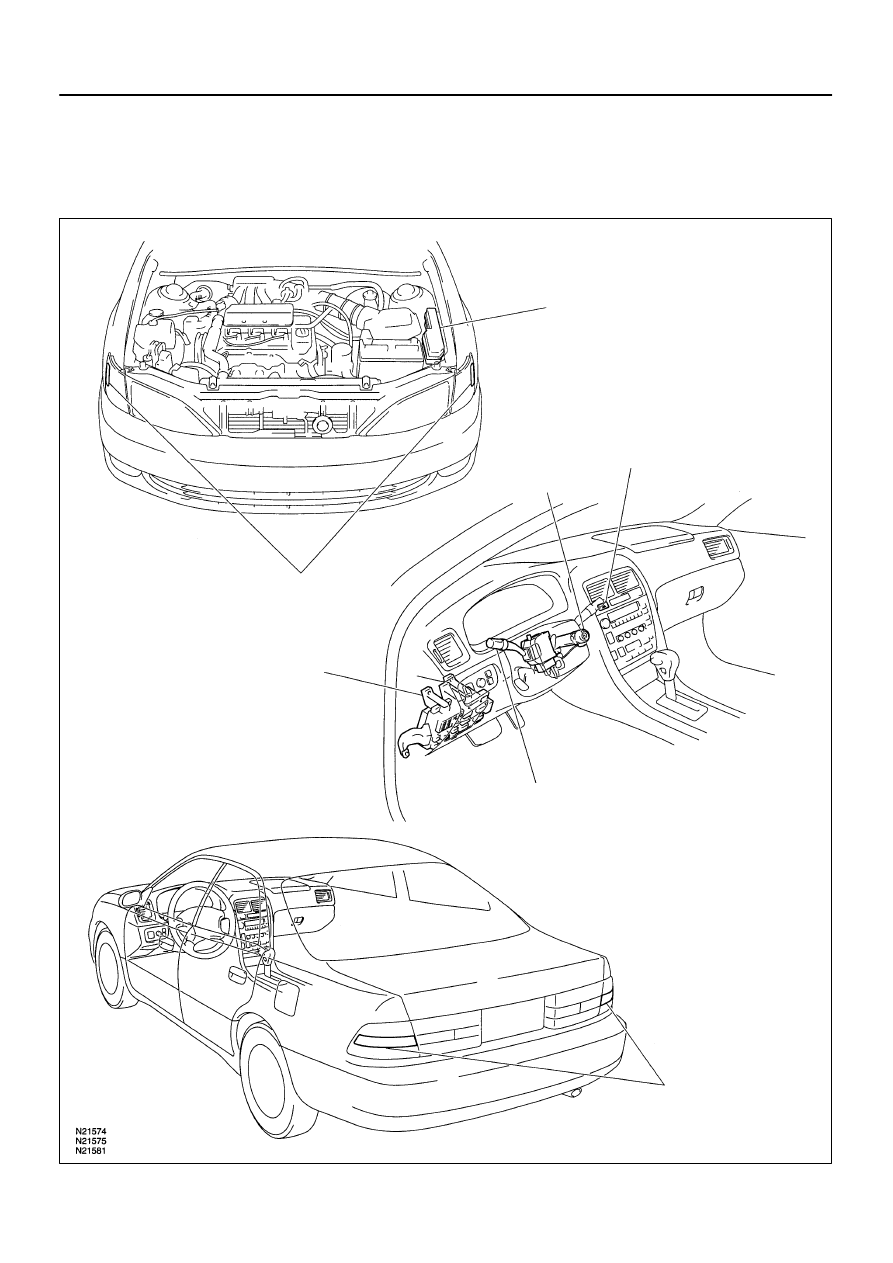

FOG LIGHT SYSTEM
1420
1997 LEXUS ES300 (RM511U)
INSPECTION
1.

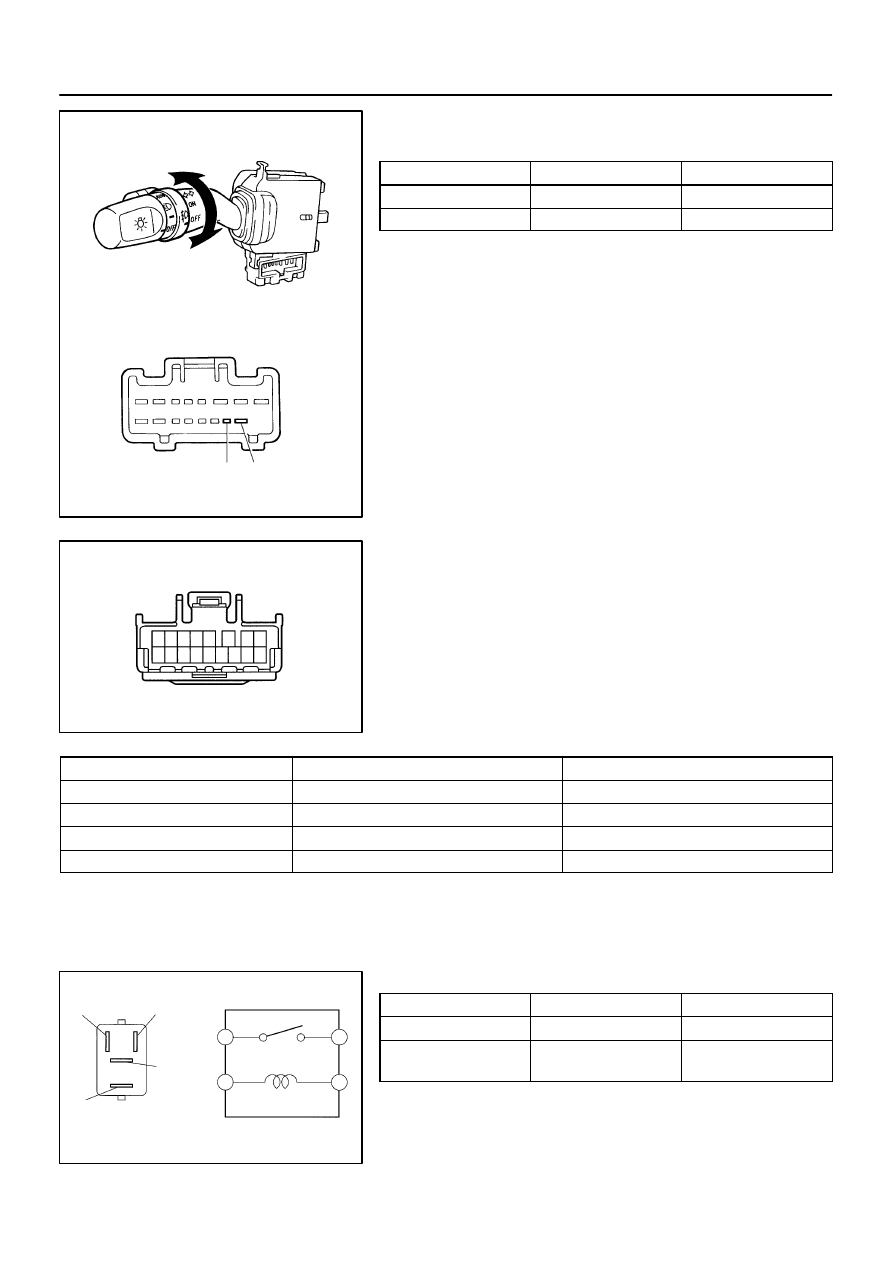

INSPECT FOG LIGHT SWITCH CONTINUITY
Switch position
Tester connection
Specified condition
OFF
–
No continuity
ON
10 – 11
Continuity
If continuity is not as specified, replace the switch.
2.
INSPECT COMBINATION SWITCH CIRCUIT
Connect the wire harness side connector to the combination
switch and inspect wire harness side connector from the back
side.
Tester connection
Condition
Specified condition
10– Ground
Headlight dimmer switch High Beam or Flash
No continuity
10– Ground
Headlight dimmer switch Low Beam
Continuity
11 – Ground
Light control switch OFF or TAIL
No voltage
11 – Ground
Light control switch HEAD
Battery positive voltage
If the circuit is not as specified, inspect the circuit connected to
other parts.
3.
INSPECT FOG LIGHT RELAY CONTINUITY
Condition
Tester connection
Specified condition
Constant
1 – 2
Continuity
Apply B+ between
terminals 1 and 2.
3 – 5
Continuity
If continuity is not as specified, replace the relay.
