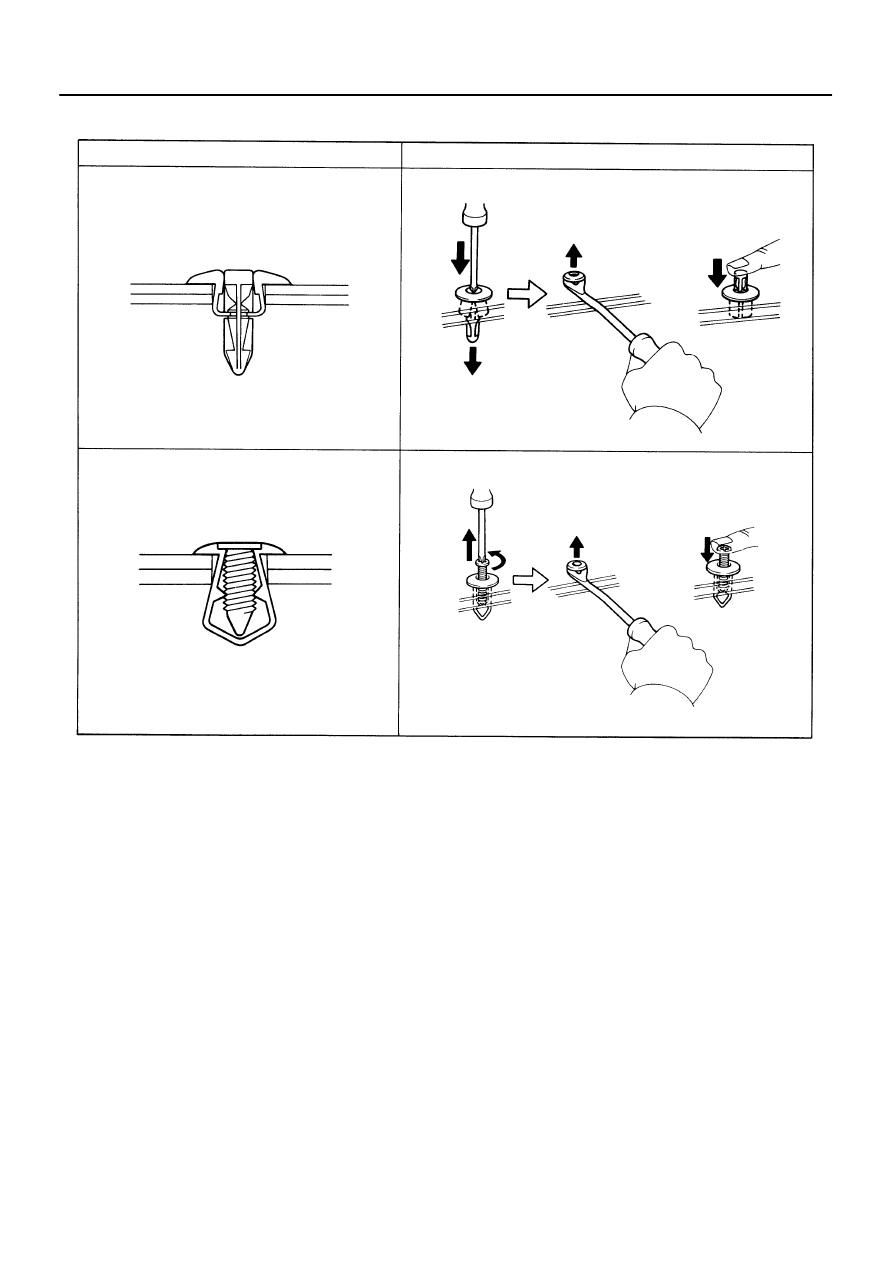

CLIP

1180

1997 LEXUS ES300   (RM511U)

BO094–02

–

BODY

SRS AIRBAG

BO–3

1181

1997 LEXUS ES300   (RM511U)

SRS AIRBAG

PRECAUTION

The LEXUS ES300 is equipped with an SRS (Supplemental Restraint System) such as the driver airbag

and front passenger airbag. Failure to carry out service operation in the correct sequence could cause the

SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing (in-
cluding removal or installation of parts, inspection or replacement), be sure to read the precautionary notices
in the RS section.

BO095–05

N21844

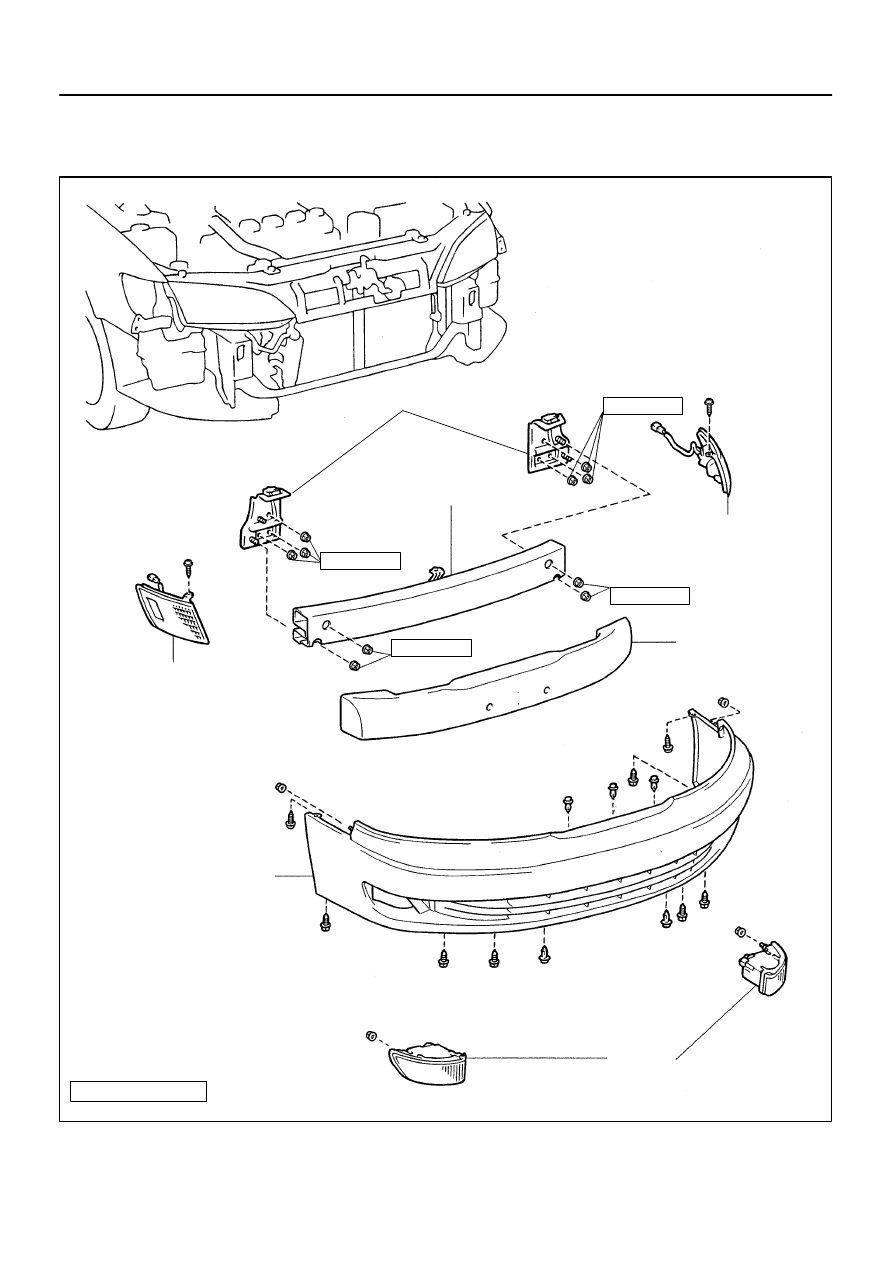

Front Turn
Signal Light

Front Bumper Cover

Fog Light

Energy Absorber

Front Turn
Signal Light

Reinforcement

N·m (kgf·cm, ft·lbf) : Specified torque

34 (350, 25)

34 (350, 25)

34 (350, 25)

34 (350, 25)

Front Bumper Arm

BO–4

–

BODY

FRONT BUMPER

1182

1997 LEXUS ES300   (RM511U)

FRONT BUMPER

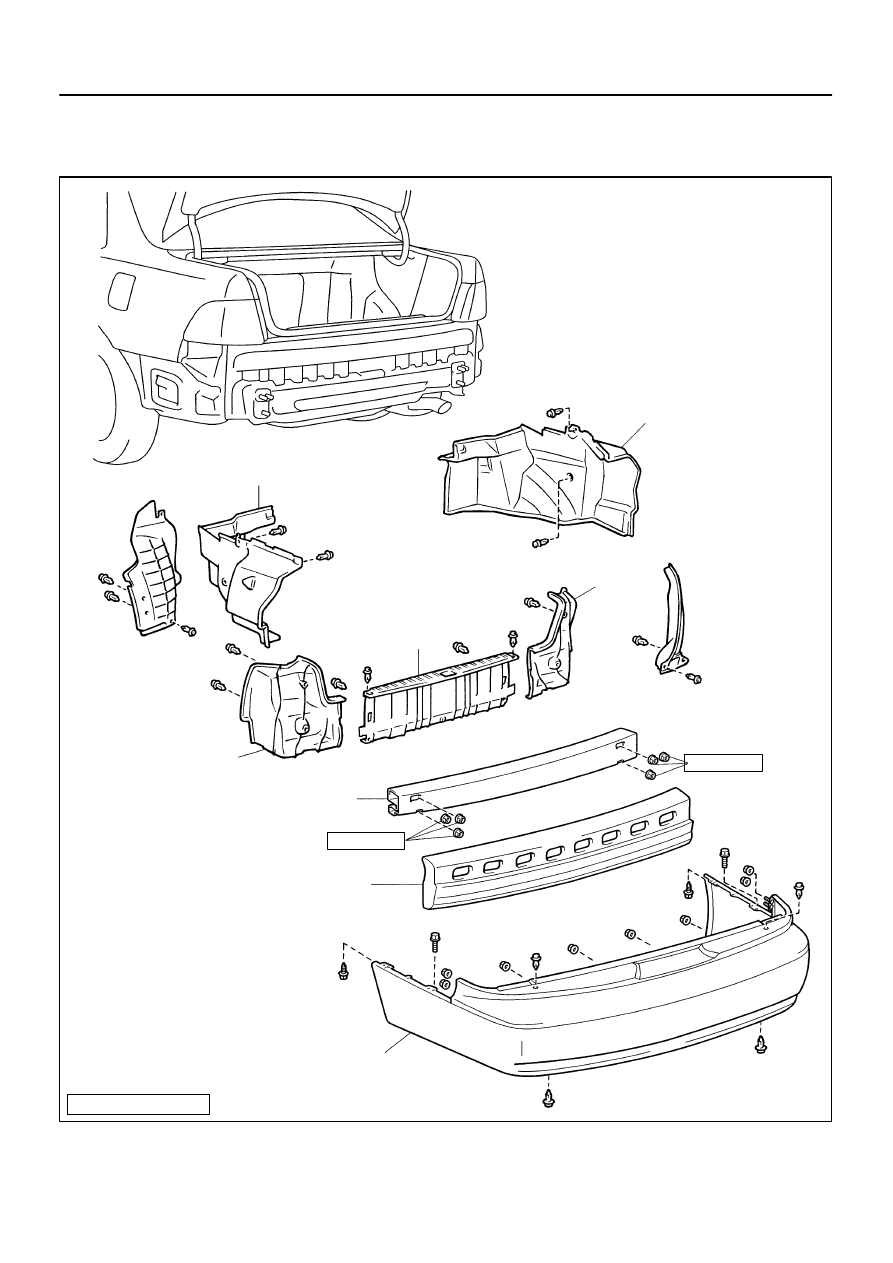

COMPONENTS

BO096–01

H02888

Inner LH Cover
Luggage Compartment Trim

Inner RH Cover
Luggage Compartment

RH Rear Floor
Finish Side Plate

Rear Floor
Finish Plate

LH Rear Floor
Finish Side Plate

Reinforcement

Energy Absorber

Rear Bumper Cover

34 (350, 25)

34 (350, 25)

N·m (kgf·cm, ft·lbf)

: Specified torque

–

BODY

REAR BUMPER

BO–5

1183

1997 LEXUS ES300   (RM511U)

REAR BUMPER

COMPONENTS
